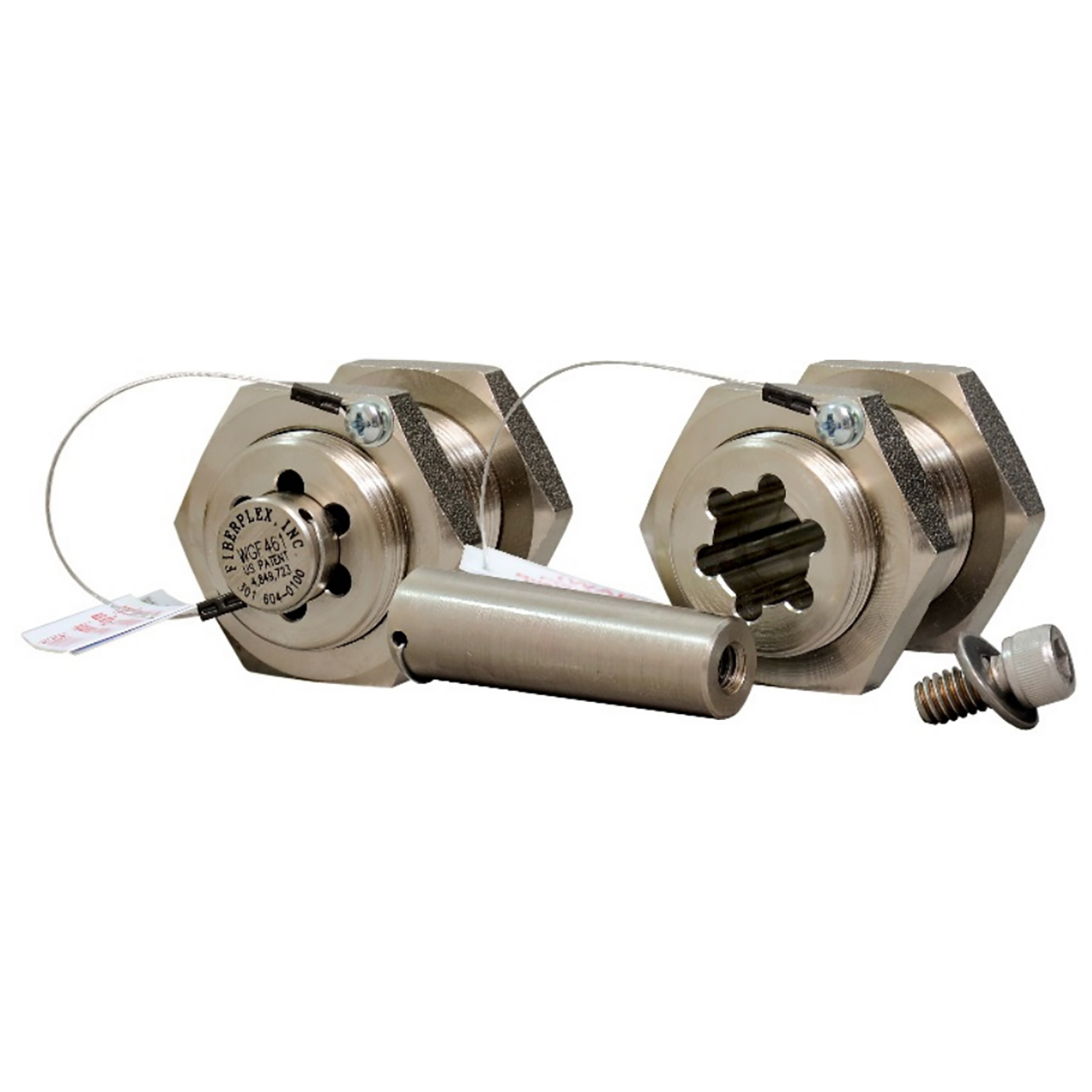

The FiberPlex WGF-461 was designed to meet MIL-461 EMC specifications by providing 100dB attenuation for frequencies up to 40GHz. It provides a means of bringing six pre-terminated fiber optic cables into a shielded enclosure while maintaining the enclosure's radio frequency isolation integrity. The filter has a patented removable center plug, which is surrounded by six waveguide bores. When the center plug is removed, connectorized fiber optic cables can be inserted into the peripheral cable sized slots.

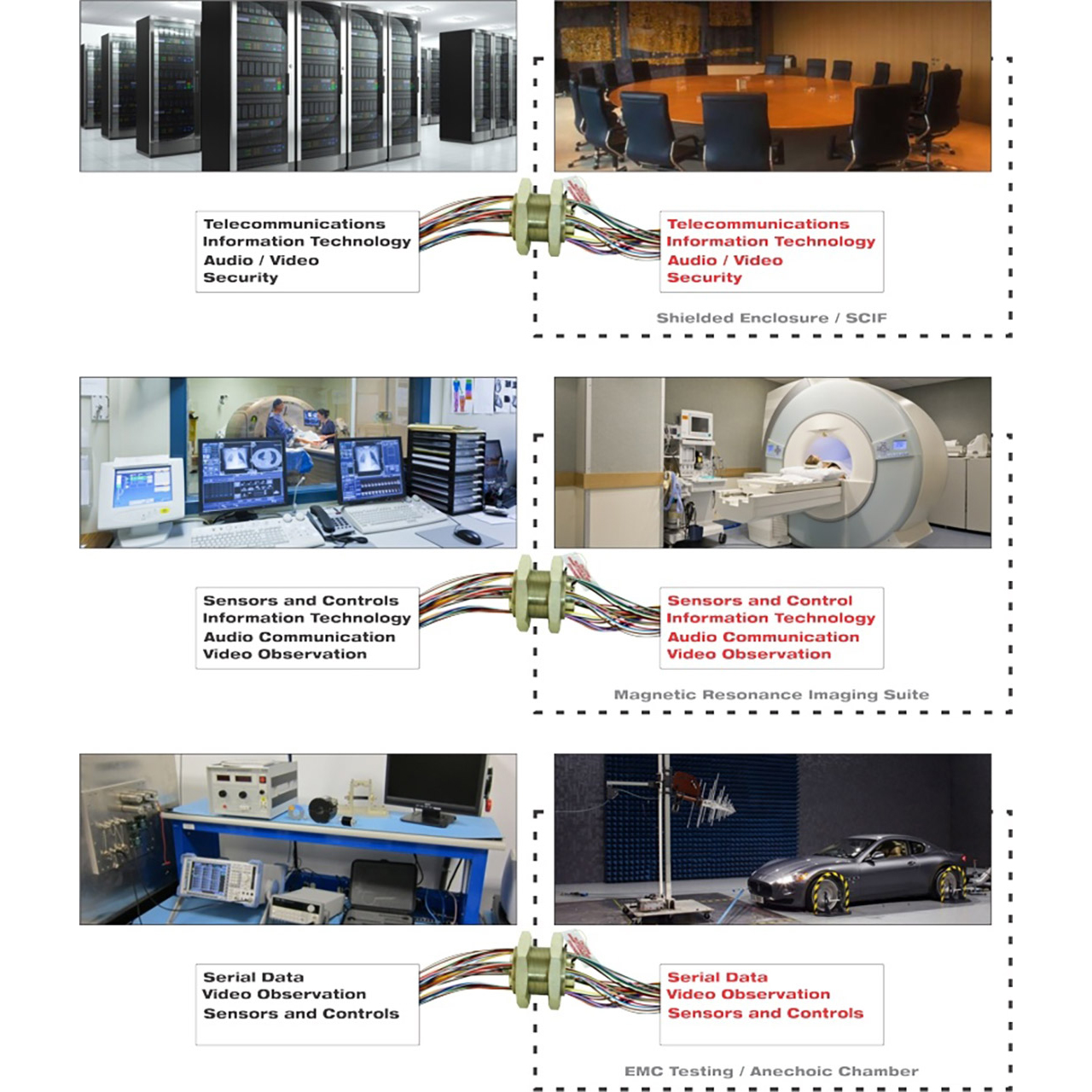

Applications:
• SCIF/TEMPEST Enclosures
• EMC Testing
• RF Testing
• Manufacturing
• MRI/Medical
• Anechoic Chambers
