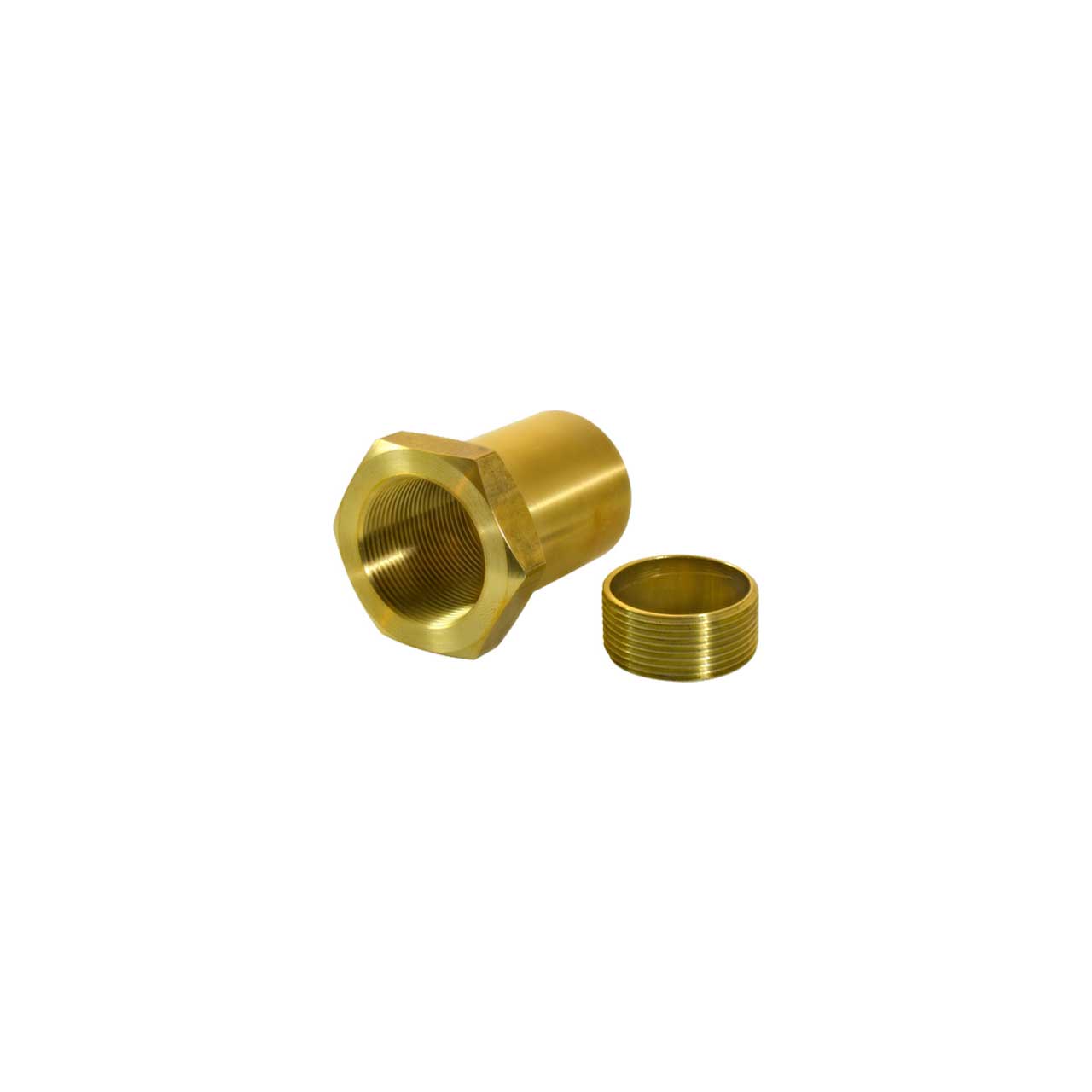

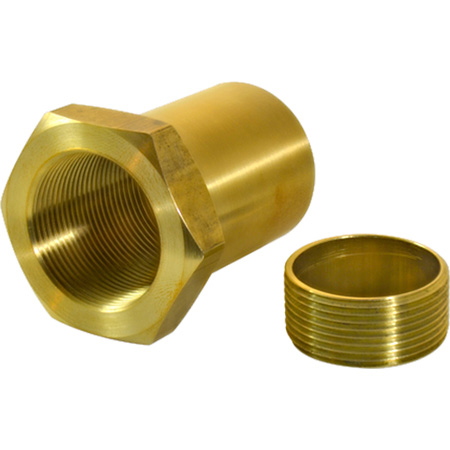

FiberPlex WEN-6-1.5 Waveguide Extension Nut for Use with WGF-6 WGF-461 WGF-4 1.50 Inch long

ITEM #: WEN-6-1-5 MFG #: WEN-6-1.5

Primary Image
Free Shipping with $49 Minimum Order

Our Price:


Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup

    WEN-6-1.5 - Overview

    FiberPlex WGF series of waveguide filters provide a way of bringing pre-terminated fiber optic cables into a shielded enclosure while maintaining the enclosure's radio frequency isolation integrity. The diameter and length of the bore are precisely calculated to provide a measured attenuation at a specific cutoff frequency. This works extremely well, however occasionally the wall of the shielded enclosure, SCIF or chamber that needs to be penetrated is thicker than the calculated length of the waveguide filter.

    Previously this length limitation has been overcome with the combination of a brass waveguide extension tube and a coupling nut as can be seen in the photo below. This solution works perfectly and can accommodate even very thick walls, however it does create a protrusion on either side of the wall that could be at best unsightly and at worst a safety hazard. The FiberPlex Technologies WEN-6 solves this problem by providing an extension solution that maintains the mathematically calculated dimensions of the waveguide while creating a flush mounting solution.

    • Features:

      • Extends the length of a FiberPlex waveguide
      • Creates a clean flush-mount solution
      • Simple installation
    • Specifications:

      • Extension Length (in): 1.5 = Standard Unit

    WEN-6-1.5 - Required Accessories
