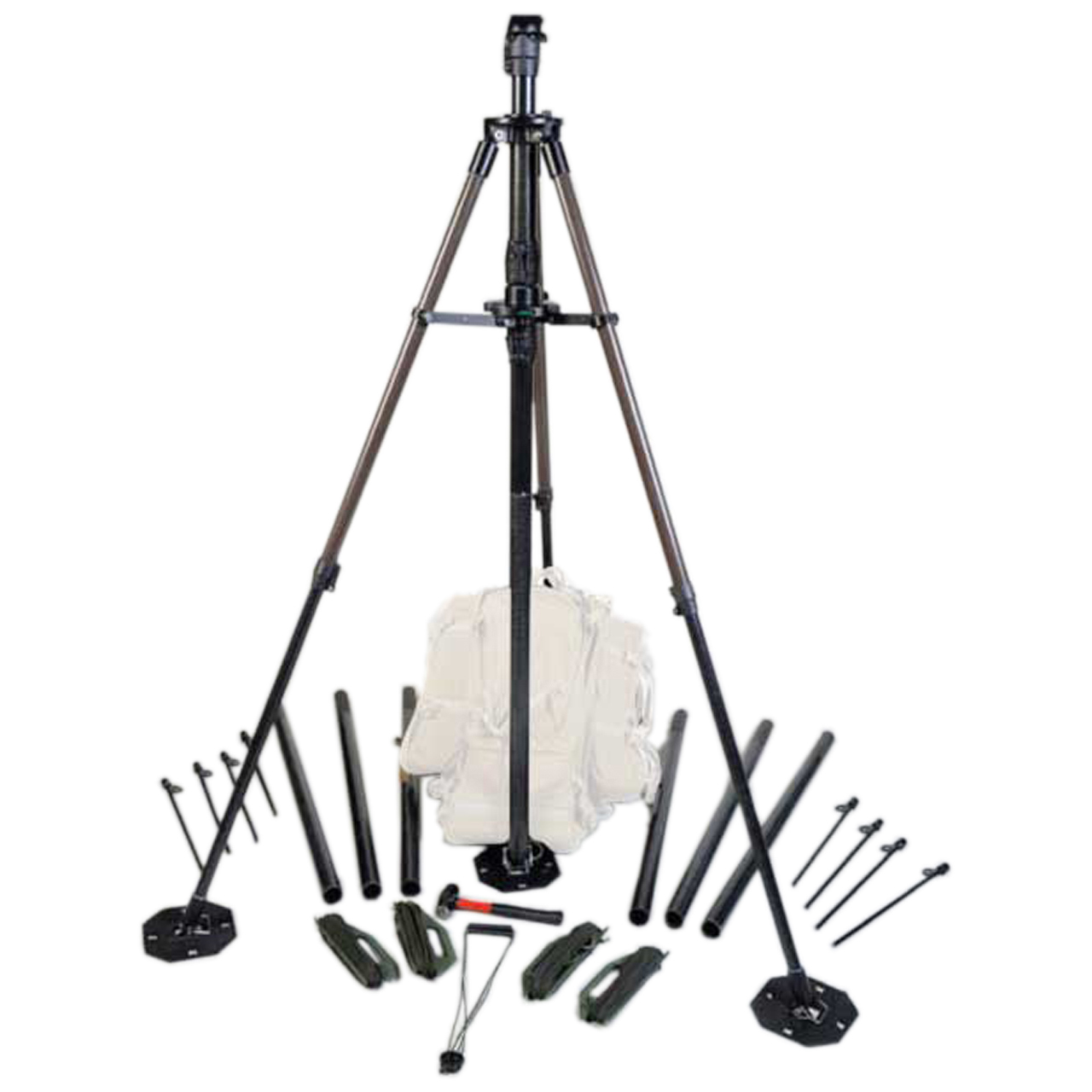

The Will-Burt 714042414 Ranger Pack™ is a highly portable, lightweight mast system designed to fit into a custom designed backpack (not included!). For version with the backpack see WILB-714042410. At a total system weight of 65 pounds (30 kilograms), the Ranger Pack is an ideal portable solution to move from the base to an operating area.

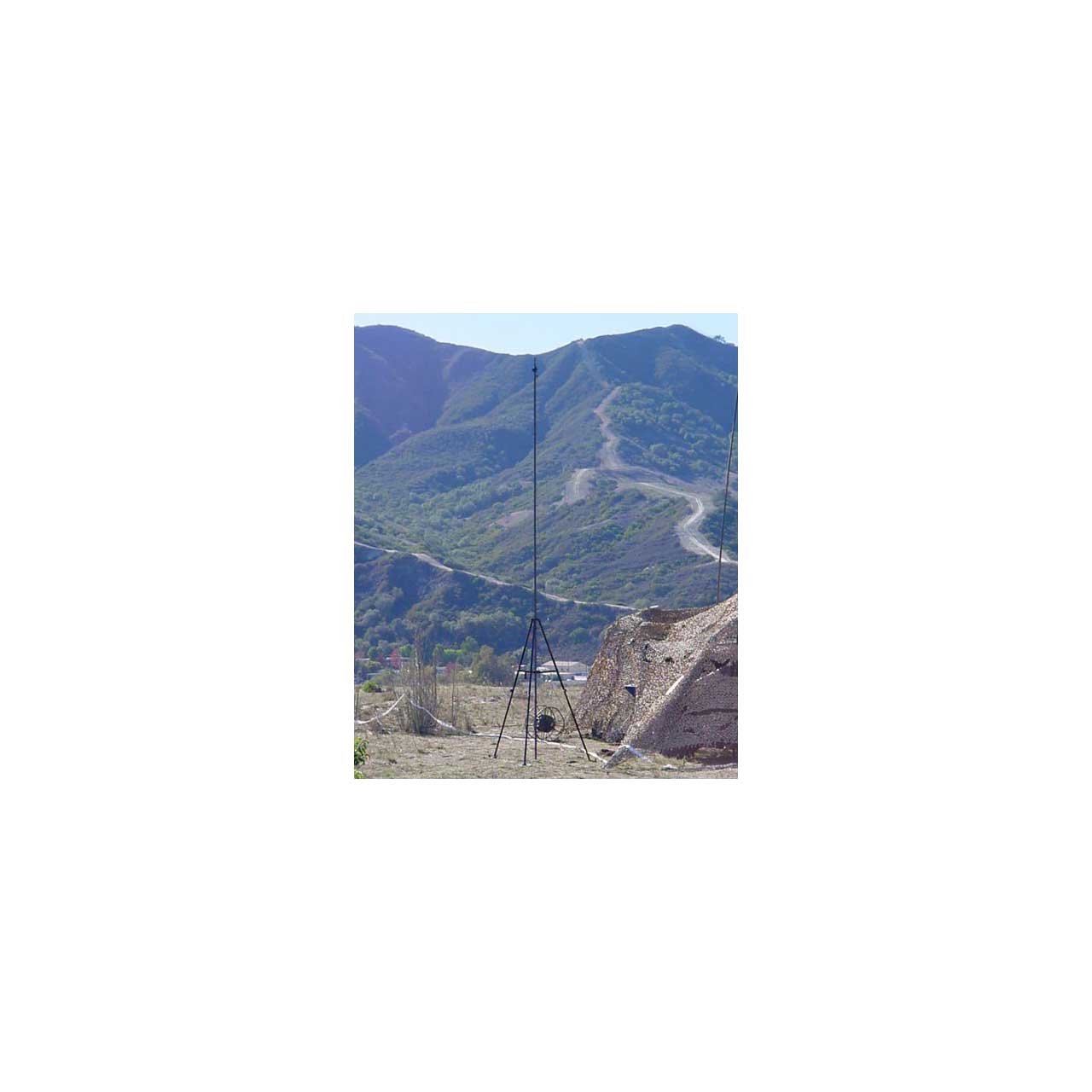

The Ranger Pack System can be deployed quickly by lifting 3 foot sections with a one or two man team lifting up to 50 pound payload (23 kilograms) to 24 feet (7.3 meters) above the ground. This system can be deployed guyed or un-guyed depending on wind or mission profile. The adjustable tripod allows for level deployment on uneven ground. Each tube section is made from high strength carbon fiber, giving high stability with a light weight mast. The system comes with a 6 inch (150 mm) diameter payload adapter or a custom an interface to fit your payload can be designed.
