Delvcam Broadcast 3GHD/SD Multiformat Dual 7-Inch Rackmount Video Monitor
  • Delvcam Broadcast 3GHD/SD Multiformat Dual 7-Inch Rackmount Video Monitor
  • Delvcam Broadcast 3GHD/SD Multiformat Dual 7-Inch Rackmount Video Monitor
Questions? Ask a Markertek Expert:
800-522-2025 Email

Delvcam Broadcast 3GHD/SD Multiformat Dual 7-Inch Rackmount Video Monitor

Item #: DELV-2LCD7-3GHD   •   MFG #: DELV-2LCD7-3GHD


List Price:$730.00
Our Price:$693.00

free ship
Availability: In Stock
Item is Available for immediate shipping from our warehouse.



    Super Reliable and Low-Cost 3G-HD Broadcast Performance with Multiformat Flexibility!

    The Delvcam DELV-2LCD7-3GHD brings 3G-HD broadcast quality & multiformat flexibility together in a low-cost rackmount video production monitor. With dual 7" IPS screens, SD, HDMI, HD and 3G-SDI multiformat capability and tally interface, it's the perfect professional video monitoring solution in the studio, live broadcast truck or fly-pack. The composite inputs are NTSC/PAL and SECAM compatible.

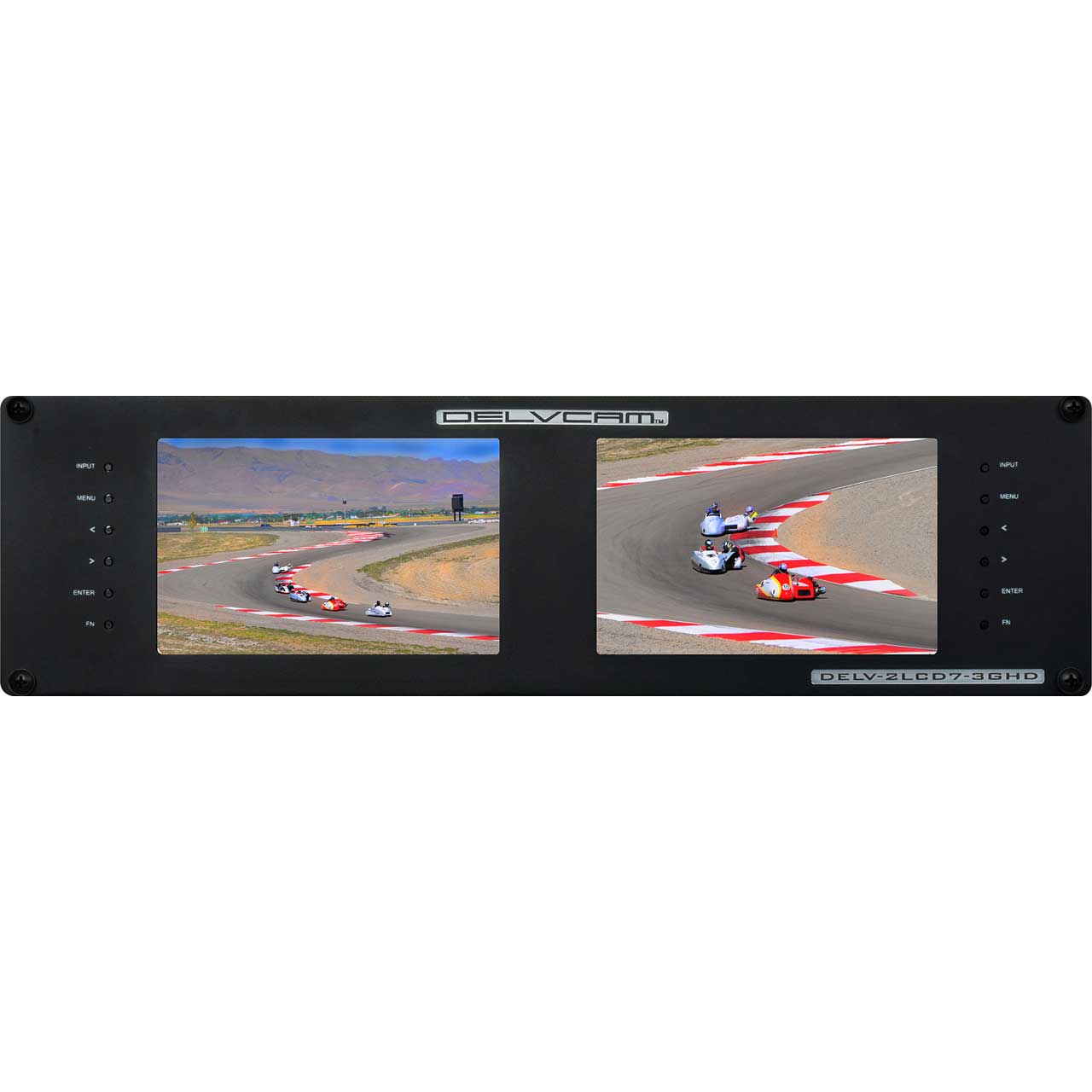

    Ultra Slim Dual 7" Displays
    Dual 7" IPS panels with 1280x800 high resolution, 178° wide viewing angles, high brightness & contrast and fast response time.

    Includes 12v DC Power Supply.

    • Features

      • Dual 7" Rackmount
      • SDI ,HDMI, Composite or Component
      • TALLY interface with Indicating Light
      • 3RU Metal Housing
      • 178° Wide Viewing Angles
      • High Contrast: 800:1
      • Fast Response Time
      • Ultra-slim Design
      • Active Buffered Outputs
    • Specifications

      • Panel: 7"x2 LED backlit
      • Physical Resolution: 1280x800
      • Aspect Ratio: 16:9
      • Brightness: 400cd
      • Contrast: 800: 1
      • Viewing Angle: 178°/ 178°(H/V) (IPS)

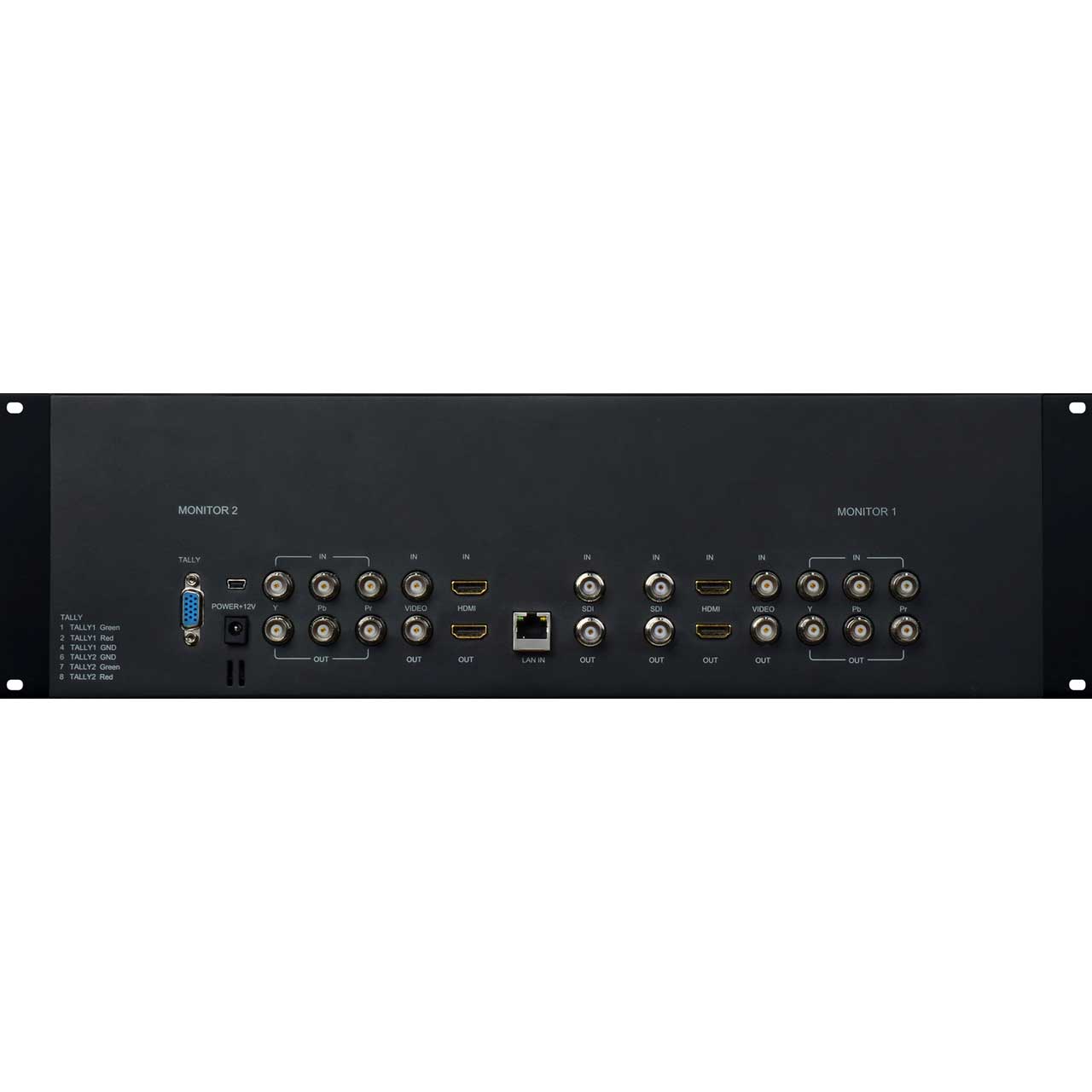

      • Input Signals: 3G-SDIx2, HDMIx2, YPbPrx6(BNC), Compositex2, TALLYx2, LANx1(coming soon), USB2.0(mini)x1
      • Output Signal: 3G-SDIx2, HDMIx2, YPbPrx6(BNC), Compositex2
      • Compatibility: SDI A, SDI B limited to1080i60
      • Response Time (ms): HDMI 7.085, SDI 2.498, YPBPR 1.494, AV 1.893
      • Current: 1500mA
      • Input Voltage: DC 12V
      • Power Consumption: =18W
      • Operating Temperature: -20~60
      • Storage Temperature: -30~70
      • Dimension(LWD): 19 x 5.26 x 1.00 inch
      • Weight: 6.36 lbs
    • Item Includes

      • 12VDC Power Cable
      • Tally Connector
    • Warranty

      • 1 Year
