WILLIAMS AV DW SYS2ACM Two-Way Digi-Wave 6-Person Advanced Portable Comms System with Six Transceivers & Six Headsets

ITEM #: WLS-DW-SYS2ACM MFG #: DW-SYS2ACM

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$7,145.00

Our Price:

$6,680.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DW-SYS2ACM - Overview

Provides Full Duplex Communication in Broadcast, Theater, and Live Events.

In the fast-paced world of broadcasting, live theater productions, and live events, seamless wireless intercom communication among team members is essential for everyone to be in the loop and aware of cues. Digi-Wave's wireless production intercom systems provide reliable, full-duplex communication, enabling everyone from directors to lighting to everyone in between to stay connected with reliable, clear audio.

Digi-Wave Advanced Comms Module (ACM) system is a portable, two-way communication system designed for production intercom. This WILLIAMS AV DW SYS2ACM 6-person, Digi-Wave ACM wireless intercom system is fully portable and provides full duplex communication in different settings such as broadcast, theater, and live events. Digi-Wave ACM delivers all the core features production and event coordinator teams need such as all call, portability, and subgroup division - at an affordable price.

Customized Subgroup Naming
Admins can customize subgroups with up to 6 characters or choose from common subgroups like camera, audio, and stage. This customization helps team members quickly identify their subgroups and navigate communication more smoothly.

Quick, Seamless Subgroup Switching
One or several leaders can quickly switch between subgroups, ensuring seamless coordination and maximum efficiency.

Control Function
The control function empowers administrators to program all system settings offline using a Digi-Wave ACM transmitter. This device enables convenient system updates, allowing administrators to easily manage communication settings.

Affordable Intercom
All of the core features production teams look for in a professional product intercom systems, plus the reliability and clear audio Digi-Wave is known for at a price that makes it accessible to small and mid-sized organizations.

All Day Battery Life
All-day use with up to 16 hours of run time on a single charge.

How It Works:
All Call - Activate All-Call function effortlessly from designated devices with just a press of a button. Activating all call mutes all other devices and allowing stage managers, broadcast directors, and event coordinators to announce stage cues, commercial break endings, or emergencies to all devices at once.
Flexible Access Point - Choose any centralized ACM device to act as a flexible access point to maximize the range of the system.

Please Note: Existing Digi-Wave 400 DLTs, with firmware from January 2021 or later, can be updated with the Advanced Comms Module firmware.

  • Features:

    • Fully Mobile, No Base Station
    • Flexible Access Point
    • All Call Function
    • Four Subgroups
    • Customized Subgroup Naming
    • Quick, Seamless Subgroup Switching
    • Control Function
    • All Day Battery Life
    • Private Line Functionality

  • Specifications:

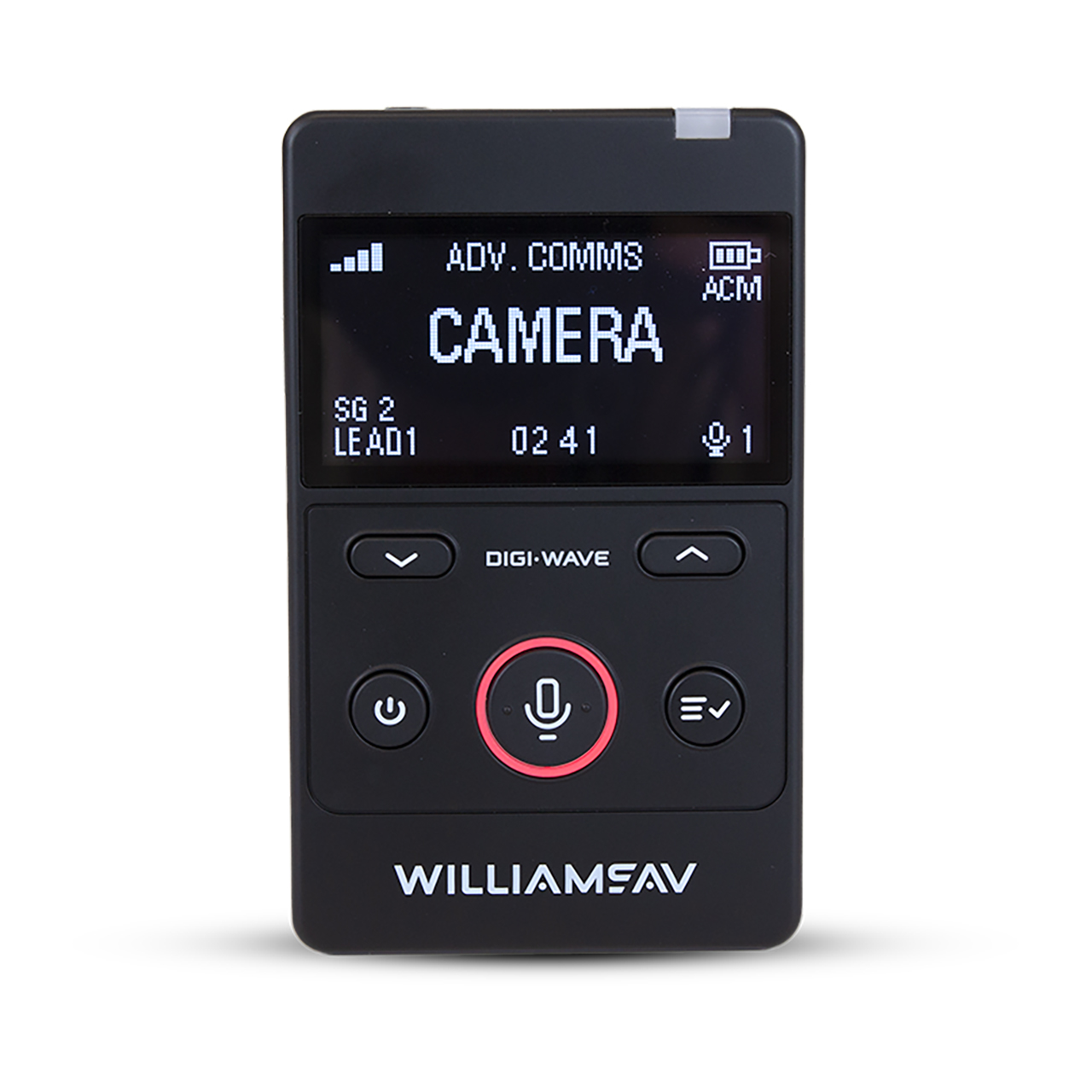

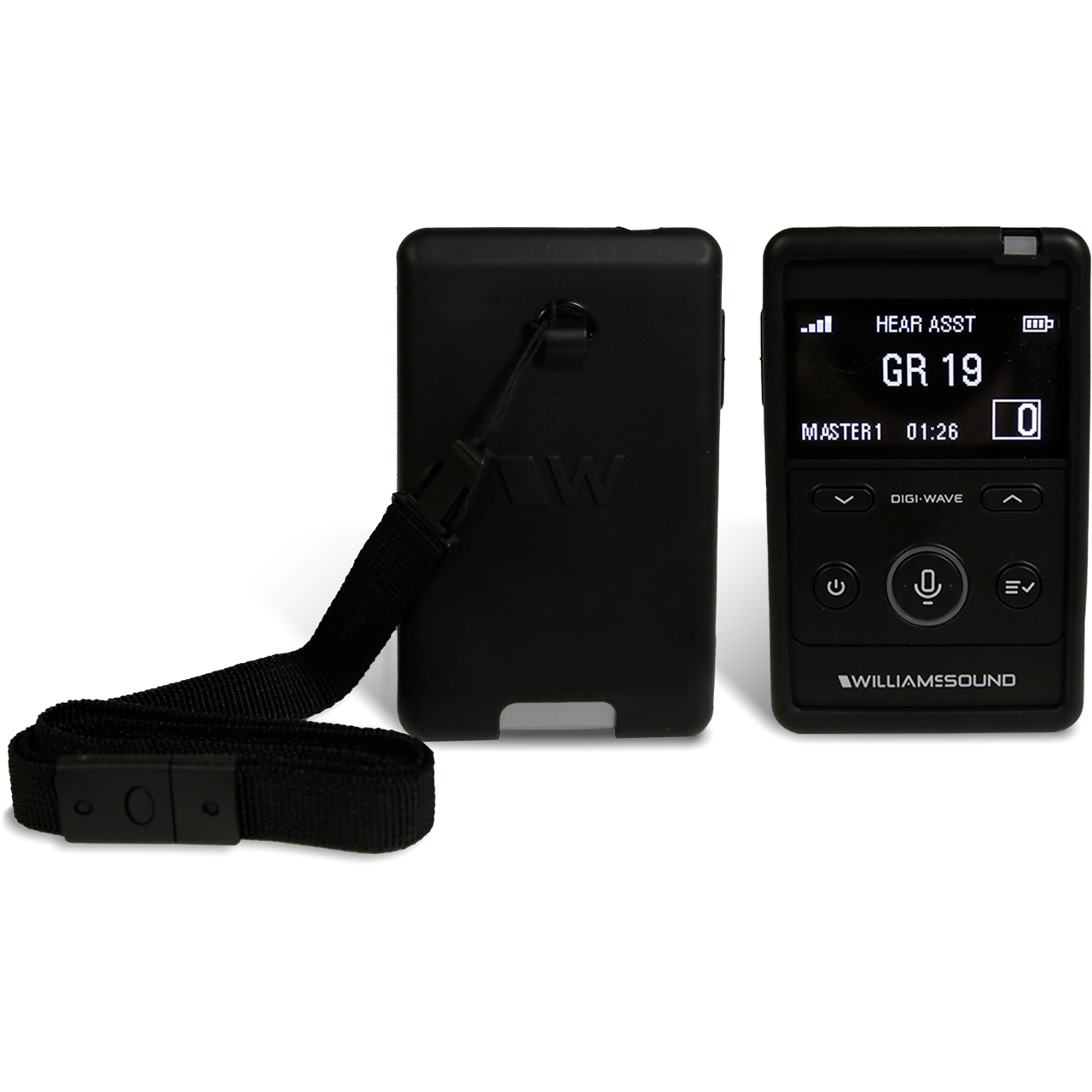

      DLT 400-ACM
    • Dimensions: 2.60" x 4.22" x 0.50" (66mm x 107.3mm x 12.6mm)
    • Weight: 3.3oz (94g) including battery
    • Color: Black/Silver (Front/Back)
    • Case Material: Black ABS plastic
    • Battery Type: Lithium Polymer with smart charge built into transceiver; 1800mAH
    • Battery Life: Up to 16 hrs talk time per charge @ 1ch Tx and 1ch Rx
    • Charge Time: 5 hrs. approx.
    • System Voltages: OLED 14VDC; RF 5VDC; Logic 3.3 VDC
    • Operating Frequencies:
      - 2.4GHz (ISM band)
      - 2402 - 2476 MHz FHSS
    • Audio Frequency Response (-3dB Level):
      - INT24, Q&A INTP, ADV. Comms, Intercom and Court Mode: 100Hz - 7,200Hz
      - Other Modes: 100Hz - 11,500Hz
    • SNR: 73dB (A-weighted, default Rx volume with mic input)
    • THD: 0.1% (Default Volume, 1kHz)
    • Microphone Input: Internal mic and 3.5mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range
    • Line Input: USB-C, Adjustable level
    • Headphone Output:
      - 3.5mm TRRS headphone jack
      - 25mW, R 32Ω
    • Audio Output:
      - Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)
      - Line: USB-C, Adjustable level
    • Range: Up to 900ft (274m)
    • Modulation: FSK
    • RF Output: 19dBm Typical
    • Security: 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
    • Side Tone: -6dB below volume, tone variation
    • Indicators: OLED
    • LEDs: Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
    • Charging Connectors: USB-C; Two contacts for use with CHG 412
    • Compatible Receiver: DLR 400 RCH (with firmware 1.3.0 or greater)
    • Operating Temperature Range: 14°F - 113°F (-10°C - 45°C)
    • Approvals: FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki

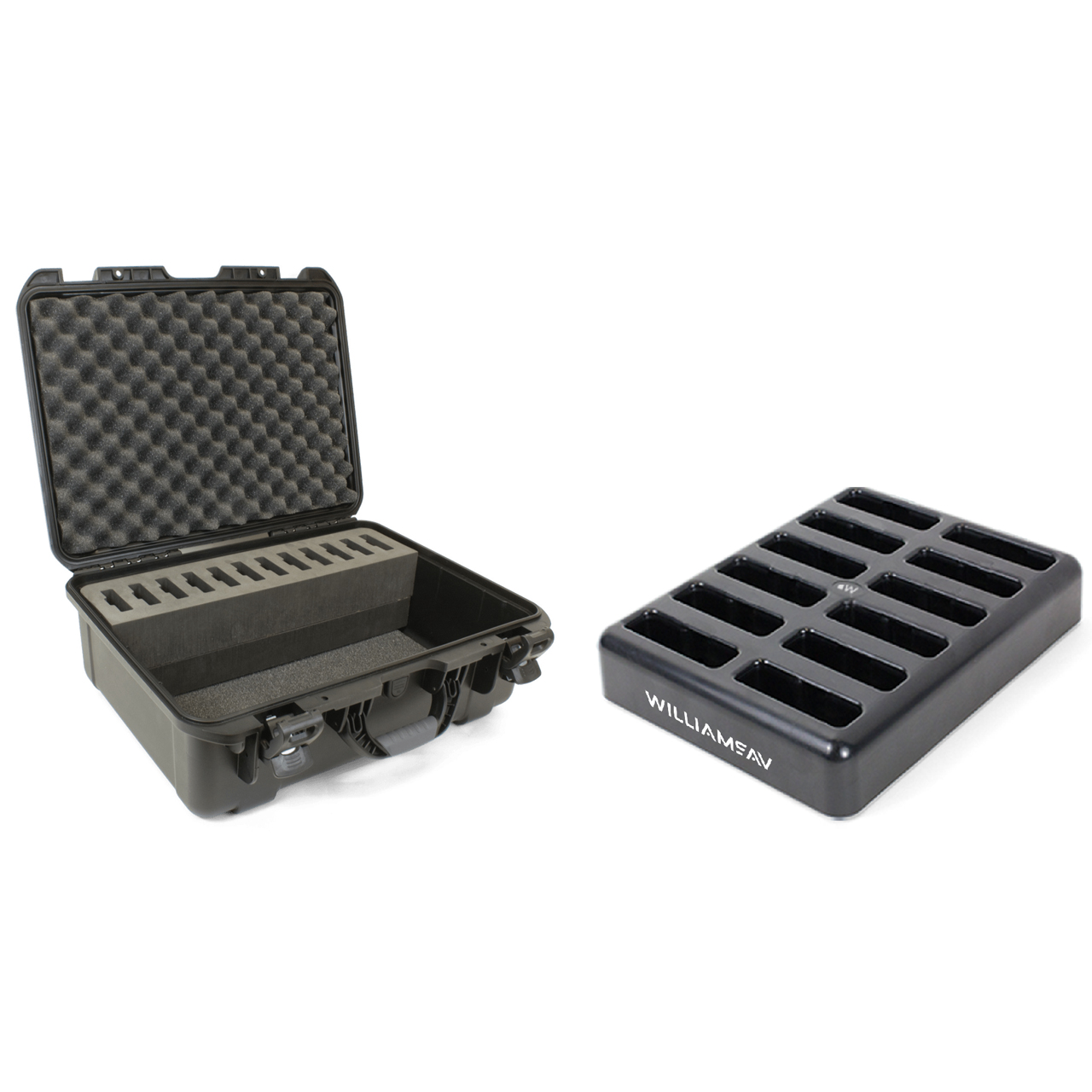

      CHG 412
    • Dimensions: 9.00" x 7.00" x 1.50" (23cm x 17.8cm x 3.8cm)
    • Weight: 1.8lbs (845g)
    • Enclosure: Black, ABS plastic with metal base
    • Power Supply Input: TFP 066, 90V - 240VAC input, 1.5A max
    • Power Supply: Universal DC adapter, 5VDC - 6A output, center positive
    • Output Rating: 5VDC, 0.5A per bay
    • Charging Time: ~5 hours
    • Unit Capacity: 12 Units
    • Compatible Units:
      - Transceiver: DLT 400
      - Receiver: DLR 400 RCH
    • Indicators: Charge status indicators on DLT or DLR
    • Approvals: CE, FCC, WEEE, RoHS, CB

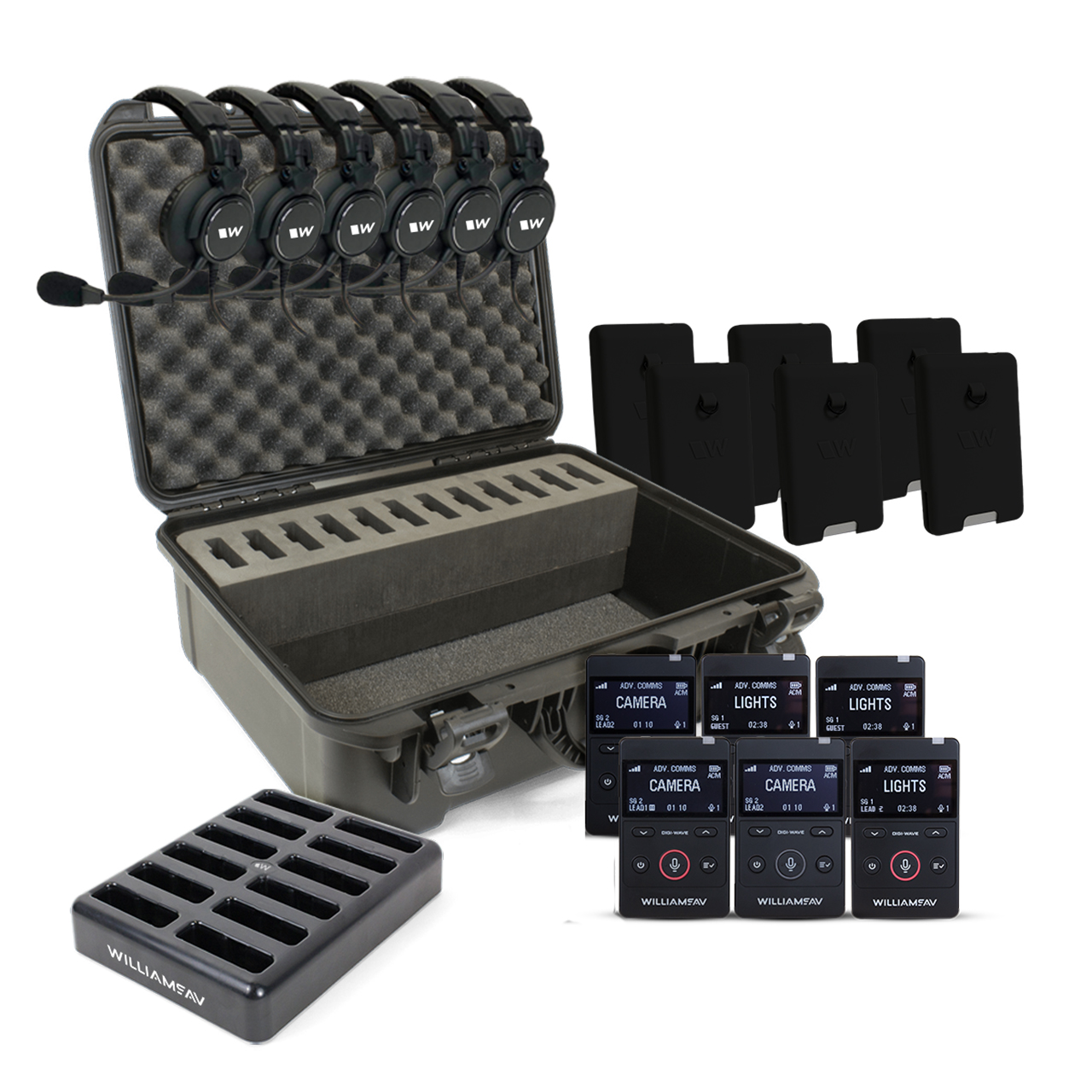

  • Item Includes:

    • 6x Digi-Wave ACM Transceivers

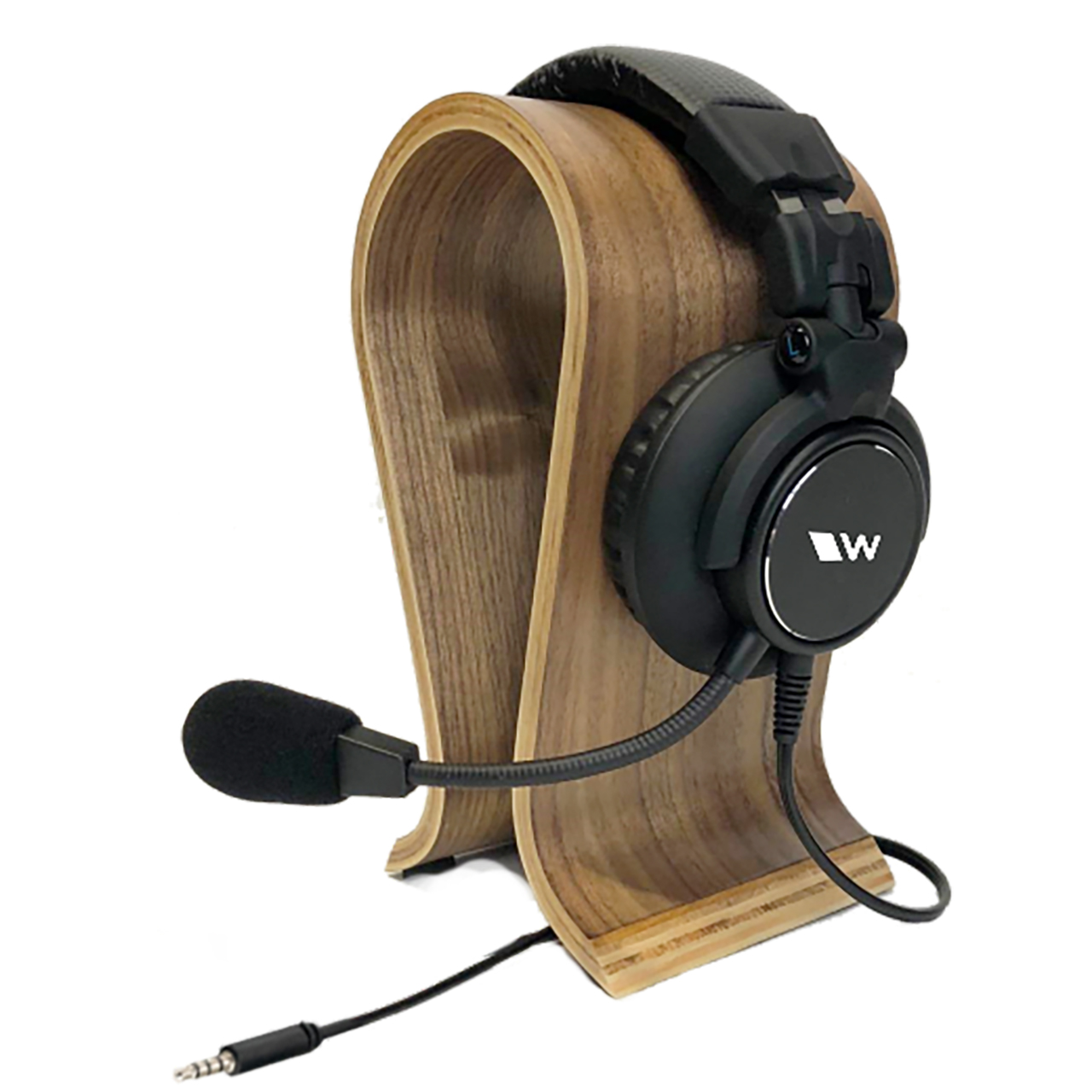

    • 6x Single-Muff Headset with Microphone and TRRS Plug
    • 6x Protective Carry Case
    • 1x 12-Bay Charger with Power Supply
    • 1x Carry Case

  • Warranty:

    • 2 Years Warranty
