WILLIAMS AV DWD 102 Digi-Wave Two-Bay Docking Station for DLT Transceivers or DLR Receivers - Li-Ion

ITEM #: WLS-DWD-102 MFG #: DWD 102

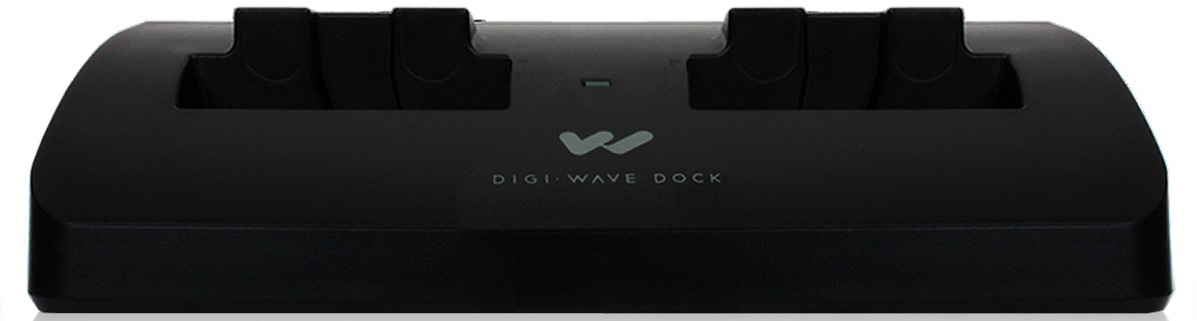

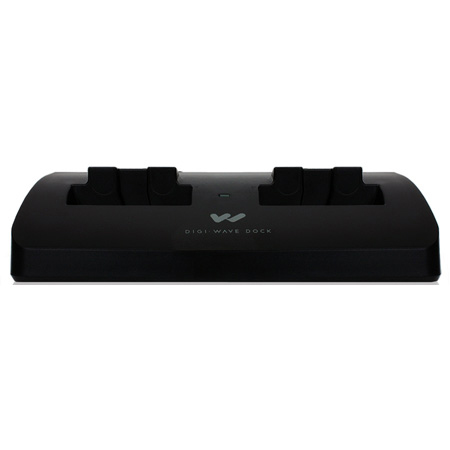

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WLS-DWD-102

DWD 102 - Overview

The DWD 102 Digi-Wave Dock offers an innovative extension to the Digi-Wave two-way wireless communication system from WILLIAMS AV. It provides a simple, flexible way to connect portable Digi-Wave systems to other fixed systems. The connection begins when a Digi-Wave transceiver or receiver is simply plugged into the Dock. The Dock provides continuous power and/or charging for two Digi-Wave devices, and has separate audio inputs and outputs in each of its bays.

PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • Easy access to all sound systems
    • Separate inputs and outputs in each bay RCA or XLR input/output option
    • Charges DLT 300, DLT 100 2.0 transceivers or DLR 360, DLR 60 2.0 receivers
    • Clean, streamlined design


  • Specifications:

    • Dimensions: 8.88" x 4.34" x 2.16" (226 mm x 110 mm x 55 mm) L x W x H
    • Shipping Weight: 1.4 lbs (0.64 kg)
    • Enclosure: Black, heavy duty plastic molded top, with metal base and non-skid rubber feet. White legends on back
    • DC Power Input: 2.5mm ID barrel connector, 24VDC input, 750mA, Center Positive
    • Power Supply: Williams Sound TFP 048
    • Input: 100-240VAC 50/60Hz, 18W
    • Output: 24VDC, 750mA
    • Charging Time: DLT 100 2.0: 5 hours nominal (internal Lithium Polymer Battery)
    • DLR 60 2.0: 5 hours nominal, based on Williams Sound NiMH battery BAT 022-2
    • Unit Capacity: 2 Units: DLT 100 2.0, DLR 60 2.0, or DLR 60. DLT 100 units will charge only (no audio)
    • Indicators: Green LED indicating power at the charger/dock. Charging status is shown on unit being charged
    • Rear Inputs: One set of L/R RCAs and one female XLR per bay
    • Rear Outputs: One set of L/R RCAs and one male XLR per bay
    • Dock Connector: One 30-pin connector per bay. Supports power/charging, audio in, audio out, and control signals
    • Controls: One 2-position switch per bay, for "manual" or "auto" mode
