WILLIAMS AV FM 558 Plus Large-area Dual FM and Wi-Fi Assistive Listening System with 4 FM R38 Receivers

ITEM #: WLS-FM-558 MFG #: FM 558

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,340.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    FM 558 - Overview

    The groundbreaking WILLIAMS AV FM 558 Plus FM Plus Large-area is a Dual FM and Wi-Fi assistive listening system with 4 FM R38 receivers. Features coaxial cable and rack panel kit for professional installation. provides the industry-first choice of using traditional FM receivers or using personal electronic devices over Wi-Fi for hearing assistance. Along with this flexibility comes exceptional audio quality, as the FM + is built on a professional digital audio (DSP) platform.

    The new FM + is designed to support those who want to use their own smartphones and headphones for a more discreet assistive listening experience. Simplicity is also available for those who want a more traditional assistive listening system with a dedicated FM receiver and headset. Venues no longer need to choose between providing FM or Wi-Fi assistive listening systems. FM + supports the iOS and Android WaveCAST Apps and the Wi-Fi Receiver-- in addition to all of the current and legacy Williams Sound FM receivers operating on the 72-76 MHz bandwidth.

    Developed for hearing assistance in public venues, the FM + includes a complete audio processor optimized for the needs of hearing impaired people and are easily integrated with an existing sound system, or used with a microphone as a stand-alone system.

    • Features:

      • Seek-button access to all 17 wideband frequencies in the 72-76 MHz bandwidth
      • Channel-lock capability
      • Battery-saving sleep mode
      • Low-battery indicator
      • Field tunable

    • Specifications:

      • ant 005
      • Use with: PPA T45,PPA T45NET, PPA T27 Transmitters
      • Connector type: F-connector
      • Cable type: RG 59 coax
      • Nominal Impedance: 75 Ohm
      • Total Cable Length: 22 ft
      • Active Antenna Length: 80 in

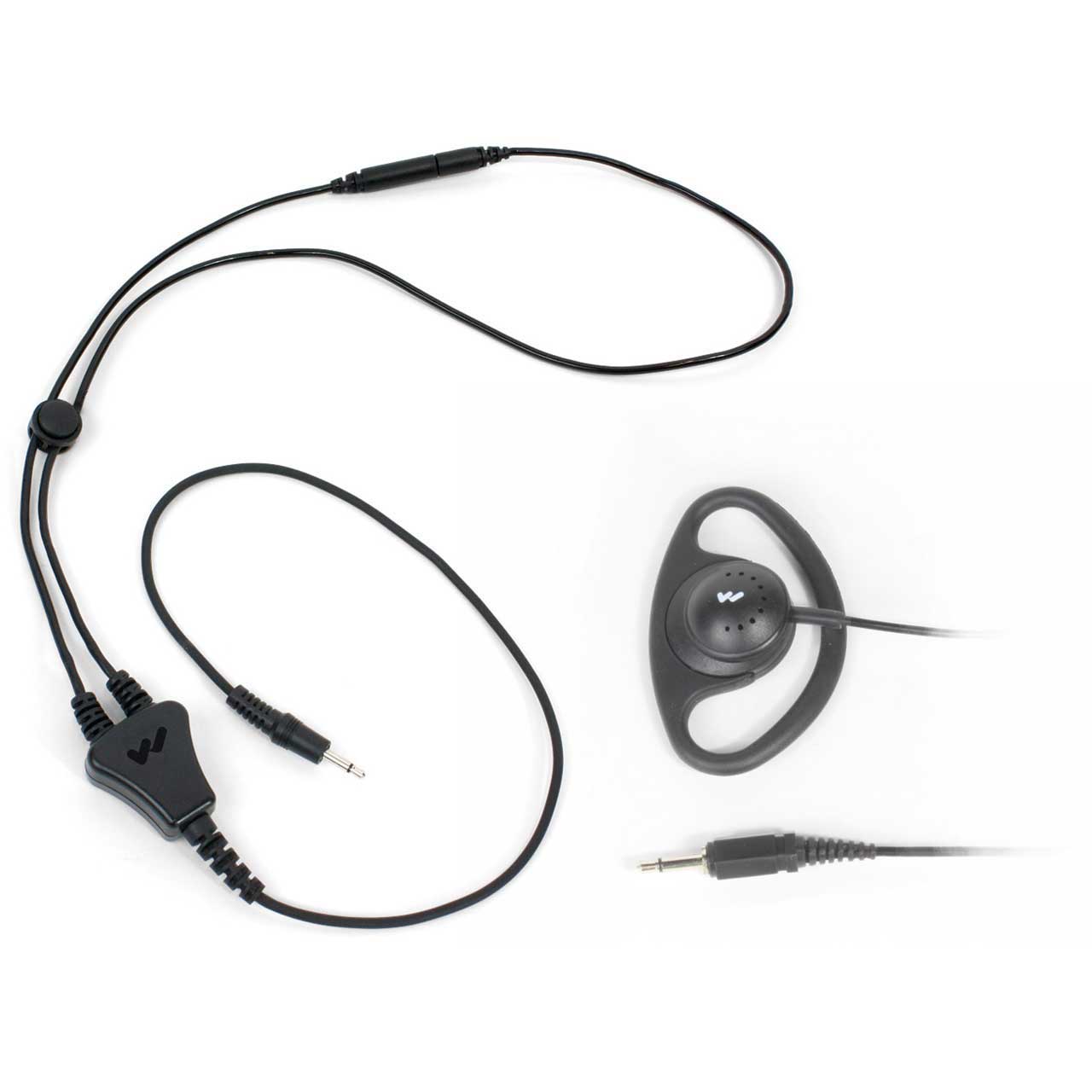

        ear 022
      • Style: Around-ear speaker
      • Plug: 3.5mm mono
      • Cord: 39"
      • Driver Size: 23 mm
      • Nominal Impedance: 32Ω
      • Freq. Response: 20 - 20kHz
      • Weight: 15g
      • Max Power Input: 30 mW
      • Sensitivity: 118 dB @ 1kHz

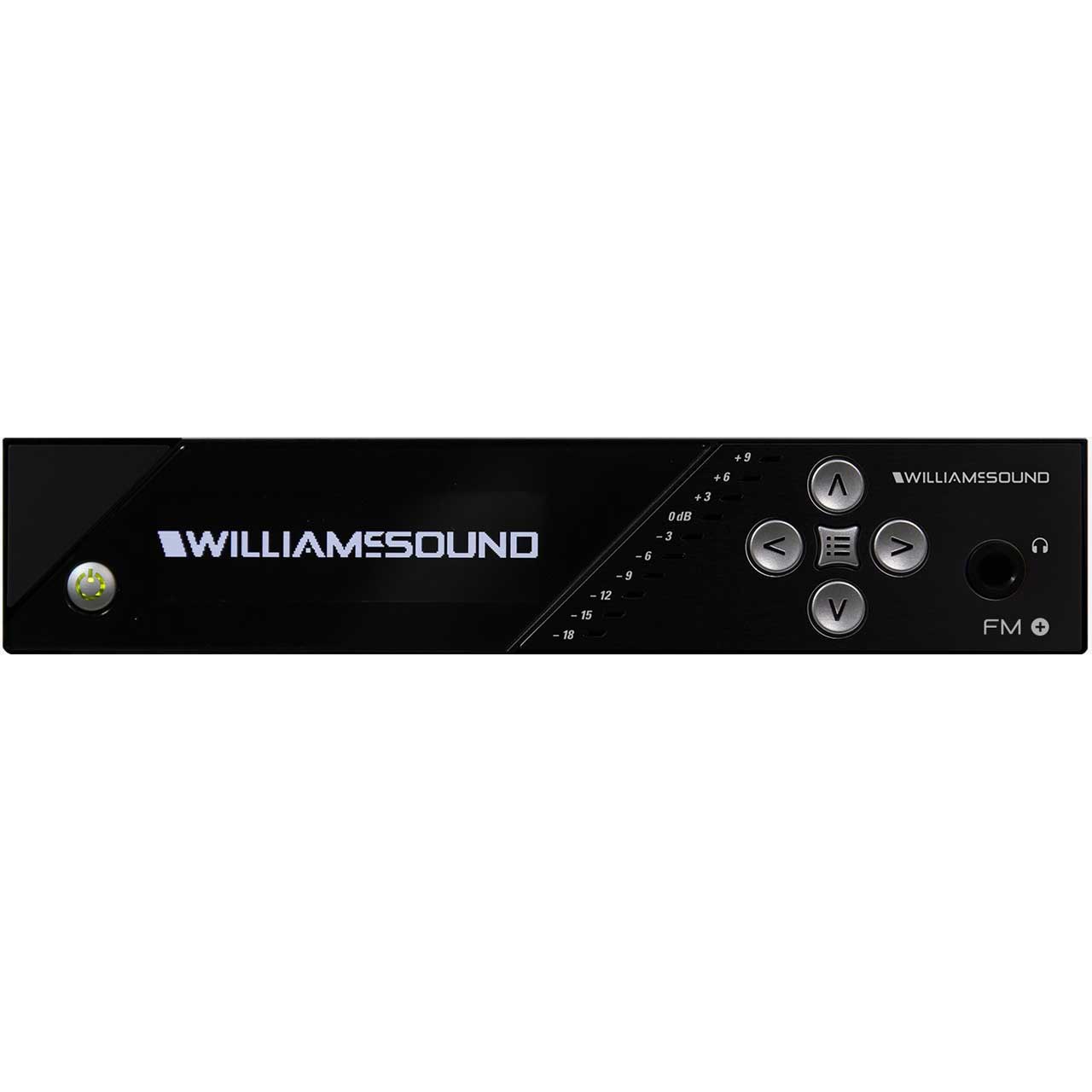

        fm t55
      • Dimensions: 8.45" W x 8.25" D x 1.72"H (21.5 cm x 21 cm x 4.4 cm)
      • Weight Transmitter: 3.2 lbs (1.45 kg)
      • Dante: Only available on FM T55 D
      • Color: Black/Silver with silver legends on the front, white legends on the back
      • Rack Moun: Standard 19" Rack, one EIA rack space high, 1/2 space wide
      • Power Supply: Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
      • Temperature RangeOperating: +32° F to +122° F (0° C to 50° C); Storage: -4° F to +158° F (-20° C to 70° C)
      • Ethernet: RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address
        RF Section
      • Operating Frequencies: 72.1-75.9 MHz , 17 wideb& channels (selectable)
      • Frequency Accuracy: 2 ppm stability, 0-50°C
      • Deviation: 75 kHz maximum
      • Pre-Emphasis: 75 microsec
      • RF?Field Strength: Does not exceed 80 mV/m at 3 m
      • Compatible Antennas: ANT 005, ANT 021, ANT 024, or ANT 025
      • Transmission Range: Up to 1000 ft (304 m) with ANT 005 coaxial antenna mounted on rear chassis connector
      • RF Outputs: (1x) #10-32 stud connector in center of unit (pcb mounted) (1x) F-connector on rear chassis
        Audio Section
      • Audio Processor Functions: DSP based; Compression: 1: 1, 1.5: 1 or 2: 1; High-pass & Low-pass Filter Frequency control
      • Frequency Response: 31-16000 Hz, 3 dB (re: 1 kHz, Ý3 dB) (Music Audio Preset)
      • Signal-to-Noise Ratio: 67 dB (typical) Transmited RF
      • Total Harmonic Distortion: Less than 0.25% @ 1 kHz (RF output)
      • Common Mode Rejection: Greater than 57 dB @ 1 kHz, Mic or Line
      • Audio Inputs: (1x) Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level
      • Line Output: RCA jack (black), -10 dBV (.32 VRMS); Output impedance 100 ohms at +9dB
      • Microphone: -55 dBV (1.7 mV RMS)-22 dBV (80 mV RMS)+20 dBV (10.0 V RMS)
      • Line: -25 dBV (55 mV RMS)+16 dBV (6.3 V RMS)+20 dBV (10.0 V RMS)
      • Approvals:FCC, RoHS3, WEEE, Industry Canada
        idp 008
      • 10-3/8" (L) x 6-1/4" (W) x 1/8" (H)

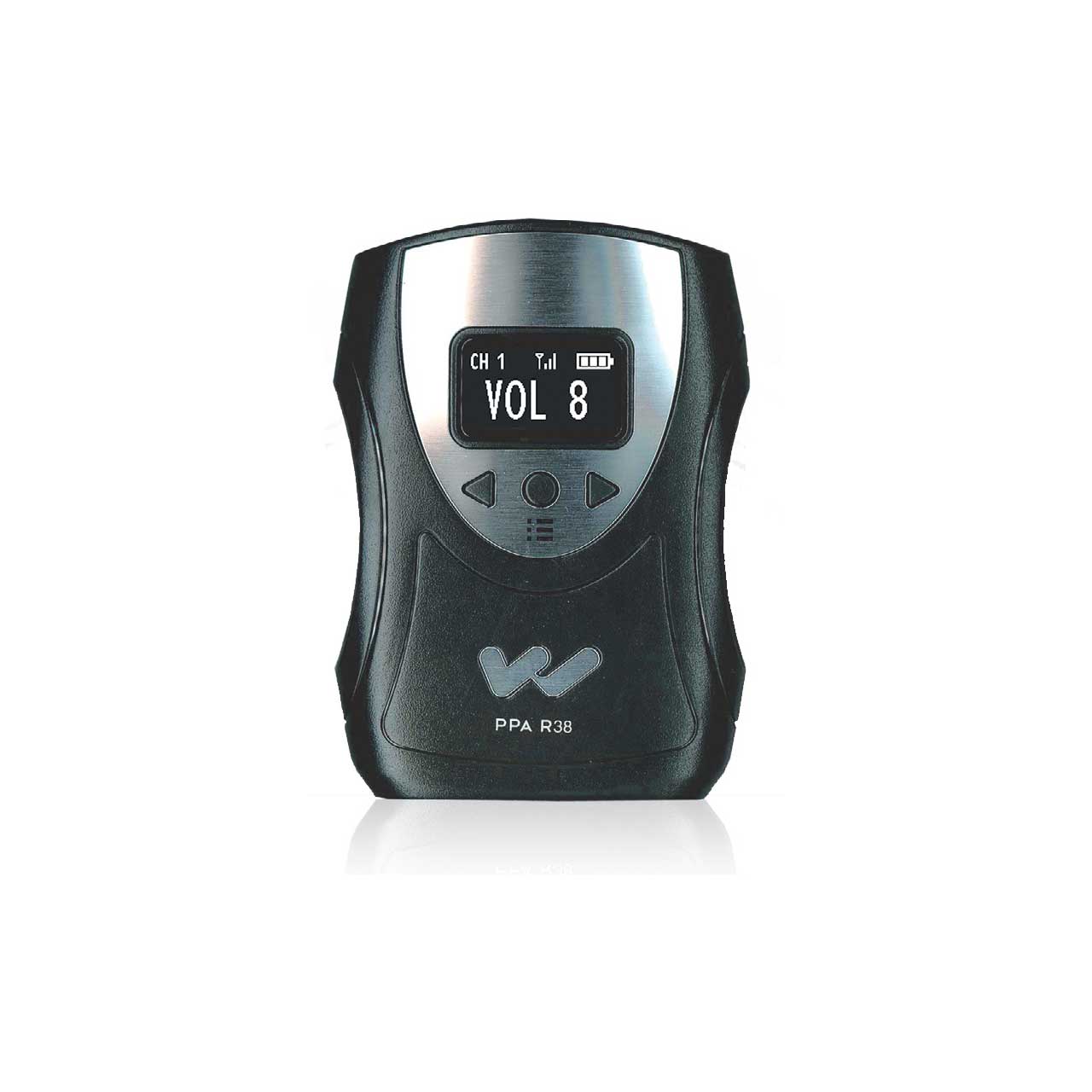

        ppa r38n
      • Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
      • Weight: 4.6oz (130g) with batteries. 2.6oz (73g) without batteries
      • Color: Black/Silver. Black ABS Plastic case with Aluminum faceplate.
      • Battery Type: (2) AA Alkaline or (2) AA NiMH Rechargeable
      • Battery Life: (2) AA non-rechargeable alkaline batteries (BAT 001-2), approx. 50 hrs. (2) AA rechargeable NiMH batteries (BAT 026-2), 1500mAh, approx. 32 hrs.
      • Current Consumption: 52mA nominal
      • Operating Temp. Range: 32° - 122°F (0° to 50°C)
      • Channels: 17 Wideband, accessed via menu
      • Operating Frequencies: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz*
      • FM Deviation: 75 kHz
      • De-Emphasis: 75 µS
      • Display Screen: 1" OLED
      • Power?Indication: Power button, backlit green. Good battery strength - glows solid. Low battery - flashes.
      • Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
      • Input Overload: 100 mV
      • Frequency Response: 200 Hz - 15 kHz, Ý3dB
      • Modulation: FM, +/- 75 kHz peak deviation
      • Signal-to-Noise Ratio: Minimum 65 dB @ 1.0V
      • Receive Antenna: Integral with earphone/headphone cord

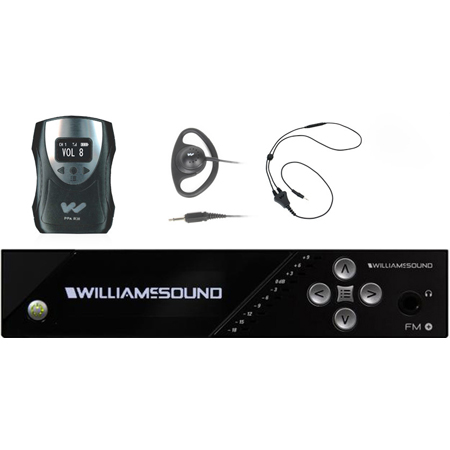

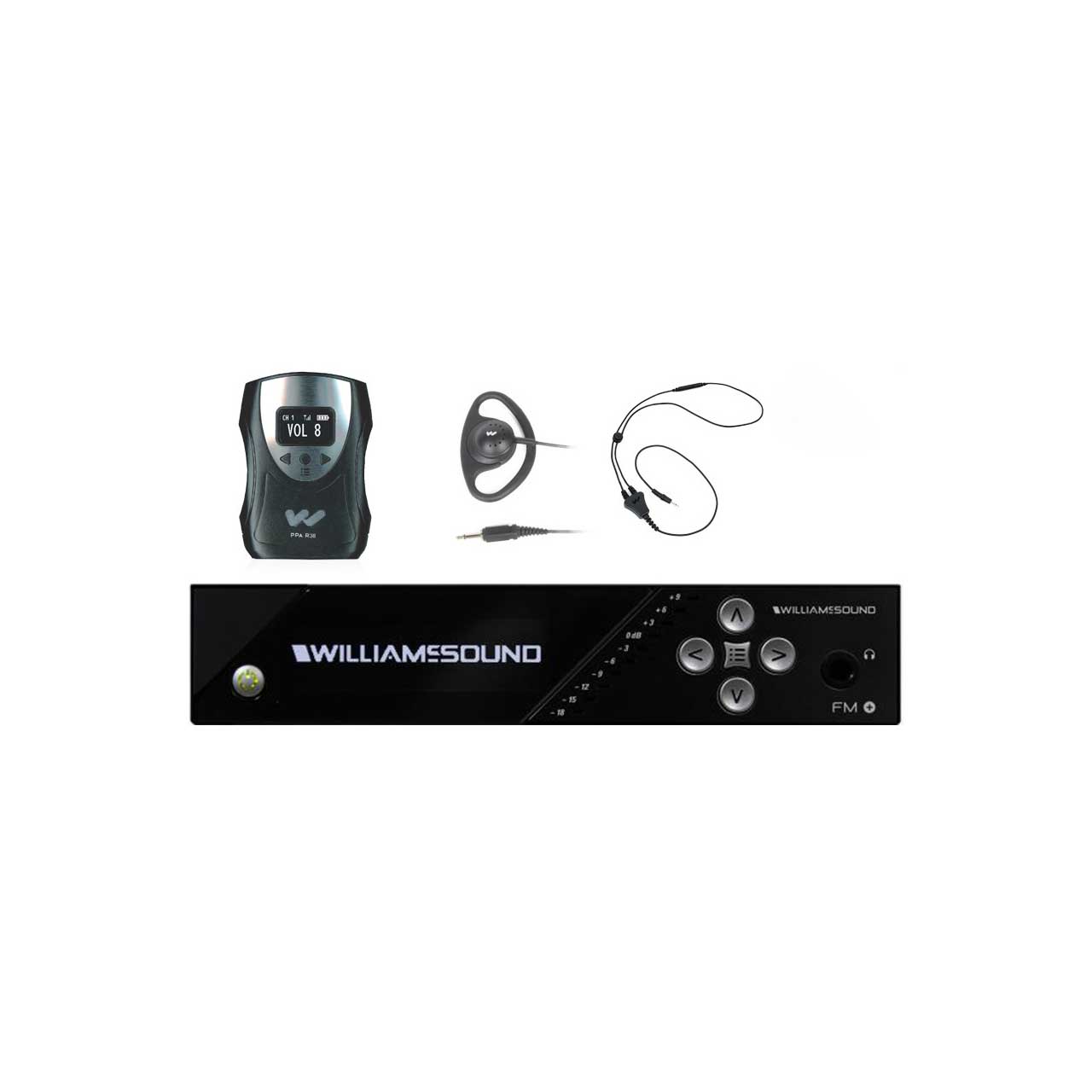

    • Item Includes:

      • 1x FM T55 transmitter
      • 4x PPA R38N receivers
      • 4x EAR 022 surround earphones
      • 2x NKL 001 neckloops
      • 2x BAT KT6 two-bay chargers and rechargeable batteries
      • 1x ANT 005 remote coaxial antenna
      • 1x IDP 008 ADA wall plaque
      • 1x RPK 005 rack panel kit

    • Warranty:

      • 2-year parts and labor
