WILLIAMS AV WF SYS1C WaveCAST System with Integrated Li-Poly Battery & 2 WAV Pro Wi-Fi Receivers

WF SYS1C - Overview

• Features:

  • Real-time audio over Wi-Fi
  • 2 WAV Pro Wi-Fi receivers
  • 6.8" full HD+ display
  • Bluetooth® compatible
  • Up to 40 hours of continuous audio streaming
  • Meets ADA hearing requirements


• Specifications:

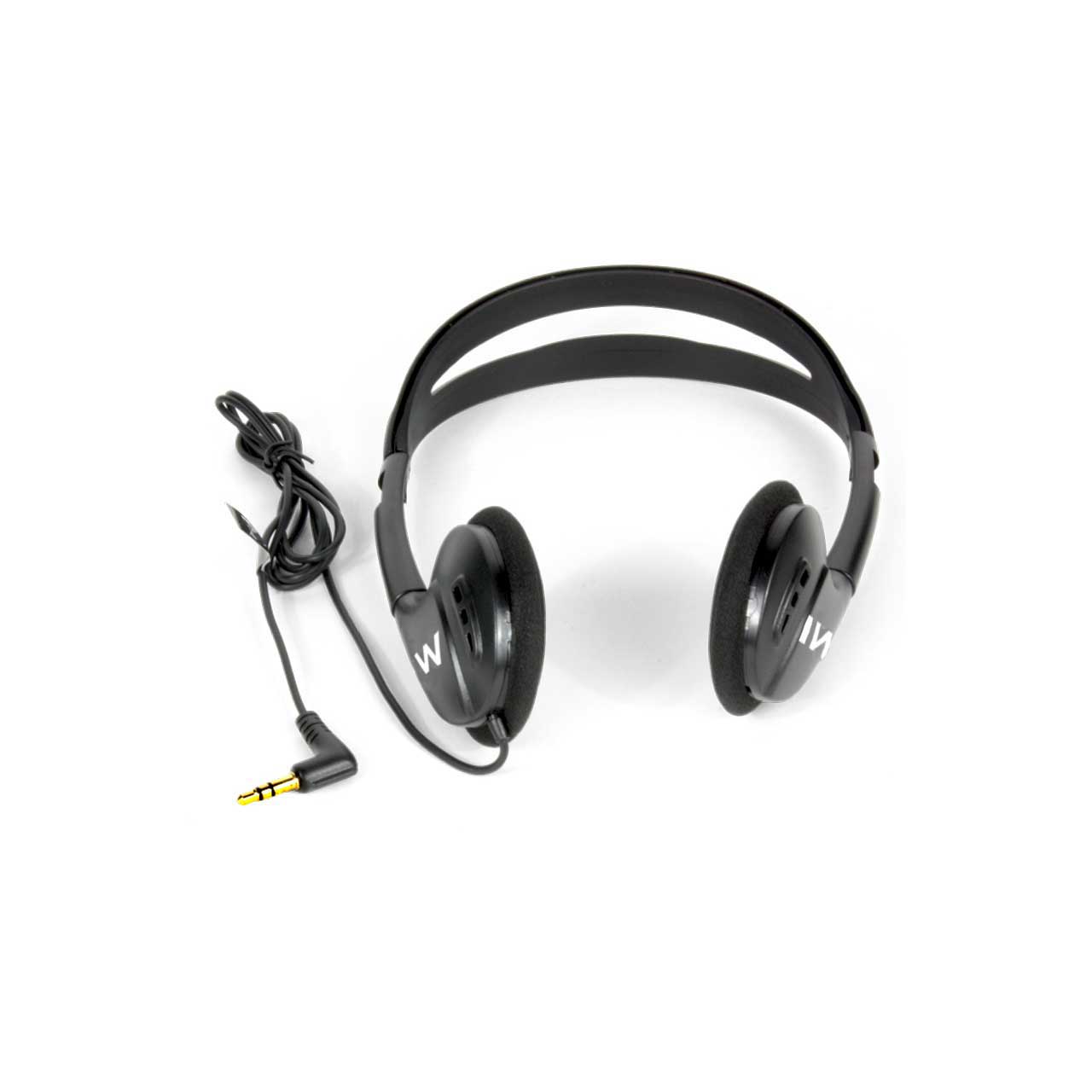

  • Headset - HED 024
  • Style: Stereo Headphones
  • Plug: 3.5mm stereo
  • Cord" 39"
  • Driver Size: 1.18" (30 mm)
  • Nominal Impedance: 16&Ohm;
  • Freq. Response: 20 - 20kHz
  • Weight: 0.13 lbs (60g)
  • Max Power Input: 100 mW
  • Sensitivity: 108 dB @ 1kHz
  • Replacement Pads: HED 023 (one pair)

    Receiver WF R2-03
  • Dimensions: 6.61 x 3.01 x 0.35" (168 x 76.5 x 8.9 mm)
  • Weight: 0.01 lb (7.12 oz (202g)) without case
  • Display: 6.8" Full HD+ Infinity Dot 1080 x 2460 Resolution | 396ppi
  • Receiver Jack: 3.5mm (1/8") stereo headphone jack
  • Battery Life: Lithium Polymer (Li-Po) 6000 mAh, non-removable
  • Battery Life: Up to 40 hours of continuous audio streaming
  • USB Connection: USB Type C for power and charging
  • Approvals: CE, FCC, WEEE, CB Scheme, UK CA, RoHS3. RCM and IC- Pending

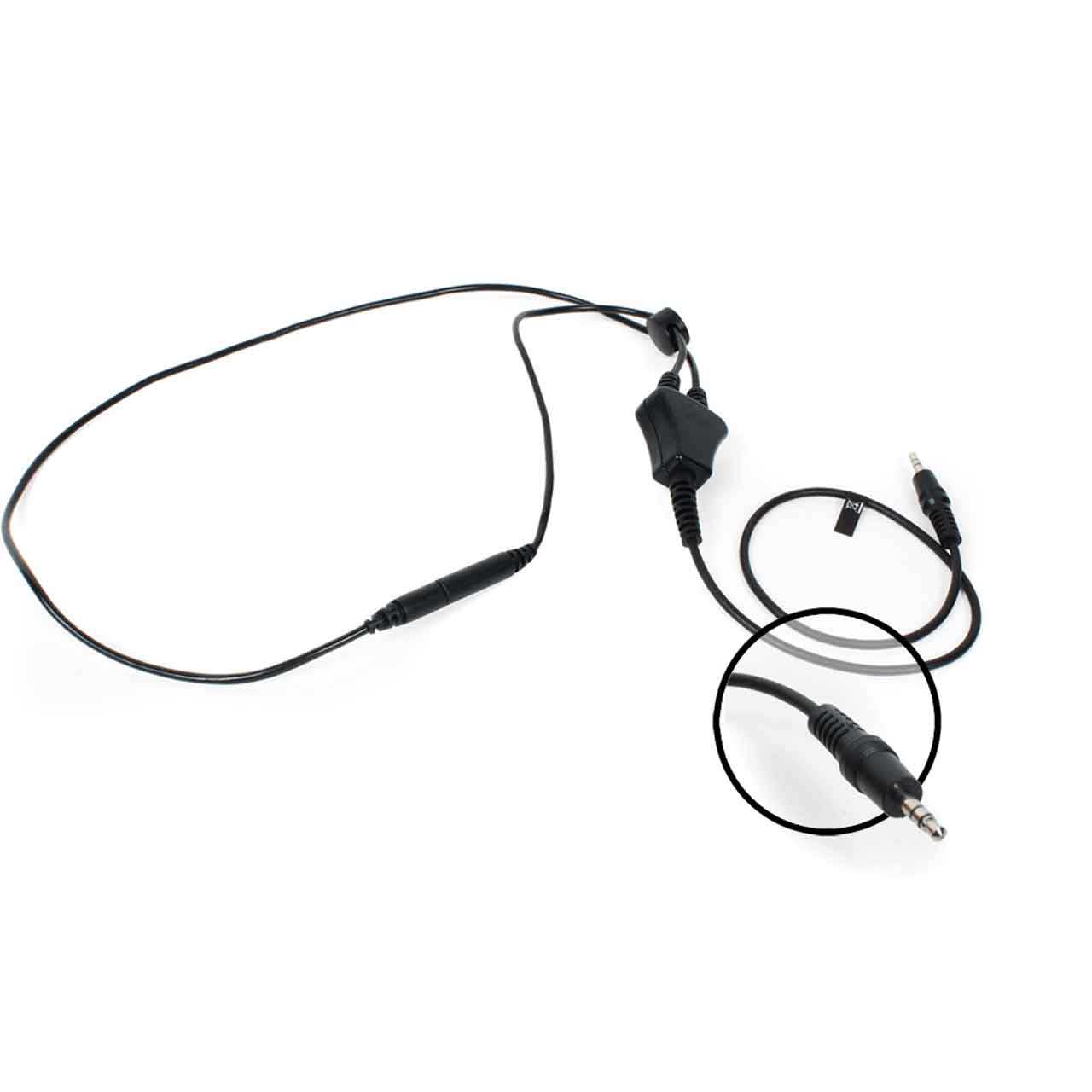

    18" Neckloop - NKL 001-S
  • Color: Black
  • Weight: 1.5 oz
  • Length: 18.5" cord
  • Connector: NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected
  • Impedance: 8-16 Ohms
  • Input Power: 500 mW max
  • Magnetic Field Strength: 25 mW input at 1000 Hz produces 1.7 A/m 6" above the center of loop 85æW input produces 0.1 A/m (IEC Standard)

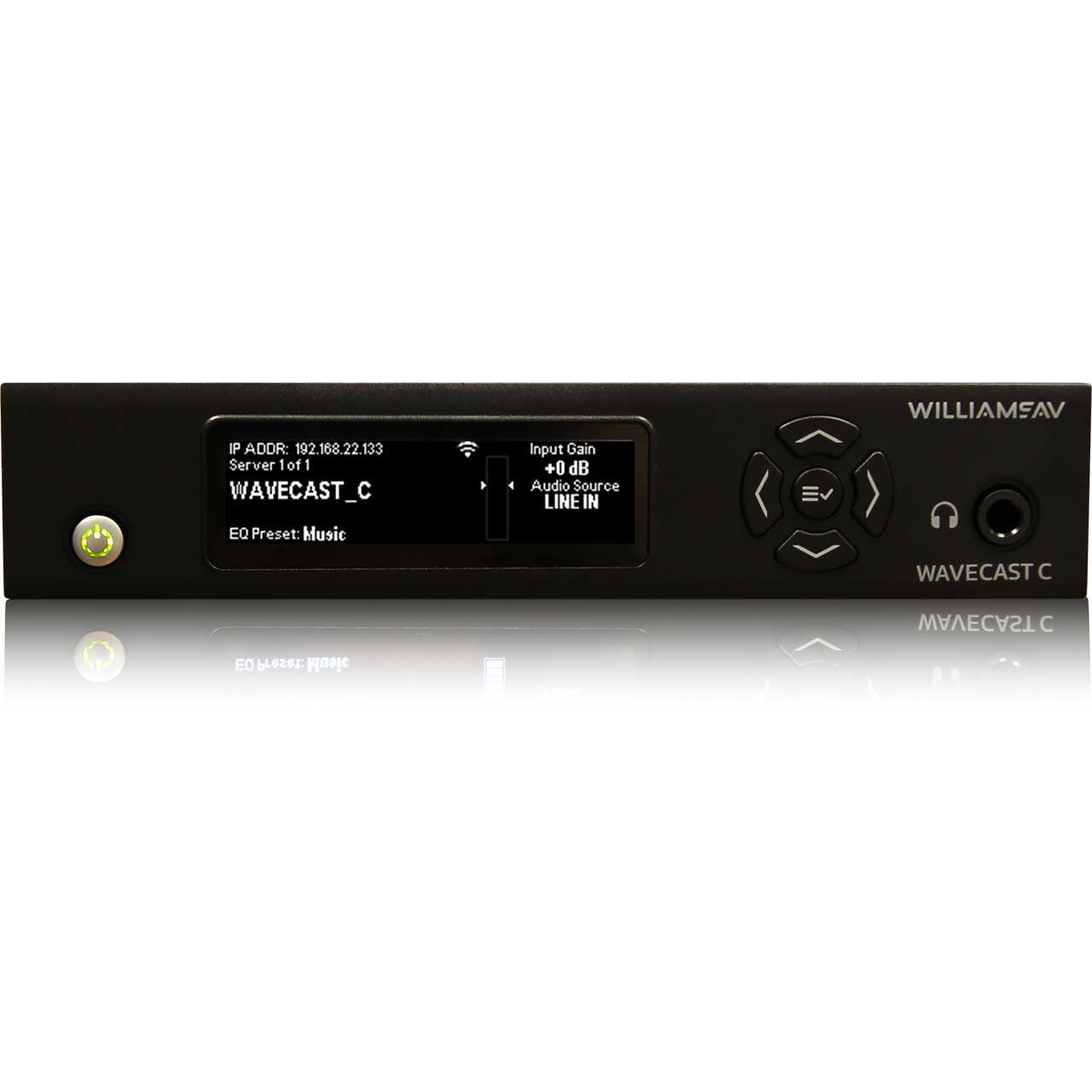

    WF T5C
  • Dimensions (WxDxH): 8.45 x 8.25 x 1.72"
  • Weight Transmitter: 3.2 lbs
  • Color: Black
  • Rack Mount: Standard 19" Rack, one EIA rack space high, 1/2 space wide
  • Power Supply: Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
  • Temperature Range: Operating: +32° to +122° F; Storage: -4° F to +158° F
  • Dante: (1x) RJ-45 jack. Only available on WF T5CD

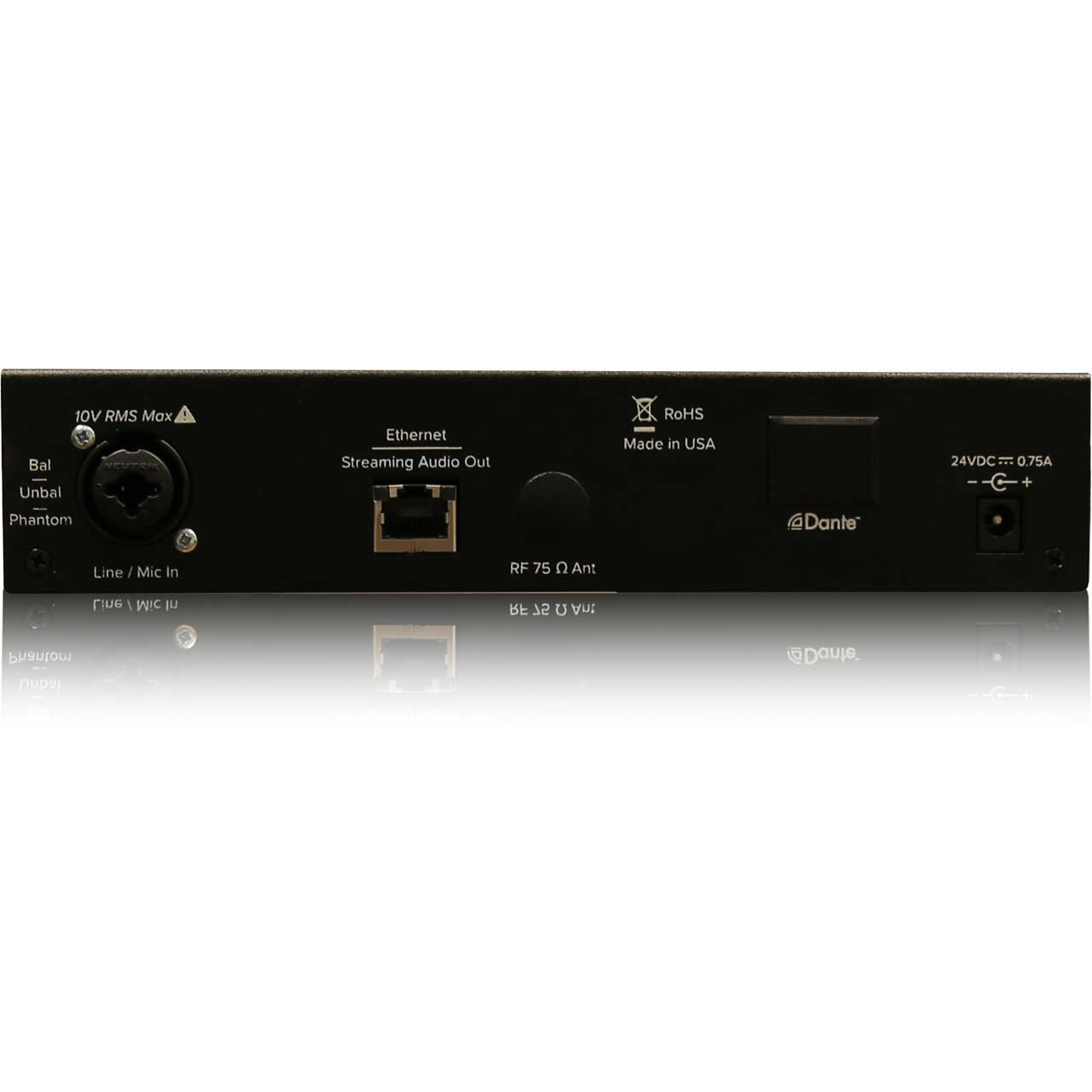

  • Ethernet: RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address. RJ-45 jack used for web page and streaming audio out. An external Router/DHCP Server is required to stream audio to receiving devices.
  • Audio Inputs: (1x) Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power.
  • Audio Processor Functions: DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control, Music, Voice, and Hearing Assistance Audio Presets
  • Frequency Response: 31-16000 Hz, ±3 dB (re: 1 kHz) ("Music" Audio Preset)
  • Signal-to-Noise Ratio: 64 dB (typical) Transmitted RF @ 1kHz
  • Total Harmonic Distortion: Less than 0.25% @ 1 kHz (RF output)
  • Common Mode Rejection: Greater than 57 dB @ 1 kHz, Mic or Line mode
  • Audio Input Gain Adjust: Adjustable from +24dB to -60 dB, in 1dB steps from front screen or web page
  • Phantom Power: 14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack
  • Headphone Output: 1/4" TRS stereo jack, mono signal, 7.8 mW total power with 33 Ohm.
  • Dante Output: (1x) RJ-45 jack, only available on WF T5CD
  • Microphone Nominal (@7th Segment Lit): -45dBV (5.6mV RMS)
  • Overload Warning (Displayed on Screen): -20 dBV (100 mV RMS)
  • Absolute Max Rating: +20 dBV (10.0 V RMS)
  • Line Nominal (@7th Segment Lit): -8.4 dBV (380 mV RMS)
  • Line Overload Warning (Displayed on Screen): -16 dBV (6.5 V RMS)
  • Absolute Max Rating: -20 dBV (10.0 V RMS)

    Charger: AC CHG406
  • Dimensions (L x W x H:) 7.2 x 5.1 x 1.1"
  • Weight: 1.3 lbs
  • Color: Black and clear plastic
  • Power Input: AC100-240V 50/60Hz 0.5A max
  • Power Output: DC 5.0V/10A (50W)
  • Ai Output: DC 5V/2.4A
  • Indicators: Individual Charging Indicators: Blue LEDs light up dividing clear panels
  • Cable Length: 4.9ft (1.5m)
  • Compatible Units: WAV Pro Wi-Fi Receiver (WF R2-03) and (WF R2-N)
  • Notes: Accepts USB type A plugs, with a USB-C or with a micro-B plug that can connect to the device to be charged.

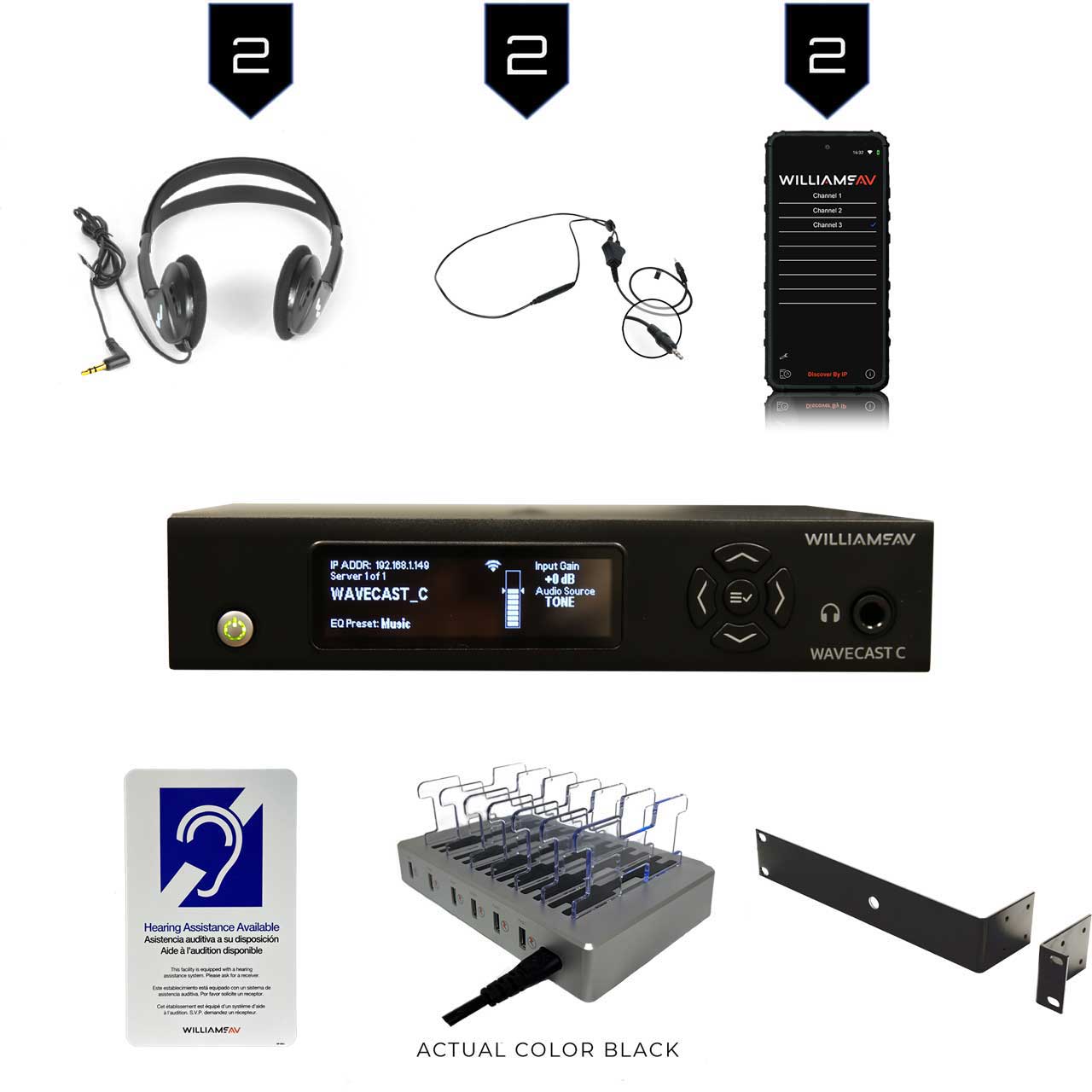

• Item Includes:

  • 1x WaveCAST C Wi-Fi Transmitter (WF T5C)
  • 2x WAV Pro Wi-Fi Receivers (WF R2-03)
  • 2x Neckloops (NKL 008)
  • 1x Rack Panel Kit (RPK 005)
  • 2x Folding Stereo Headphones (HED 024)
  • 1x ADA Wall Plaque (IDP 008)
  • 2x USB Charging Cable and Power Supply (AC CHG 001)
