West Penn Wire 225 Communication Control Cable 1000 Feet - Black

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    West Penn Wire 225 Communication Control Cable 1000 Feet - Black

    Manufacturer: West Penn Wire Corp

    Item #: WP-225-1000-BK   •   MFG #: WP-225-1000-BK



    List Price:$233.30
    Our Price:$205.80

    free ship


    Color:



    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

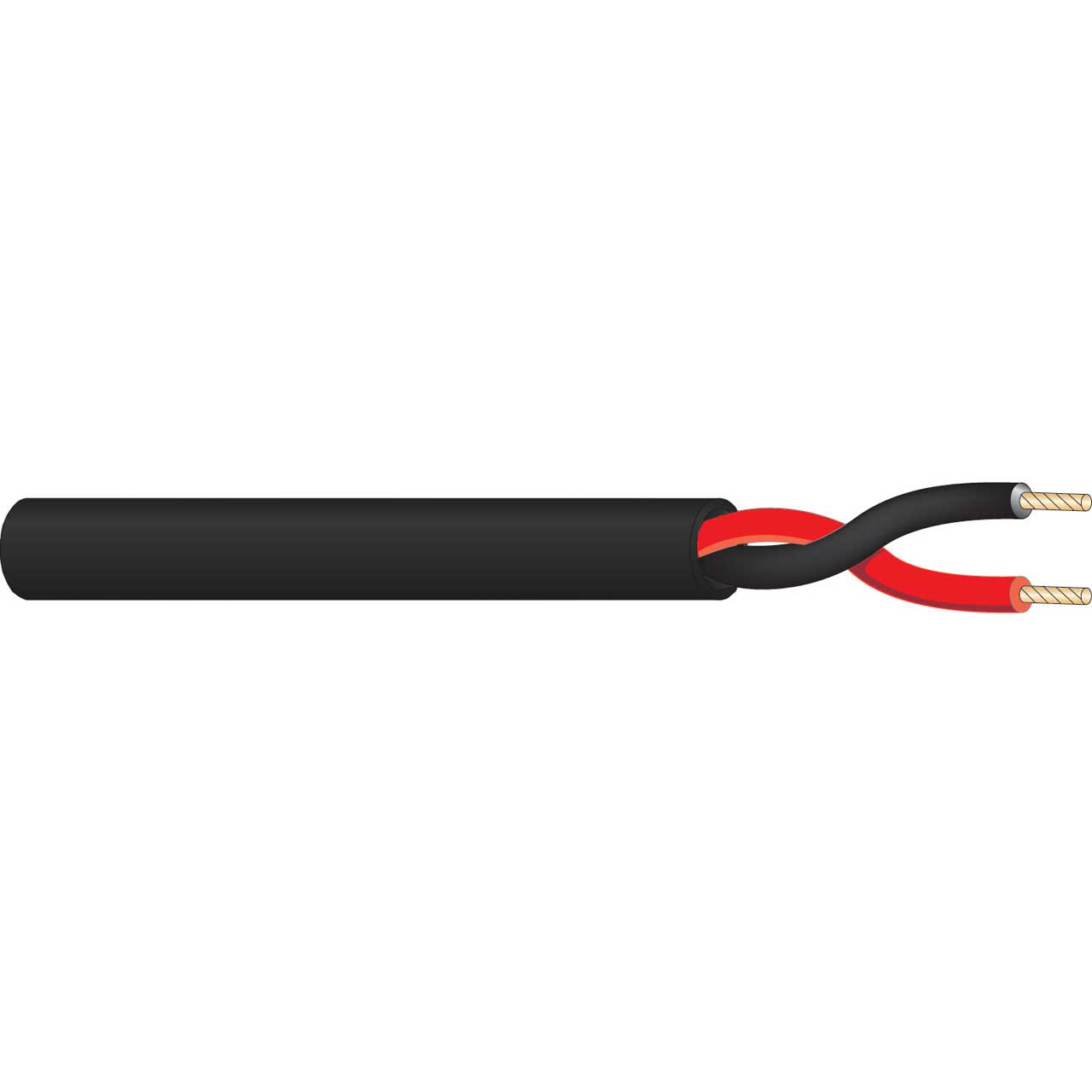

      West Penn 225 Communication & Control Cable.
      Two Conductor. 16/2 stranded bare copper conductors. Unshielded with an overall jacket.

      NEC RATING: CMR, NEC Article 800

      APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed

      APPLICATIONS: Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.
      Fantastic overall 2 conductor cable for installation in home, office or studios.


      • Specifications

        • Conductor 16 AWG Bare Copper
        • Stranding 19x29
        • Insulation Material Polypropylene
        • Insulation Thickness 0.009'' Nom.
        • Number of Conductors 2 (1 Pair)
        • Shield None
        • Drain None
        • Jacket Material PVC
        • Jacket Thickness 0.017'' Nom.
        • Overall Cable Diameter 0.182'' Nom.
        • Approximate Cable Weight 24.4 Lbs/1M' Nom.
        • Flame Rating UL 1666 Riser Flame Test
        • Temperature Rating -20°C To +60°C
        • Operating Voltage 300 V RMS
        • Max.Capacitance Between Conductors @ 1 KHz 23 pf/ft Nom.
        • DC Resistance per Conductor @ 20deg C 4.4 Ohms/1M' Nom.
        • Insulation Colors Black ,Red
        • Jacket Color Gray, Black, Brown, White
        • RoHS Compliant Yes
        • Max. Recommended Pull Tension 59 lbs.
        • Min. Bend Radius (Install) 1.89"

      • Applications

        • Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits

      • GTIN:

        0612825043515
