West Penn Wire 25293BBK1000 25293B 1 Pair 18GA Plenum Control Cable - Black - 1000 Feet
  • West Penn Wire 25293BBK1000 25293B 1 Pair 18GA Plenum Control Cable - Black - 1000 Feet
  • West Penn Wire 25293BBK1000 25293B 1 Pair 18GA Plenum Control Cable - Black - 1000 Feet

Questions? Ask a Markertek Expert:
800-522-2025 Email

West Penn Wire 25293BBK1000 25293B 1 Pair 18GA Plenum Control Cable - Black - 1000 Feet

Manufacturer: West Penn Wire Corp

Item #: WP-25293BBK1000   •   MFG #: 25293BBK1000



List Price:$228.20
Our Price:$183.77

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

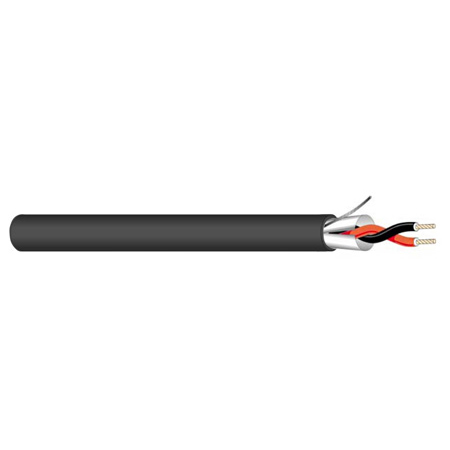

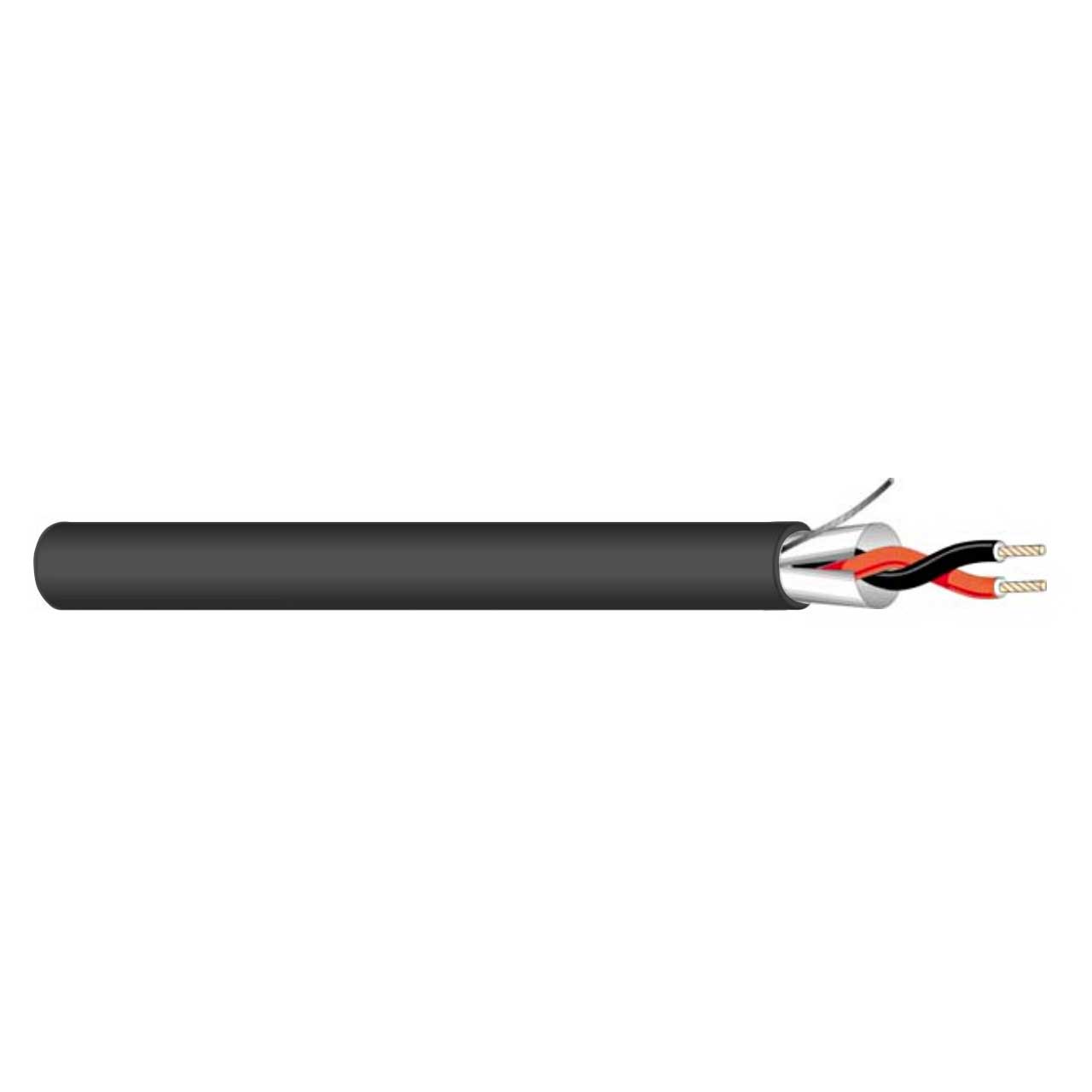

    The 25293BBK1000 is a 1 pair 18 AWG Plenum control cable. This cable features bare copper conductors and a flexible plenum jacket.


    • Specifications

      • Construction and Physical
      • Number of Conductors: 2
      • AWG Size: 18
      • Conductor Stranding: 7x26
      • Conductor Type: Bare copper
      • Nominal DCR: 6.2 Ohm/1000ft
      • Cabling Lay Length: 3 in
      • Twists/Foot: 4 twist/ft
      • Insulation Type: Plenum PVC
      • Insulation Thickness: 0.008 in
      • Insulation Color Code: 1. Black 2.Red
      • Shield Type: Overall 100% Aluminum Foil
      • Drain Wire Type: Tinned Copper
      • Drain Wire AWG: 24 AWG
      • Nom. Cap. Between Conductors: 68 pF/ft
      • Nom. Cap. Conductor to Shield: 122 pF/ft
      • Jacket Type: Flexible Plenum
      • Jacket Thickness: 0.015 in
      • Nominal Cable O.D.: 0.156 in
      • Plenum: Yes
      • NEC UL Rating: CMP
      • RoHS Compliant: Yes
      • Pull Tension: 57 lbs
      • Bend Radius: 1.404 in
      • Cable Weight: 21 lbs

        Electrical/Optical
      • UL Flammability: NFPA 262 Plenum
      • Operating Range: -0 to 60°C
      • UL Voltage Rating: 300
