West Penn 254236F 350MHz 23AWG CMP Plenum Rated Cat6A Cable - Gray - 1000 Foot

Name: West Penn 254236F 350MHz 23AWG CMP Plenum Rated Cat6A Cable - Gray - 1000 Foot
Brand: West Penn Wire Corp
SKU: WP-254236F1000GY
Price: 749.95 USD
Availability: Backorder

ITEM #: WP-254236F1000GY MFG #: 254236FGY1000

West Penn Wire Corp

List Price:

$889.80

Our Price:

$749.95

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

254236FGY1000 - Overview

The West Penn Wire 254236F is a Category 6+ shielded Ethernet cable designed for high-performance network installations in plenum-rated environments. It features 4 pairs of 23 AWG solid bare copper conductors, an overall F/UTP aluminum foil shield, and is rated for 350 MHz operation. It carries a CMP (plenum) rating, making it suitable for installation in air-handling spaces such as drop ceilings and raised floors

Applications:
• 10/100/1000 BASE-T Ethernet
• IP CCTV
• Digital Integration
• HD-BASE-T
• PoE, PoE+, PoE++

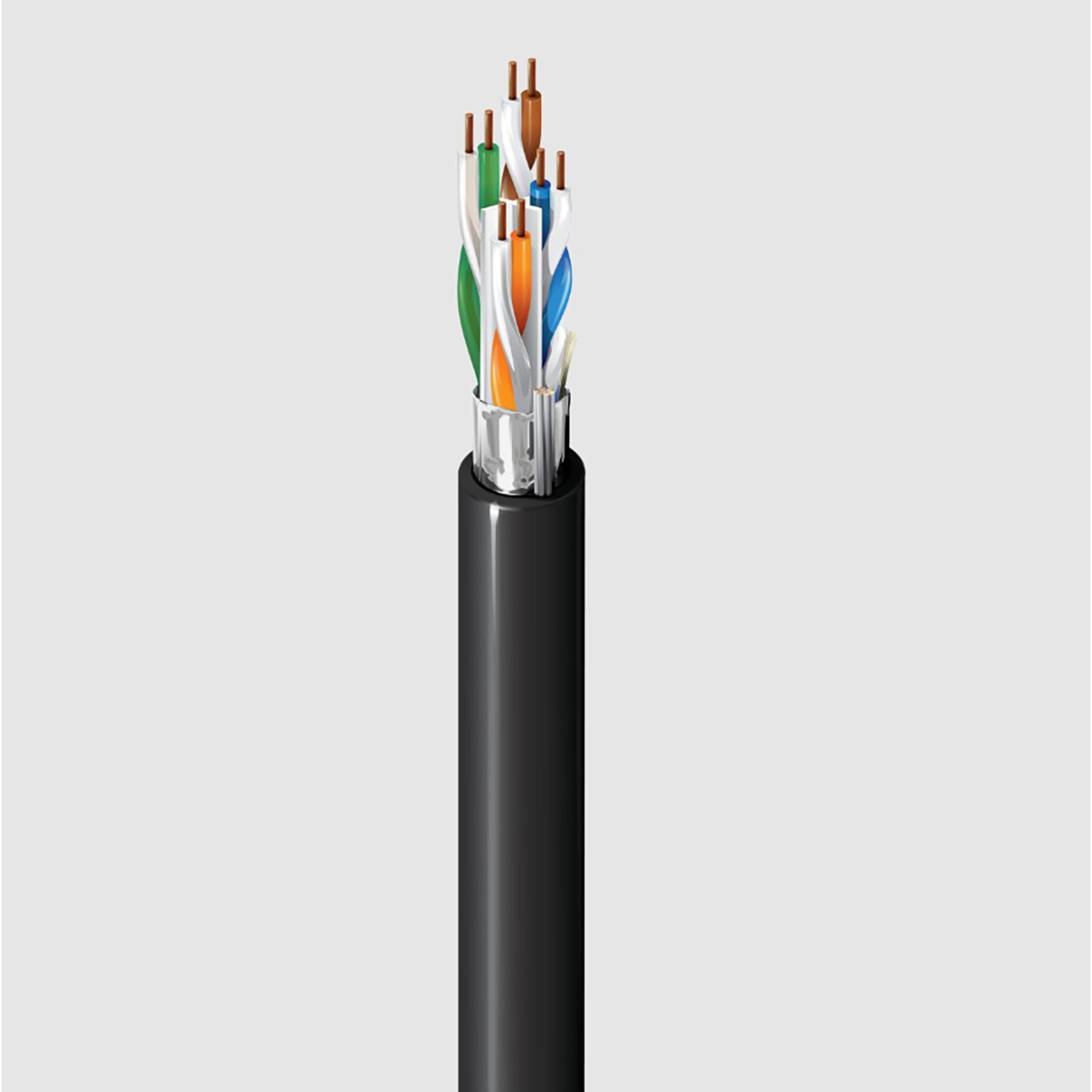

Please Note: Color is Gray. Iimage is for reference only.

Features:
- Category 6+ F/UTP shielded cable
- 4-pair, 23 AWG solid bare copper conductors
- 350MHz bandwidth
- 100Ω impedance
- CMP plenum-rated jacket
- Overall 100% aluminum foil shield with tinned copper drain wire
- Patented X-Spliner separator for improved pair isolation and signal performance
Specifications:
- Number of Pairs: 4
- AWG Size: 23
- Conductor Stranding: Solid
- Conductor Type: Bare Copper
- Nominal DCR: 28.6Ω/1000ft
- Insulation Type: FEP - Teflon
- Insulation Color Code:
  - 1. Blue, White/Blue
  - 2. Orange, White/Orange
  - 3. Green, White/Green
  - 4. Brown, White/Brown
- Shield Type: Overall 100% Aluminum Foil (F/UTP)
- Drain Wire AWG Size: 26 AWG (7x34)
- Drain Wire Type: Tinned Copper
- Nominal Impedance: 100Ω
- Nominal Capacitance: Between Conductors 13 pf/ft
- Total Number of Conductors: 8
- Jacket Type: PVC
- Separator: X-Spline Separator
- Nominal Cable O.D.: 0.255"
- Plenum: Yes
- NEC UL Rating: CMP
- RoHS Compliant: Yes
- ANSI/TIA Category: Category 6 TIA/EIA 568D.2
- TIA Test: ANSI/TIA-568.2-D Category 6
- Pull Tension: 25lbs
- Bend Radius: 1.105"
- Cable Weight: 37lbs
- Nominal Velocity of Propagation (VP): 72 %
- Delay Skew: 45 ns/100 m
- UL Flammability: NFPA 262 Plenum Test
- CSA Flammability: FT6
- Operating Range: -4°F - 167°F (-20°C - 75°C)
- UL Voltage Rating: 300V
