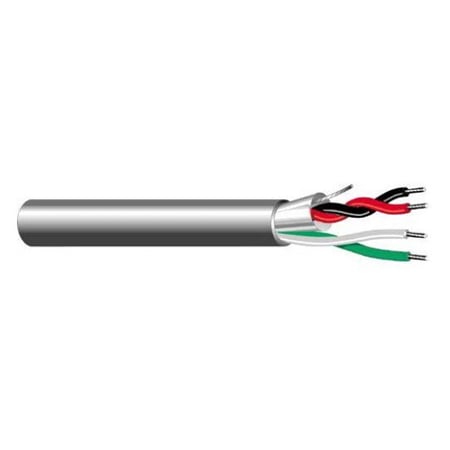

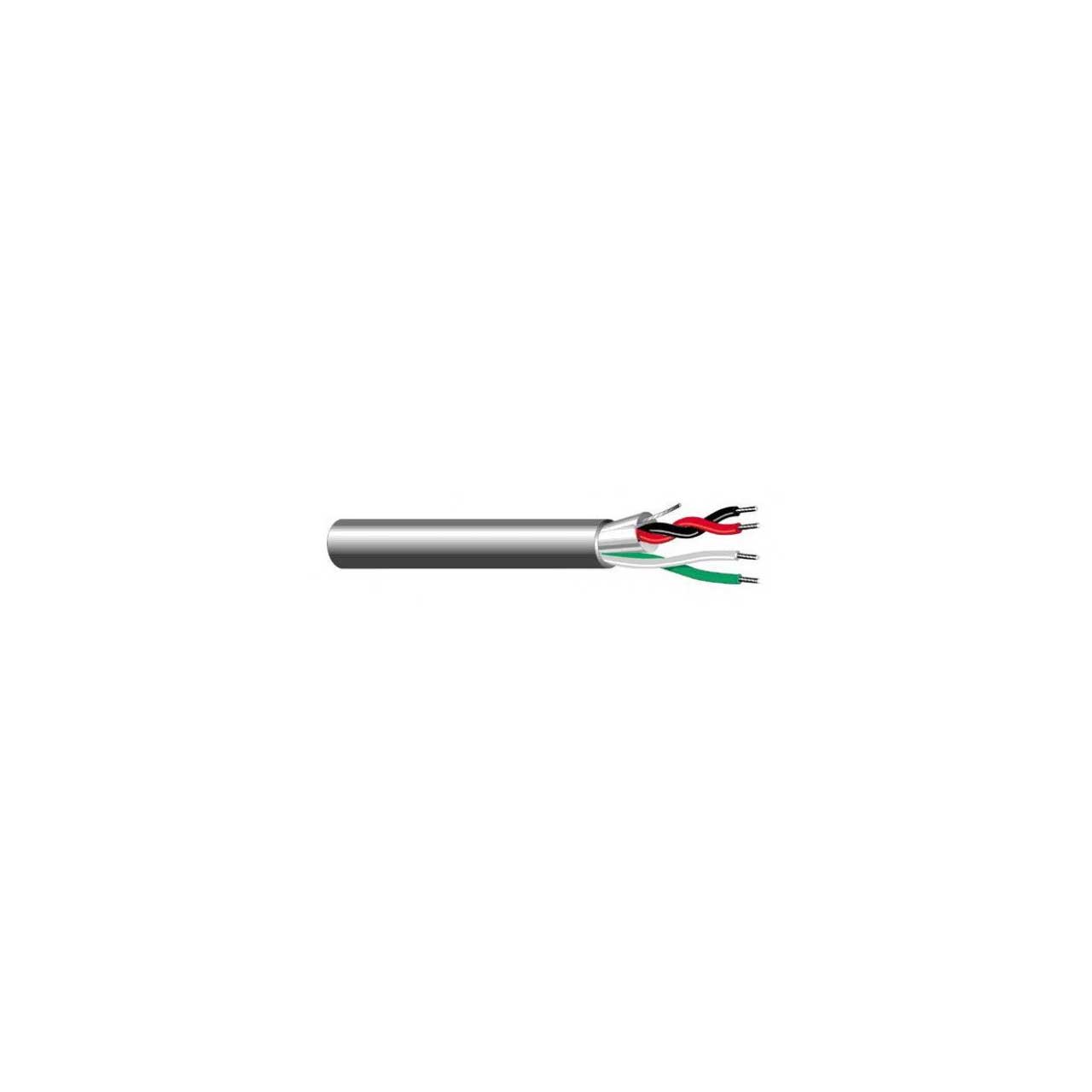

West Penn 360 18 AWG Bare Copper Communication Cable - Gray- Reel in Box - 1000 Foot

360GY1000 - Overview

Audio, Control and Intercom

• Features:

  • Conductor 18 AWG Bare Copper
  • Stranding 7x26
  • Insulation Material PVC
  • Insulation Thickness 0.010'' Nom.
  • Number of Conductors 4(2 Shielded)(2 Unshielded)
  • Shield 100% Aluminum Polyester Foil
  • Drain Stranded Tinned Copper
  • Jacket Material PVC
  • Jacket Thickness 0.015'' Nom.
  • Overall Cable Diameter 0.209'' Nom.
  • Approximate Cable Weight 35.5 Lbs/1M' Nom.
  • Flame Rating UL 1666 Riser Flame Test


• Specifications:

  • CONSTRUCTION & DIMENSIONS -
  • Component Shielded Unshielded
  • CONDUCTOR PARAMETER -
  • Number of Conductors 2 shielded(black/red) - 2 unshielded(white/green)
  • AWG Size 18
  • Conductor Stranding 7x26 7
  • Conductor Type Bare Copper
  • Nominal DCR 6.2 Ohm/1000ft
  • INSULATION PARAMETER -
  • Insulation Type Thermoplastic
  • Insulation Thickness 0.007 in
  • Insulation Color Code 1. Black 2.Red 1. White 2.Green
  • SHIELDING PARAMETER -
  • Shield Type Overall 100% Aluminum Foil None
  • Drain Wire Type Tinned Copper
  • Drain Wire AWG 22 AWG
  • ELECTRICAL CHARACTERISTICS -
  • Nom. Cap. Between Conductors 53 pF/ft
  • Nom. Cap. Conductor to Shield 103 pF/ft
  • OVERALL CONSTRUCTION PARAMETERS -
  • Total Number of Conductors 4
  • Jacket Type PVC
  • Jacket Thickness 0.017 in
  • Nominal Cable O.D. 0.205 in
  • Plenum No
  • NEC UL Rating CMR, CMG
  • RoHS Compliant Yes
  • Pull Tension 103 lbs
  • Bend Radius 1.845 in
  • Cable Weight 39 lbs
  • OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS -
  • UL Flammability UL1666 Vertical Shaft
  • CSA Flammability FT4
  • Operating Range -20 to 60 Deg C
  • UL Voltage Rating 300


• GTIN:

  0612825053286
