West Penn AQ227BK500 Aquaseal 12G Stranded Unshielded Cable - 500 Foot. - Black

ITEM #: WP-AQ227BK500 MFG #: AQ227BK500

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$652.55

Our Price:

$652.51

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AQ227BK500 - Overview

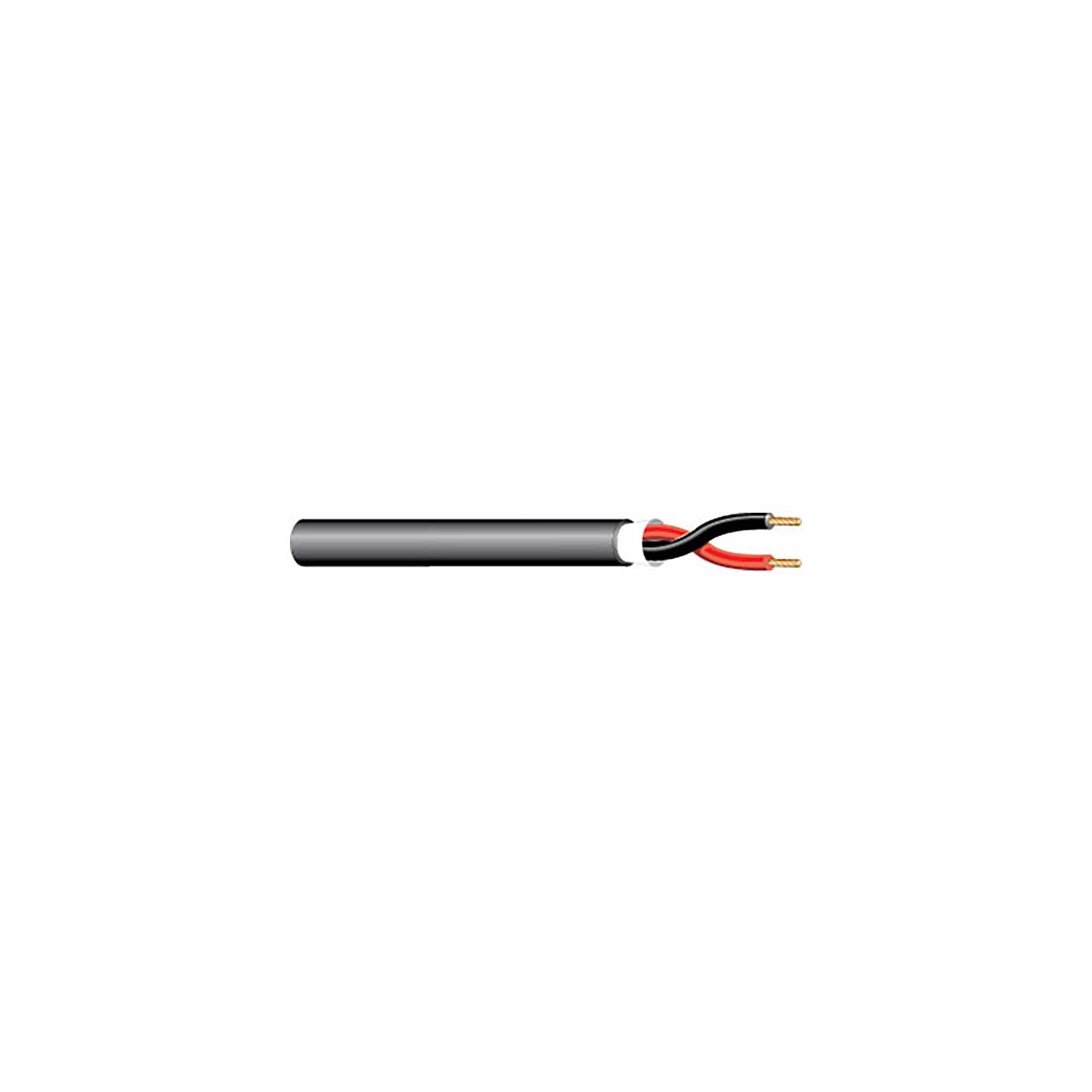

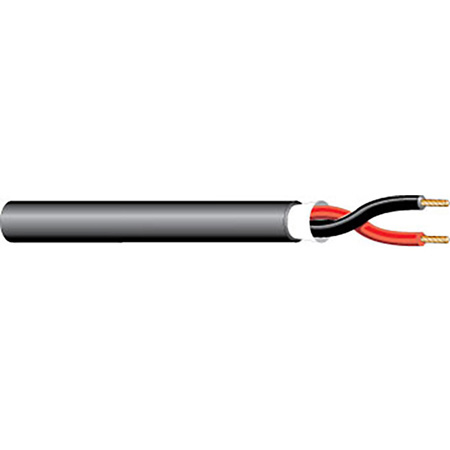

West Penn AQ227BK500 is an Aquaseal 12G stranded unshielded 500 foot audio cable.

  • Specifications:

    • Number of Conductors: 2
    • AWG Size: 12
    • Conductor Stranding: 19x25
    • Conductor Type: Bare copper
    • Nominal DCR: 1.7 Ohm/1000ft
    • Insulation Type: PVC-Nylon
    • Insulation Thickness: 0.02 in
    • Insulation Color Code: 1. Black 2.Red
    • Shield Type: Aquaseal Water Blocking Tape
    • Nom. Cap. Between Conductors: 32 pF/ft
    • Jacket Type: UV Resistant PVC
    • Jacket Thickness: 0.04 in
    • Nominal Cable: O.D. 0.34 in
    • Plenum: No
    • NEC UL Rating: CL3, FPL, PLTC
    • RoHS Compliant: Yes
    • TIA Test: TIA455-82 Water Penetration Test
    • Pull Tension: 146 lbs
    • Bend Radius: 3.06 in
    • Cable Weight: 78 lbs


  • GTIN:

    0612825006695
