West Penn Wire D254852 2 Pair 24AWG FoilPlus Braid Sheilded RS-485 Cable CMP - Gray - 1000 Feet

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    West Penn Wire D254852 2 Pair 24AWG FoilPlus Braid Sheilded RS-485 Cable CMP - Gray - 1000 Feet

    Manufacturer: West Penn Wire Corp

    Item #: WP-D254852GY1000   •   MFG #: D254852 GY 1000



    List Price:$907.40
    Our Price:$764.65

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov

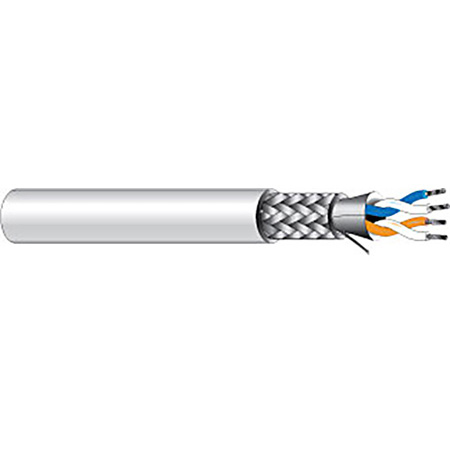

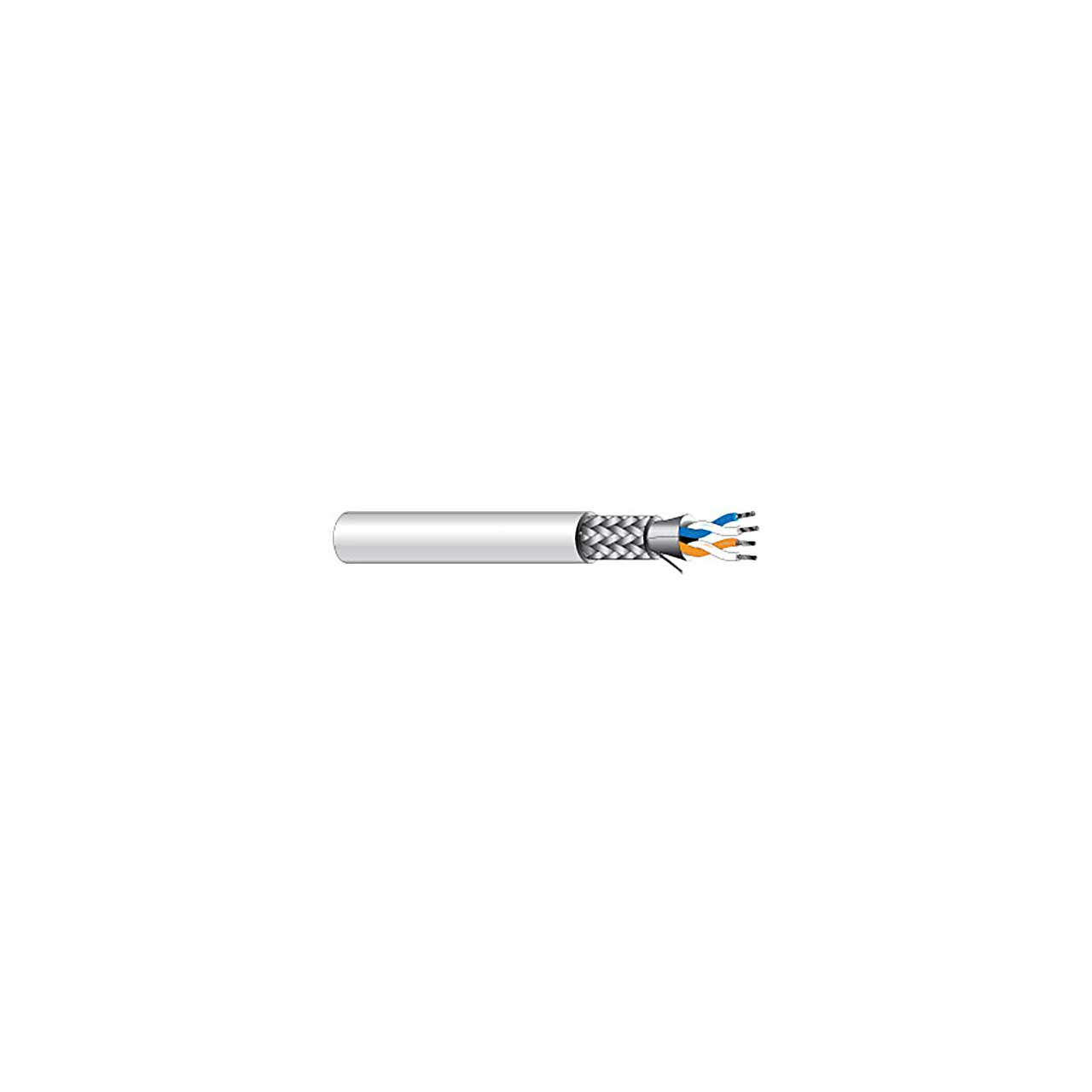

      The West Penn D254852GY1000 is a 2 pair 24 AWG Foil+Braid Sheilded RS-485 CMP Serial Data and RS-485 Control cable. This unterminated cable is 1000 feet in length.


      • Specifications

        • Conductor
        • Number of Pairs: 2
        • AWG Size: 24
        • Conductor Stranding: 7x32
        • Conductor Type: Tinned Copper
        • Nominal DCR: 26 Ohm/1000ft

          Insulation and Shielding
        • Insulation Type: Foam FEP
        • Insulation Thickness: 0.023 in
        • Insulation Color Code: 1.Blue-White,Blue
        • Shield Type: Overall 100% Aluminum Foil
        • Shield Type: 2 90% Tinned Braid
        • Drain Wire Type: Tinned Copper
        • Drain Wire AWG: 24 AWG

          Overall Construction
        • Total Number of Conductors: 4
        • Jacket Type: Flexible Plenum
        • Jacket Thickness: 0.017 in
        • Nominal Cable O.D.: 0.305 in
        • Plenum: Yes
        • NEC UL Rating: CMP
        • RoHS Compliant: Yes
        • Pull Tension: 56 lbs
        • Bend Radius: 2.745 in
        • Cable Weight: 38 lbs

          Overall Electrical/Optical Characteristics
        • Nominal Impedance: 120 Ohm
        • Nom. Cap. Between Conductors: 12.8 pF/ft
        • Nom. Cap. Conductor to Shield: 23 pF/f
        • Nominal Velocity of Propagation (VP): 69 %
        • Delay Skew: 1.6 ns/ft
        • UL Flammability: NFPA 262 Plenum
        • Operating Range: -0° to 60° C
        • UL Voltage Rating: 300
