West Penn D439 4 Pair 22AWG Communication and Control Cable Per Foot
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    West Penn D439 4 Pair 22AWG Communication and Control Cable Per Foot

    Manufacturer: West Penn Wire Corp

    Item #: WP-D439   •   MFG #: WP-D439


    List Price:$0.46
    Our Price:$0.42

    free ship
    Availability: In Stock
    Item is Available for immediate shipping from our warehouse.
    • This item is not returnable unless shipped in error or defective.

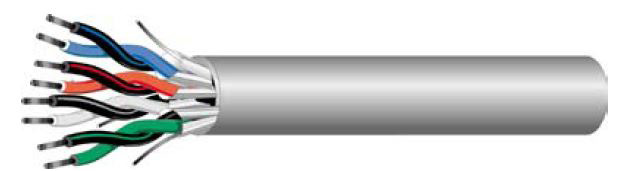

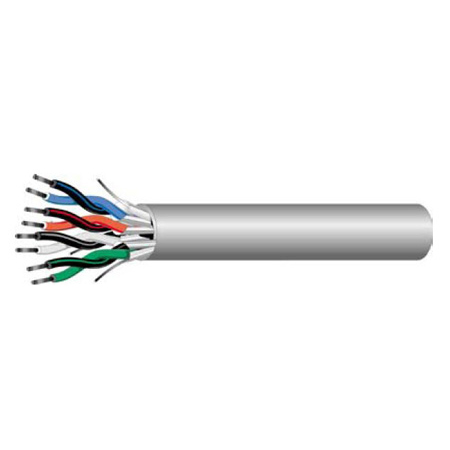

    4 Pair 22 Awg. Stranded tinned copper conductors, individually shielded with an overall jacket

    • Features

      • Indoor data cable for: Control, Signaling, Electronic, Microprocessor Based
    • Specifications

      • Conductor: 22 AWG Tinned Copper
      • Stranding: 7x30
      • Insulation Material: Polyolefin
      • Insulation Thickness: 0.006'' Nom.
      • Number of Conductors: 8 (4 Pair)
      • Shield: 100% Aluminum Polyester Foil
      • Drain: Stranded Tinned Copper
      • Jacket Material: PVC
      • Jacket Thickness: 0.025'' Nom.
      • Overall Cable Diameter: 0.280'' Nom.
      • Approximate Cable Weight: 49 Lbs/1M' Nom.
      • Flame Rating: UL 1685
      • Temperature Rating: -20deg C to 60deg C
      • Operating Voltage: 300 V RMS
      • Max.Capacitance Between Conductors: @ 1 KHz 34 pf/ft Nom.
      • Capacitance Between Conductors to Shield: @ 1 KHz 67 pf/ft Nom.
      • DC Resistance per Conductor: @ 20deg C 17 Ohms/1M' Nom.
      • Velocity of Propagation: 66% Nom.
      • Impedance: 55Ω Nom
      • Insulation Colors: 1. Black/Red, 2. Black/White, 3.Black/Green, 4.Black/Blue
      • Jacket Color: Gray
      • RoHS Compliant: Yes
      • Max. Recommended Pull Tension: 92 lbs.
      • Min. Bend Radius (Install): 2.8”
