MT-8-F-M-100 - Overview

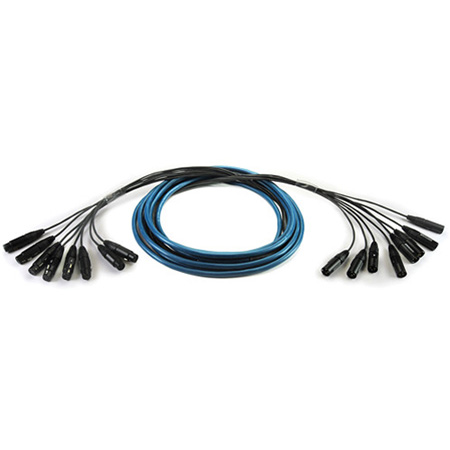

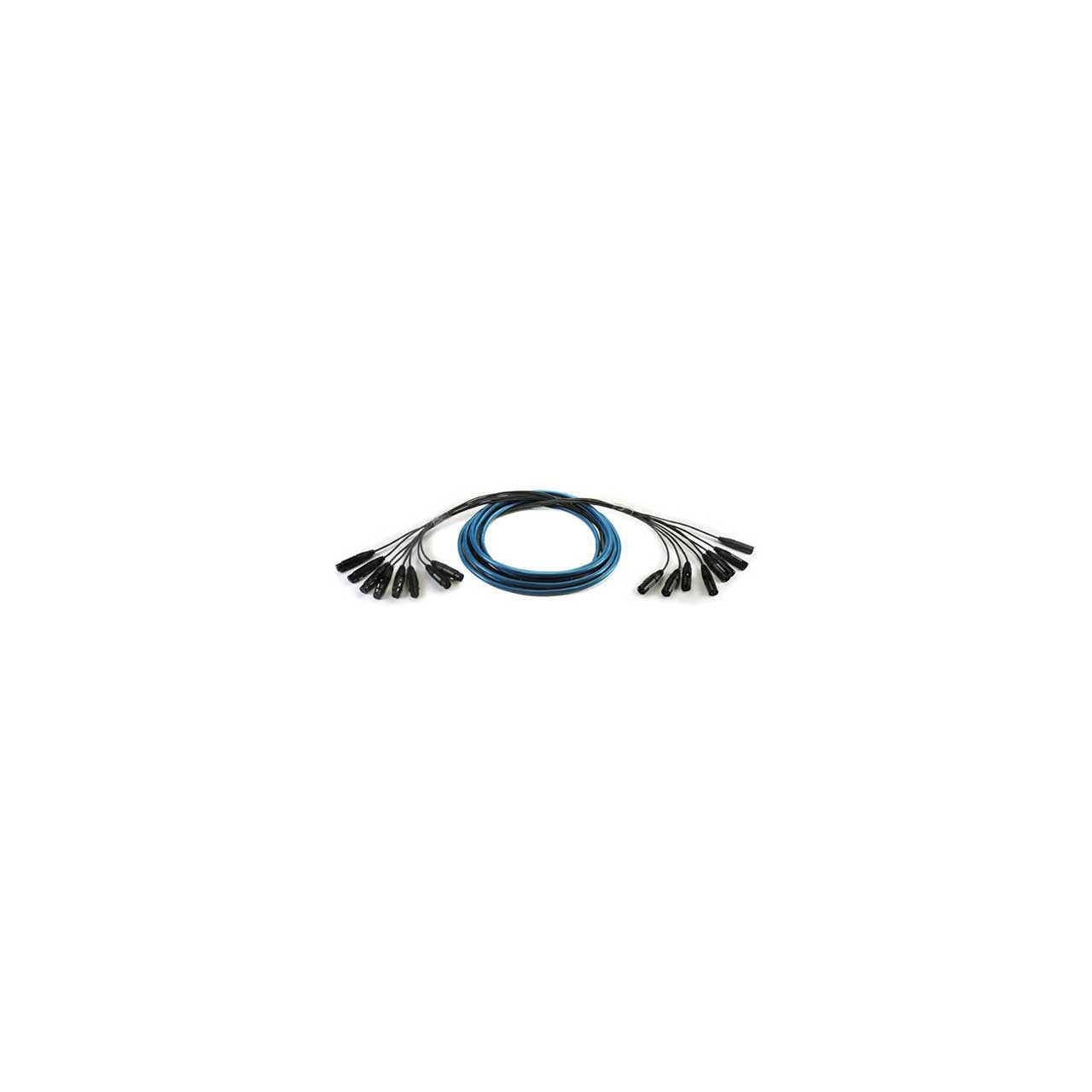

The Whirlwind MT-8-F-M-100 is a 100 foot 8-Channel XLRM-XLRF multitrack snake cable. The Medusa Multitrack (MT) Series is designed to interface multitrack recorders or outboard equipment to mixing consoles. Each Multitrack Medusa is constructed of Whirlwind multipair cable with a heat-shrunk fanout at each end.

The cabling consists of heavy duty, flexible Belden CM rated multipair cable. Each pair contains two twisted 24GA 7x32 polyethylene insulated conductors with 100% foil shield and 24GA drain wire. The fanouts feature XLR connectors and all channels are numbered.

  • Features:

    • Fanouts with multiple layers of rugged heat shrink at the most critical points.
    • Fanouts feature Whirlwind connectors with engraved numbers.
    • Made in U.S.A.


  • Specifications:

    • Cable Type: 8 Channel XLR fanout to fanout snake
    • Length: 25' (7.6 m)
    • Shielding: 100% foil shield
    • Connector 1: 8x 3-Pin XLR male
    • Connector 2: 8x 3-Pin XLR female
