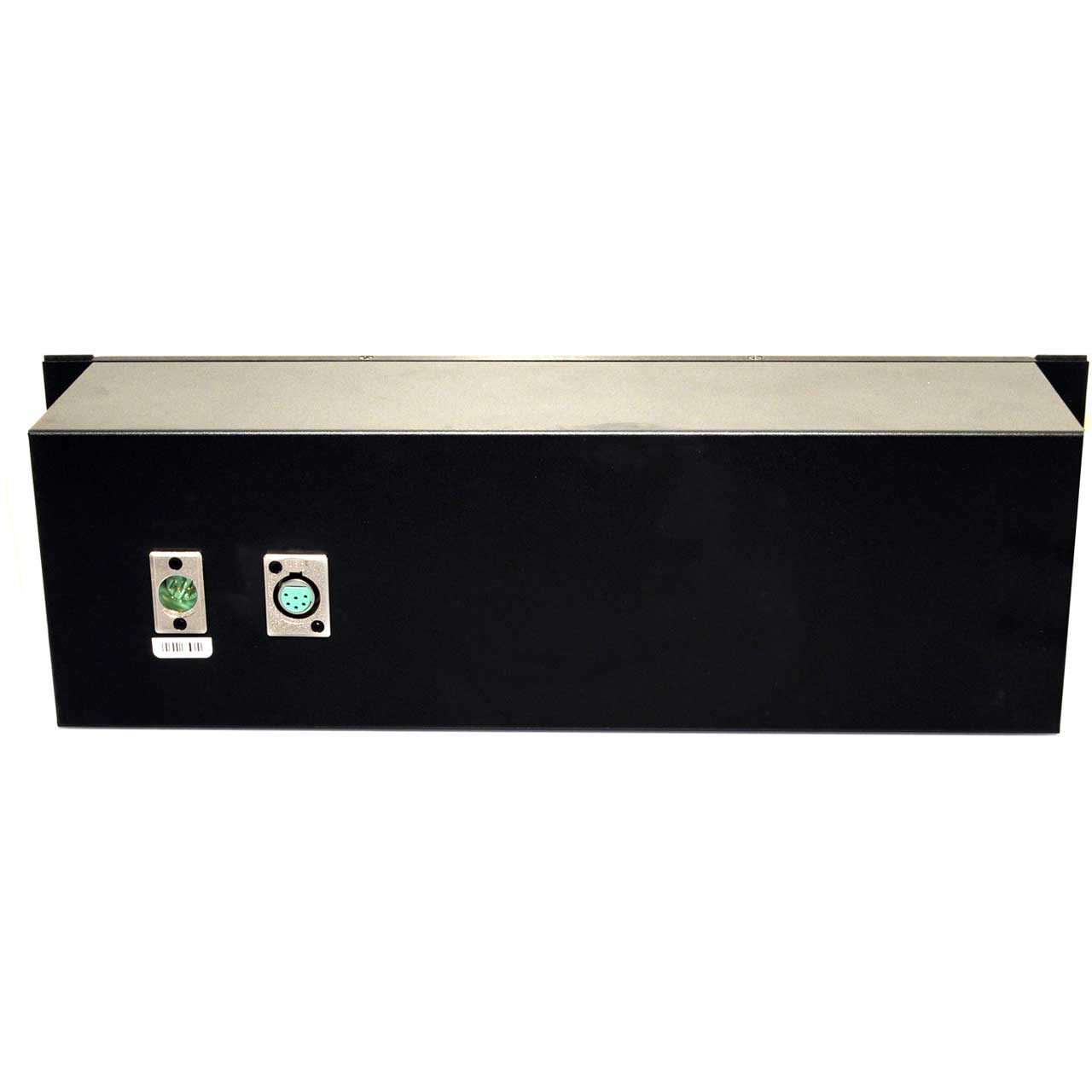

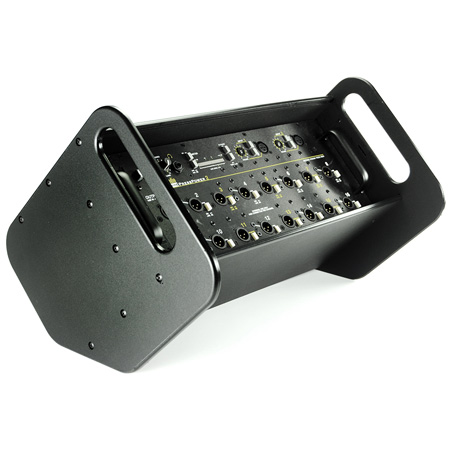

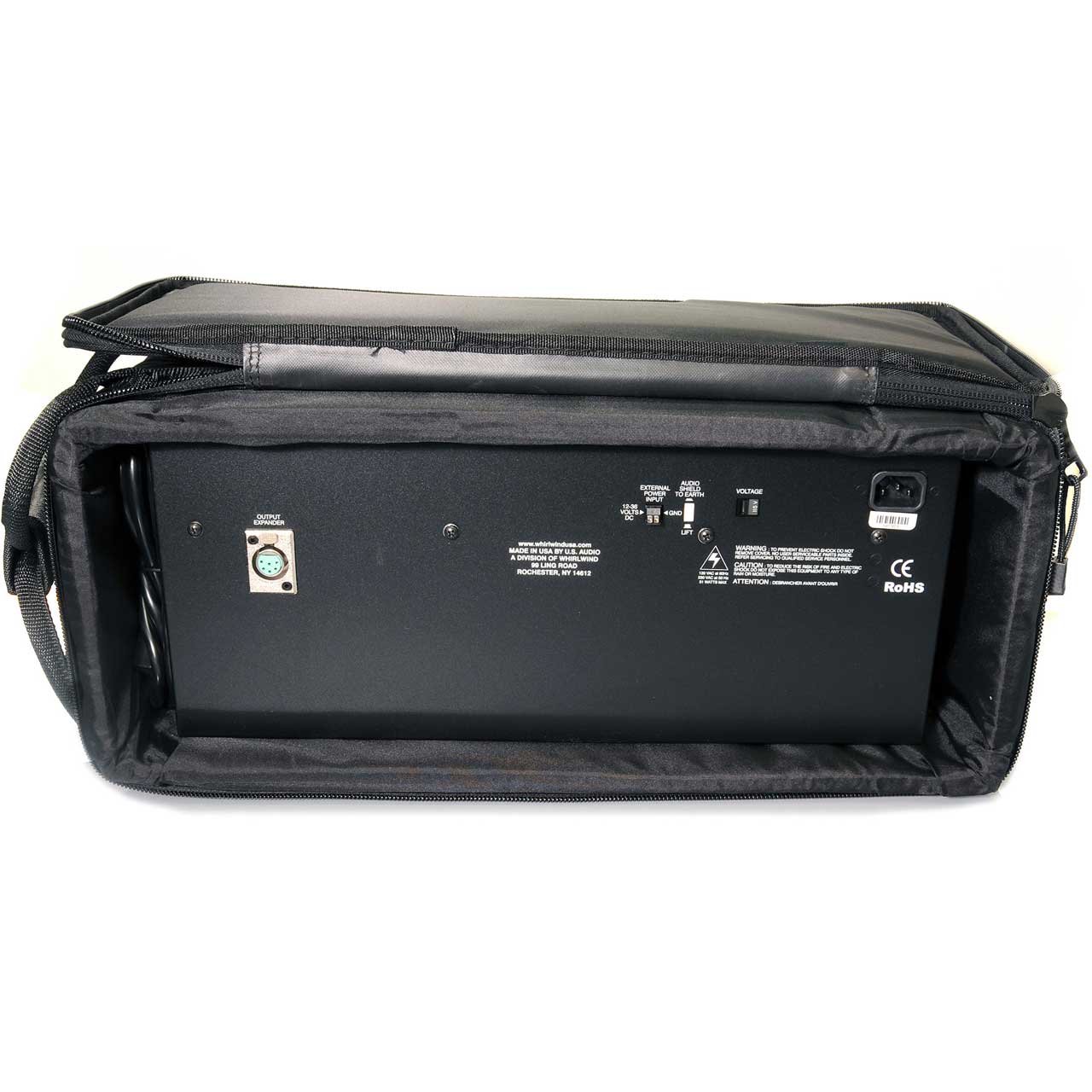

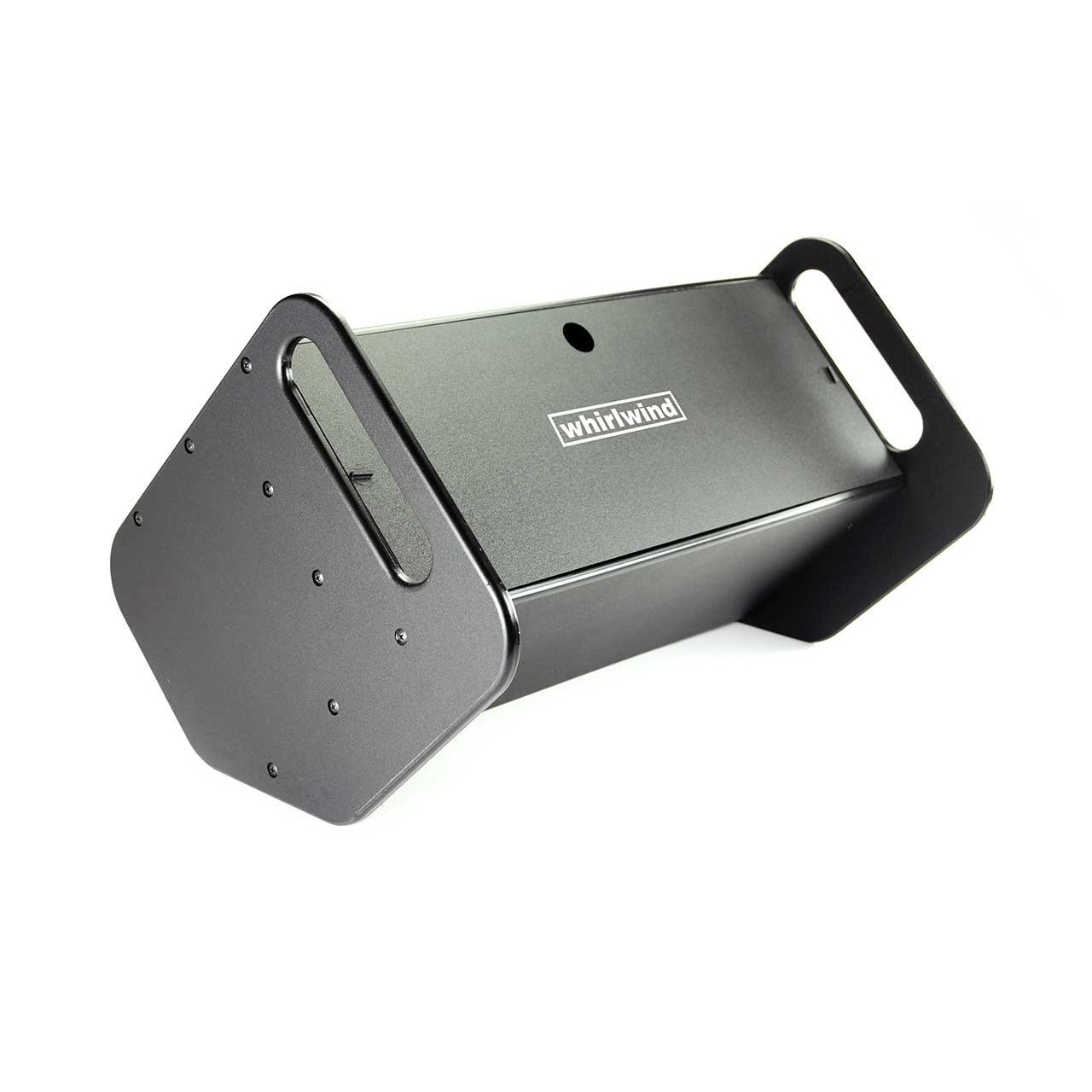

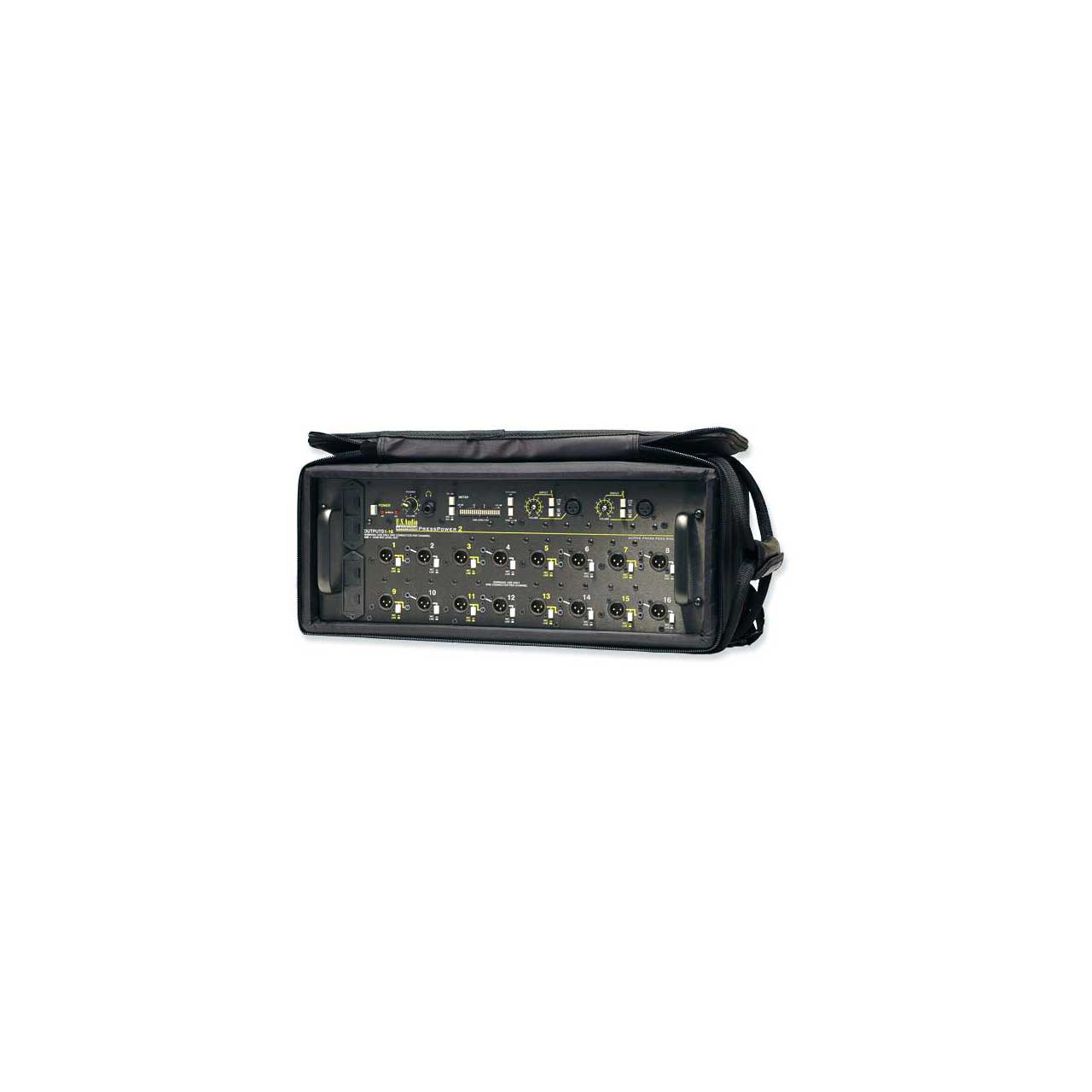

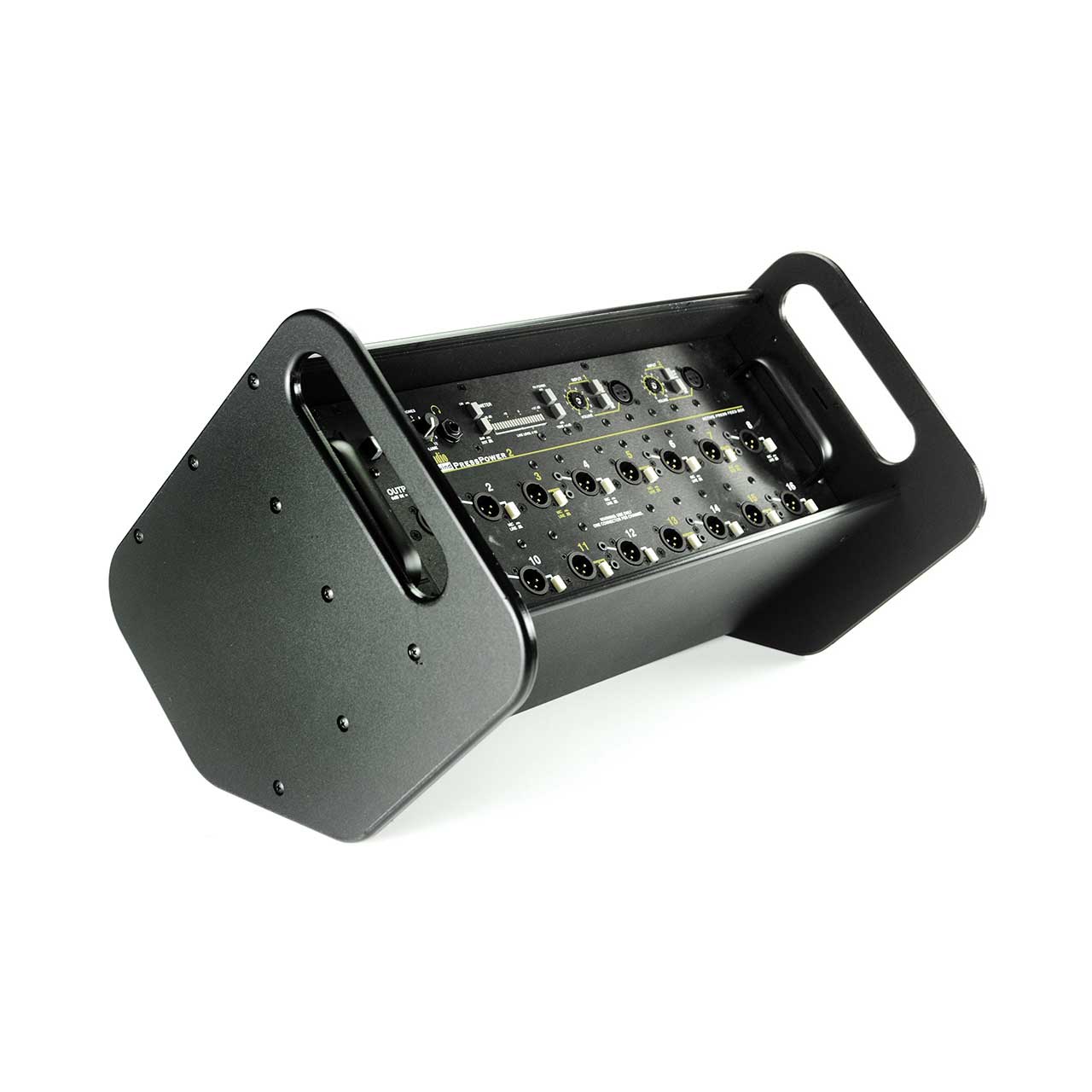

Whirlwind PRESS2XP Pressbox - Active Expander Module for PRESSPOWER2 & PRESSPOWER3 - Adds 16 Mic/Line Outputs

ITEM #: WW-PRESS2XP MFG #: PRESS2XP

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,506.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PRESS2XP - Overview

    Additional active mic/line outputs can be added to the PRESSPOWER3 with this optional 16 channel PRESSXP expander modules, giving you 32 total active outputs. Additional mic outputs can be achieved by adding passive PB Series Press Boxes to outputs set to line level.

    • Specifications:

      • Frequency Response: -.5dBm 20Hz to -2dBm 16kHz
      • Input Impedance: Mic: 1.5k Ohms; Line: 200k Ohms
      • Maximum Input Level: Mic: -5dBm; Line: +50dBm
      • Output Impedance: Mic: 150 Ohms; Line: 150 Ohms
      • Maximum Output Level: Mic: -5 dBm into 2k Ohms; Line: +23 dBm into 2k Ohms
      • Total Harmonic Distortion: .075% at 1 kHz, mic @ unity gain
      • Isolation Between Outputs: Mic: Greater than 95 dBm; Line: Greater than 60 dBm
      • Power Draw AC mode: 31 W max
      • Size (inside case): 20" X 9.5" X 8.5" (4RU removed from case)
      • Weight with case: 17 lbs.
      • Weight without case: 12 lbs.

    • GTIN:

      0692465004176
