    XK-1225-UFK128-R - Overview

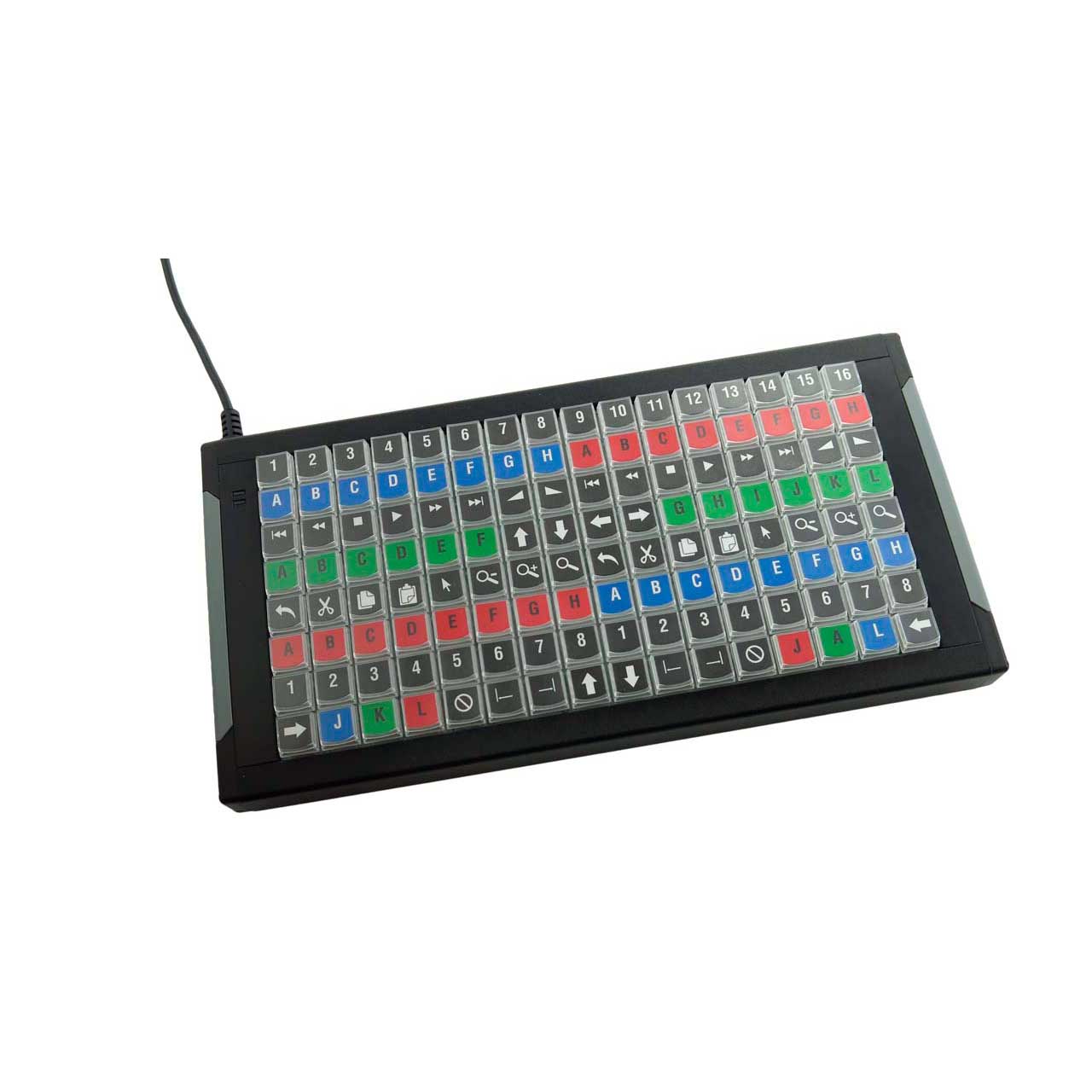

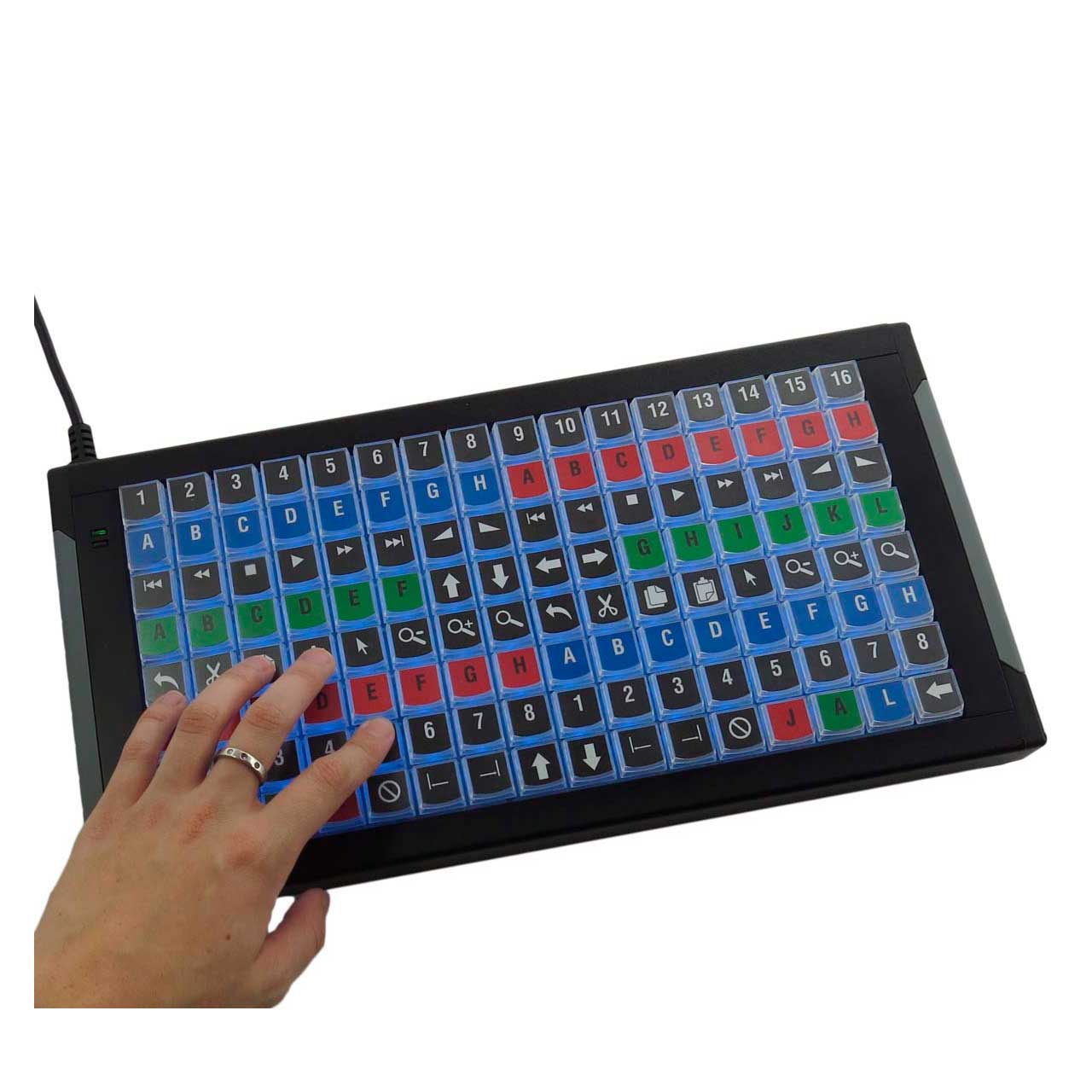

    Take complete control of any Windows or OSX applications and build the ultimate keyboarding station with the X-Keys XKE-128. This is the largest X-Key unit featuring 8 rows and 16 columns. Dedicated keys in an intuitive ergonomic layout maximize efficiency, minimize operator errors, and lower training time on any system.

    The XKE-128 ships fully populated with 128 relegendable keys - perfect for testing multiple layout options. Add an optional large keys and key blockers to refine the layout. Using an established hardware platform saves time moving from prototype to production.

    When it comes time to reproduce your finished prototype, select options ranging from printed key legends to acrylic printed ABS keys to double-shot molded key caps. We offer custom brand labeling, assembly, programming, and testing to provide a delivered plug-and-play solution. We specialize in 10-100 unit custom control solutions with the capability to step up to thousands of units for large scale deployment.

    • Features:

      • 8x16 grid for keys and blockers

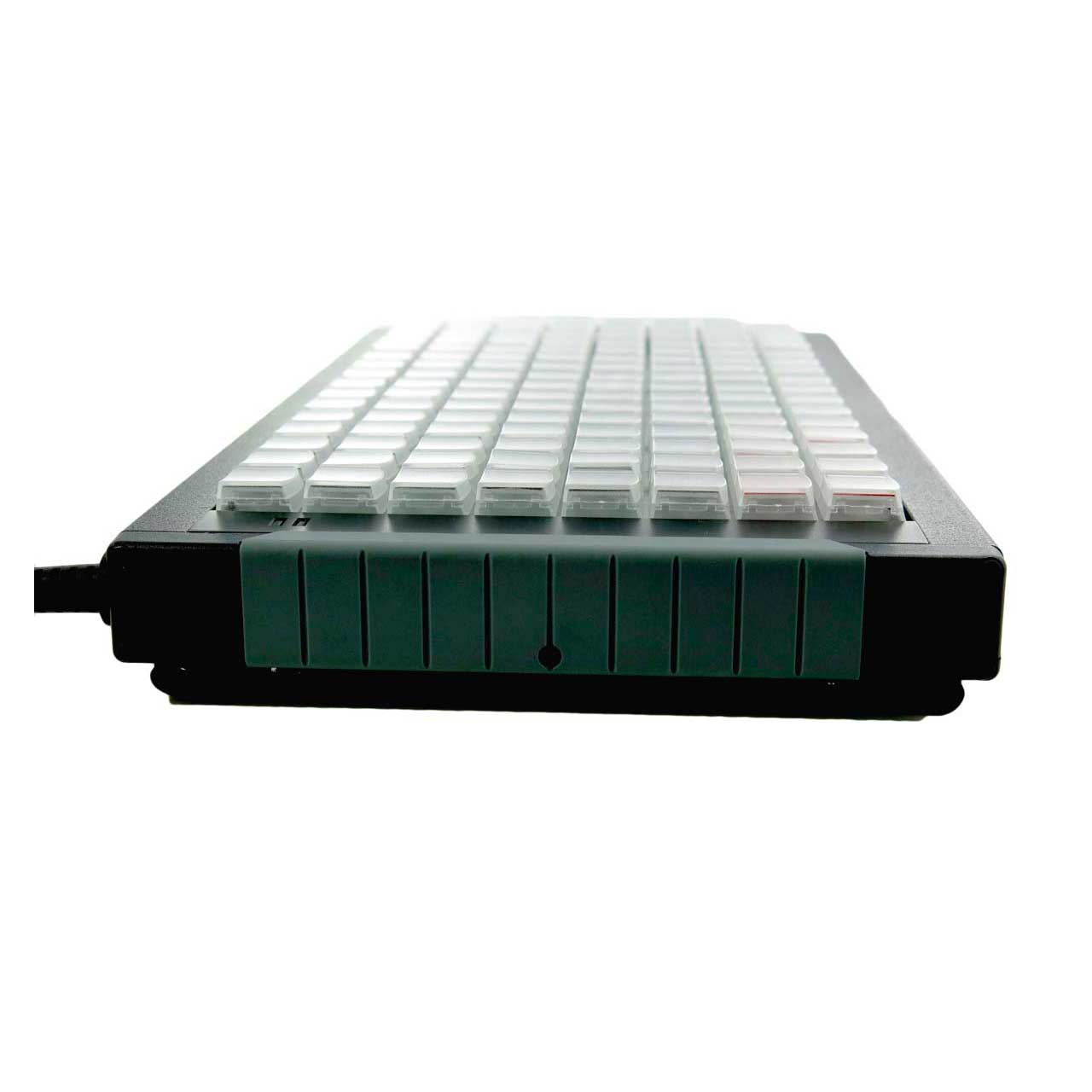

      • Heavy duty extruded aluminum case with powder coated finish

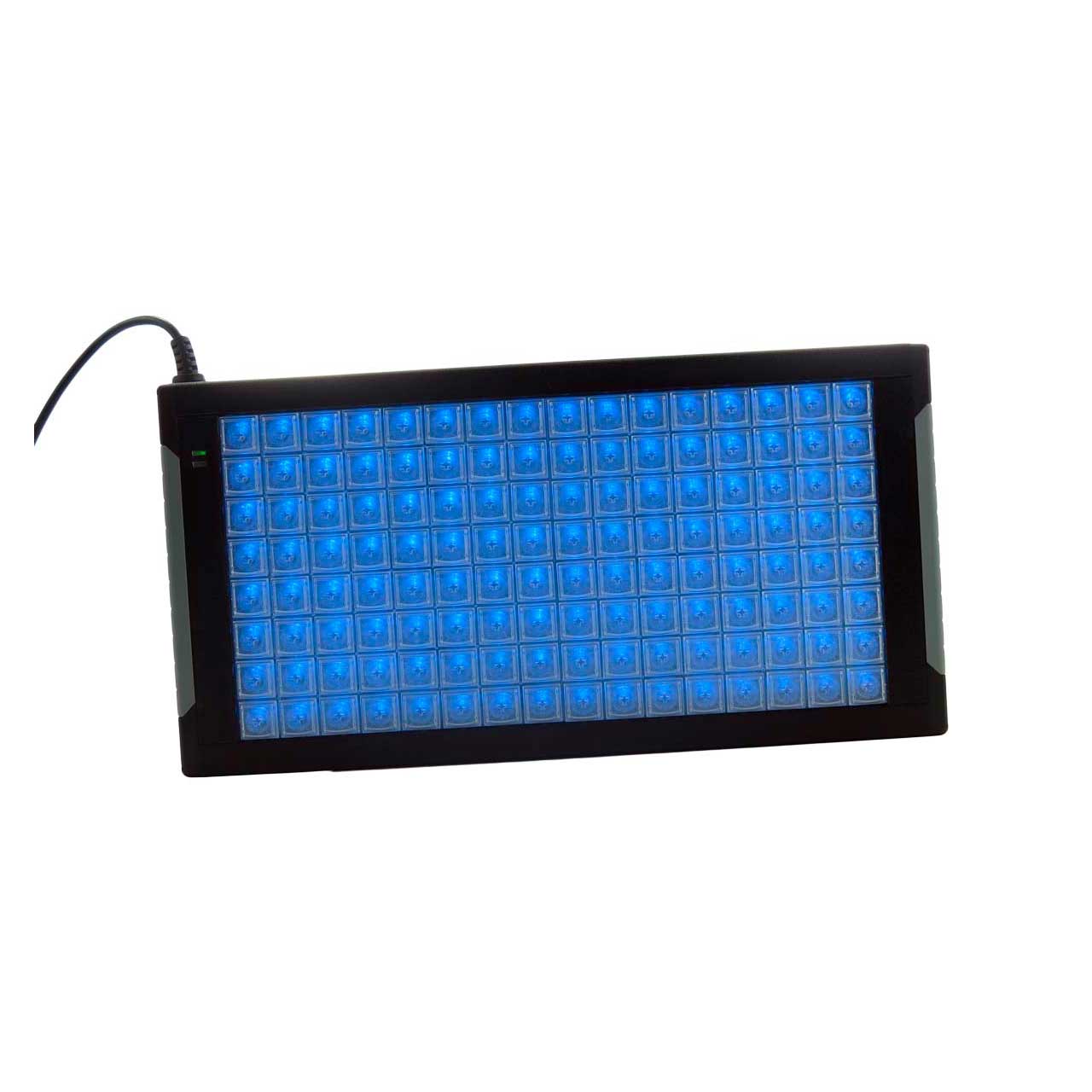

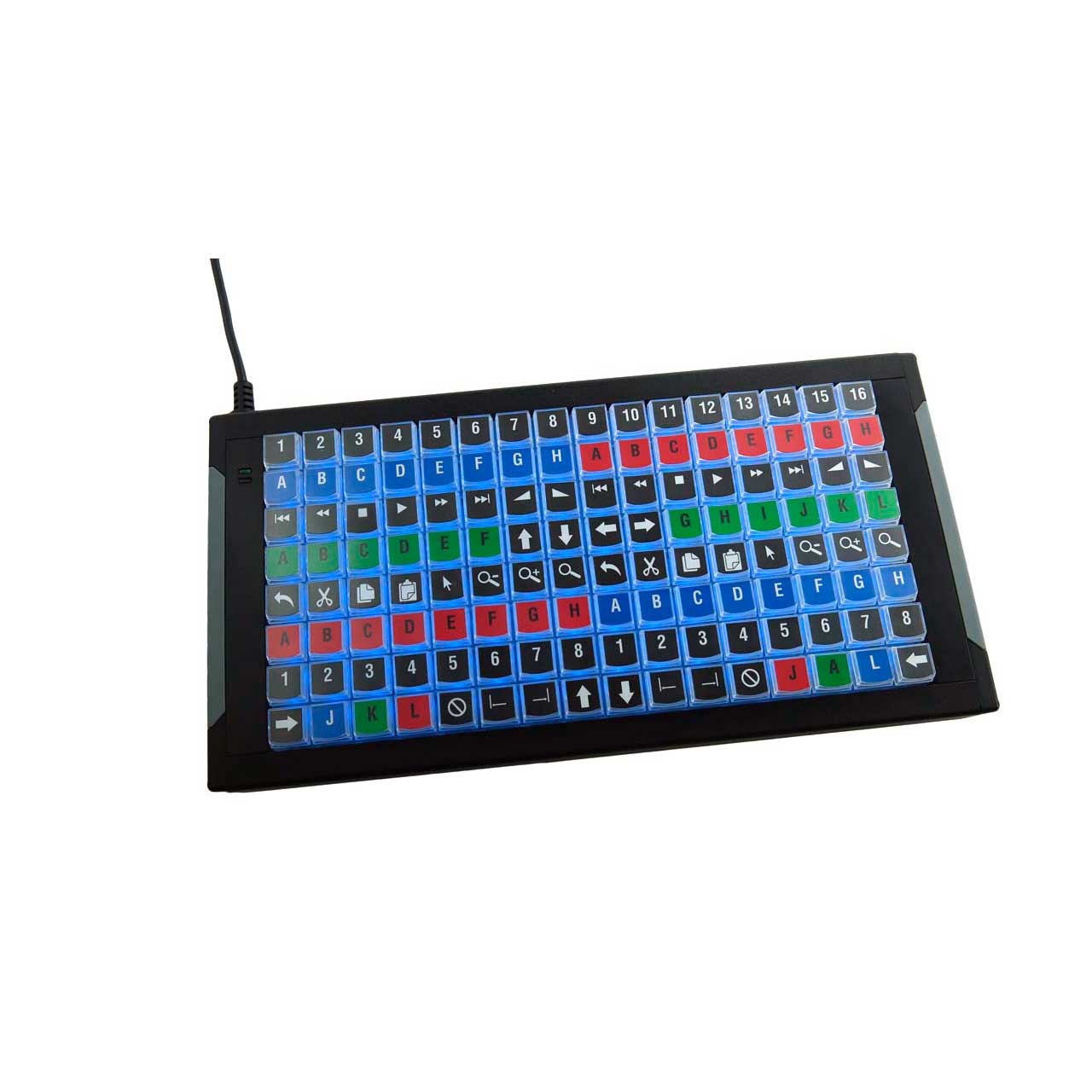

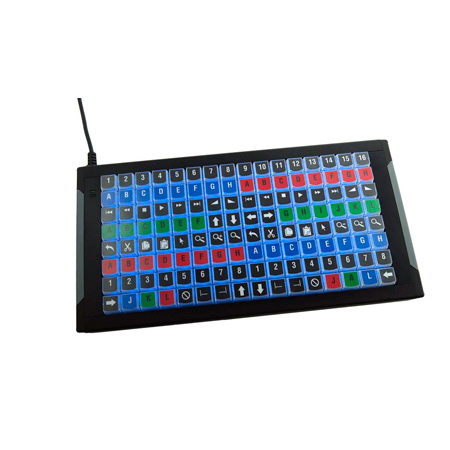

      • Addressable blue and red backlighiting for each key
      • USB connection to computer
      • Emulates keyboard, mouse, or game controller (joystick)
      • Also offers unique USB HID data reports for full integration
      • A wide range of key caps and blockers available

      • Included Macro Works 3.1 for Windows
      • Launch programs, insert Unicode, open files and directories, select tools and more
      • Can write macros to X-keys memory for Hardware Mode macro programming
      • Control backlighting globally or for individual keys
      • Create custom scripting with Visual Basic (Software Mode only)
      • Compatible with Windows 8, 7, and Vista (32 or 64 bit) and Windows XP (32 bit only)
      • Free technical support via email or phone

      • Included ControllerMate for OSX
      • Launch programs, insert Unicode, open files and directories, select tools and more
      • Control backlighting globally or for individual keys
      • Create macros or execute Applescript with drag and drop building blocks
      • Compatible with Mac OS X 10.9, 10.8, 10.7 and 10.6 (64 bit)
      • Free support via OrderedBytes Forum

        P.I. Engineering SDK (Free Download)
      • Microsoft Visual Studio code examples in C# 2008 Express, C++ 2005, and VB.NET 2008 Express
      • Read all key and control states
      • Control all backlighting and indicator LEDs
      • Free technical support via email or phone
      • Linux SDK provides a cross platform solution for Linux, Windows, and Mac also available
    • Specifications:

      • Operating System Use: Any OS via USB HID | Programming: Windows XP through 8, Mac OS X 10.4 through 10.8
      • Free Programming Software: Windows: MacroWorks 3.1; Mac: ControllerMate for X-keys
      • Free Software Development Kits: Windows (C++, C#, VB.NET); Linux (C++); Android (Java); Raw HID (any language/OS)
      • Emulation Modes: HID keyboard, HID mouse, HID game controller
      • Switch Types: Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations
      • Number of Keys: 128 single keys + programming button
      • Actuation Force: Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold
      • Key Cap Type: Relegendable with Cherry MX compatible stem
      • Key Cap Size: 0.625" (16mm) sq.
      • Key Spacing: 0.75" O.C.
      • Optional Keys: 2X1, 1X2, 2X2
      • Backlighting: 128 blue and 128 red LEDs, individually addressable
      • Connector: Wired USB 2.0 standard "A" plug
      • Cord Length: 56" (1.42 m)
      • Dimensions: 14" x 7.3" x 1.8" (279mm x 185mm x 46mm)
      • Weight: 4.7lbs (2.13 kg)
      • USB type: USB 1.1 compatible through 3.0
      • Power Source: USB port, nominal voltage = 5 VDC
      • Current Draw: NO backlight: 37 mA , Blue backlight full: 176 mA, Red backlight full: 265 mA, All backlights full: 358 mA
      • Temperature Range: -20 to 60 C
      • Humidity: 80% Rh non-condensing
      • Environmental Rating: IP 40, typical indoor office environment
      • Certifications: FCC class B, CE, RoHS, WEEE compliant
    • Item Includes:

      • 1- X-keys XKE-128
      • 1- Installation CD
      • 1- Double key set (2 tall, 1 wide, 1 key puller)
      • 4- Legend Sheets (two pre-printed, two blank)
      • 1- Product Manual
