XK-1456-124VS-BU - Overview

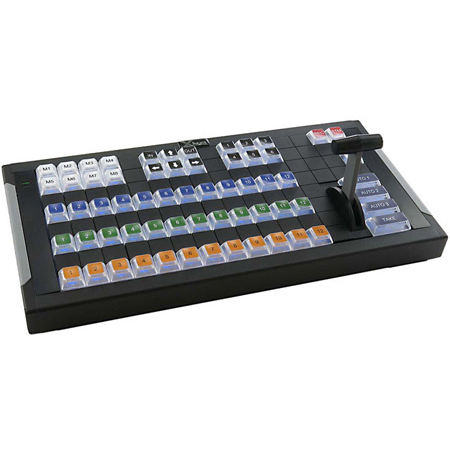

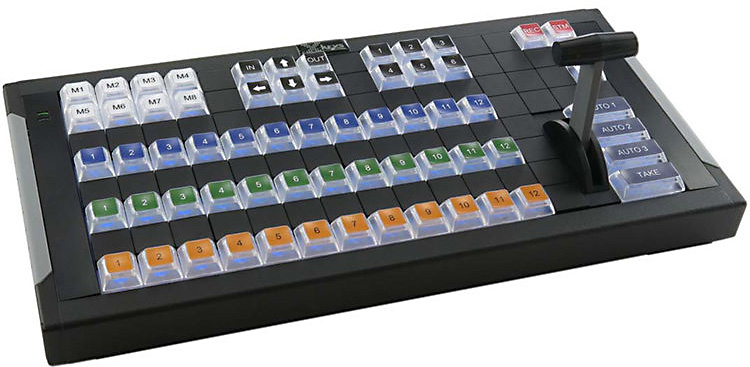

The XK-1456-124VS-BU is a T-bar video switcher keyboard. This bundle of the X-keys XKE-124 T-bar with a key set designed for video switching and control provides all parts required to build the unit as pictured and includes a mask to reduce backlight bleed-over.

  • Features:

    • Smooth and solid T-bar reports 0-255 linear position value
    • 124 keys
    • Heavy duty extruded aluminum case with powder coated finish
    • Addressable blue and red backlighiting for each key
    • USB connection to computer
    • Also offers unique USB HID data reports for full integration
    • A wide range of key caps and blockers available
  • Specifications:

    • Emulation Modes: HID keyboard, HID mouse, HID game controller
    • Switch Types: Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations
    • Number of Keys: 124 single keys
    • Actuation Force: 120g (4.2oz) break-over, 60g (2.1oz) hold
    • Key Cap Type: Relegendable with Cherry MX compatible stem
    • Key Cap Size: 0.625" (16mm) sq.
    • Key Spacing: 0.75" O.C.
    • Optional Keys: 2X1, 1X2, 2X2
    • Backlighting: 124 blue and 124 red LEDs, individually addressable
    • Connector: Wired USB 2.0 standard "A" plug
    • Cord Length: 56" (1.42 m)
    • Dimensions: 14" x 7.3" x 1.8" (279mm x 185mm x 46mm)
    • Weight: 4.7lbs (2.13 kg)
    • USB type: USB 1.1 compatible through 3.0
    • Power Source: USB port, nominal voltage = 5 VDC
    • Current Draw: NO backlight: 37 mA , Blue backlight full: 176 mA, Red backlight full: 265 mA, All backlights full: 358 mA
    • Temperature Range: -20 to 60 °C
    • Memory Capacity: Approximately 21,000 keystrokes or commands in onboard memory
    • Humidity: 80% Rh non-condensing
  • Item Includes:

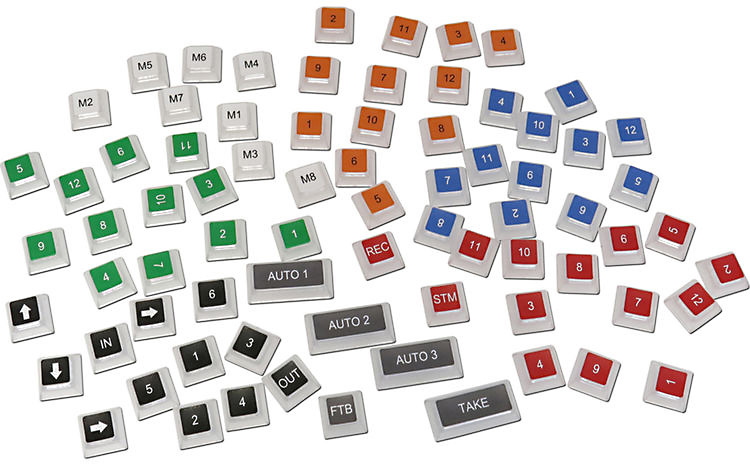

    • X-keys XKE-124 T-bar
    • Numbers 1-12 on single clear acrylic keys with a blue, green, red, and orange background
    • M1-M8 on single clear acrylic keys with a white background
    • IN, OUT, four arrows, and 1-6 on single clear acrylic keys with a black background
    • REC, STM on single clear acrylic keys with a red background
    • FTB on single clear acrylic keys with a gray background
    • Wide clear acrylic keys with a gray background and AUTO 1, AUTO 2, AUTO 3, and TAKE printed
    • 61 key blockers
    • A black paper mask to cover the key deck and reduce backlighting bleed-over
