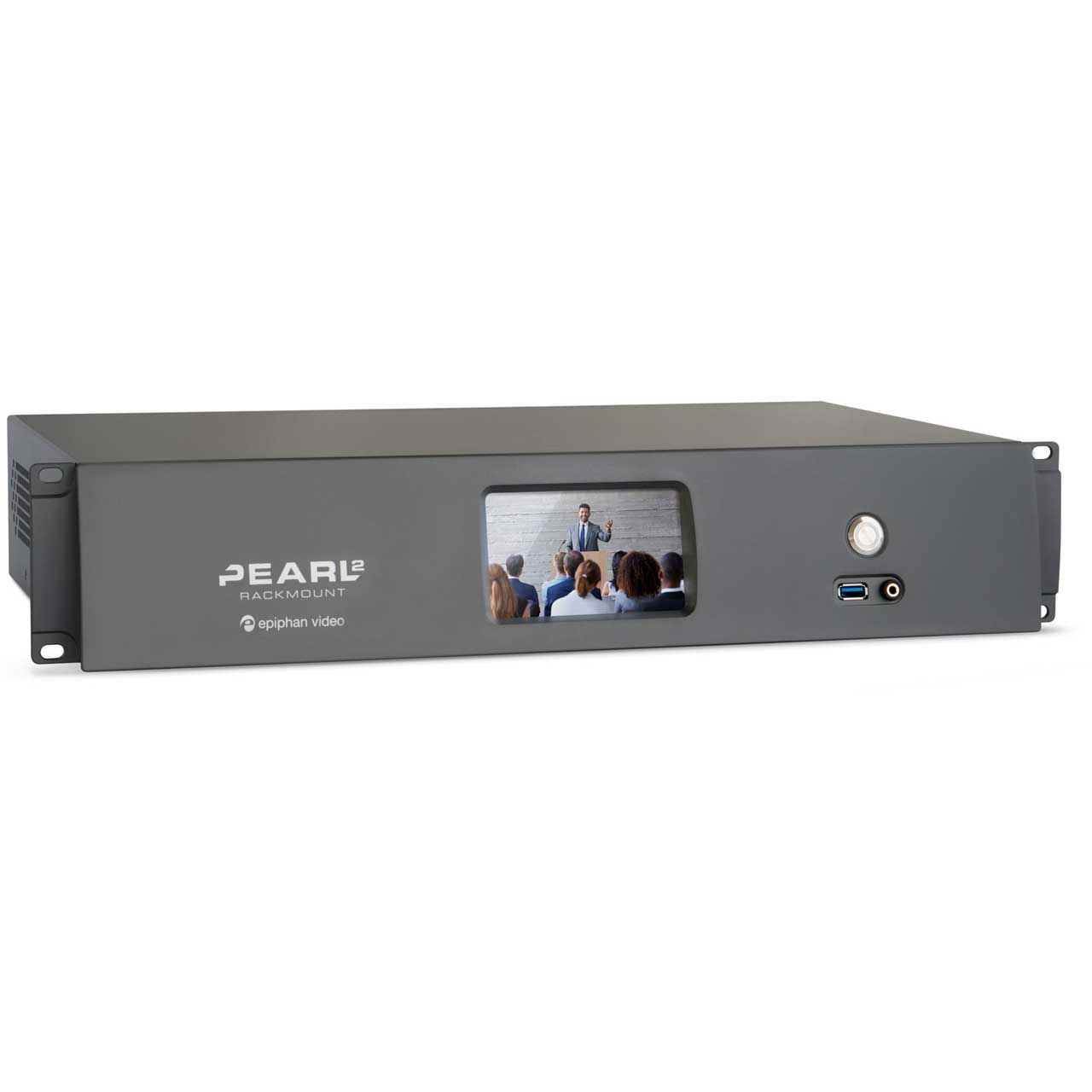

Epiphan ESP1151 Pearl-2 4K Rackmount 6-Source Live Event Video Production Switching / Streaming / Recorder

ITEM #: EPIP-ESP1151 MFG #: ESP1151

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$7,975.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    ESP1151 - Overview

    The ultimate all-in-one live video production system!

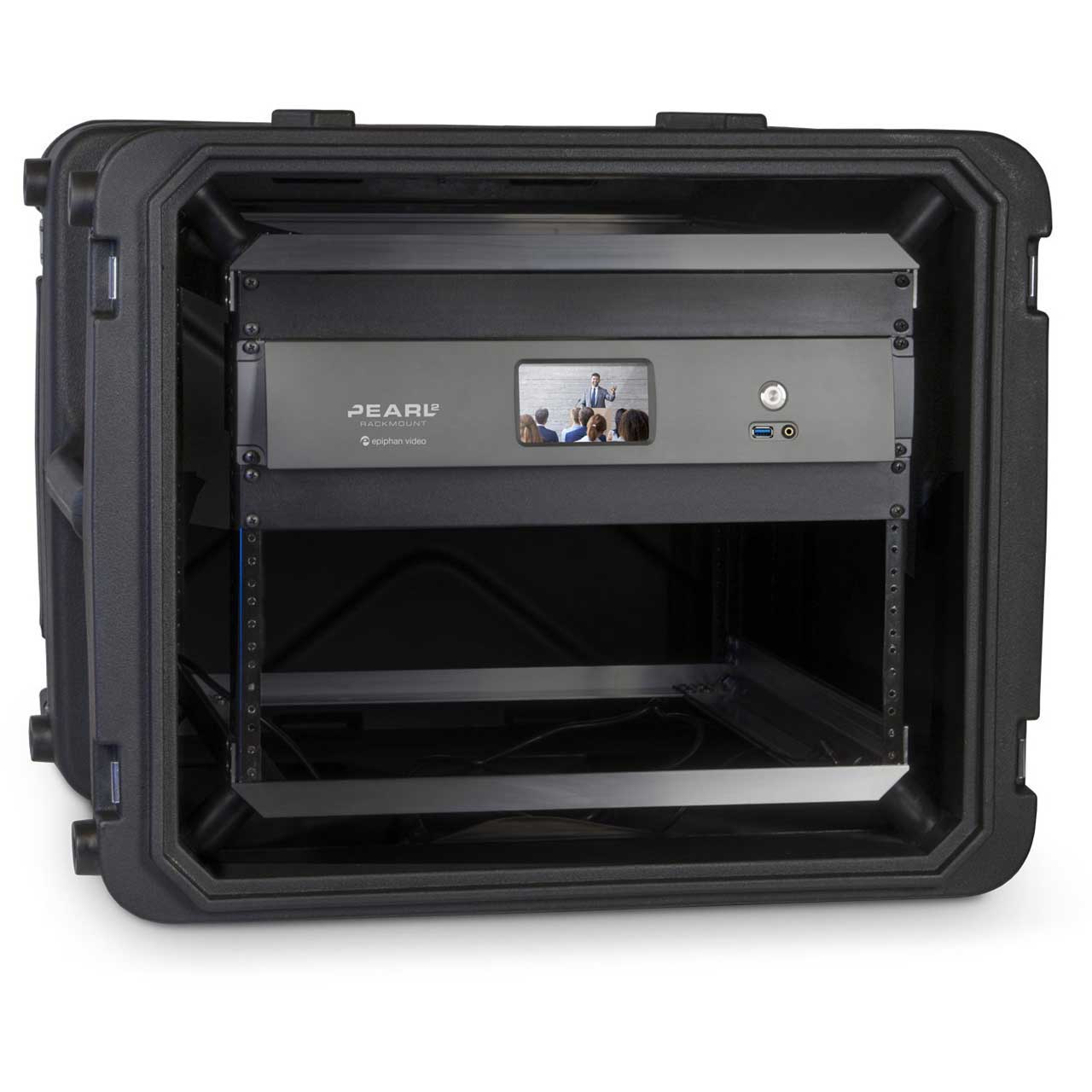

    The Epiphan Pearl-2™ 2 RU rackmount version is a video switcher, recorder, streamer, splitter, and scaler all in one. This is the 6-Source version of the Pearl-2 and it's designed for portable live production and includes a hard-shell carrying case. With six video inputs and four for XLR professional audio, 4K streaming* and recording, NDI support, chroma keying, and much more, Pearl-2 brings the pro features and processing power required for the most demanding live events.

    Reach viewers everywhere
    Simultaneously live stream to YouTube, Facebook, and other content delivery networks and content management systems using SRT, HLS, MPEG-DASH, custom RTMP/RTMPS, and RTSP. At the same time, use the built-in streaming server to stream locally to web browsers, smart TVs, and set-top boxes. Deep integration with Kaltura and Panopto video platforms means no complicated stream URLs to set up. Just schedule your webcast events or start streaming right from Pearl-2's built-in touch screen.

    Share your webcasts
    Locally share unicast or multicast streams to up to 50 viewers with popular streaming protocols like HTTP, HLS, FLV, ASF, UPnP, and SAP.


    Stream securely
    Use SRT end-to-end 256-bit AES encryption, HLS and MPEG-DASH over HTTPS, or RTMPS for secure content streaming.

    * 4K Operation requires the EPIP-ESP1205 4K feature add-on. (sold separately)

    • Features:

      • Small size, big capabilities
      • Front screen for basic configuration/control and confidence monitoring
      • Video inputs for HDMI and SDI
      • Audio inputs for line-level XLR, RCA, and USB
      • HDMI program out and pass-through for zero-latency content display
      • Custom layout builder for a tailored video program
      • Intuitive browser-based UI and local console
      • Cloud-based configuration and control via Epiphan Cloud
      • SRT, HLS, MPEG-DASH, RTMP, and RTMPS streaming protocol support
      • Secure Sockets Layer (SSL)
      • Comprehensive integration with Kaltura and Panopto
      • Power over Ethernet Plus (PoE+) and DC power
      • Save recordings directly to an SD card (user supplied)
      • Expansion bay for user-supplied M.2 SATA SSD
      • Automatically transfer recordings to a USB drive or networked server
      • 802.1x network access control
      • Lightweight Directory Access Protocol (LDAP)
      • Integration with Crestron Systems

    • Specifications:

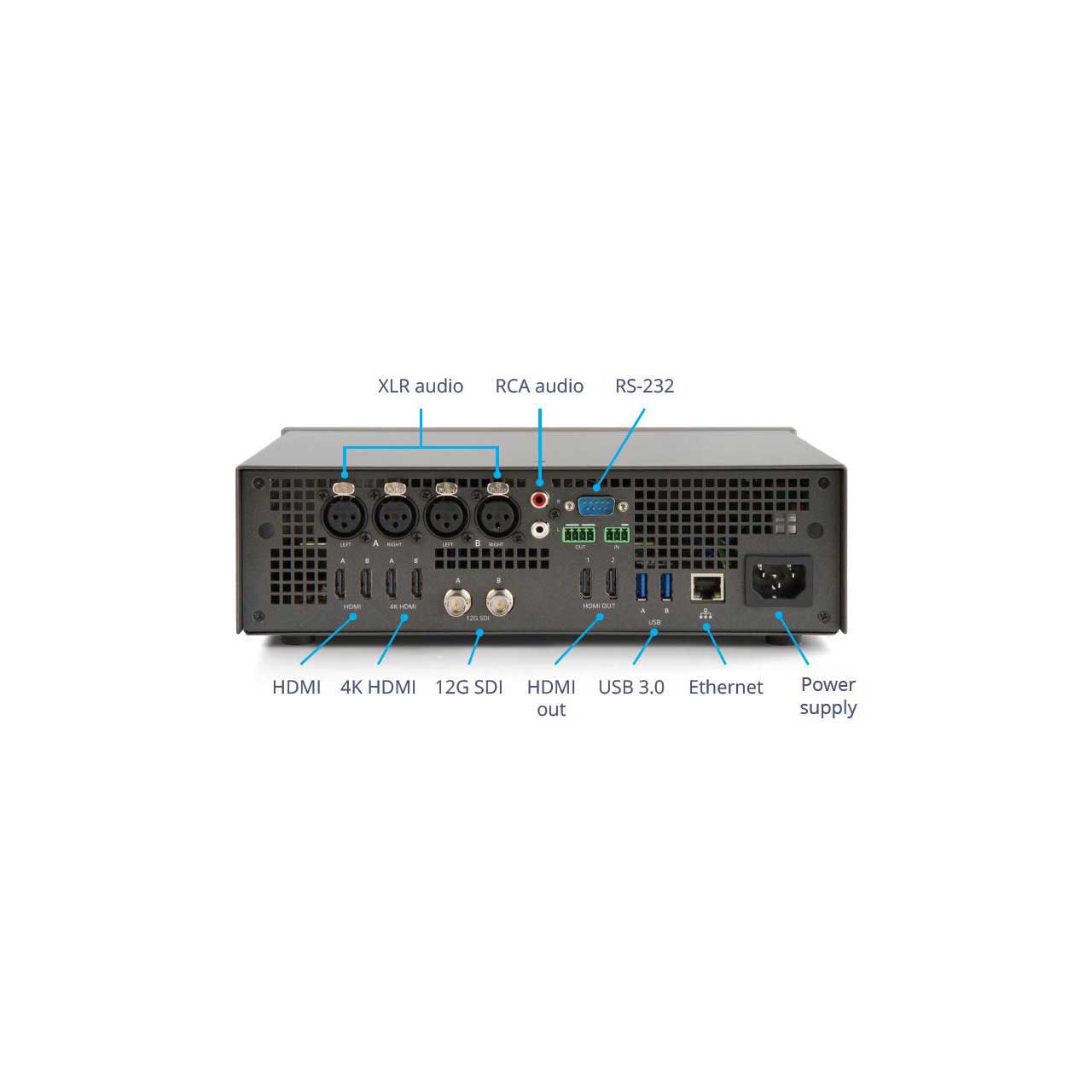

      • Video inputs
      • Connectors: 2 x HDMI™, 2 x 4K HDMI, 2 x 12G SDI, 2 x USB video
      • Network inputs: NDI®, NDI HX, SRT, and RTSP

      • Audio inputs
      • 4 x XLR (two stereo pairs or four mono), 2 x SDI, 2 x USB, 4 x HDMI, 1 x RCA (stereo)

      • Video output
      • On-board touch screen and 2 x 4K HDMI for video output

        Video switching
      • During live streaming and recording via the touch screen or web UI

        Video encoding
      • Codecs: H.264 and Motion JPEG
      • Color resolution: 4:2:0
      • Resolution: User selectable up to 4K (3840 x 2160)

      • Streaming protocols
      • RTMP/RTMPS, SRT, HLS, MPEG-DASH, NDI, RTSP, MPEG-TS, RTP/UDP, UPnP

      • Encoded programs
      • 2 simultaneous 1080p programs at 60 fps (with up to 6 HD sources)
      • 6 simultaneous 1080p programs at 30 fps (with up to 6 HD sources)
      • 1 4K UHD program at 30 fps (with up to two 4K and two HD sources)

      • Audio encoding
      • MP3, PCM, and AAC (sampling 16 to 48 kHz, bitrate up to 320 kbps)

      • Network
      • 1 x 10/100/1000 Ethernet port (RJ45)
      • 802.1x network security and certificate management
      • Storage
      • Local hard drive: 512 GB SSD
      • Local USB: Automatic or manual copy via 3 USB 3.0 ports
      • Network storage: FTP, SFTP, SCP, RSYNC, CIFS, AWS, or WebDav servers

      • Recording formats
      • AVI, MP4, MOV, or MPEG-TS

      • Control
      • Browser-based Admin panel, Epiphan Live portal, touch screen, remote login, HTTP, and RS-232 APIs

    • Item Includes:

      • Epiphan Pearl-2 Rackmount
      • Ethernet cable
      • Power cable (region specific)
      • SDI cable
      • HDMI cable
      • DVI (female) to HDMI (male) adapter

    • Warranty:

      • One-year phone support
      • One-year limited warranty
      • Free firmware upgrades

    • GTIN:

      0019962359705
