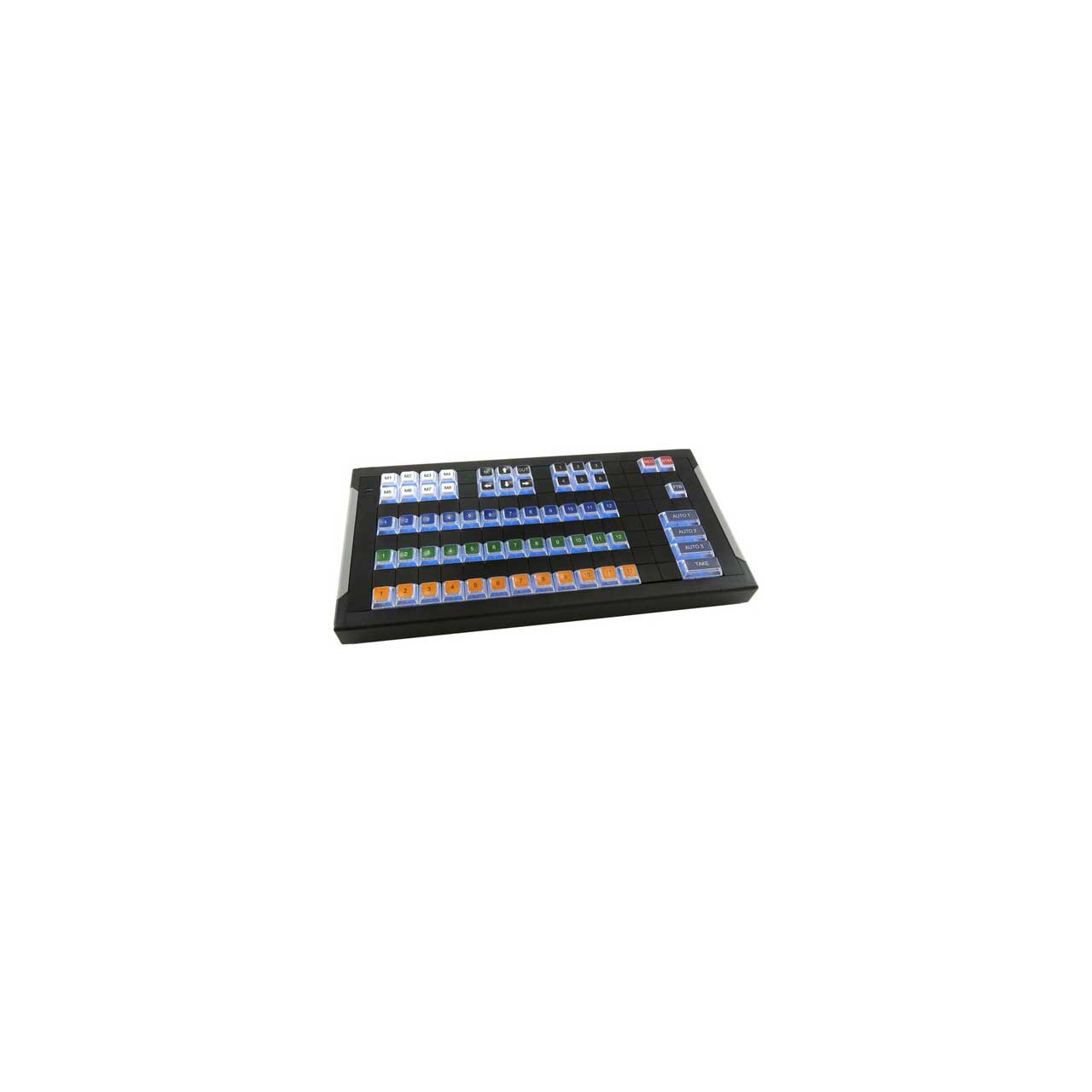

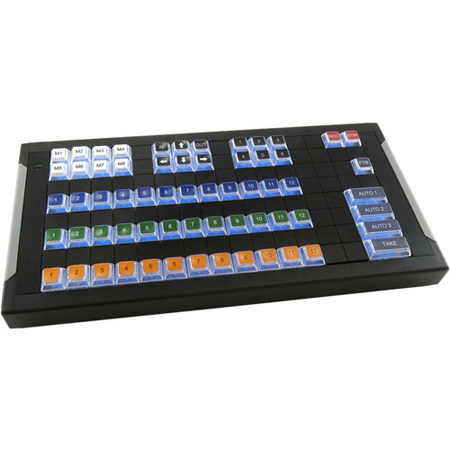

X-Keys XK-1457-128VS-BU XKE-128 Keyboard Bundled with Video Switcher Key Set

ITEM #: XK-1457-128VS-BU MFG #: XK-1457-128VS-BU

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the XK-1457-128VS-BU

XK-1457-128VS-BU - Overview

The perfect key set to turn an X-keys into a video switching controller for vMix, Newtek Tricaster, or your favorite streaming software.

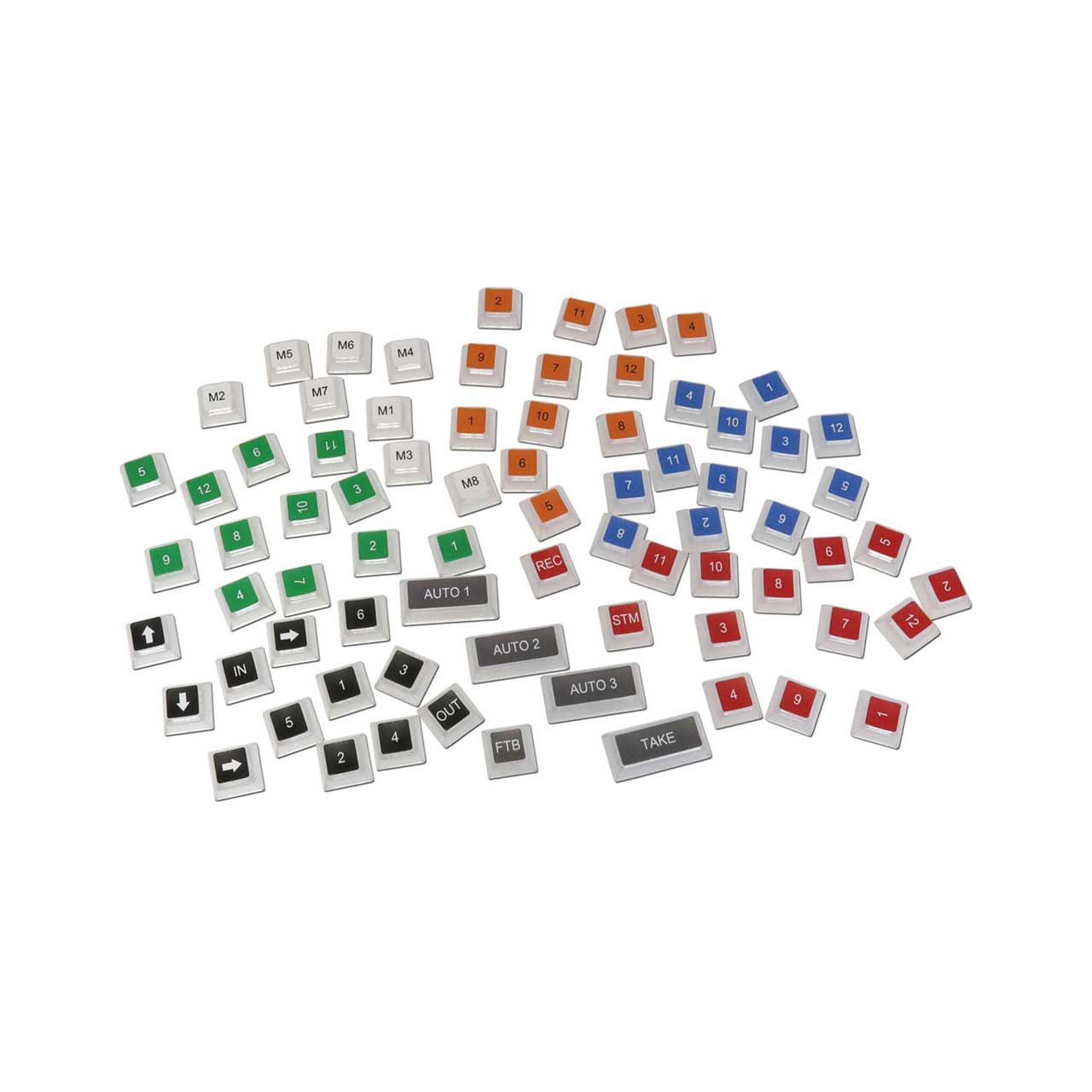

This kit includes:
X-keys XKE-128 Keyboard
Numbers 1-12 on single clear acrylic keys with a blue, green, red, and orange background
M1-M8 on single clear acrylic keys with a white background
IN, OUT, four arrows, and 1-6 on single clear acrylic keys with a black background
REC, STM on single clear acrylic keys with a red background
FTB on single clear acrylic keys with a gray background
Wide clear acrylic keys with a gray background and AUTO 1, AUTO 2, AUTO 3, and TAKE printed
61 key blockers
A blacklight mask to cover the key deck and reduce backlighting bleed-over

  • Features:

    • 128 programmable keys
    • Clear, removable key caps for applying and changing legends
    • Includes programming software for Windows
    • Free software development kits for developers
    • Two color addressable backlighting (red and blue)

  • Specifications:

    • Operating System: Use: Any OS via USB HID | Programming: Windows XP through 10, Mac OS X 10.4 through 10.10
    • Free Programming Software: Windows: MacroWorks 3.1
    • Free Software Development Kits: Windows (C++, C#, VB.NET), Linux (C++), Android (Java), Raw HID (any language/OS)
    • Emulation Modes: HID keyboard, HID mouse, HID game controller, HID multimedia
    • Switch Types: Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations
    • Number of Keys: 35 single keys, 4 wide keys, 61 blockers
    • Actuation Force: Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold
    • Keycaps: 0.625" (16mm) sq.; relegendable with Cherry MX compatible stem
    • Key Spacing: 0.75" O.C.
    • Backlighting: 128 blue and 128 red LEDs, individually addressable
    • Connector: Wired USB standard "A" plug
    • Cord Length: 118" (3m)
    • Dimensions: 14" x 7.3" x 1.8" (279mm x 185mm x 46mm)
    • Weight: 4.7 lbs (2.13 kg)
    • USB Type: USB 1.1 compatible through 3.0 Type-c with adapter
    • Power Source: USB port, nominal voltage = 5 VDC
    • Current Draw: No backlight: 18 mA, Blue backlight full: 38 mA, Red backlight full: 57 mA, All backlights: 75
      mA
    • Temperature Range: -20 to 60 C
    • Memory Capacity: Approximately 21,000 keystrokes or commands in onboard memory
    • Memory Type: EEPROM, non-volatile memory (X-keys retains memory for over 200 years)
    • Environmental Rating: IP 40, typical indoor office environment

  • Item Includes:

    • 1x X-keys XKE-128 Keyboard
    • 1x Numbers 1-12 on single clear acrylic keys with a blue, green, red, and orange background
    • 1x M1-M8 on single clear acrylic keys with a white background
    • 1x IN, OUT, four arrows, and 1-6 on single clear acrylic keys with a black background
    • 1x REC, STM on single clear acrylic keys with a red background
    • 1x FTB on single clear acrylic keys with a gray background
    • 1x Wide clear acrylic keys with a gray background and AUTO 1, AUTO 2, AUTO 3, and TAKE printed
    • 1x 61 key blockers
    • 1x A blacklight mask to cover the key deck and reduce backlighting bleed-over

  • GTIN:

    0703273914578
