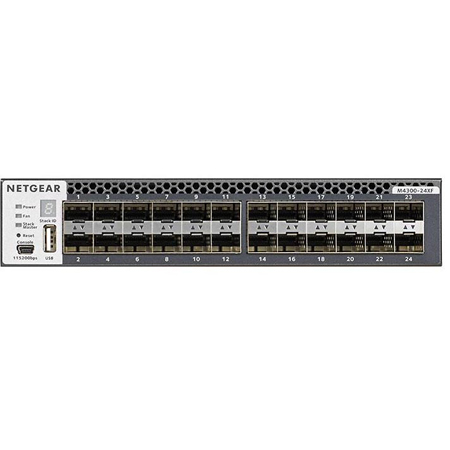

Netgear XSM4324FS-111NES 24xSFP+ and 2x10G (shared) Fully Managed Switch

XSM4324FS-111NES - Overview

• Features:

  • 24-port 10GBASE-X (SFP+)
  • 2-port 10GBASE-T (RJ45) (shared, back)
  • 2 Ports Copper 100M / 1G / 10G (shared)
  • 480Gbps non-blocking fabric across 24 ports
  • Out-of-band 1G Ethernet management port
  • Mini-USB and RJ45 RS232 console ports and USB storage port
  • Full L3 feature set and non-stop forwarding (NSF) stacking
  • Half-width form factor with one- and two-unit rack mount kit
  • Two half-width switches can be installed in a single rack space for redundant top-of-rack
  • Ships with one modular APS250W PSU in its power supply slot
  • Low acoustics (39.7dB @25°C / 77°F)


• Specifications:

  • Table Sizes:
    - 128K MAC 8k ARP / NDP
    - Up to 960 Gbps
    - Throughput up to 714 Mpps
    - Application Static Routing- 64v4 / 64v6 RIP: 512 OSPF: 512
  • Latency:
    - <0.9μs 10G SFP+
    - <1.25μs 10G RJ45
  • IP Multicast: 1,024 IPv4 / 512 IPv6
  • Multicast IGMP Membership: 2k IPv4 / IPv6
  • M4300 Series features:
    - License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM
    - VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools
    - Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models
    - Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)


• Warranty:

  • Limited Lifetime Warranty
