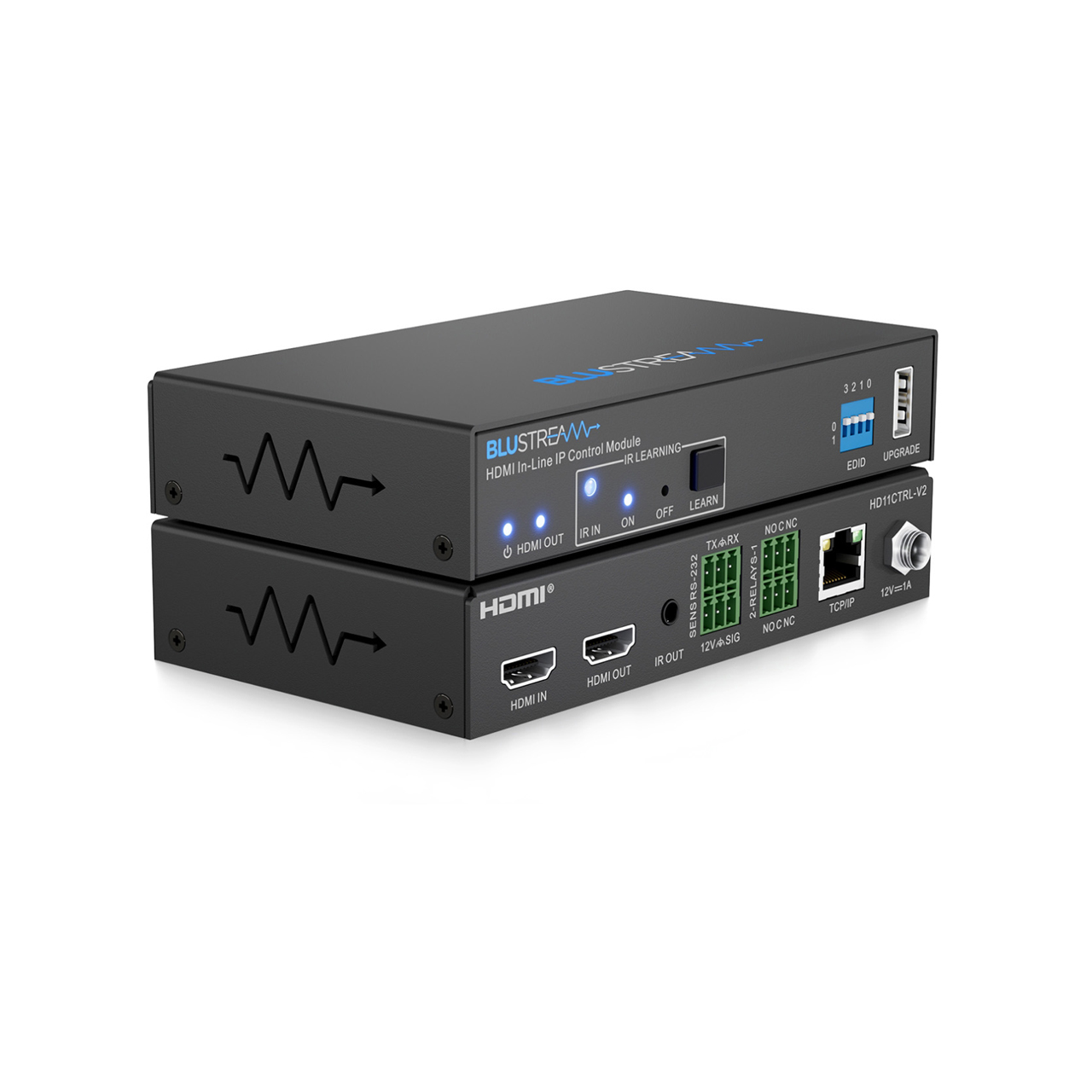

Bluestream HD11CTRL-V2 HDMI 2.0 In-line IP Control Module - 12V Trigger Outputs

HD11CTRL-V2 - Overview

• Features:

  • Automated in-line HDMI control module supporting up to 10 macros, with up to 10 command functions per macro
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports resolutions up to 4K UHD 60Hz 4:4:4
  • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
  • Features Smart-Scale technology to convert 4K input signal to 1080p output (Note: 4:2:2 colour space not supported)
  • Can help to solve most HDMI EDID, HDCP, compatibility, and handshaking issues
  • Automatic display control via CEC, RS-232, IR or IP
  • IR learning up to 30 IR commands

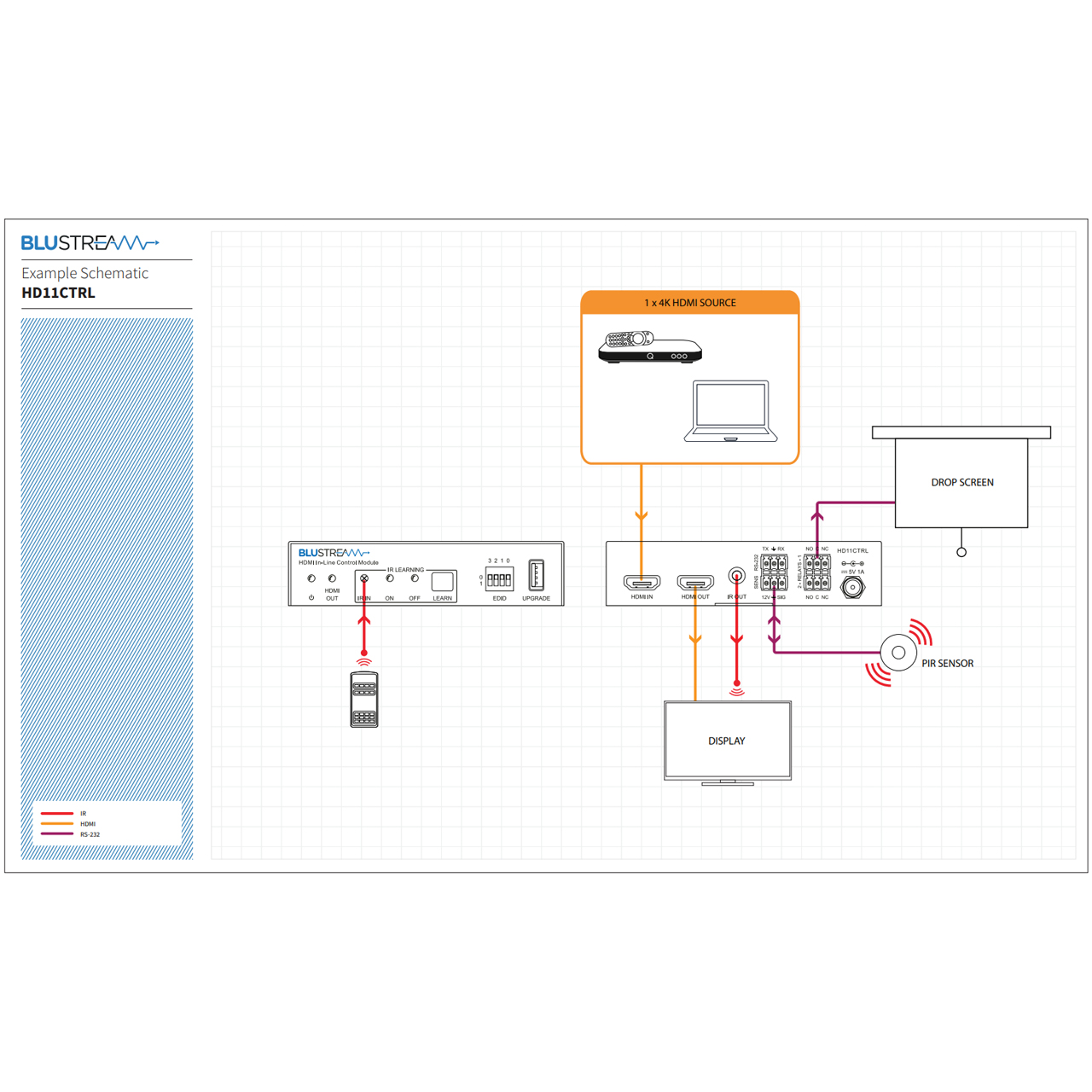

  • Relay control for interface to third party devices such as projector screens
  • Signal sense input for connection from third party devices such as sensors or switches
  • HDCP 2.2 compliant with advanced EDID management
  • In-built web-GUI for configuration and control


• Specifications:

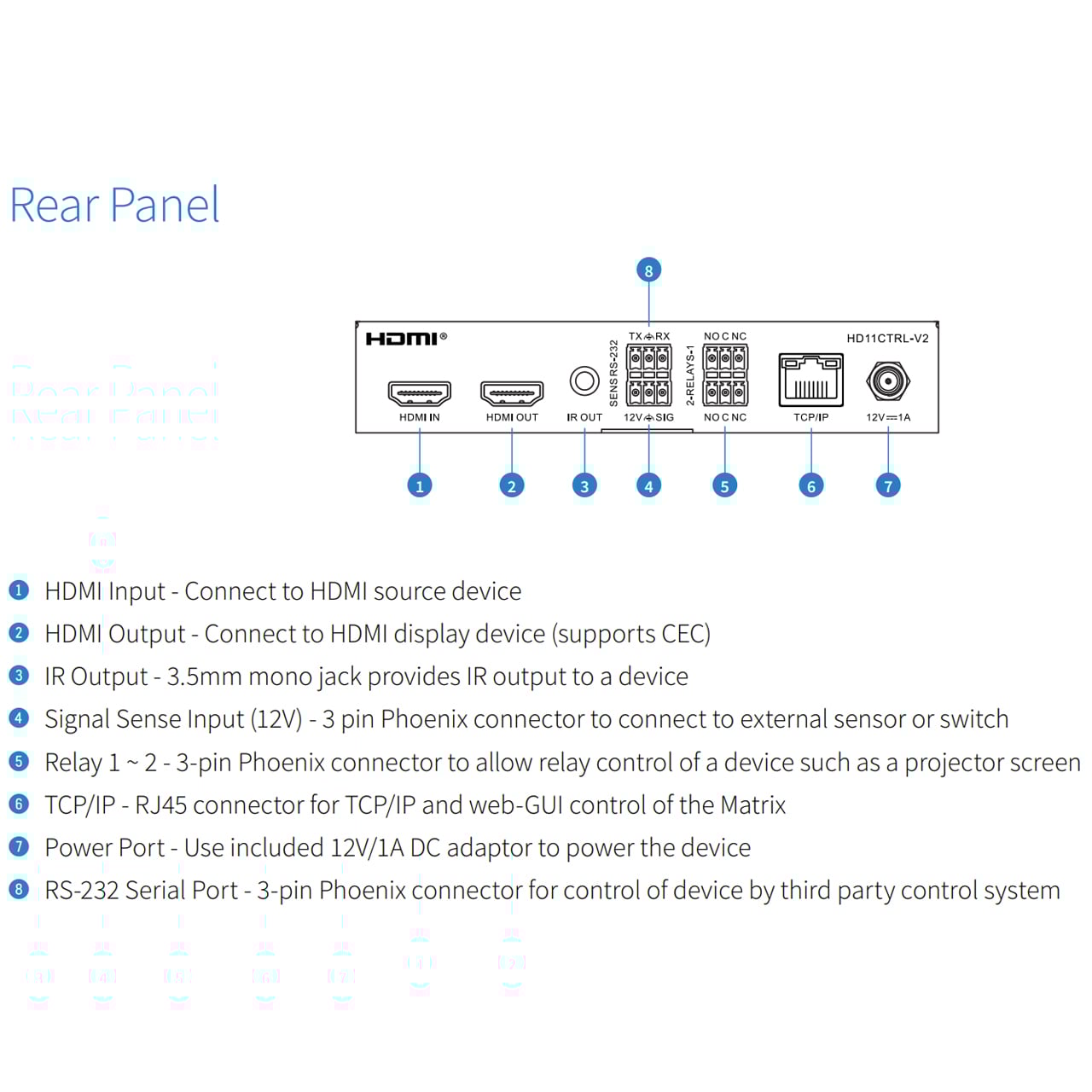

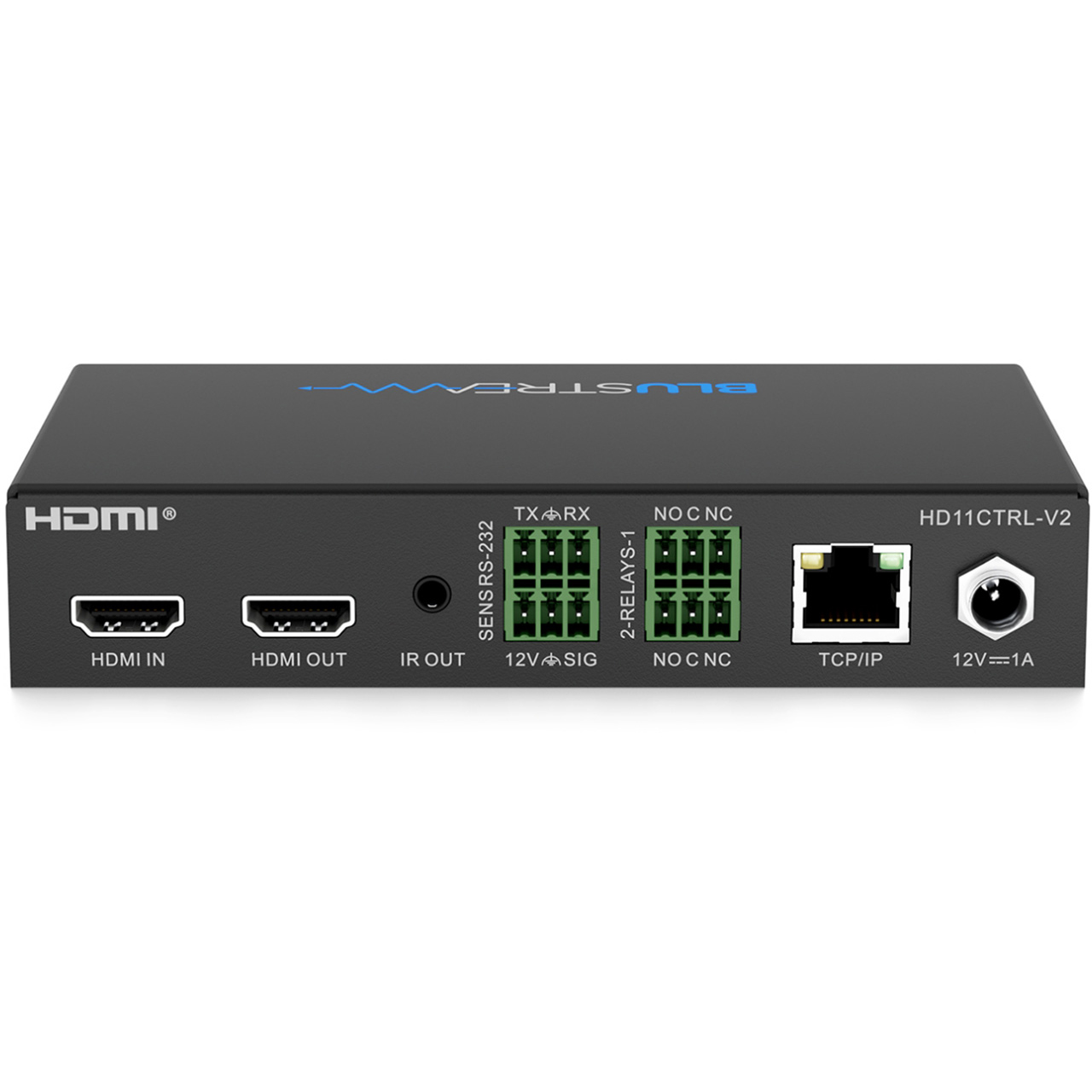

  • Video Input Connectors: 1x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1x HDMI Type A, 19-pin, female
  • RS-232 Serial Port: 1x 3-pin Phoenix connector
  • TCP/IP Control Port: 1x RJ45, female
  • IR Output Port: 1x 3.5mm mono jack
  • Relay Control: 2x 3-pin Phoenix connector
  • Sensor Input: 1x 3-pin Phoenix connector

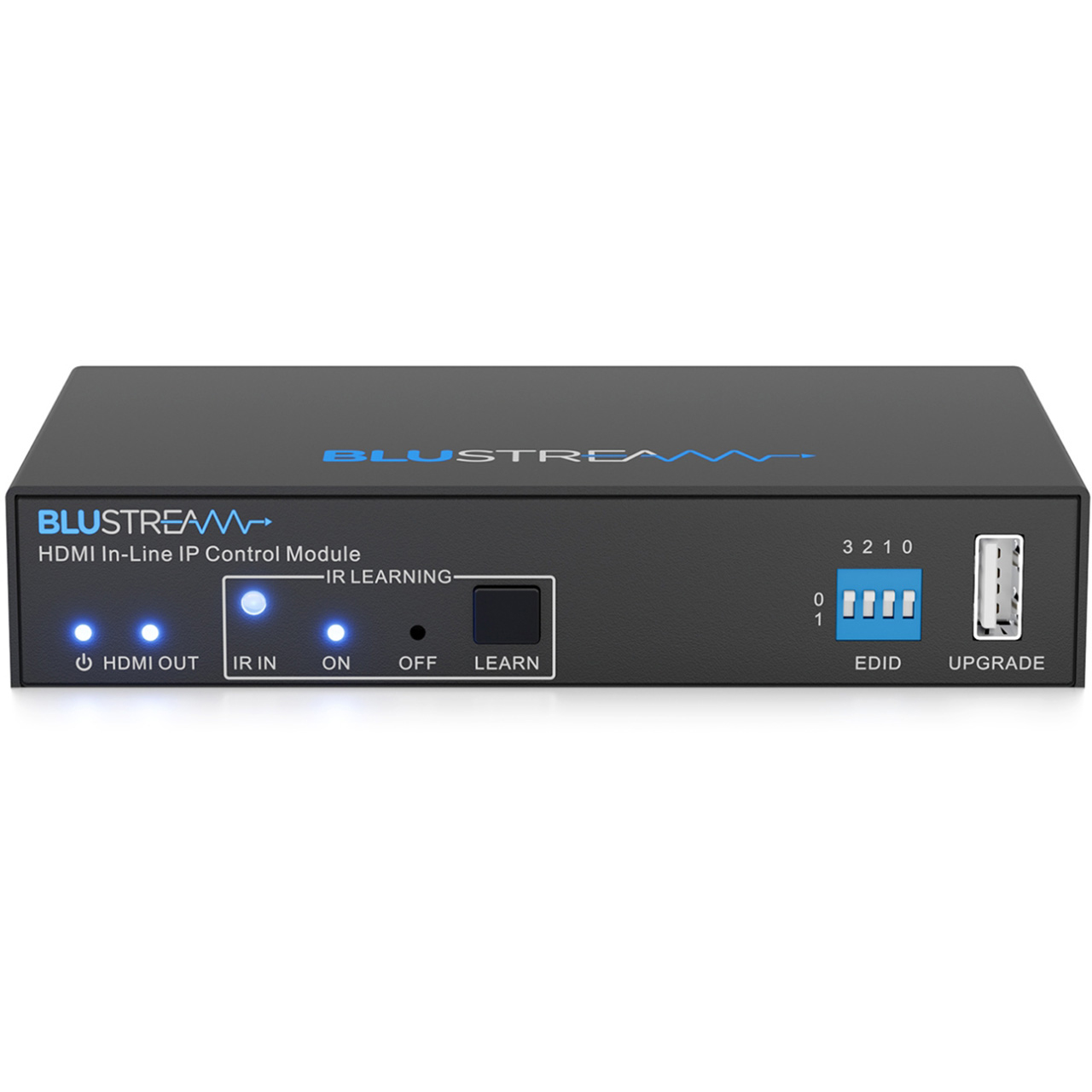

  • EDID Selection: 4-pin DIP Switch
  • Product Upgrade: 1x USB Type A, female
  • Dimensions (WxHxD): 5.7" x 1.1" x 3.3" (145mm x 28mm x 84mm)
  • Shipping Weight: 2.2lbs (1kg)
  • Power Supply: 12V/1A DC
  • Operating Temperature: 32°F - 104°F (-5°C - +55°C)
  • Storage Temperature: -4°F - 140°F (-25°C - +70°C)


• Item Includes:

  • 1x HD11CTRL-V2
  • 1x 12V/1A DC Power Supply
  • 1x IR Emitter
  • 1x RS-232 Control Cable
  • 1x Mounting Kit
  • 1x Quick Reference Guide


• Warranty:

  • 1 Year Limited Warranty
