Yamaha DHR15 1000W Powered Speaker with 1.4 Inch HF Compression Driver - 15 Inch

ITEM #: YMH-DHR15 MFG #: DHR15

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,041.00

Our Price:

$849.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DHR15 - Overview

The DHR15 is a 2-way bi-amp powered loudspeaker equipped with a 15-inch woofer and a 1.4-inch HF driver, perfect for use as a main speaker. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on Yamaha's high-end DZR Series, the DHR15 offers best-in-class sound quality and durability.

The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10" model for fixed installation and utilities, a 12" model designed for use as a floor monitor, and a 15" version for FOH applications-all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn't it time you audition DHR quality and performance to improve your sound?

Cabinet designs optimized for a range of audio environments
The DHR Series features a comprehensive lineup optimized to meet the demands of specific applications. The 10" model is equipped with a rotatable HF horn and a dedicated UB-DXRDHR10 U-bracket for use in fixed installations and utility, while the 12" model is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring. The series is rounded out by a 15" model featuring dual-angle pole sockets and rigging points for use in fixed installations or as temporary main speakers for sound reinforcement.

Custom Designed Transducers

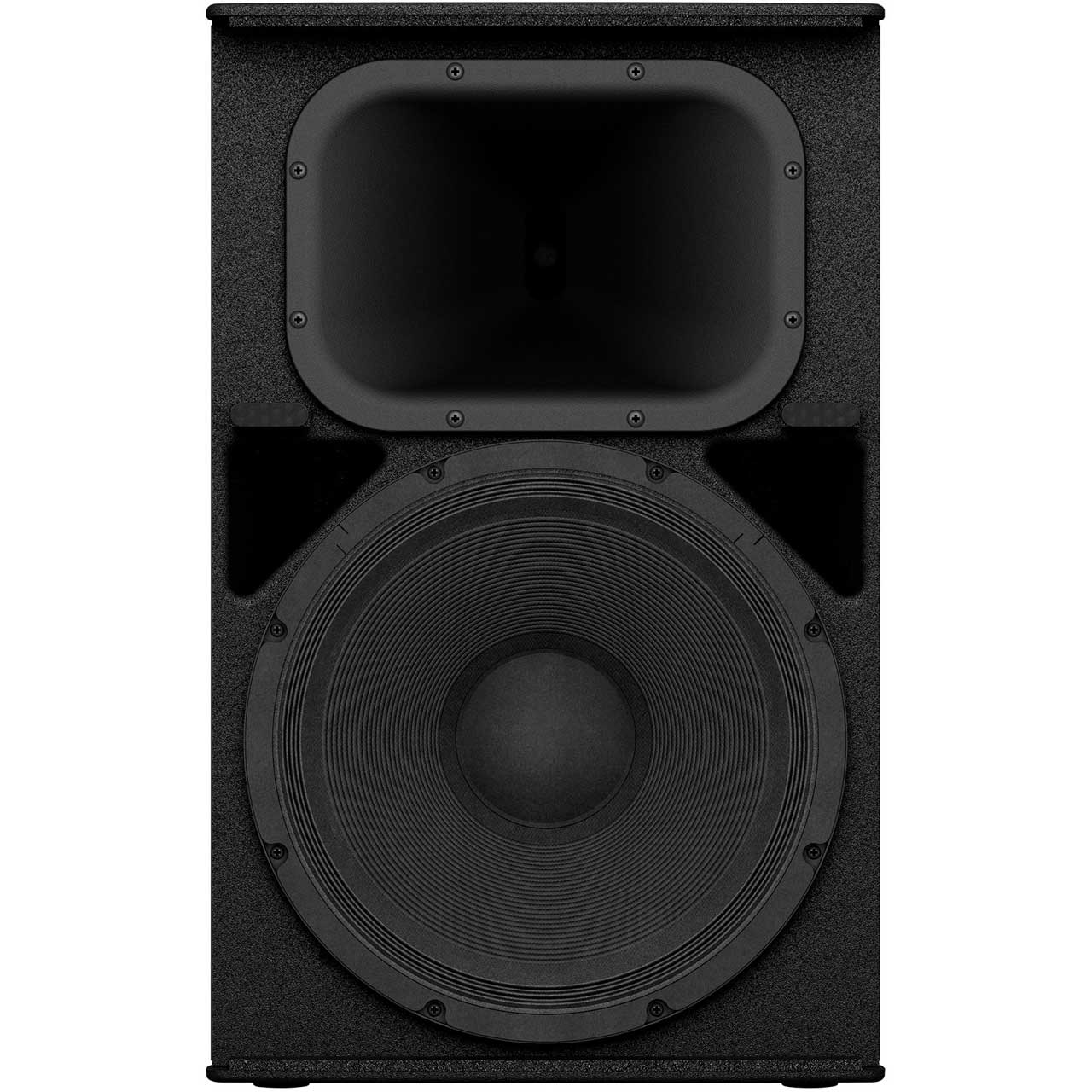

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver* produces accurate mid-range and high frequencies.

A Rugged, Highly Portable Cabinet
The DHR series feature plywood enclosures like our acclaimed DZR loudspeakers to deliver outstanding durability and acoustic performance.

Ultra-Precise DSP Processing for High-Definition Sound
All full range models feature Yamaha's proprietary FIR-X tuning utilizing linear phase FIR* filters for the crossover network. FIR-X tuning simultaneously optimizes frequency and phase response while adjusting the time alignment between the HF and LF transducers. This creates a very smooth response around the crossover point, providing much better clarity and imaging than what is possible with typical crossovers.

All signals are precisely processed by a high-performance processor for high definition sound quality. All full-range models employ high-precision 24bit discrete A/D and D/A converters with superior S/N ratio and dynamic range.

  • Features:

    • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
    • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
    • Compact size despite the 15-inch LF driver that provides excellent low frequency response
    • Dual-angle pole sockets offer both 0° or a -7° down tilt
    • Rigging points for use with eye bolts
    • Propitiatory FIR-XT tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

  • Specifications:

    • Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
    • Frequency range (-10dB): 44 Hz - 20 kHz
    • Coverage area: H90 x V60
    • Crossover: 1.8 kHz: FIR-X tuning (linear phase FIR filter)
    • Maximum Output Level (Measured peak, IEC noise@1m): 131 dB SPL
    • Components: Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite RH: Diaphragm: Diaphragm: 1.4", Type: 1"
      throat compression driver, Magnet: Ferrite
    • Amplifier class: Class-D
    • Power rating: 1,000 W (LF: 800 W, HF: 200 W) *1, Continuous: 465 W (LF: 400 W, HF: 65 W)
    • Cooling: Fan cooling, 4 speeds
    • Power consumption: 74 W (1/8power), 18 W (Idle)
    • Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
    • A/D D/A Converters: 24 bit 48 kHz Sampling
    • Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

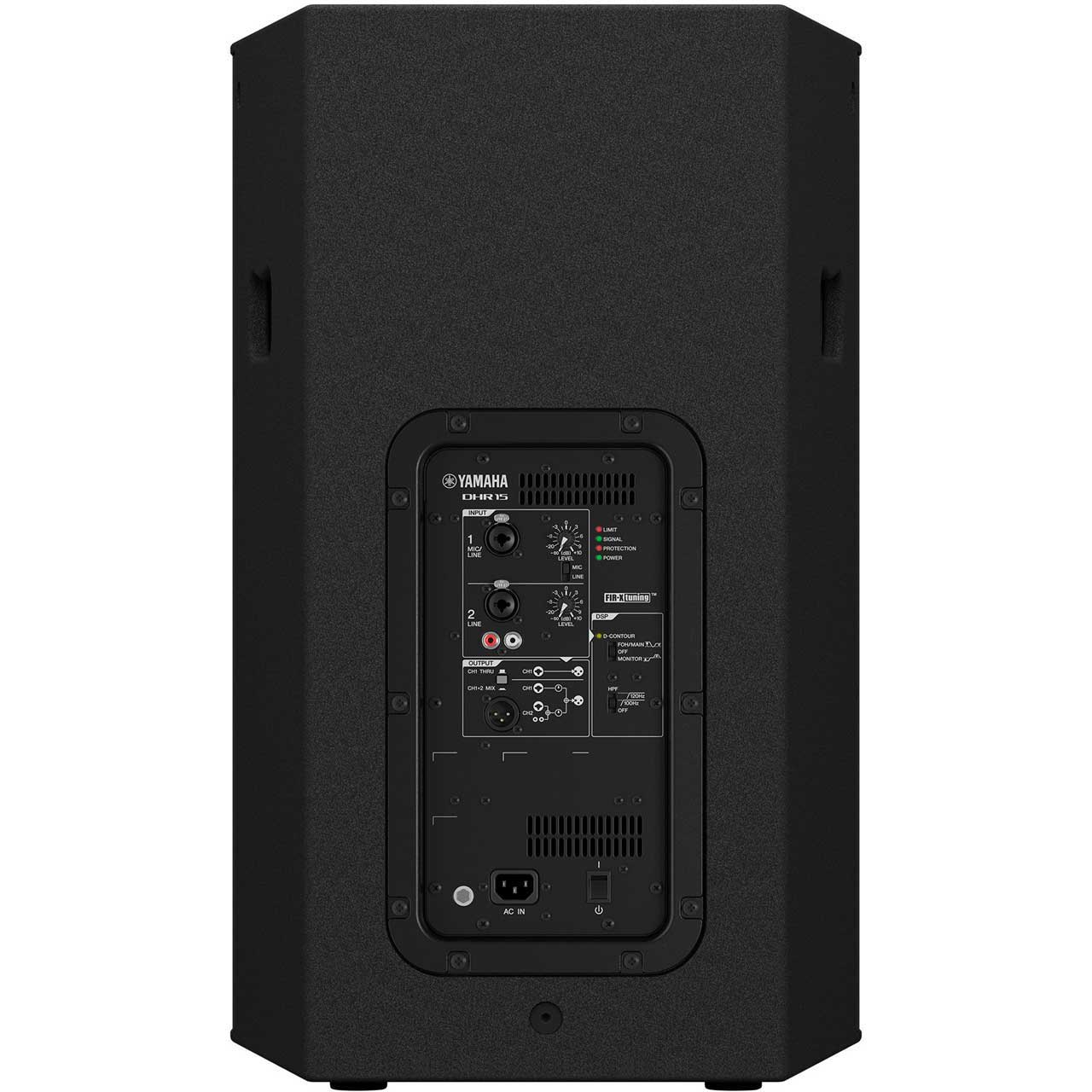

    • I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1
      Parallel Through or CH1+CH2 Mix)
    • Cabinet material: Plywood
    • Finish: Durable Polyurea Painting, Black
    • Handle: Side x2
    • Pole socket: F35 mm x2 (Bottom, 0° or -7°)
    • Net weight: 24 kg (52.9 lbs)

  • GTIN:

    0889025130080
