Yamaha STAGEPAS100BTR 100 Watt 6.5-Inch Li-Ion Battery Powered Portable PA System - Class-D Amp & 3-Ch Digital Mixer

ITEM #: YMH-STAGEPAS100B MFG #: STAGEPAS100BTR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$625.00

Our Price:

$499.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    STAGEPAS100BTR - Overview

    Expand Your Range. Extend Your Reach.
    The Yamaha STAGEPAS 100 portable PA system strikes a perfect balance between high-quality sound and ultimate portability, allowing you to turn virtually any location into your own intimate live stage. Available in two versions, one with a battery and one without, the lightweight, durable design, effortless operation, and astonishing sound of the STAGEPAS 100 will help you reach your audience like never before.

    Compact design. Big sound.
    Far more than just a speaker, the STAGEPAS 100 delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with proprietary FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion to ensure every nuance of your performance is conveyed loud and clear to your audience.

    Start the show in seconds
    With an unrivaled ease of operation and setup, the STAGEPAS 100 will have you sounding great and performing in an instant. Just turn the power on, connect a microphone and instrument, turn up the volume, and you're ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.

    A PA in the palm of your hand
    With all the essentials for a compact PA packed into a durable cabinet weighing just 11 pounds, the STAGEPAS 100 takes portability to a whole new level. It's like having a personal stage you can easily carry in one hand and set up anywhere, anytime.

    • Features:

      • 100 W Class-D amplifier
      • 1.4" HF + 6.5" LF high-quality coaxial compression driver using an FIR filter for the crossover
      • 3-channel mixer (2 monaural mic/line + 1 line)
      • Equipped with a 2-band master EQ
      • Compatible with Hi-Z input (Channel 2 only)
      • Equipped with mix-out
      • Carrying handle doubles as an adjustable stand
      • Compatible with audio accompaniment over Bluetooth
      • Optional carry bag (BAG-STP100) available for convenient transport
      • Internal lithium-ion battery (STAGEPAS 100BTR only)

    • Specifications:

      • Type: 2-way Bi-amp Powered Speaker with mixer
      • Mixing channels: 3
      • Input channel functions: Hi-Z: CH2
      • Output channel functions: 2 Band EQ

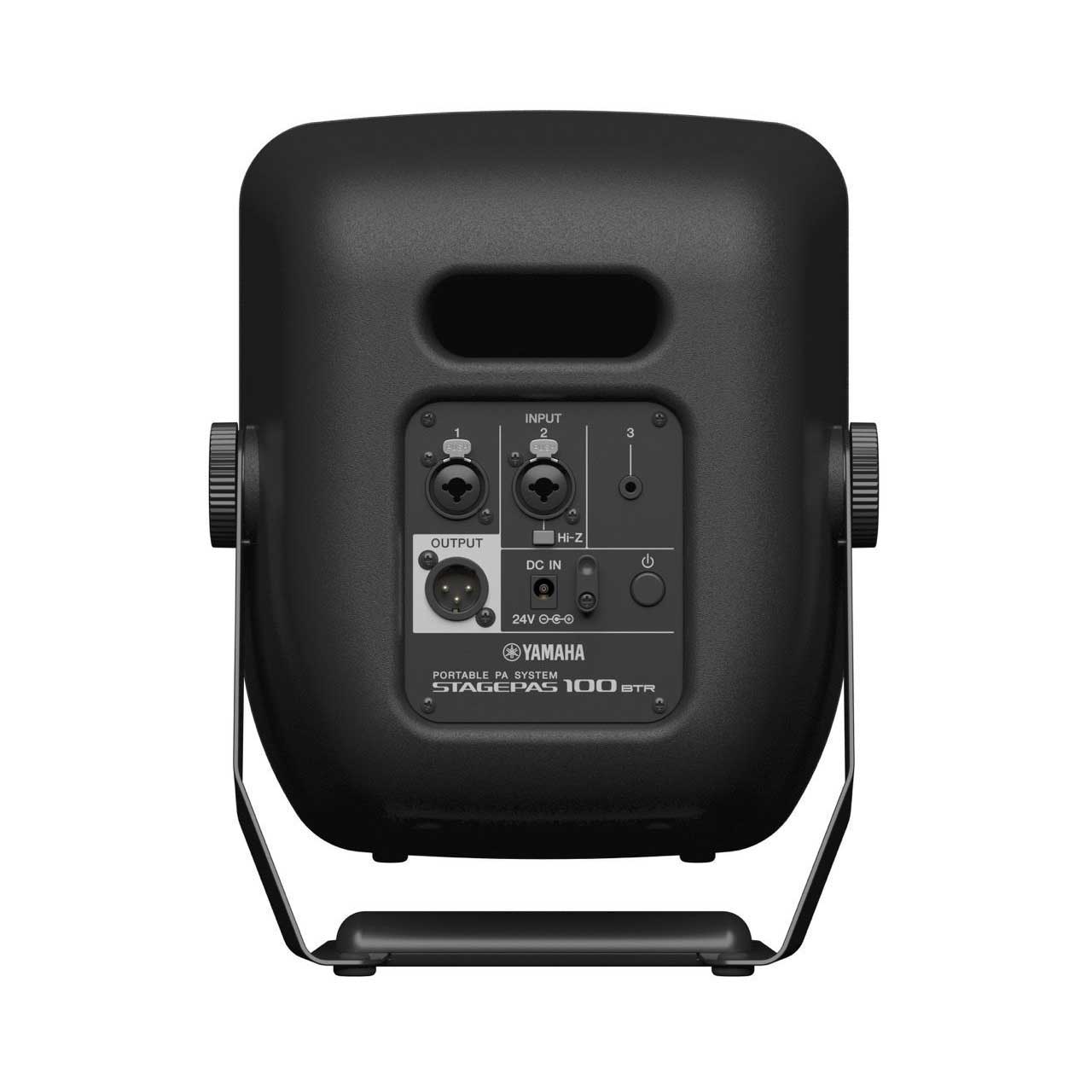

      • Inputs: Combo (mic/line), INPUT 2: Combo (mic/line), INPUT 3: Stereo Mini x1 (line)
      • Outputs: XLR3-32 (INPUT 1-3 mix)
      • Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
      • Control and others: STAGEPAS Controller (iOS/Android app)
      • DSP: SPX digital reverb (4 program, parameter control), delay, chorus
      • Speaker Type: Coaxial speaker with compression driver
      • Frequency Range (-10db): 70 Hz - 20 kHz
      • Coverage Area: H90° x V90°
      • Crossover: 1.8 kHz (FIR-X)
      • Maximum Output Level (1M; ON AXIS): 120 dB SPL
      • Components: LF - 6.5" Cone, 1.7" voice coil / HF - 1" throat compression driver, 1.4" voice coil
      • Amplifier Class: Class-D
      • Power Rating - Dynamic: 100 W (LF: 93 W, HF: 7 W)
      • Cooling: Natural convection (no fan)
      • Power Consumption: 10 W (Idle), 30 W (1/8 power)

        Battery
      • Type:Rechargeable Lithium ion battery pack
      • Capacity: 60 Wh
      • Operating Time: Maximum 6 hours, 1/16 power continuous 5 hours
      • Charging Time: Approx. 2.5 hours

      • Cabinet Material: Plastic (PP)
      • Handle: Bottom x1 (Rotatable)
      • Flying and mounting hardware: 1 x 3/8", depth 12 mm (center of handle)
      • Floor Monitor Angle: 30° or 60°
      • Dimensions (W X H X D): 9.5" x 12.3" x 8.5"
      • Weight: 12.1 lbs without AC adaptor

    • Item Includes:

      • 1x Power cord
      • 1x AC adaptor
