Yuan YN-SC710N1-M2-12G-SDI 1-Channel 12G-SDI Capture Card with M.2 2280 Form-factor

YN-SC710N1-M2-12G-SDI - Overview

• Features:

  • 1-channel 12G-SDI input
  • Supports 4K/UHD video up to 60 fps
  • M.2 2280 Type-M form factor
  • Uses PCIe x4 interface
  • Compatible with 12G-SDI, 6G-SDI, HD-SDI, and SD-SDI signals
  • Supports automatic signal detection
  • Captures embedded SDI audio along with video
  • Supports Windows and Linux environments
  • Compatible with software such as OBS Studio, vMix, Microsoft Teams, Zoom, Skype, Cisco Webex, Discord, and other DirectShow/V4L2 applications


• Specifications:

  • Max. Input Resolution: 4096x2160p@60/50fps
  • Video Input: 1x12G-SDI

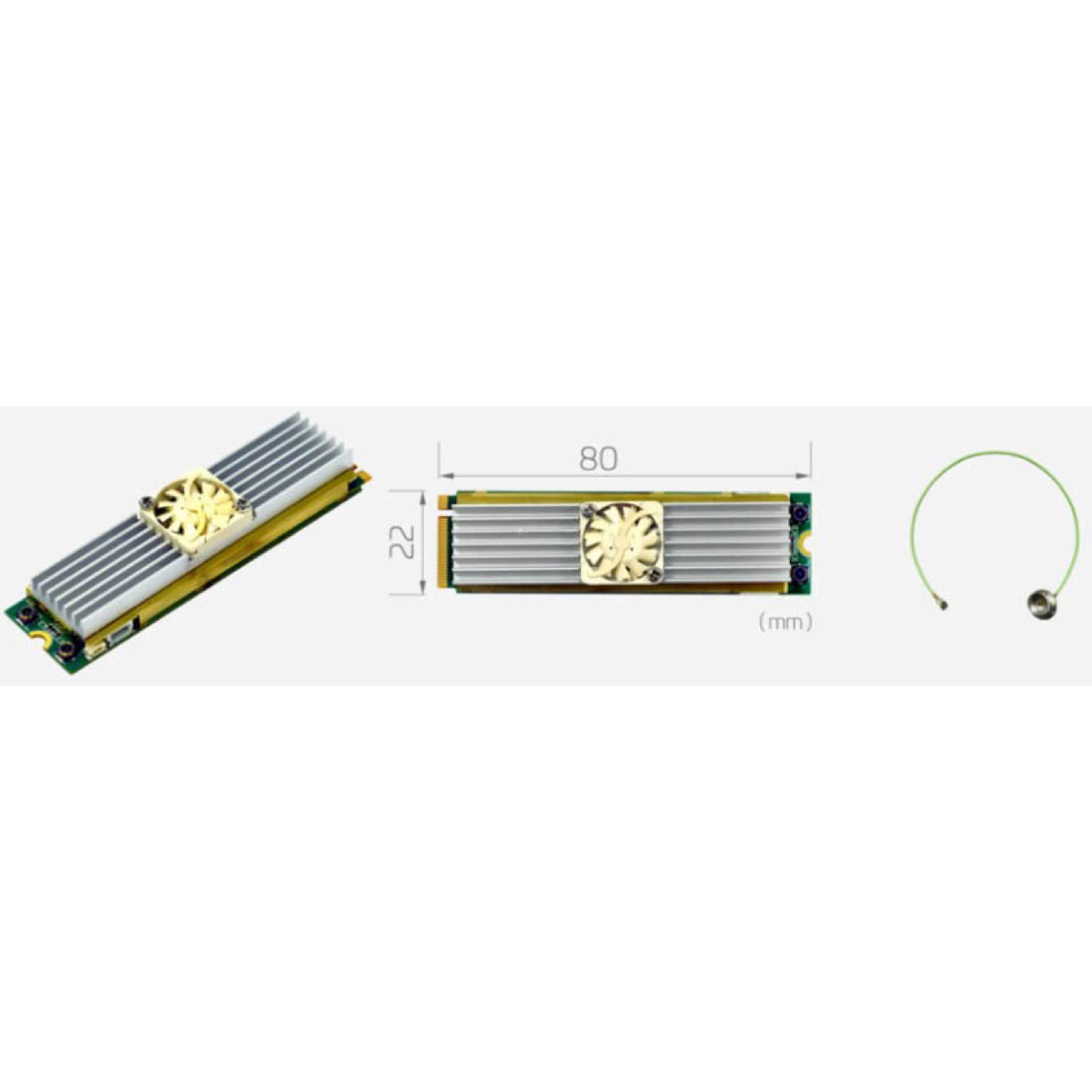

  • Dimension: 22x80 ( mm ), M.2 Type M
  • Interface M.2 ( PCIex4 )
  • Feature 12G-SDI Loop-Through, Multi Instances, Multi Devices
  • Video Input Detail: Single-Link 12G-SDI
  • Video Output: 12G-SDI ( Loop-Through)
  • Color Format:Capture/Preview : 4:4:4 8Bit RGB24, 4:4:4 8Bit RGB32, 4:2:2 8Bit YUY2, 4:2:0 8Bit YV12, NV12, 4:2:0 10Bit P010.
  • Video Processing: Video, Audio and VANC Capture, Video Cropping and Scaling, Auto Signal Detection, Deinterlace Engine, Multi Instances.
  • Video Resolutions: 12G-SDI : 4096x2160@60/50fps, 3840x2160@60/50fps, 6G-SDI : 4096x2160@30/25/24fps, 3840x2160@30/25/24fps, SDI : 1920x1080p@60/50fps, HD-SDI : 1920x1080p@30/25/24fps, 1920x1080i@60/50fps, 1280x720p@60/50fps, SD-SDI : 720x480i@60fps, 720x576i@50fps.
  • Audio Input; 1xStereo Embedded Audio.
  • Audio Format; Stereo / 16-bit / 32000 ~ 48000Hz.
  • SDK: Windows and Linux SDK.
  • OS Support: Windows 7/Windows 8/Windows 8.1/Windows 10, Linux 4.8 or Higher ( 32-bit and 64-bit ), Linux ARM, nVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX.
