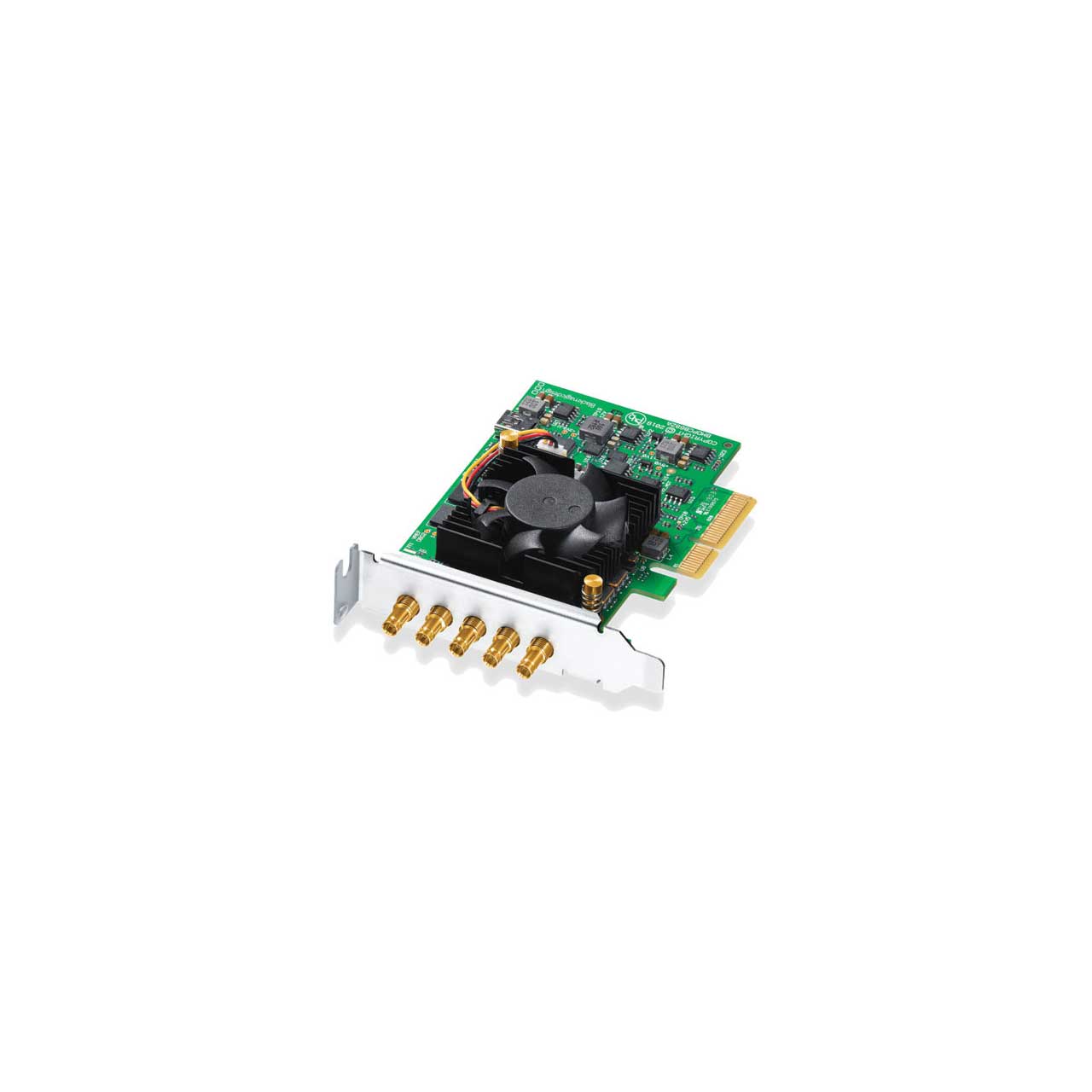

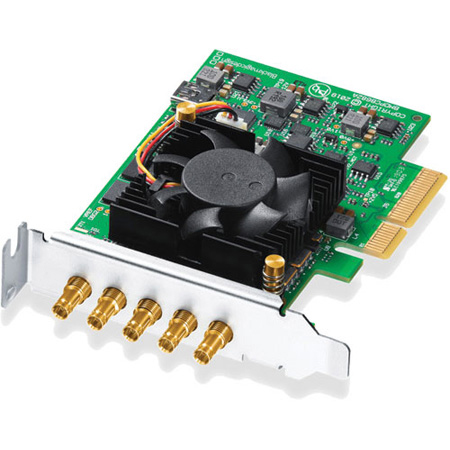

Blackmagic Design BDLKDUO2LP DeckLink Duo 2 Mini 3G-SDI PCI Express Capture & Playback Card for SD/HD up to 1080p60

BDLKDUO2LP - Overview

DeckLink Works With Any Video Format And Resolution That You Need!

• Specifications:

  • Connections
  • SDI Video Inputs: 4x bidirectional 12-bit SD/HD independently configurable as either Input or Output
  • SDI Video Outputs: 4x bidirectional 12-bit SD/HD independently configurable as either Input or Output
  • SDI Audio Inputs: 16 channels embedded in SD and HD
  • SDI Audio Outputs: 16 channels embedded in SD and HD
  • Sync Input: Tri-Sync or Black Burst.
  • Computer Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.

    Supported Codecs
  • AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4

    Software
  • Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
  • Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
  • Physical Installation: PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

    Video Standards
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30,1080i50, 1080i59.94, 1080i60
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.
  • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning
  • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit
  • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
  • SDI Video Sampling: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback.
  • Color Space: REC 601, REC 709

    Processing
  • Colorspace Conversion: Hardware based real time.
  • HD Down Conversion: Built in, high quality software down converter on playback and capture. Down converted SD selectable between letterbox and anamorphic 16:9 styles.
  • HD Up Conversion: Built in, high quality software up converter from SD to 720HD or 1080HD on input. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
  • Cross Conversion: Built in, high quality software cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.
  • Real Time Effects: DaVinci Resolve, Final Cut Pro X internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.


  • Operating Systems: Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 8.1 and 10, both 64-bit. Linux
  • Power Consumption: 10 Watts

    Environmental Specifications
  • Operating Temperature: 5° to 40 °C (32° to 104°F)
  • Storage Temperature: -20° to 45°C (-4° to 113°F)
  • Relative Humidity: 0% to 90%


• Item Includes:

  • DeckLink Duo 2 Mini


• Warranty:

  • 3 Year Limited Manufacturer's Warranty


• GTIN:

  9338716006193
