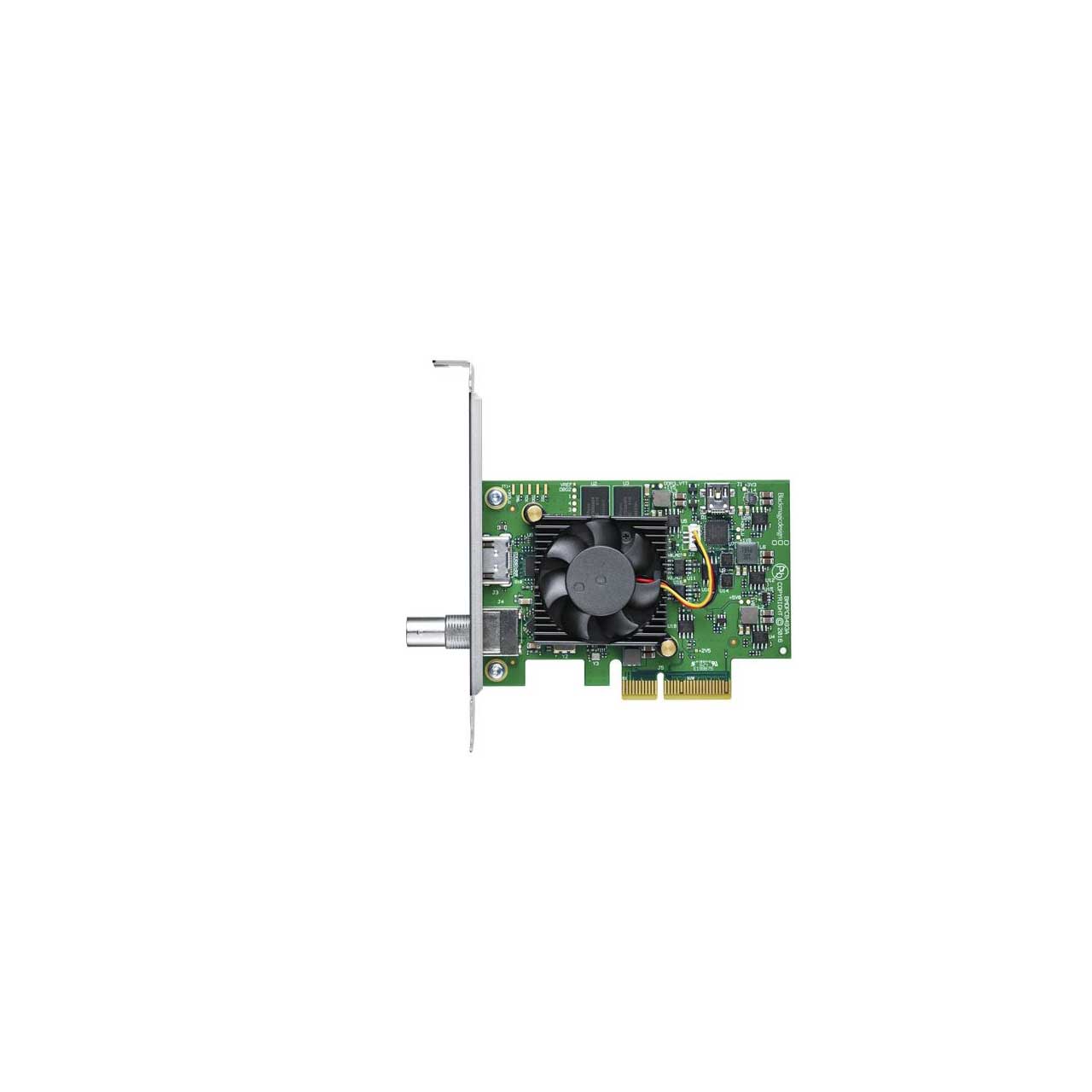

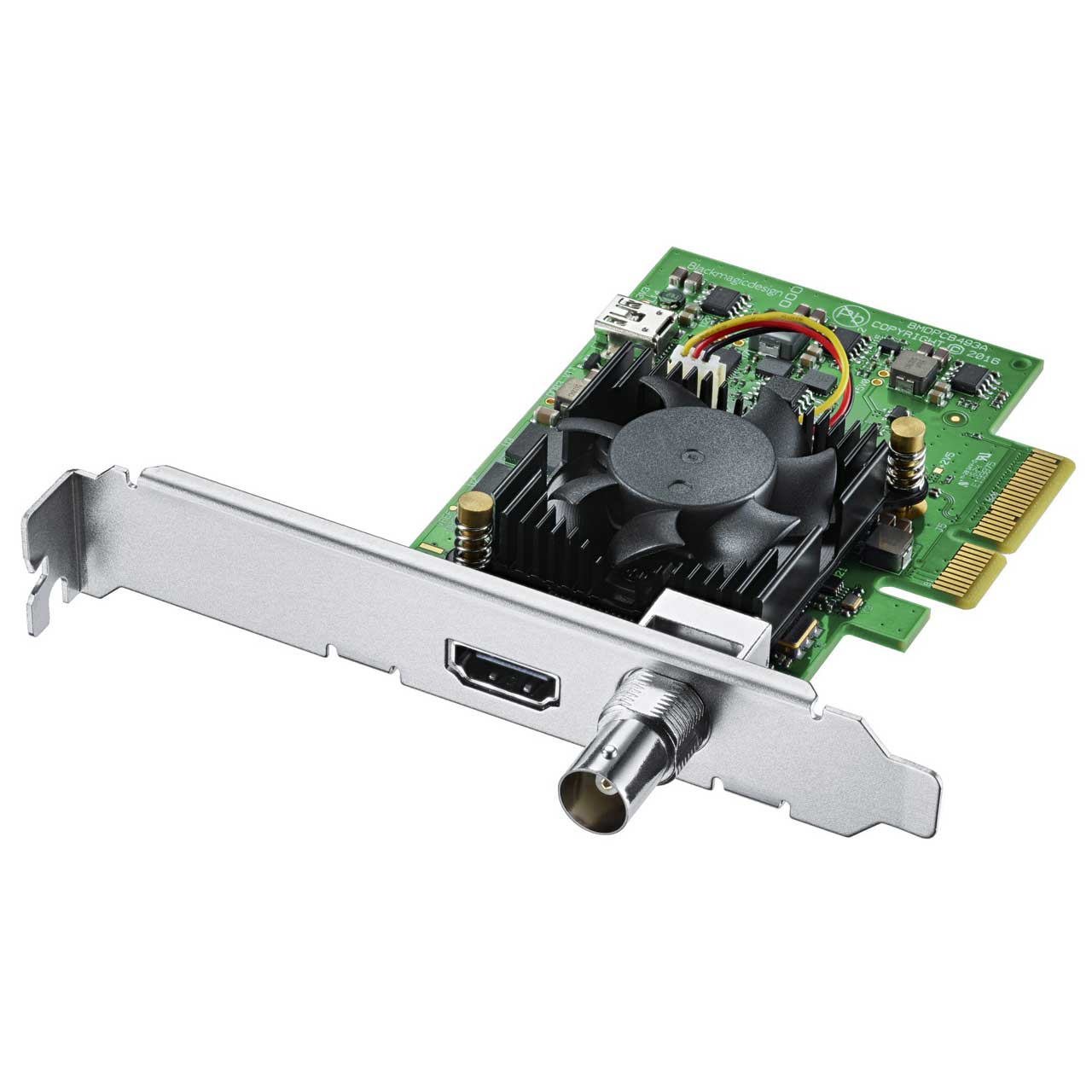

Blackmagic Design BDLKMINIREC4K DeckLink Mini Recorder 4K Low Profile PCIe Capture Card

ITEM #: BMD-DLMR4K MFG #: BDLKMINIREC4K

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$195.00

Availability: In Stock
iAvailability Description Popup
  • This item is not returnable. See Terms & Conditions for details.


BDLKMINIREC4K - Overview

The Blackmagic DeckLink Mini Recorder 4K is a low profile PCIe capture card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can record all formats up to 2160p30 on your computer! The SDI and HDMI inputs automatically detect and switch between all video formats. You even get high dynamic range recording and metadata over HDMI, along with support for Rec. 2020 color space. The DeckLink Mini Recorder 4K is perfect for integrating into mobile live capture environments, broadcast trucks and more! You can even develop your own custom capture solutions using the Blackmagic Desktop Video SDK for Mac OS X, Windows and Linux! Includes two PCIe shields for both full height and low profile slots.

Supported Codecs are AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, and Uncompressed 10-bit 4:2:2.

  • Specifications:

    • Video Standards
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30,1080i50, 1080i59.94, 1080i60
    • 2K Video Standards : (SDI ONLY) 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
    • 4K DCI Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
    • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning.
    • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
    • SDI Video Sampling: 4:4:4 & 4:2:2
    • SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes.
    • Color Space: REC 601, REC 709, REC 2020.
    • HDMI Video Sampling: 4:4:4, 4:2:2 & 4:2:0
    • HDMI Configuration: HDMI 2.0a supports Deep Color and HDR.
    • HDMI Color Precision: Up to 12-bit (Deep Color)
    • Multiple Rate Support: HDMI and SDI video connections are switchable between SD/HD/2K and 4K.
    • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

      Processing
    • Colorspace Conversion: Hardware based real time.
    • HD to SD Down Conversion: Software based down conversion during video capture.
    • HD Up Conversion: Software based up conversion from SD to HD on capture. Selectable between 4:3 pillarbox or 16:9 anamorphic.

      Operating Systems
      Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 8.1 and 10, both 64-bit. Linux

      Power Requirements
    • Power Consumption: 8 Watts

      Environmental Specifications
    • Operating temperature: 5° to 40° C (32° to 104° F)
    • Storage temperature: -20° to 45° C (-4° to 113° F)

    • Software Applications
    • DaVinci Resolve, Adobe Premiere Pro CC, Avid Media Composer, Adobe Photoshop CC
    • Other supported applications include: Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Zoom.

  • Item Includes:

    • DeckLink Mini Recorder 4K
    • Low profile slot bracket

  • Warranty:

    • 3 Year Limited Manufacturer's Warranty.

  • GTIN:

    9338716004366
