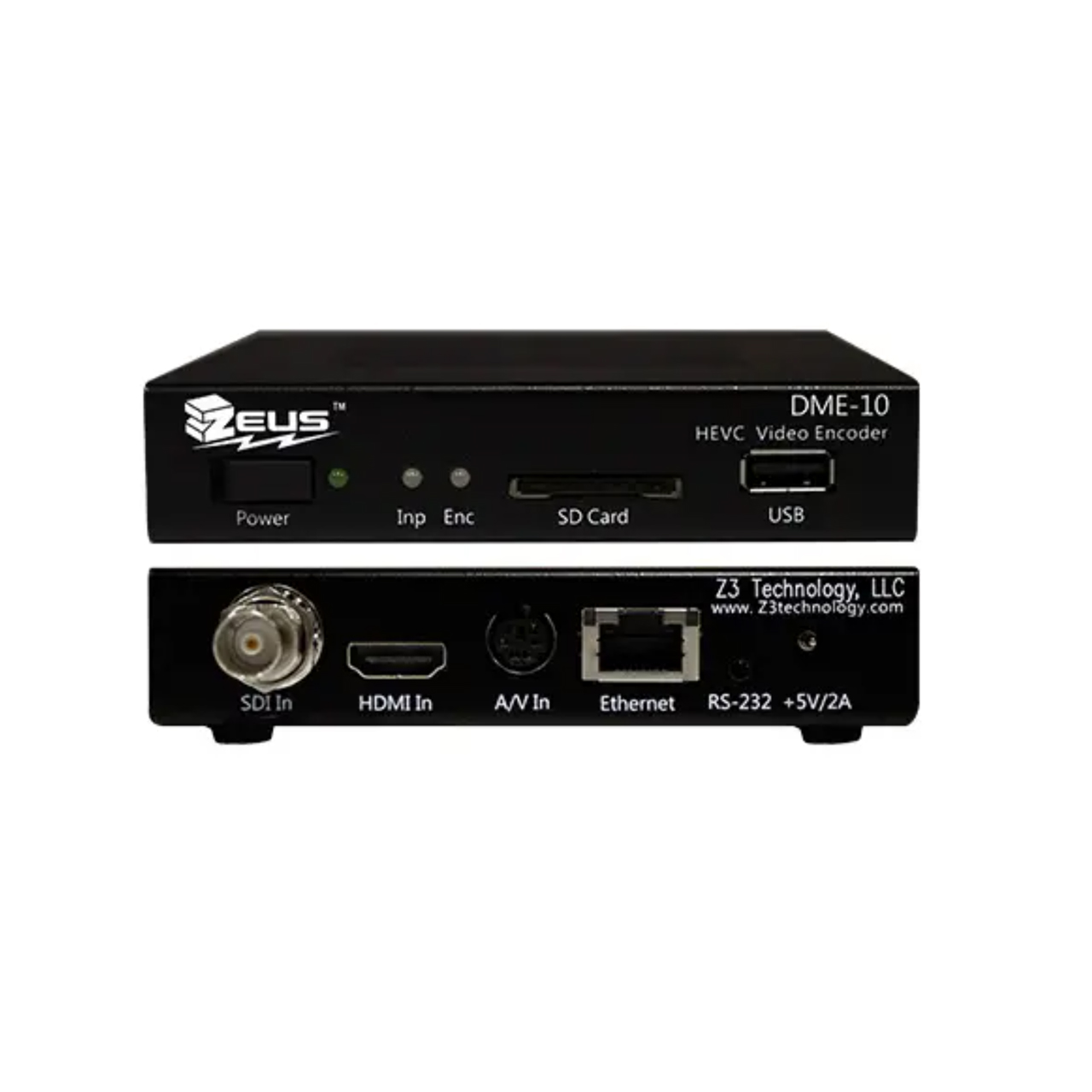

Z3 Technology Zeus DME-10 1080p60 3G-SDI Compact Video Encoder - H.264/H.265

DME-10 - Overview

• Features:

  • HEVC/H.265 or H.264 Video Encode up to 1080p60
  • Pro-MPEG Forward Error Correction and Zixi Feeder enabled
  • STANAG 4609/NGA MISP compliant (KLV)
  • Compact Design for Easy Storage
  • Stream One Source in Multiple Resolutions


• Specifications:

  • Interfaces
    - 1x 3G-SDI Input
    - 1x HDMI Input
    - 1x Composite Input
    - 1x GbE
    - 1x USB 2.0
    - 1x SD Card
    - 1x RS-232

    Video Encoding
  • Supported Resolutions: HEVC/H.265 or H.264 encode in resolutions up to 1080p60
  • Video Codecs: HEVC/H.265 and H.264, and MJPEG
  • Output Formats RTP, RTSP, TSRTP, RTMP*, MPEG-2 TS and TS File
  • Video Frame Rates (SD): 25i, 29.97i, 30i, 50p and 60p
  • Video Frame Rates (HD): 23.98, 24, 25, 29.97p, 30, 50, 59.94 and 60 @ 720p & 1080p

    Audio Encoding
  • Interfaces: Embedded SDI and Embedded HDMI
  • Audio Codecs: AAC-LC ADTS, AAC-HE ADTS and AAC-HE V2
  • Optional Audio Codecs: AAC-LC LATM, AAC-HE LATM, G.711 and PCM
  • Audio Bitrate: 12 to 384 kbps

    Other
  • Network Management: Device IP, Subnet Mask, Gateway
  • Software Control: Ethernet or Serial-based control
  • Power: 5V Low Power Consumption, 4.5W typical at 1080p60
  • Operating Temperature and Humidity: -5°C to 65°C at 20-80% Relative Humidity

    Physical
  • Dimensions: 4.57" x 4.53" x 0.94" (116mm x 115mm x 24mm)
  • Weight: 0.87 lbs (397g)


• Item Includes:

  • 1x Z3 Technology DME-10 HD H.265 Compact Video Encoder


• Warranty:

  • 1-Year Limited Warranty
