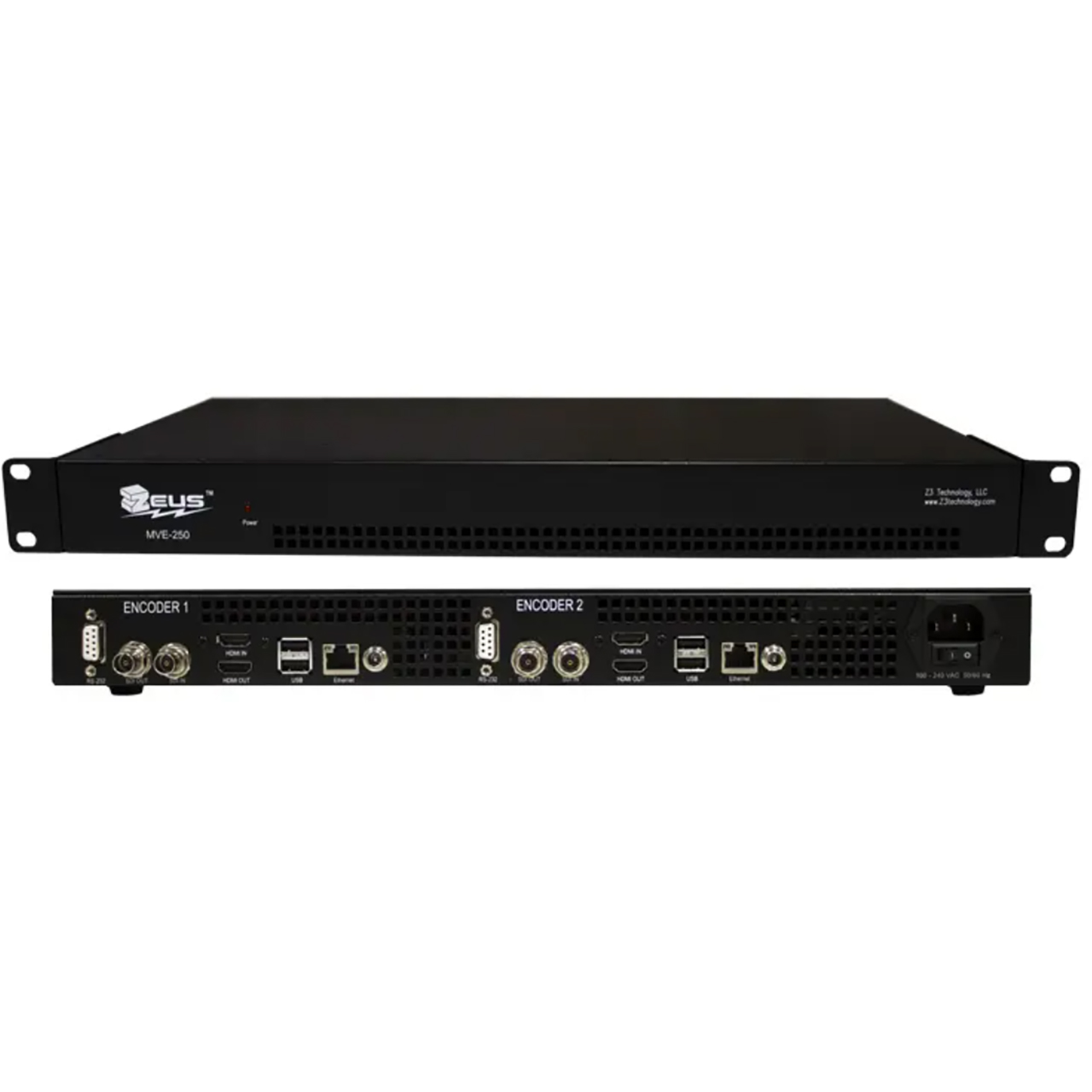

Z3 Technology MVE-250 Dual Channel 1080p60 1RU Video Encoder and Decoder - 3G-SDI/HDMI - H.264

MVE-250 - Overview

• Features:

  • H.264 Encode in Resolutions up to 1080p60
  • Dual Channel Encoder/Decoder
  • Rack-Mount Design for Easy Storage


• Specifications:

  • Video Encoding
  • Interfaces:
    - 2x 3G-SDI Input
    - 2x HDMI Input
    - 2x ASI Output
    - 2x GbE
  • Supported Resolutions: Each encoder supports H.264 encode in resolutions up to 1080p60
  • Video Codecs: H.264
  • Output Formats: UDP(MPEG-2 TS), RTP, RTMP, RTMPS, RTSP, TSRTP, MPTS* and TS File
  • Video Frame Rates (SD): 25i, 29.97i and 30i
  • Video Frame Rates (HD) 24p, 25p, 29.97i, 30p, 50p, 59.94i, 60i and 60p

    Audio Encoding
  • Interfaces: Embedded HDMI and Embedded SDI Audio
  • Audio Codecs: AAC-LC ADTS and AAC-HE ADTS
  • Optional Audio Codecs: AAC-LC LATM, AAC-HE LATM, AAC-HE V2, G.711 and PCM
  • Audio Bitrate: 32 to 320 kbps

    Video Decoding
  • Interfaces:
    - 2x ASI Input
    - 2x 3G-SDI Output
    - 2x HDMI Output
    - 2x GbE
  • Supported Resolutions Each decoder supports H.264 decode in resolutions up to 1080p60
  • Video Codecs: H.264
  • Input Formats: MPEG-2 TS, RTP, TSRTP and TS File
  • Video Frame Rates (SD): 25i, 29.97i and 30i
  • Video Frame Rates (HD): 24p, 25p, 29.97i, 30p, 50p, 59.94i, 60i and 60p

    Audio Decoding
  • Audio Codecs: AAC-LC ADTS and AAC-HE ADTS
  • Audio Bitrate: 32 to 320 kbps
  • Network Management Device IP, Subnet Mask, Gateway

  • Other
  • Network Management: Device IP, Subnet Mask, Gateway
  • Additional Interfaces: 4x USB 2.0 and 2x RS-232
  • Software Control
    - HTTP-Based GUI: Configuration and Software Update
    - RS-232: Configuration
  • Power: 100-240 VAC
  • Temperature and Humidity:
    - Operating: 32°F to 104°F (0°C to 40°C) at 20-80% Relative Humidity
    - Storage: 14°F to 149°F (-10°C to 65°C) at 20-80% Relative Humidity

    Physical
  • Dimensions: 16.93" x 8.46" x 1.72" (430mm x 215mm x 44mm)
  • Weight: 6.59 lb (2.99 kg)


• Item Includes:

  • 1x Z3 Technology MVE-250 Dual Channel 1080p 1RU Video Encoder and Decoder - 3G-SDI/HDMI - H.264


• Warranty:

  • 1-Year Limited Warranty
