Magewell 53130 Ultra Encode AIO Single Channel Multi-Format Video Streaming Encoder with HDMI and SDI

ITEM #: MGW-53130 MFG #: 53130

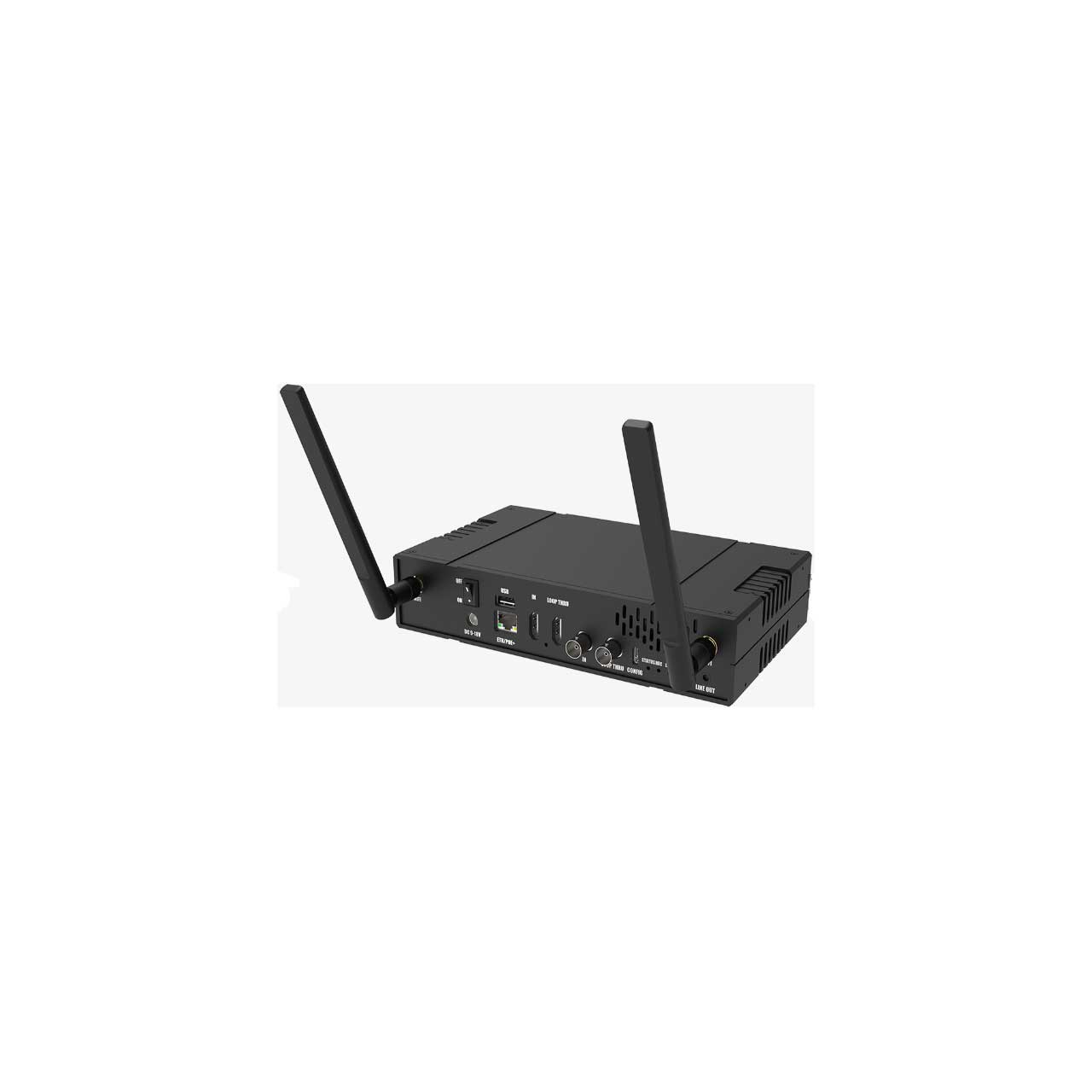

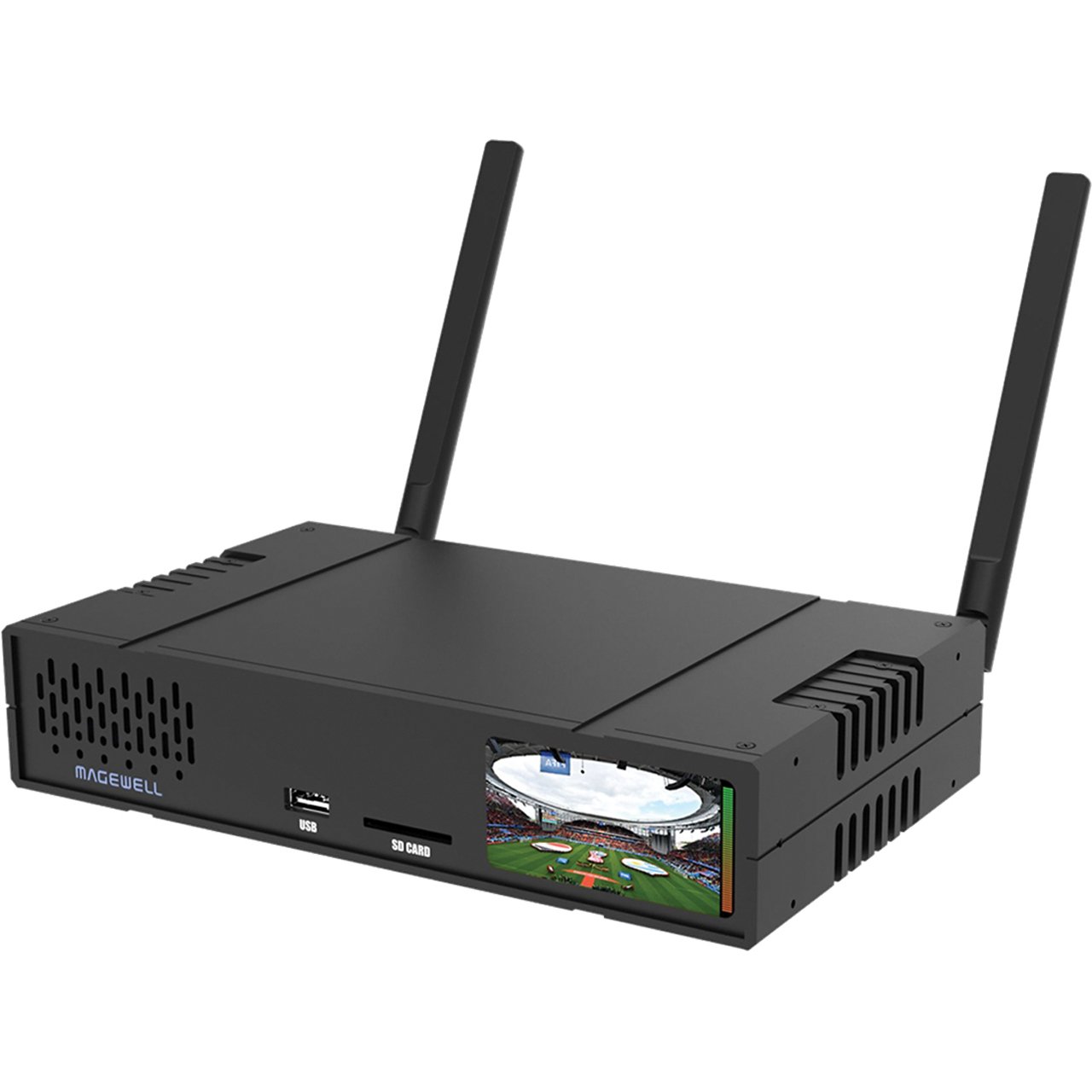

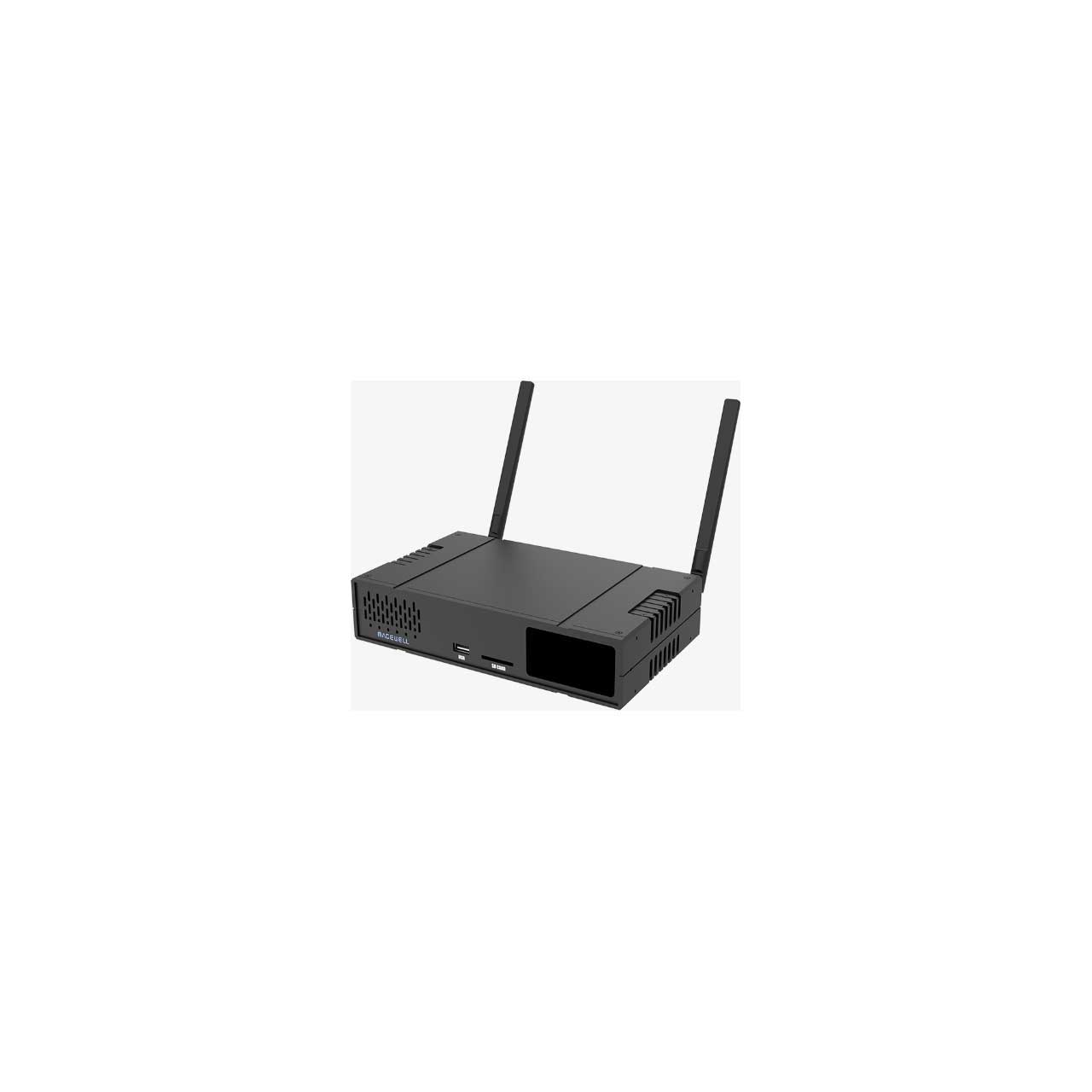

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    53130 - Overview

    New NDI®|HX 3 Support

    Ultra Encode AIO live media encoders take the capabilities of the original Ultra Encode models to a whole new level for advanced use cases. It builds on the functionality of the Ultra Encode family with expanded features including HDMI and SDI input connectivity in a single unit; 4K encoding and streaming from the HDMI input; simultaneous multi-protocol streaming; higher streaming bitrates; file recording; and much more. This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.

    Multi-Input Video Processing
    The single-channel Ultra Encode AIO can encode one live input source - either HDMI or SDI - or mix video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output. Up to eight user-configurable overlays - including text, images, and a clock - can be applied to the output profile.

    Flexible Formats and Protocols
    Ultra Encode AIO supports multiple video encoding formats - including H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3 - and a wide array of delivery protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU's ISSP technology. Up to eight channels of audio can be encoded in AAC format.

    Powerful Encoding & Streaming Capabilities
    Video can be encoded at resolutions up to 4096x2160 at 30 frames per second from HDMI sources, or up to 1080p HD at 60 fps from the device's 3G-SDI input. Ultra Encode AIO can stream to up to six different target destinations simultaneously at bitrates up to 32Mbps per stream.

    Versatile Recording and Streaming
    Ultra Encode AIO supports streaming and recording simultaneously. Inputs can be recorded as files to an SD card or an external, USB-connected storage device or networked storage (NFS, CIFS or SMB).

    New NDI®|HX 3 Support
    For IP production workflows and AV-over-IP signal distribution architectures, Ultra Encode AIO supports NDI®|HX 3, the latest version of the high-efficiency, low-bandwidth option in the popular NDI® IP media transport technology platform. Ultra Encode AIO also supports the earlier NDI®|HX 2 for broad compatibility.

    • Features:

      • Configuration Management
      • Real-time LCD monitor for system status and input signal
      • Register with Magewell Cloud
      • Remote control via WebUI and Magewell Cloud
      • Access WebUI via PC and smartphone
      • Provide comprehensive information regarding the system information of device and working status in real-time via WebUI
      • Video thumbnail preview via WebUI
      • Add up to 8 overlays, including text, picture, and clock
      • Check RTSP, SRT Caller, and SRT Listener status
      • Configure parameters of volume and color, input and output signals, encoding profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time via WebUI
      • Function as a WiFi Access Point and a WiFi station simultaneously
      • Update firmware
      • Support for Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
      • Provide HTTP APIs
    • Specifications:

      • Network Connections
      • Wired Ethernet network: 10/100/1000Mbps
      • IEEE 802.3af PoE
      • Wi-Fi 802.11 a/b/g/n/ac
      • 4G/5G USB mobile broadband Modem (not included)
      • USB Net

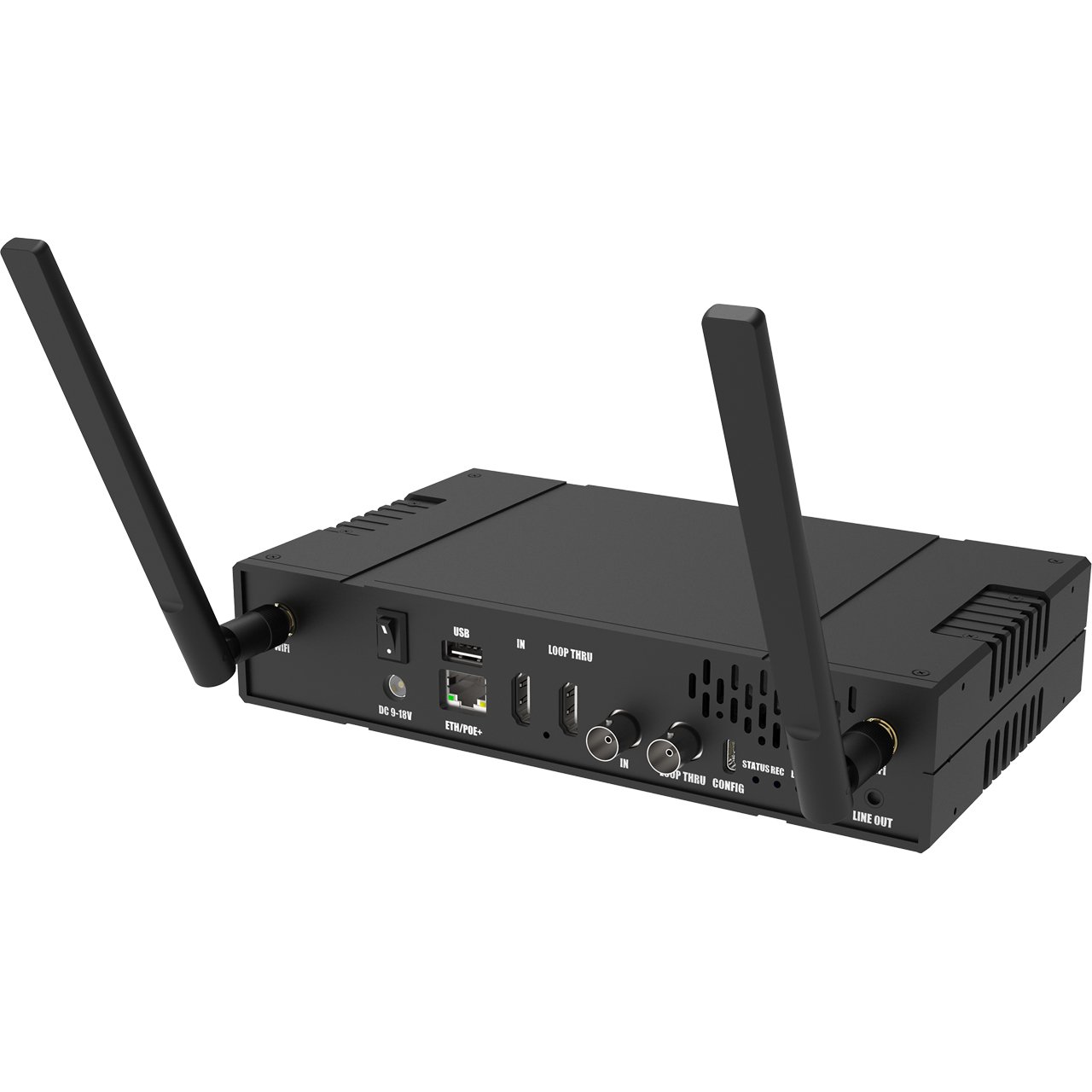

        Input/Output Interfaces
      • SD/HD/3G BNC input and loop-through interfaces
      • HDMI input and loop-through interfaces
      • 3.5mm LINE IN
      • 3.5mm LINE OUT
      • USB Type-C (config)
      • SD card slot
      • 2 x USB Type-A

        LCD Display & LED Indicators
      • 1.9 inch LCD display with 320x170 resolution enabling real-time system status monitoring
      • LEDs indicators show the status of power, input signal, recording and streaming

        Power Supply and Consumption
      • DC 9 ~ 18 V
      • Max power consumption: TBD

        Form Factor
      • 214.9mm x 128.2mm x 44.55mm
      • Support to mount onto a standard 1U rack with provided rack-mount kit

        Working Environment
      • Operating temperature: 32° to 104°F (0 to 40°C)
      • Storage temperature: (-20 to 70°C)
      • Relative humidity: 5% to 90% non-condensing
    • Item Includes:

      • 1x Screw locking DC power adapter
      • 2x Wi-Fi antenna
      • 1x HDMI cable
      • 7x M2.5 screws
      • 1x Retainer plate
      • 1x 1U short rack ear
      • 2x 1U long rack ears
