Z3 Technology Zeus SME-01 1080p60 3G-SDI Compact Video Encoder and Decoder - H.264

Name: Z3 Technology Zeus SME-01 1080p60 3G-SDI Compact Video Encoder and Decoder - H.264
Brand: Z3 Technology, LLC
SKU: Z3-SME-01
Price: 950.00 USD
Availability: PreSale

ITEM #: Z3-SME-01 MFG #: SME-01

Z3 Technology, LLC

Our Price:

$950.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SME-01 - Overview

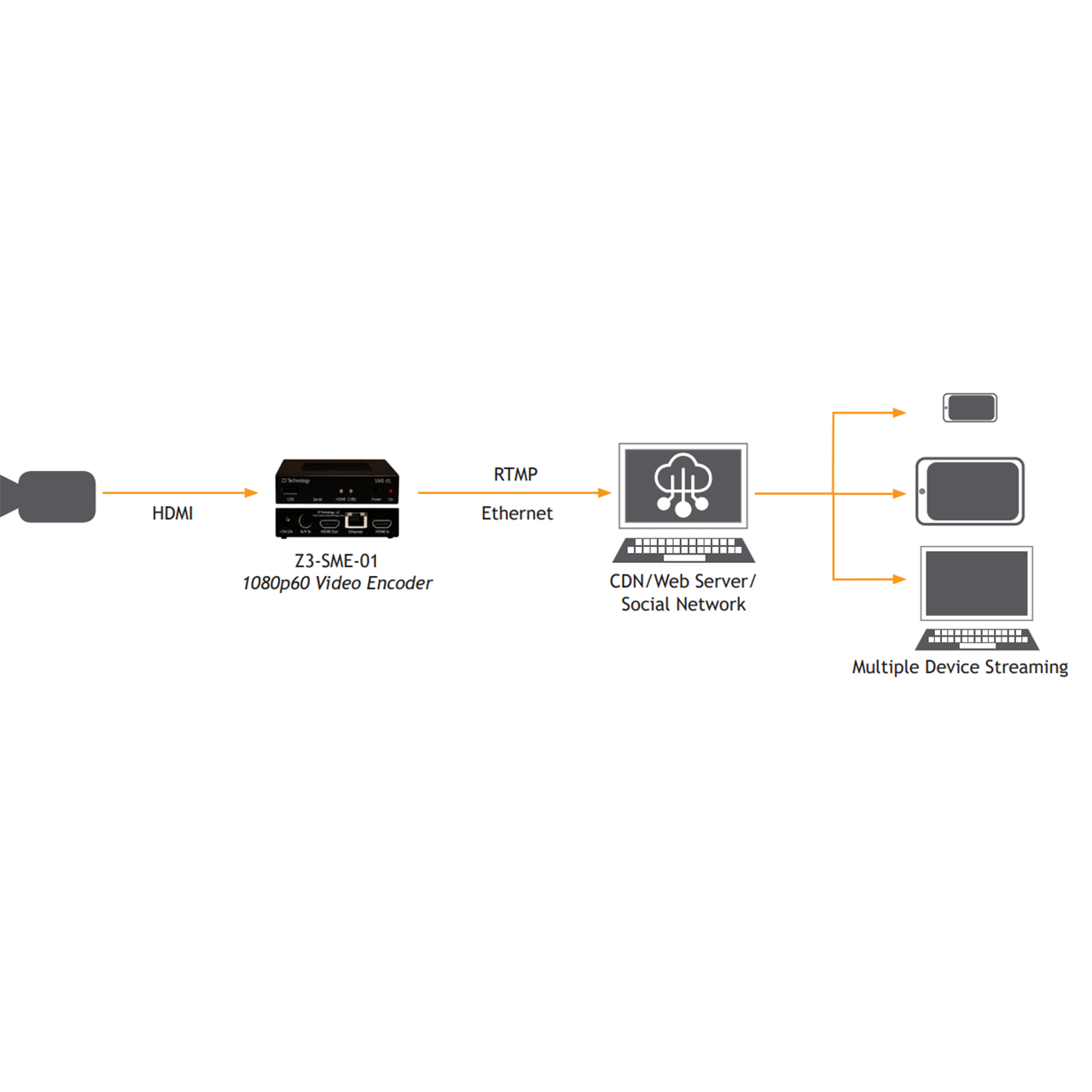

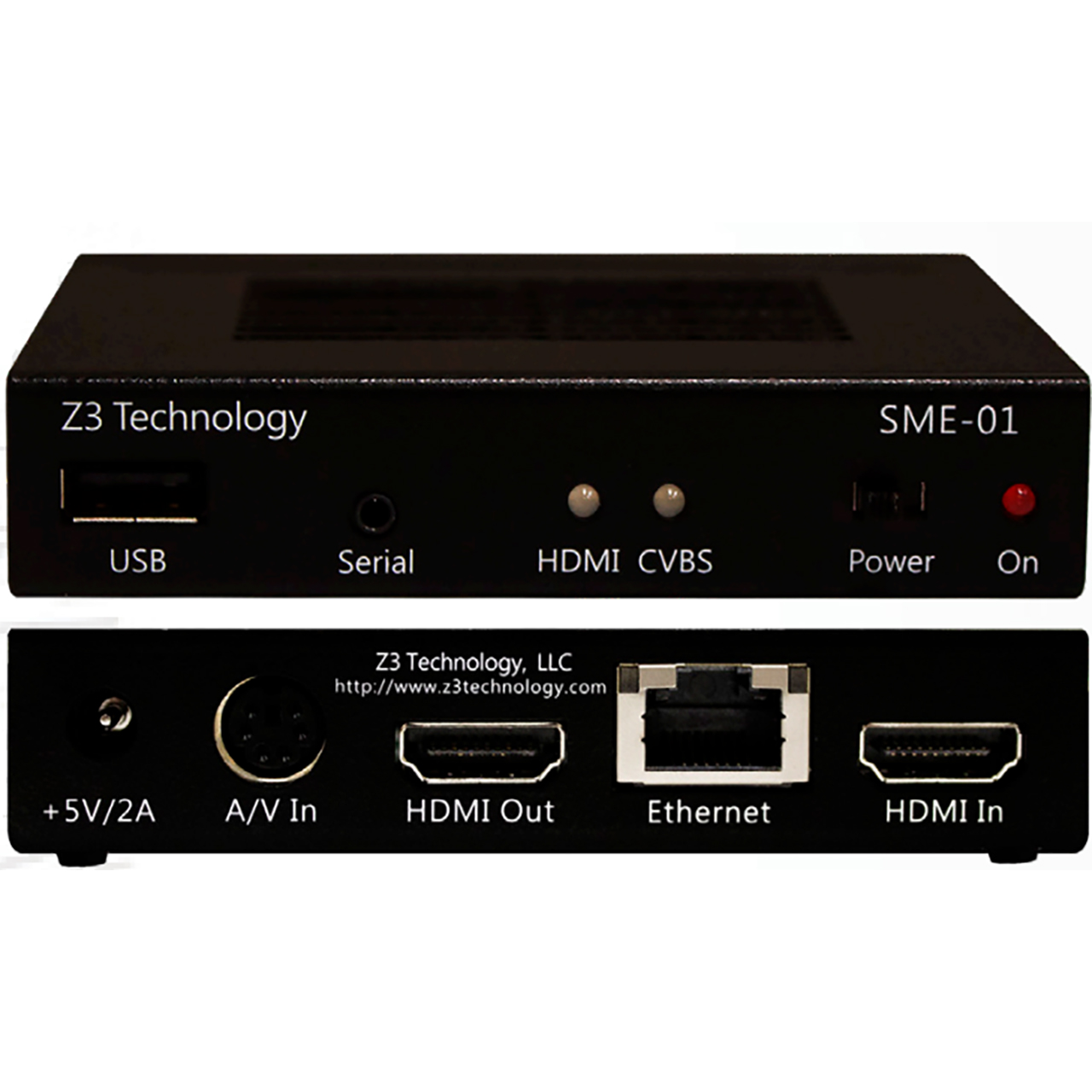

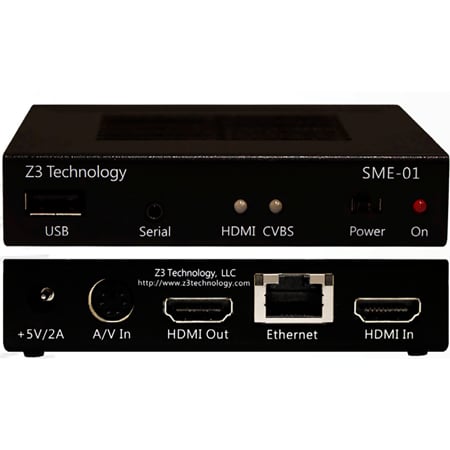

The Z3 Technology SME-01 is Z3 Technology's most compact ZEUS encode/decode solution. Measuring only 98 x 81 x 21 mm, this pocket-sized encoder/decoder is the ideal solution for remote applications such as: emergency broadcasts, on-site research, video conferencing and more. The SME-01 produces a H.264 codec in resolutions up to 1080p60 while consuming very little power. With this product, users can stream one source in multiple resolutions and bitrates, and easily configure settings via the SME-01 GUI.

Features:
- Single Channel H.264 Encode up to 1080p60
- Record to Storage Options
- Stream One Source into Multiple Resolutions and Bitrates
- Pro-MPEG Forward Error Correction Decode
- Ultra-Compact Form Factor
Specifications:
- Video Encoding
- Interfaces:
  - 1x Composite Input
  - 1x HDMI Input
  - 1x GbE
- Supported Resolutions: H.264 BP, MP and HP up to 1080p60, Dual Channel encode of up to 1x 1080i + 1x 480i
- Video Codecs: H.264
- Standard Definition ISDB-T, DVB-H and others
- Output Formats: MPEG-2 TS, RTP, RTSP, RTMP, RTMPS, TSRTP, MPTS and TSFile
- Video Frame Rates (SD): 25i, 29.97i and 30i
- Video Frame Rates (HD): 24p, 25p, 30p, 50p, 59.94i, 60i and 60p

  Audio Encoding
- Interfaces: Embedded HDMI Audio
- Audio Codecs: AAC-LC ADTS and AAC-HE ADTS
- Optional Audio Codecs: AAC-LC LATM, AAC-HE LATM, AAC-HE V2, G.711 and PCM
- Audio Bitrate: 12 to 320 kbps

  Video Decoding
- Interfaces:
  - 1x HDMI Output
  - 1x GbE
- Supported Resolutions: H.264 BP, MP and HP up to 1080p60
- Video Codecs: H.264
- Input Formats: MPEG-2 TS, RTP, RTSP, TSRTP and TSFile
- Video Frame Rates (SD): 25i, 29.97i and 30i
- Video Frame Rates (HD): 24p, 25p, 30p, 50p, 59.94i, 60i and 60p

  Audio Decoding
- Audio Codecs: AAC-LC ADTS and AAC-HE ADTS
- Audio Bitrate: 12 to 384 kbps

  Other

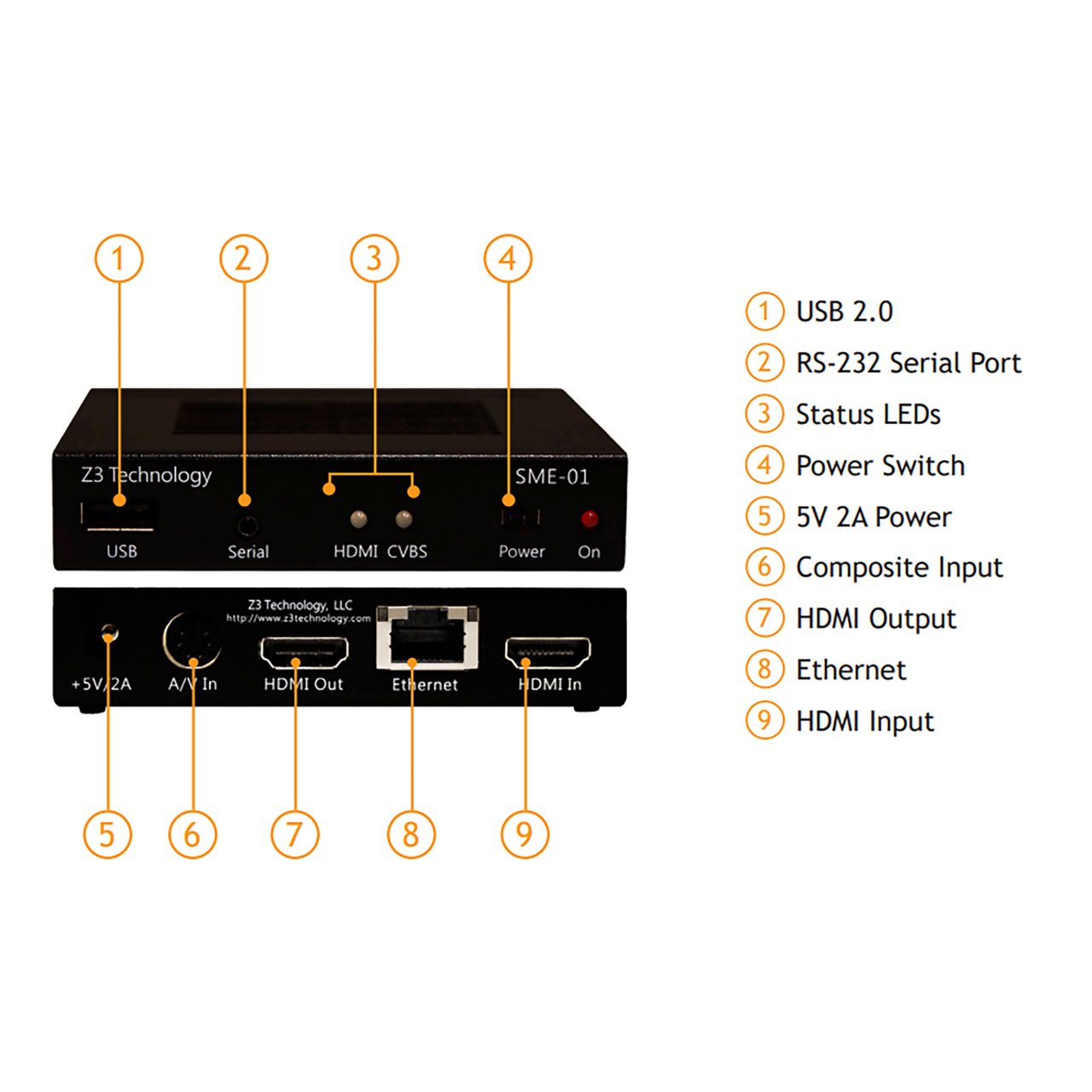

- Network Management: Device IP, Subnet Mask, Gateway
- Additional Interfaces: USB 2.0 and RS-232 Serial
- Software Control:
  - HTTP-Based GUI: Configuration and Software Update
  - RS-232: Configuration
- Power:
  - 5V External Power Supply
  - Low Power Consumption, 5W Typical
- Temperature and Humidity:
  - Operating: 0 to 60 degrees C at
- 15-80% Relative Humidity, noncondensing
  - Storage: -10 to 75 degrees C at
- 50-80% Relative Humidity, noncondensing

  Physical
- Dimensions: 3.88" x 3.19" x 0.81" (98mm x 81mm x 21mm)
- Weight: 0.49 lb (221g)
Item Includes:
- 1x Z3 Technology Zeus SME-01 1080p60 3G-SDI H.264 Compact Video Encoder and Decoder
Warranty:
- 1-Year Limited Warranty
