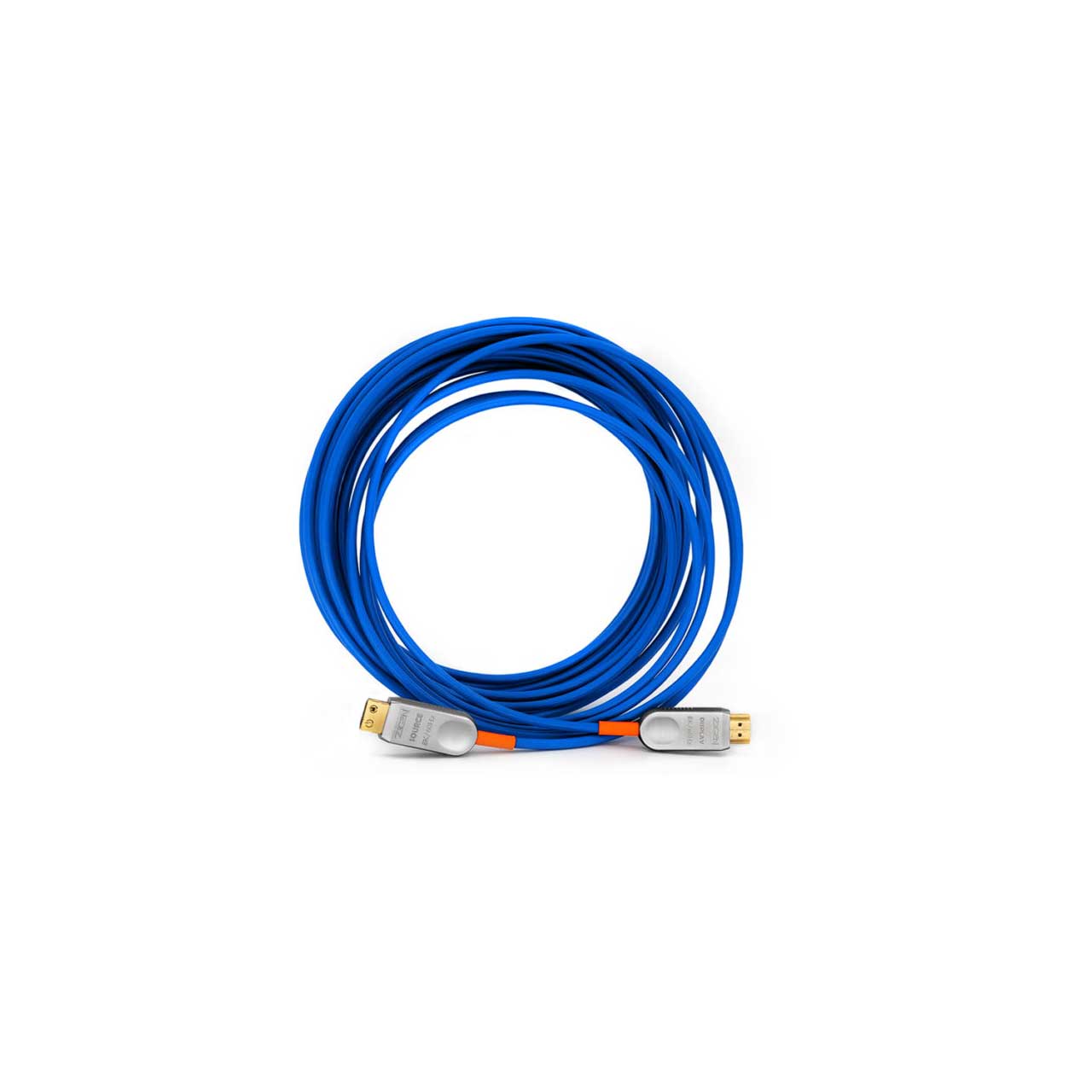

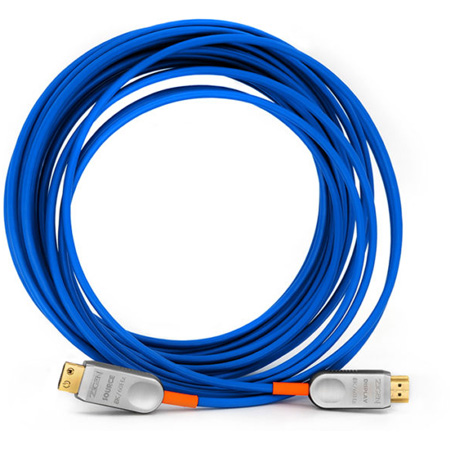

Zigen ZIG-AOC-8 HDMI 2.1 8K Active Fiber Cable - 48-Gbps 4K/8K 50/60/100/120Hz - 50 Foot/15M

ITEM #: ZIG-AOC-8-15-M MFG #: ZIG-AOC-8 15-M

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Zigen Corp
Free Shipping with $49 Minimum Order
Availability: Sold Out
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    ZIG-AOC-8 15-M - Overview

    HDMI 2.1 Active Optical Cable
    Introducing Zigen AOC-8, the future of active cabling is finally here to support the next evolution of video interconnects like HDMI 2.1 and eARC. These active cables are Dolby Vision and Ultra HD 4K certified. Designed to go the distance without compromising quality, our AOC-8 is capable of sending any source all the way to 48Gbps supporting future video resolutions such as 5K, 8K, and 10K. Our award winning "Autonomous EDID Management" algorithm has been implemented within the design to ensure your displays will be able to communicate with virtually every source. AOC-8 comes in varying lengths to accommodate most installations.

    With compliance to HDMI 2.1 and eARC, you can future-proof your cabling infrastructure with AOC-8.

    • Features:

      • HDCP 1.x and 2.x
      • 48-Gbps 8K 50/60Hz
      • 48-Gbps 4K 50/60/100/120Hz
      • HDMI 2.1 / HDMI 2.0 / HDMI 1.4
      • eARC (Enhanced Audio Return Channel)
      • FRL (Fixed Rate Link)
      • ALLM (Auto Low Latency Mode)
      • VRR (Variable Refresh Rate)
      • QFT (Quick Frame Transfer)
      • HDR-10, HDR+, HLG, Dolby Vision
      • Ethernet
      • Autonomous EDID Management
      • CL-3 Rated (Rated for in wall use)
      • Supports VESA, 2K, 4K, 5K, 8K and 10K
      • VESA DSC 1.2a


    • Specifications:

      • Max. Throughput: 48-Gbps 8K 50/60Hz
      • Max. Resolution: 10K
      • Signal IN: HDMI Connector
      • Signal OUT: HDMI Connector
      • HDCP: 1.4 / 2.2 / 2.3
      • EDID: Autonomous EDID mangement
      • HDR: Dolby Vision, HDR-10, HDR-10+ and HLG
      • AUDIO Support: Support Dolby Atmos, Dolby TrueHD, Dolby Digital Plus DTS HD-Master and more.
      • eARC: Yes
      • FRL: Yes
      • ALLM: Yes
      • VRR: Yes
      • QFT: Yes
      • Current draw: 500-ma per point


    • Item Includes:

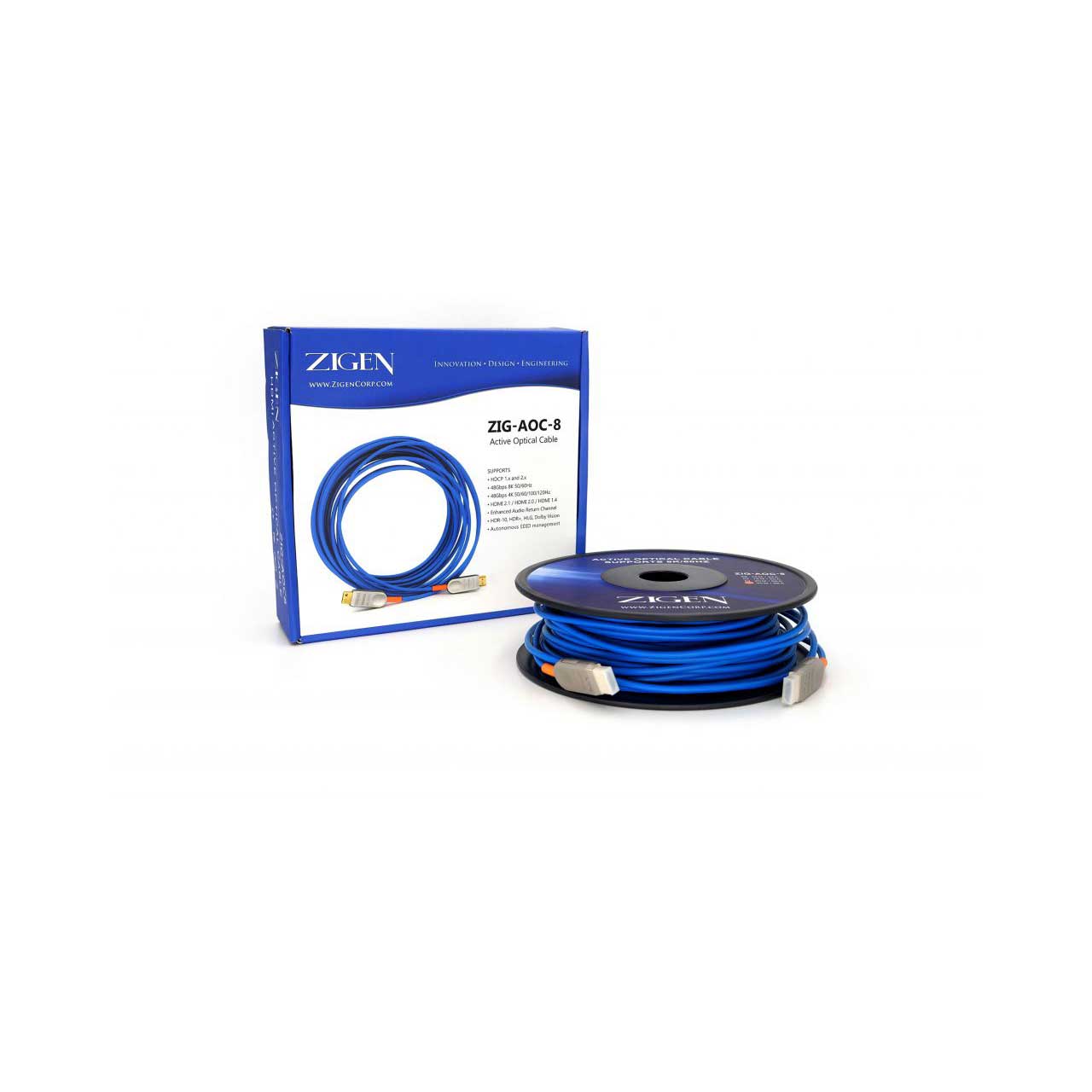

      • 1x Zigen ZIG-AOC-8 HDMI 2.1 8K Active Fiber Cable - 48-Gbps 4K/8K 50/60/100/120Hz - 15M/50ft
