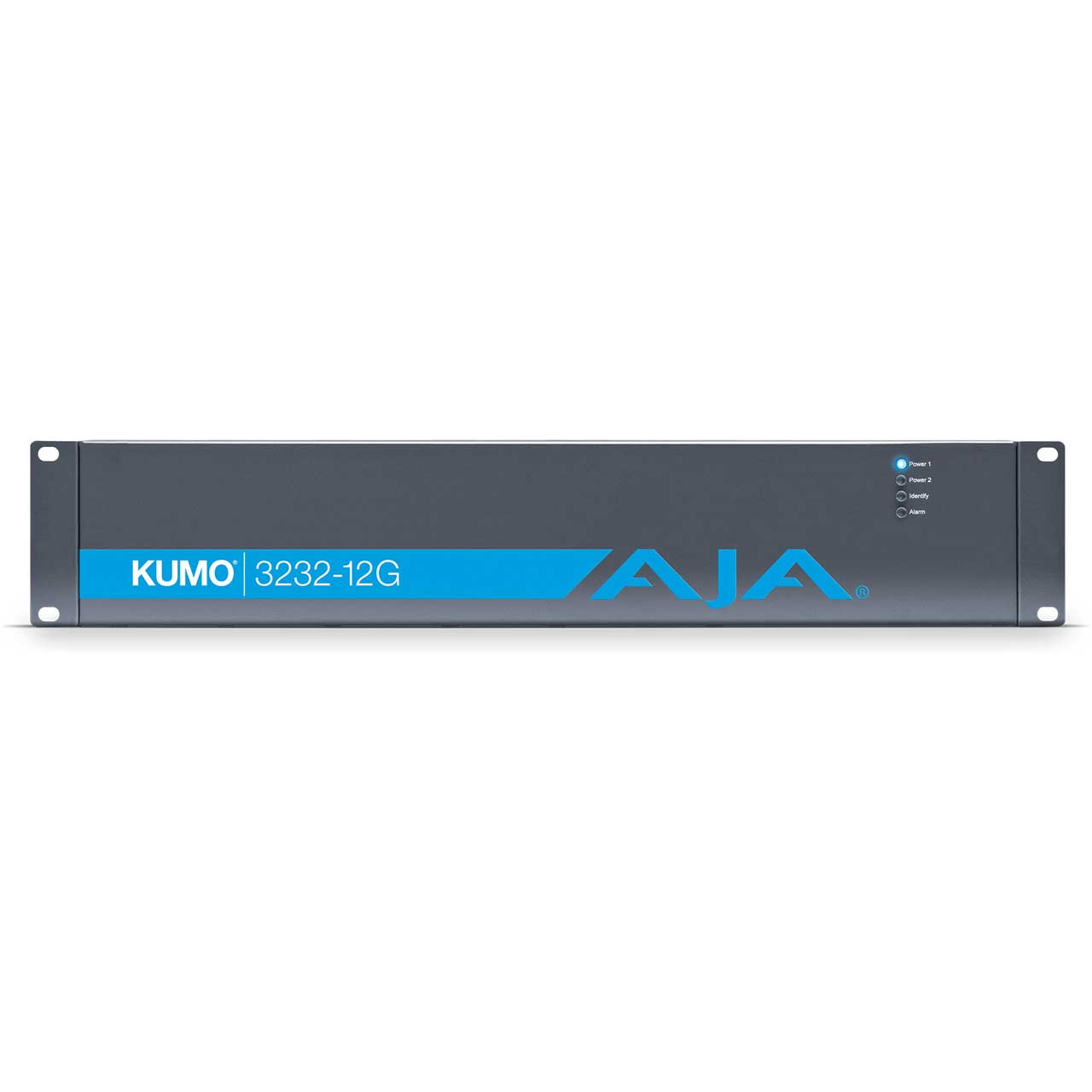

AJA Kumo 3232-12G Compact 32x32 12G-SDI Router for 4K Ultra HD

ITEM #: AJA-KUMO-323212G MFG #: KUMO 3232-12G

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$5,059.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    KUMO 3232-12G - Overview

    Simplify 4K/UltraHD Transport Over SDI!

    AJA's KUMO 3232-12G offers increased capacity for larger configurations while maintaining a compact 2RU profile with support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI with 32x 12G-SDI inputs and 32x 12G-SDI outputs.

    KUMO 12G-SDI routers support large format resolutions, high frame rate (HFR) and deep color formats, while reducing cable runs when transporting 4K/UltraHD over SDI. The routers offer network-based and/or physical control, and mirror the physical form of AJA's production-proven KUMO 3232 and KUMO 1616 routers, with a new USB port for configuring IP addresses via AJA's eMini-Setup software. Built to the same quality standards as all AJA KUMO products, KUMO 3232-12G is the ideal choice for any situation where a balance of size and capacity are critical such as mid-sized post facilities and mobile trucks.

    KUMO compact SDI routers provide powerful signal control and support full broadcast specifications over 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI and SD-SDI, with quality that exceeds SMPTE specifications. The super-compact 1RU and 2RU and 4RU formats are just a few inches deep, making them a perfect fit for any broadcast, production, or postproduction environment, from mobile sports trucks and edit suites, through to corporate video installations or live theatrical A/V rigs.

    • Features:

      • 32x 12G-SDI inputs and outputs
      • Small, portable form factor
      • Single cable support for 4K/UltraHD
      • Redundant power supply option
      • Eight salvos per router
      • Embedded web server for remote control
      • USB port to easily configure the router IP address

    • Specifications:

      • Video Format
      • 270 Mbps, 1.5 Gbps, 3 Gbps, 6 Gbps, 12 Gbps SDI
      • 270 Mbps DVB-ASI
      • Format agnostic, 270 Mbps - 12 Gbps

        Video Input Digital
      • 12G-SDI Inputs
      • 32x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

        Video Output Digital
      • 12G-SDI Outputs
      • 32x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
      • Noninverting

        Ancillary Data
      • Passes all SDI embedded ancillary data including audio

        Salvo
      • Up to 8 Salvos can be configured and saved in each KUMO router

        Cable Equalization
      • (Belden 1694A)
        12Gbps, up to 50m
        6Gbps, up to 100m
        3Gbps, up to 170m
        1.5Gbps, up to 200m
        270Mbps, up to 390m
        Automatic operation

        Reclocking
      • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
      • All other rates are passed through and not reclocked

        Switching Modes
      • Single, Dual, and Quad link modes
      • Switches in vertical blanking per SMPTE RP-168

        Control Panel Compatibility
      • AJA KUMO CP - 1RU X-Y Ethernet control panel
      • AJA KUMO CP2 - 2RU X-Y Ethernet control panel

        Reference Input
      • External, 2x BNC
      • Looping, nonterminating
      • Blackburst or tri-level sync

        Network Interface
      • 1x RJ-45, 10/100/1000 Ethernet
      • Supports AJA KUMO Ethernet control panels, direct connect or networked
      • Basic support for Grass Valley Native Protocol
      • Embedded web server for remote control

        USB Interface
      • 1x Mini-USB for IP configuration using AJA eMini-Setup

        Serial Interface
      • 1x DB-9 Female, RS-422
      • Basic support for Grass Valley Native Protocol
      • 9-pin D-connector pinout is as follows:
        1: GND
        2: TX-
        3: RX+
        4: GND
        5: No Connection
        6: GND
        7: TX+
        8: RX-
        9: GND
        Shell: GND

        Dimensions (WxDxH)
      • 2RU - 17.4 x 1.54 x 3.50" (441.96 x 39.12 x 88.9mm)

        Weight
      • 4.6Lbs (2.1kg)

        Power
      • 10-14VDC regulated, 20W typ, power supply required, included with purchase
      • AC Adapter: 100-240VAC, 50/60 Hz, universal input

        Environment
      • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
      • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
      • Operating Relative Humidity: 10 to 90% non-condensing
      • Operating Altitude: <3,000 meters (<10,000 feet)

    • Warranty:

      • 5 Years

    • GTIN:

      0812321031454
