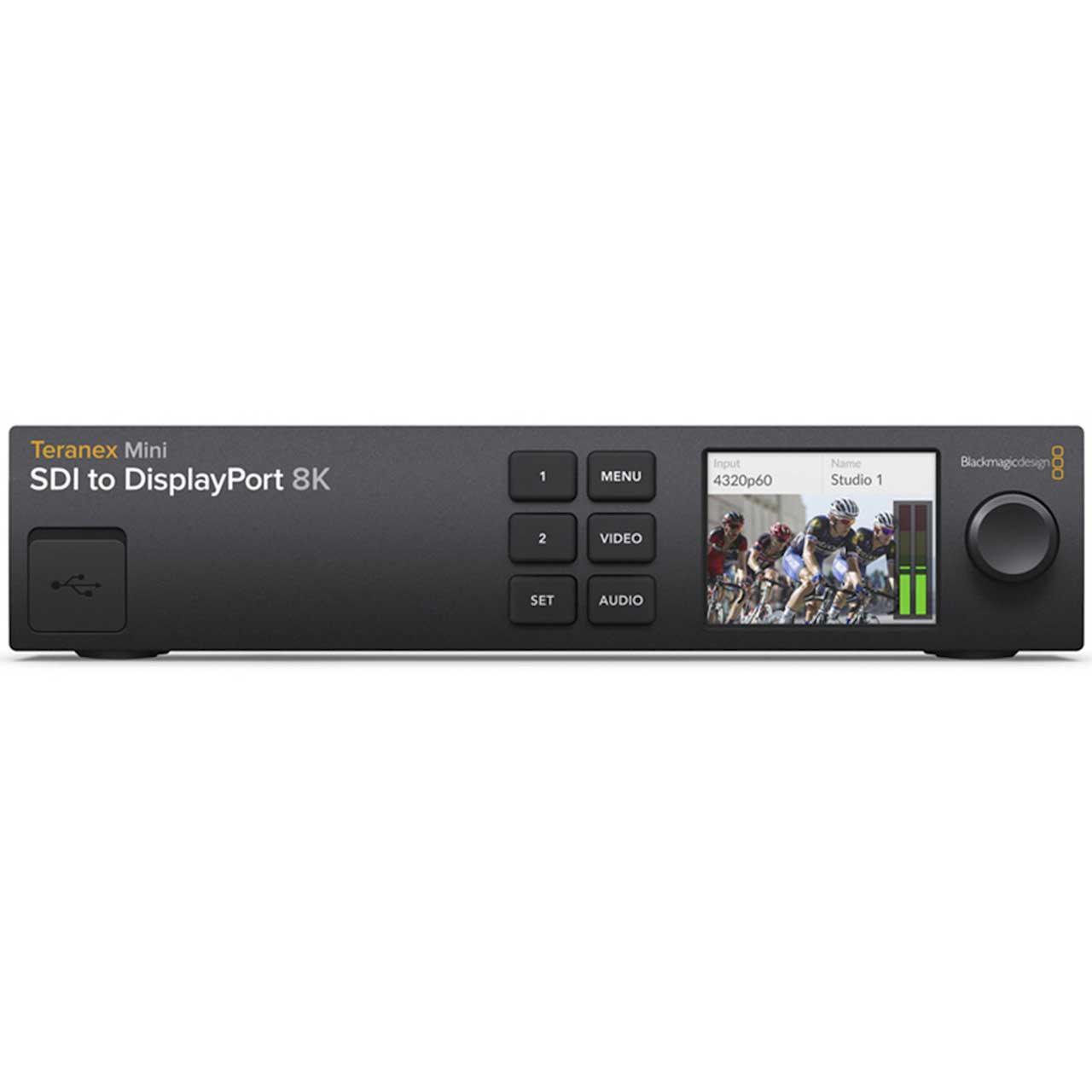

Blackmagic Design CONVN8TRM/AA/SDIDP Teranex Mini SDI to DisplayPort 8K HDR Monitoring Solution

ITEM #: TERANEXMINISDIDI MFG #: CONVN8TRM/AA/SDIDP

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$1,415.00

Availability: In Stock
iAvailability Description Popup


    CONVN8TRM/AA/SDIDP - Overview

    Advanced 8K DisplayPort monitoring solution!

    The Blackmagic Design Teranex Mini 8K HDR is an advanced 8K monitoring solution for large screen televisions, video projectors and Display Port Monitors. Unlike basic converters, Teranex Mini 8K HDR can use third party calibration probes to accurately align connected displays for precise color. There are 2 on screen scopes that can be selected between WFM, Parade, Vector and Histogram. Teranex Mini SDI to HDMI 8K HDR is perfect for film studios and broadcasters who need professional but affordable color accurate monitoring when working with the latest 8K DisplayPort monitors. You also get a color LCD for monitoring and control of settings!

    Teranex Mini 8K HDR has been designed for any broadcast, live production or feature film work where you need large color accurate SDI monitoring. Perfect for accurate grading monitoring for DaVinci Resolve, you can unload CPU and GPU processing, as both models draw the 3D LUTs and scopes for you. That's important when using heavy 8K formats. When you use an Apple Pro Display XDR with Teranex SDI to DisplayPort 8K HDR, you can even select from the monitor's built in color profiles so that you can accurately match the color space and gamma to the SDI input for precise color grading. Teranex Mini SDI to HDMI 8K HDR is also great when using large televisions for multi view on switchers such as ATEM Constellation 8K so each view is large enough to check focus. You can even use quad split to build large video walls from multiple monitors. Imagine building giant 8K video walls at concerts and theaters!

    • Features:

      • Latest HDR Support
      • Real Time Integrated Scopes
      • Advanced 33 Point 3D LUTS
      • Built in Monitor Calibration
      • Advanced 12G-SDI for HD, Ultra HD and 8K
      • Dual on-screen scope overlays
      • Automatic HDMI Down Conversion
      • Powerful LCD Menu Control
      • Mac and PC Software Included

    • Specifications:

      • Connections
      • SDI Video Inputs: 4x 12G-SDI HD/2K/4K/8K auto switching.Dual and quad link 12G-SDI for 8K only.
      • SDI Video Outputs: 4x 12G-SDI loop output
      • DisplayPort Video Outputs: 2x full size DisplayPort connectors. Single used for 4K video and both used for uncompressed 8K video. 1x USB-C DisplayPort connector Compatible with certified passive DisplayPort over USB-C cables. Active generic USB-C cables or active Thunderbolt cables are not compatible.
      • Analog Audio Outputs: 2 channels analog audio via RCA connectors
      • Embedded Audio Support: 16 channels of embedded audio on all SDI loop outputs and 8 channels on the DisplayPort outputs
      • Multi Rate Support: 1.5G, 3G, 6G, 12G, 2SI Dual Link 12G SDI, 2SI Quad Link 12G SDI, Square Division Quad Link 12G SDI
      • Updates and Configuration: Front USB-C or Ethernet
      • Reclocking: Yes

        Standards
      • SD Video Standards: None
      • HD Video Standards: 720p50, 720p59.94, 720p60,1080i50, 1080i59.94, 1080i60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
      • 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI,2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
      • 4K DCI Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
      • 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60 Auto switching between 2SI and Square Division
      • 8K DCI Video Standards: 8Kp23.98 DCI, 8Kp24 DCI, 8Kp25 DCI, 8Kp29.97 DCI, 8Kp30 DCI, 8Kp47.95 DCI, 8Kp48 DCI, 8Kp50 DCI, 8Kp59.94 DCI, 8Kp60 DCI Auto switching between 2SI and Square Division
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081 1, SMPTE 2081 10, SMPTE 2082 1 and SMPTE 2082 10
      • SDI Video Rates: SDI video connections are switchable between 1.5G SDI, high definition level A and level B 3G SDI, 6G SDI and 12G SDI
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio SamplingTelevision: Standard sample rate of 48 kHz and 24 bit
      • SDI Color Precision: 4:2:2 and 4:4:4
      • SDI Color Space: YUV and RGB

        DisplayPort Output Standards
      • SD Video Standards: None
      • HD Video Standards: 720p50, 720p59.94, 720p60,1080i50, 1080i59.94, 1080i60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
      • 5K and 6K Display Standards: Based on the EDID of the DisplayPort Monitor
      • 8K Video Standards: 4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p30, 4320p47.95, 4320p48, 4320p50, 4320p59.94, 4320p60
      • DisplayPort Color Space: REC 709, REC 2020
      • DisplayPort Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K, 4K and 8K. 33 point LUTs can be loaded via Teranex Utility or calibration LUT generated from calibration probe test.
      • Scopes: Waveform, RGB/YUV Parade, Vector, Histogram
      • Viewing Modes: Two by scopes with picture overlay with opacity control. Waveform/Parade standard&HDR

    • Item Includes:

      • Teranex Mini SDI to DisplayPort 8K HDR
      • SD card with software and manual

    • Warranty:

      • 1 year Limited Manufacturer's Warranty.

    • GTIN:

      9338716006452
