Zigen ZIG-PAX Long Range Digital / Analog Audio Extender
  • Zigen ZIG-PAX Long Range Digital / Analog Audio Extender
  • Zigen ZIG-PAX Long Range Digital / Analog Audio Extender
  • Zigen ZIG-PAX Long Range Digital / Analog Audio Extender
  • Zigen ZIG-PAX Long Range Digital / Analog Audio Extender

Questions? Ask a Markertek Expert:
800-522-2025 Email

Zigen ZIG-PAX Long Range Digital / Analog Audio Extender

Manufacturer: Zigen Corp

Item #: ZIG-PAX   •   MFG #: ZIG-PAX




Our Price:$165.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

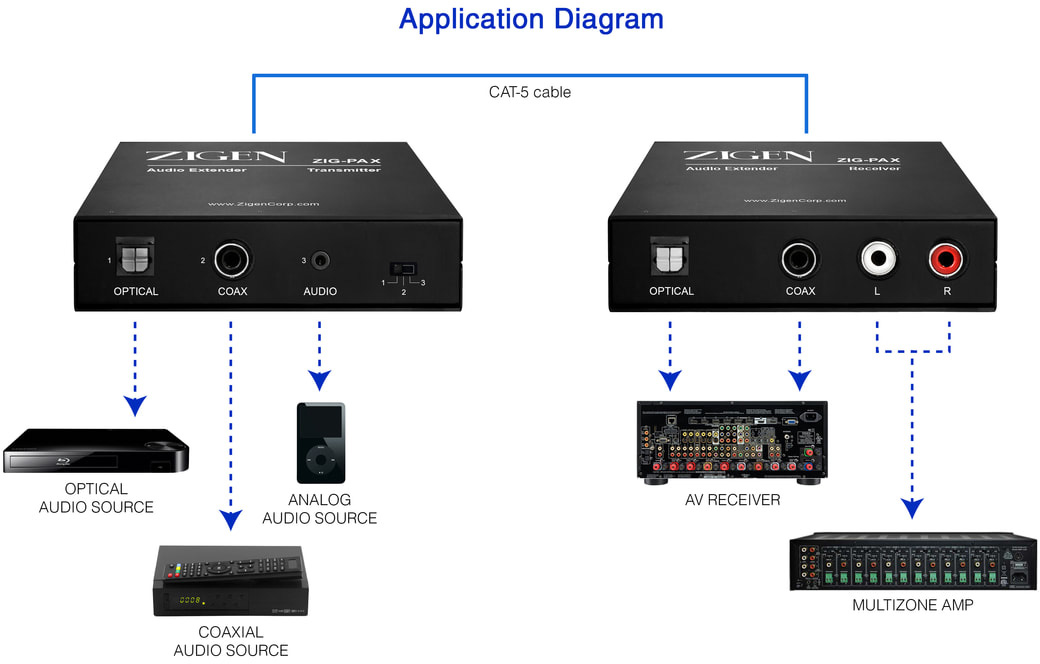

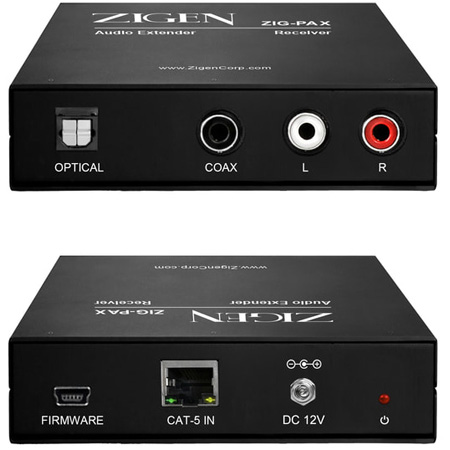

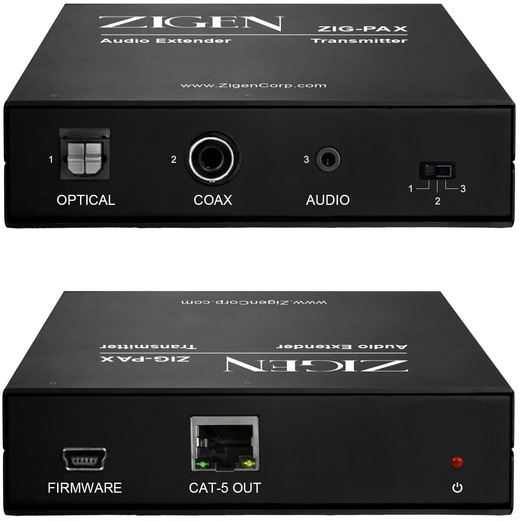

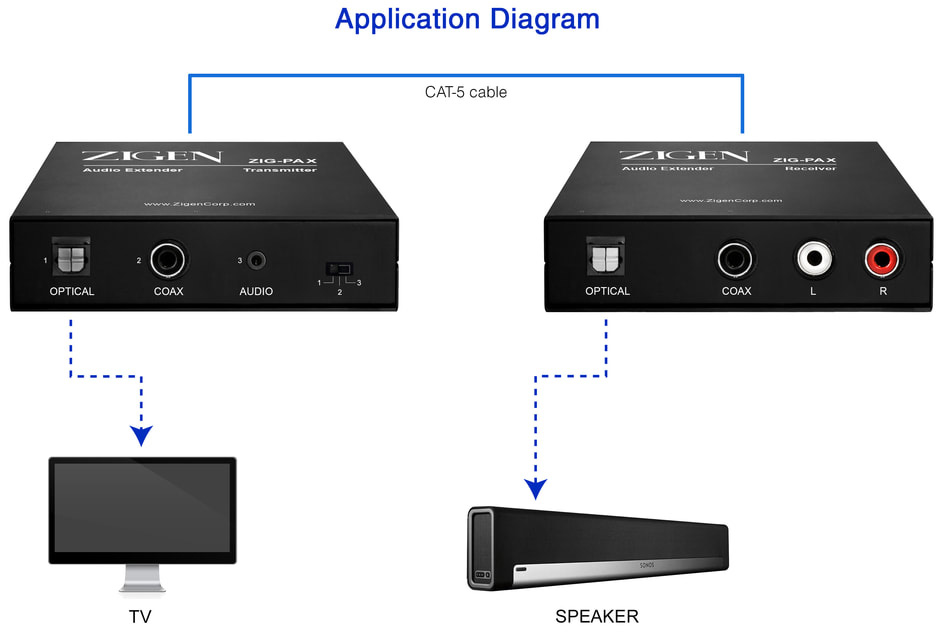

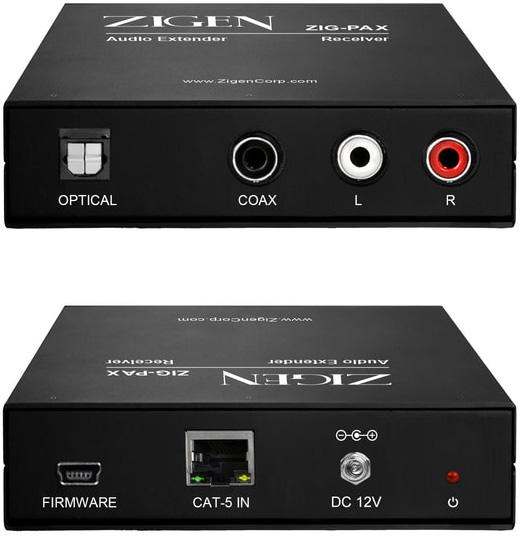

    The ZIGEN ZIG-PAX is a transmitter/receiver extender kit for long distance transmission of digital and or analog stereo audio over a single CAT - X type cable. The ZIG-PAX can be used as a point-to-point solution or integrated with Matrix switching equipment to extend digital and or analog inputs or outputs to remote locations while maintaining high resolution audio.


    • Features

      • Active line level stereo audio extender
      • Active digital audio extender
      • Frequency response from 20Hz to 20 KHz +/-3dB
      • Stereo: Up to 170m / 557 ft. (CAT5e/6)
      • TOSLINK/COAX: Up to 290m / 951 ft. (CAT5e/6)
      • TOSLINK & COAX: PCM/Dobly/DTS; AUDIO: Stereo

    • Specifications

      • Audio Format: TOSLINK & COAX: PCM/Dobly/DTS; AUDIO: Stereo
      • Sound Channel: TOSLINK & COAX: 2.0-7.1
      • Frequency Response: 20 Hz to 20 kHz, ±3 dB
      • Sample Rate: TOSLINK & COAX: 48k/96k/192k 16bit/18bit/24bit
      • Transmission Distance: Stereo: Up to 170m / 557 ft. (CAT5e/6) TOSLINK/COAX: Up to 290m / 951 ft. (CAT5e/6)
      • Power Supply: Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC, 1A
      • Power Consumption: 2.5W (Max)
      • Operating Temperature: -10 ~ +55°C
      • Humidity: 10% ~ 90%
      • Net Weight Transmitter: 0.243 lb. ; Receiver: 119g / 0.262 lb.
      • Dimension(W*H*D): 3.4" x 3" x .8"
