ZeeVee ZvPro 810i HD Video and Digital Signage Over Coax With Simultaneous Video-over-IP Streaming - 1 HDMI
  • ZeeVee ZvPro 810i HD Video and Digital Signage Over Coax With Simultaneous Video-over-IP Streaming - 1 HDMI
  • ZeeVee ZvPro 810i HD Video and Digital Signage Over Coax With Simultaneous Video-over-IP Streaming - 1 HDMI
  • ZeeVee ZvPro 810i HD Video and Digital Signage Over Coax With Simultaneous Video-over-IP Streaming - 1 HDMI
  • ZeeVee ZvPro 810i HD Video and Digital Signage Over Coax With Simultaneous Video-over-IP Streaming - 1 HDMI

Questions? Ask a Markertek Expert:
800-522-2025 Email

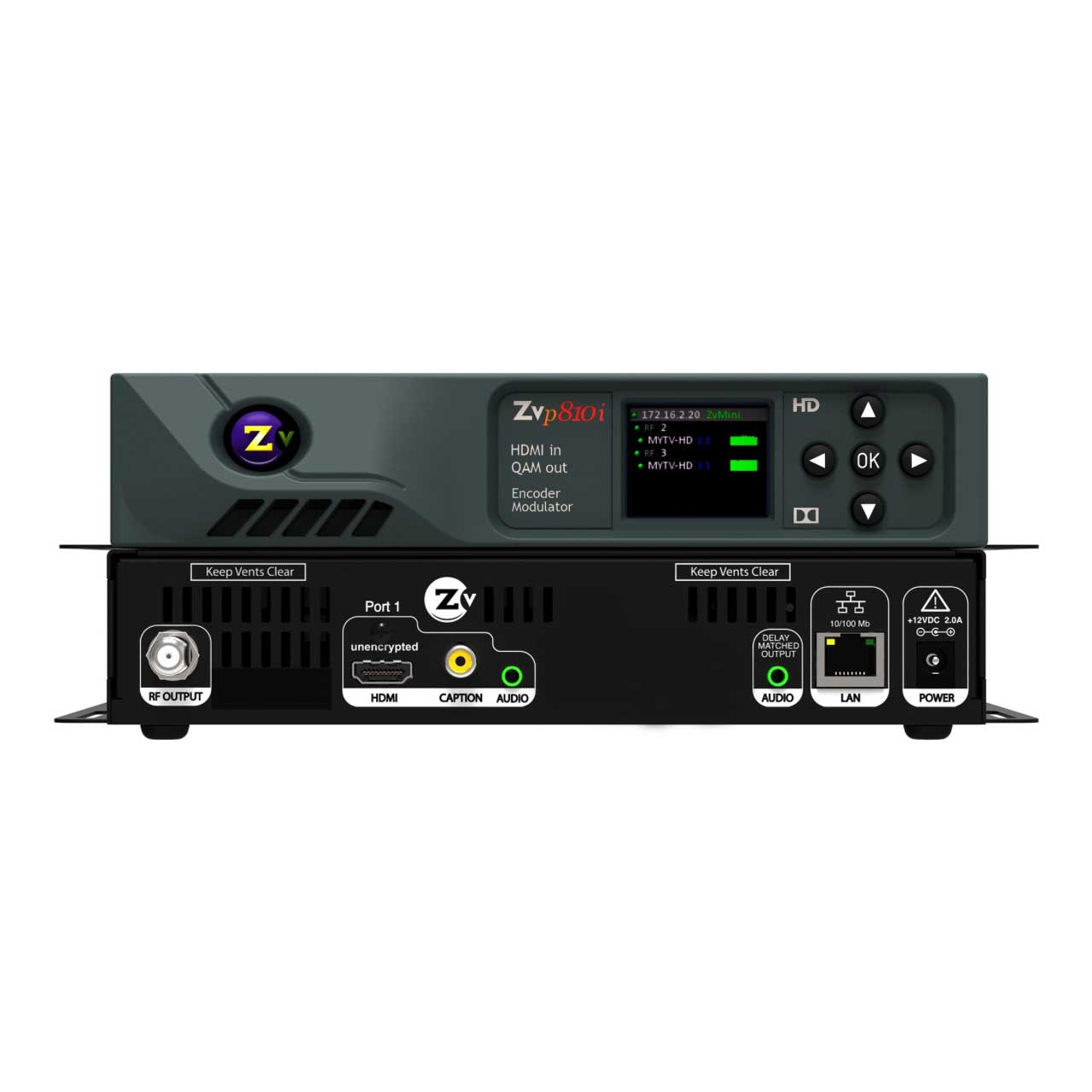

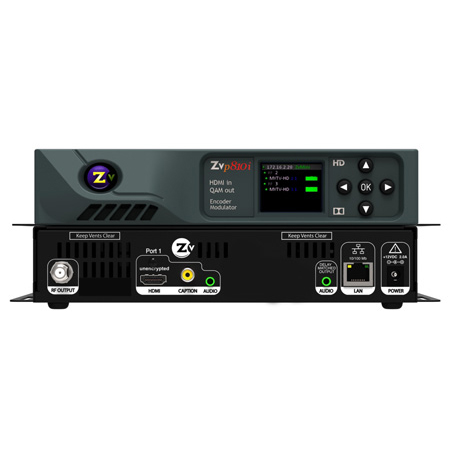

ZeeVee ZvPro 810i HD Video and Digital Signage Over Coax With Simultaneous Video-over-IP Streaming - 1 HDMI

Manufacturer: ZeeVee

Item #: ZV-ZVPRO810I   •   MFG #: ZVPRO 810I



List Price:$1,899.00
Our Price:$1,575.75

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    ZvPro800i-NAHD Digital Encoder/ModulatorHD Video and Digital Signage Over Coax With Simultaneous Video-over-IP Streaming

    The ZvPro Series of encoder/modulators is used in smaller video and signage systems, and it continues to be a best seller. Now we've added the I-Series to the ZvPro lineup, with all the features of a ZvPro PLUS simultaneous video-over-IP streaming.

    ZvPro810i delivers uncompromising digital HD video distribution over your existing coax cabling from HDMI sources, as well as providing simultaneous IP streaming with no performance compromise. This one channel QAM, MPEG2, Encoder/Modulator unit allows you to easily distribute content up to 1080p resolution to an unlimited number of displays, using the TV's built in QAM tuner, eliminating the need for cumbersome, expensive set-top-boxes or media players at each display. Its built in IP streaming functions can deliver stunning video to any media player or other IP device - perfect for digital signage. ZvPro units can be managed either locally through the color LCD screen on the front panel or remotely using the Maestro web based software. All ZeeVee units support Dolby Digital audio encoding. With Emergency Alert System capabilities, keep your guests, residents and patrons safe. Included Closed Captioning makes your installation ADA compliant. ZvPro allows you to control power output from 25 to 45dBmV QAM output levels in 1dBmV steps. ZvPro delivers resolutions from 480i to 1080i/p.

    Emergency Alert System
    Add an extra layer of safety to your facility by using the built in Emergency Alert System. The ZeeVee Emergency Alert System (EAS) can tie systems into national or local alert systems. ZeeVee processes alerts sent with either EAS-NET or MPEG streaming. When an alert is active, all current audio and video will be interrupted and replaced with the alert.

    Send HD Video to your Display using your Digital QAM Tuner or IP network

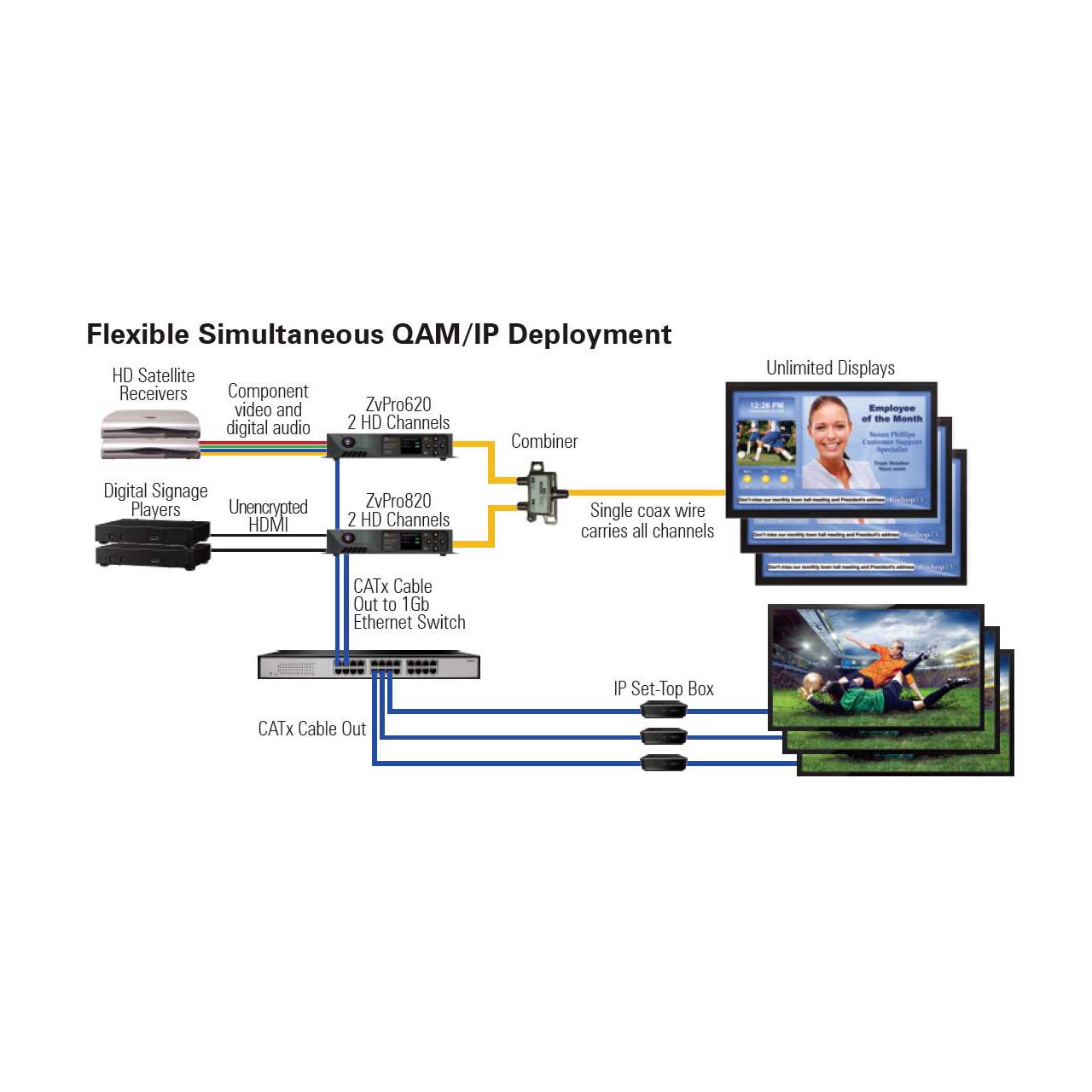

    ZvPro converts your content to a private television channel that is sent over a coax cable - just like your existing satellite or cable box - except you control the content. If your display or projector does not have a tuner, you can purchase a ZvSync decoder to convert the signal to a HDMI output to send to your display. ZvPro iSeries models will also generate a simultaneous MPEG-2 video stream that can be sent over any 1Gb network to IP set-top boxes, computers, or digital media players. This feature makes it easy for computer users to monitor news channels, worship services, presentations or other video where you may not have a coax cable connection. Simply enter the IP address of the video stream from the ZvPro and you can watch crystal clear video on your device.

    Add a Digital Tuner to your display with ZvSync
    Have a projector or other display that doesn't have a QAM or digital tuner? No problem. The ZvSync (sold separately) ena


    • Features

      • Distribute one channel of unencrypted HDMI content up to 1080i/p throughout your entire facility over coax cable infrastructure
      • Frequency agile, MPEG-2, QAM encoder/modulator with simultaneous IP streaming
      • Supports Dolby Digital AC-3, 5.1 audio
      • Closed Captioning and Emergency Alert System support
      • Five Year Warranty

    • Specifications

      • General
      • Model Name: ZvPro I-Series, ZvPro820i / ZvPro810i
      • Part Number: ZvPro820i-NA / ZvPro810i-NA
      • Power: 100-240 VAC 50/60 Hz, 36W max. 18W Typical IEC 60320-C14
      • Cooling: Internal cooling fan, front inlet, rear exhaust
      • Temperature/Humidity: Operating +32 F° to +113 F° (0 C° to +45 C°) / 10% to 80%, non-condensing
      • Vibration: NSTA 1A in carton
      • MTBF: 62,000 hours
      • Compliance: FCC Class A, IEC60065, EN61000 (see Manual #70-00047), CE, RoHS
      • Enclosure Type: Metal
      • Mounting: Shelf mount flange or rack ears (ordered separately), 1 RU high
      • Enclosure Dimensions:
      • 8 in. (H) x 10 in. (W) x 1.75 in. (H)
      • 20.32 cm (H) x 25.4 cm (W) x 4.445 cm (H)
      • System Weight: 3.1 lbs. (1.4 kg)
      • Carton Dimensions (individual):
      • 2.75 in. (H) 14 in. x (W) 12 in. (D)
      • 6.985 cm (H) 35.56 cm (W) x 30.48 cm (D)
      • Shipping Weight: 5 lbs. (2.3 kg)
      • Warranty: 5 years

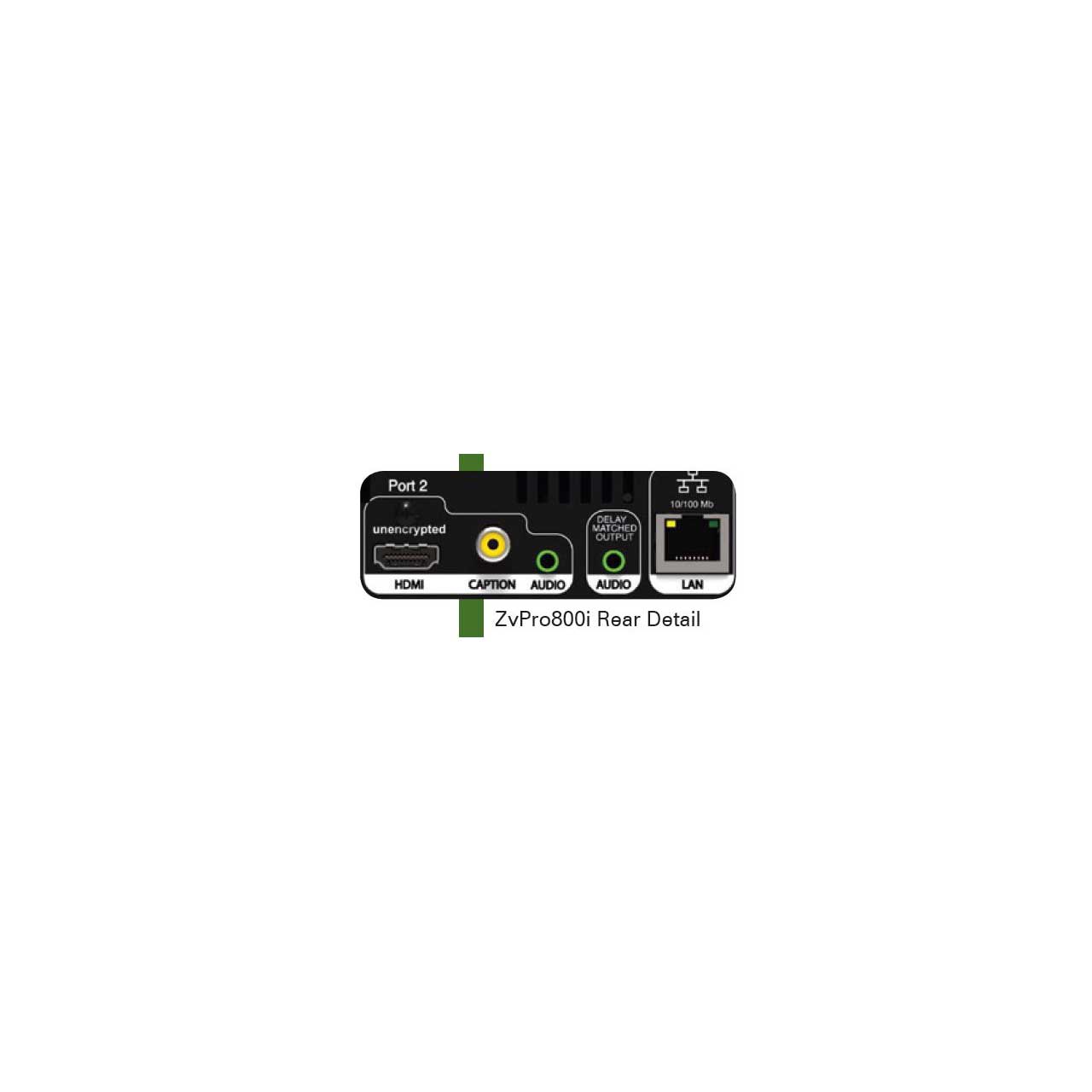

        Video Input
      • Unencrypted HDMI x2 or x1: One (1) or two (2) ports per model up to 1080
      • HDMI 1.3 compliant. Backwards compatible to DVI 1.0 specifications
      • Closed Caption: EIA/CEA-608 captions accepted over composite video input
      • Extra Digital Channel: MPEG2 program stream file, up to 200 MB

        Audio Input
      • Digital Audio and Stereo Analog: Digital as element of HDMI 1.3 port or 3.5 mm stereo female, line level input per channel

        Video Encoder
      • Encoder Video Profile: MPEG2 HD: ISO13818-2 [email protected]
      • Traffic Shaping: Variable Bit Rate
      • Video Encoding Data Rates: Variable, 10 Mbs - 24 Mbs per channel
      • Average Encoding Data Rate: 18 Mbs per channel
      • Encoding Latency: Programmable 200 msec to 400 msec
      • Color Profile: 4:2:0
      • GOP Size: 15
      • Video, Audio PID: Programmable starting value
      • Program Information: Programmable program name, EIT

        Audio Encoder
      • Encoder Audio Profile: ATSC A/52, Dolby Digital (AC-3)

        Modulator / Upconverter
      • Modulation Types: QAM 256 and 64 (ITU-T J83 Annex B) Interleaving modes: (64,2) only
      • Cable Standard: HRC, IRC or STD
      • Frequency Range: Single or one paired, frequency agile QAM RF CATV channels 2-135
      • 2kHz resolution
      • +/- 30 ppm accuracy
      • +/- 35 ppm stability
      • Output Power: +45 dBmV typical
      • Output Level Adjust: 25 - 45 dBmV in 1dBmV steps
      • MER: > 38 dB typical
      • I/Q Amplitude Imbalance: < 1% typical
      • Spectral Tilt: ≤ 1 dB over 6 MHz typical

        IP Stream Output
      • Stream Details: RJ-45 10/100Mb Ethernet connection
      • Up to 2 SPTS, one for each encoded video stream
      • UDP unicast or multicast, IPV4
      • User programmable destination address / port

        Control Set-Up
      • Network Interface:
      • 10/100 Mb Ethernet via RJ45 connection
      • IP address via DHCP or set by user
      • HTML/Javascript served web interface for easy configuration
      • Telnet connection for CLI scripting
      • Easy firmware updates
      • All settings saved in NV storage

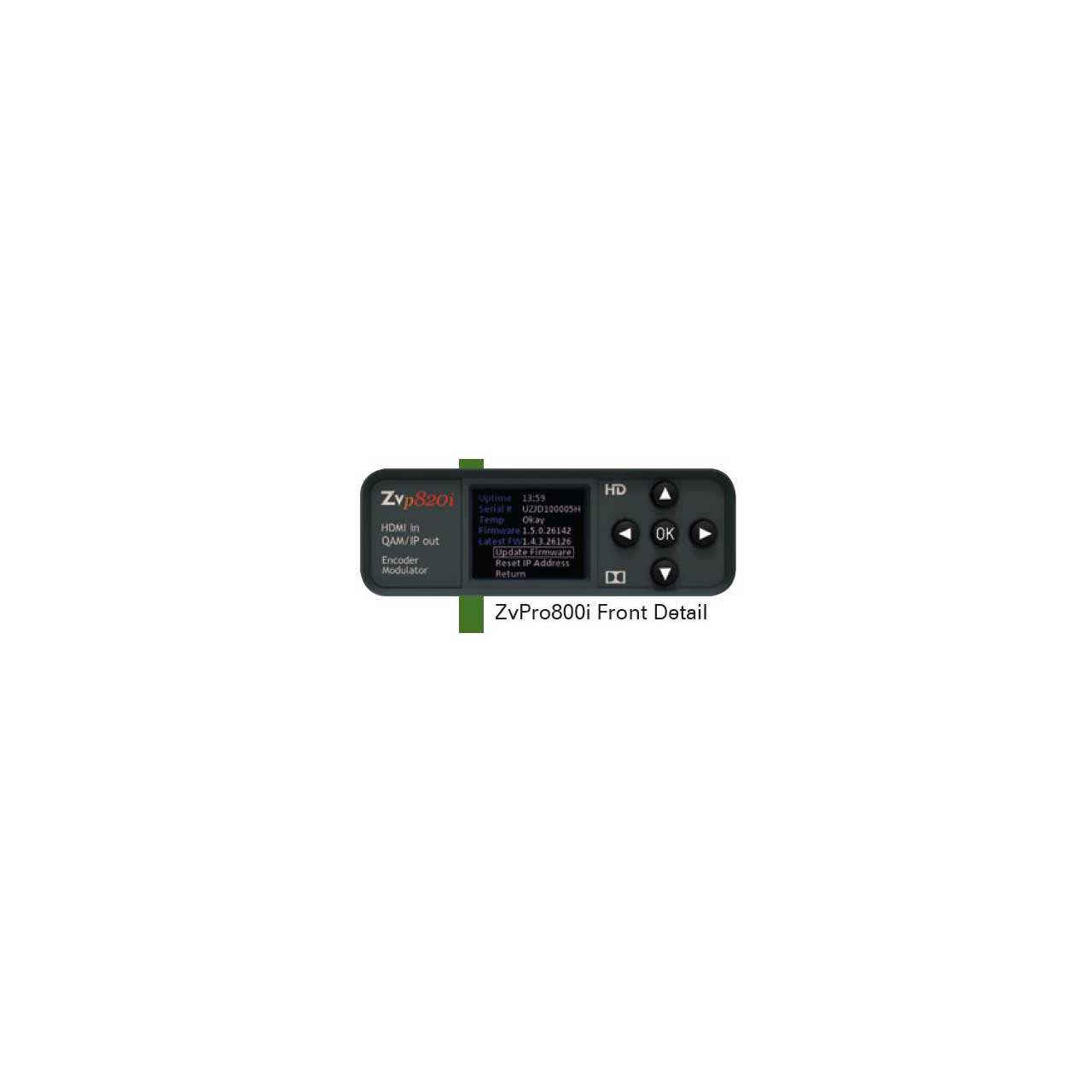

      • Front Panel Color Display: Quickly obtain status at a glance, basic configurations, software revisions and updates

    • Warranty

      • Five Year
