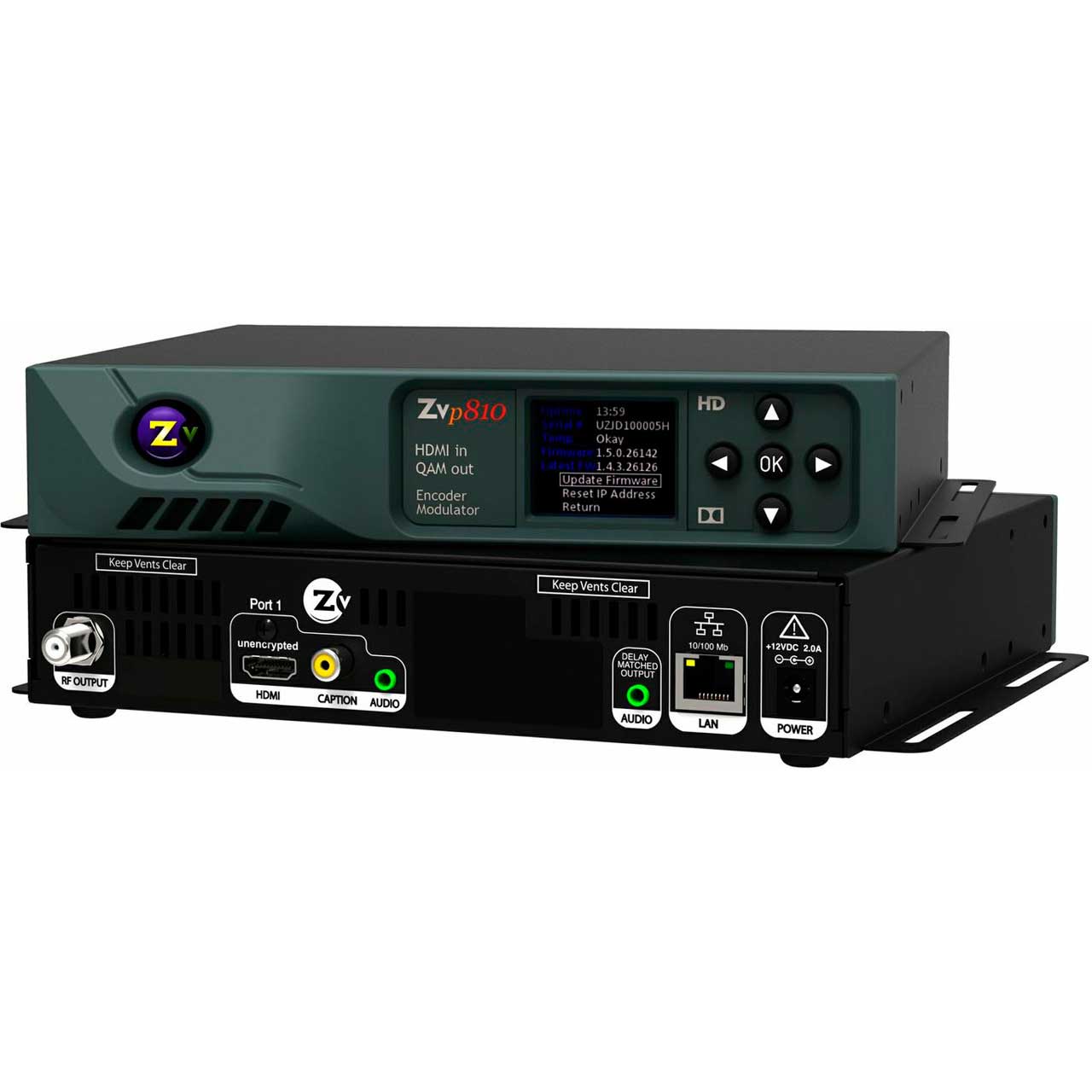

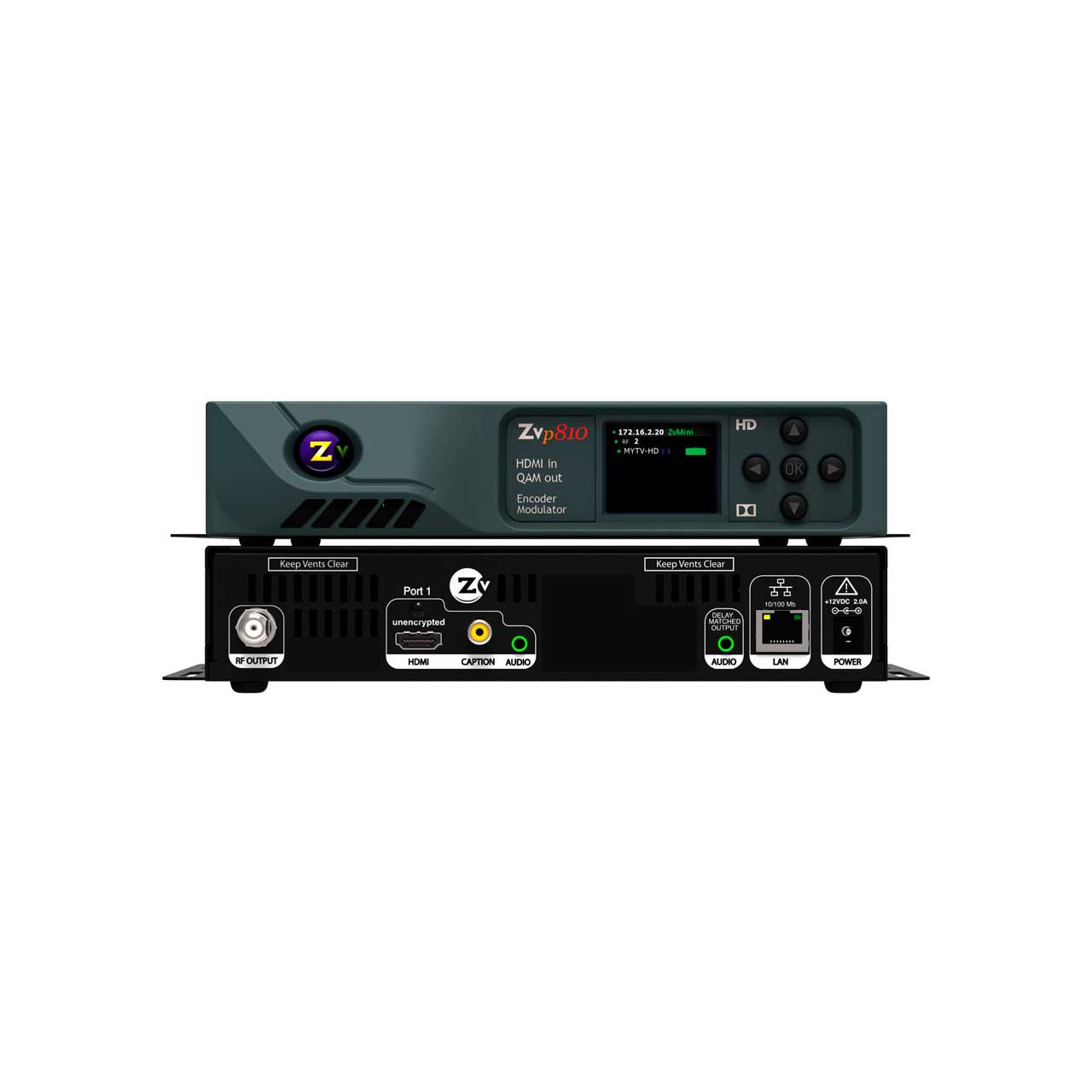

ZeeVee ZvPro 810 Single Channel Unencrypted HDMI Encoder/QAM Modulator


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    ZVPRO810 - Overview

    1080p Unencrypted HDMI Encoder / Modulator
    ZeeVee ZvPro800 series delivers uncompromising digital HD video distribution over existing coax cabling from unencrypted HDMI sources. This MPEG2, Encoder/Modulator unit allows you to easily distribute content up to 1080p resolution to an unlimited number of displays, using the TV's built-in tuner, eliminating the need for set-top-boxes or media players at each display. Manage ZvPro units can locally through the color LCD screen or via an intuitive web-based, management interface - Maestro. Generate a looping signage channel with ZvShow, deliver messages to any screening using the built-in Emergency Alert System. The ZvPro supports Dolby Digital audio encoding and the included Closed Captioning makes your installation ADA compliant. ZvPro allows you to control power output from 25 to 45dBmV QAM output levels in 1dBmV steps. ZvPro delivers resolutions from 480i to 1080i/p, which means you're covered regardless of content resolution.

    Up to 1080P Resolution with Closed Captioning
    The ZvPro can distribute video in nearly any resolution from a VGA or Component source ranging from 640x480 all the way to 1920x1080.

    The ZvPro will also support EIA/CEA-608 closed captions via the composite video input, ideal for sports bars with multiple displays.

    Unlimited Displays over any distance using Coax or IP
    Using the ZvPro, there is no limit to the number of displays that you can use. The ZvPro converts your source into a private television channel that can send content from 2 to 2000+ displays connected through a coax splitter over nearly any distance.

    Using the IP streaming function, you can also send your content to any computer or digital devices that can receive an MPEG 2 video stream.

    Ideal Uses:

  • Distribute HD video throughout your facility
  • Replace multiple signage players
  • Commercial or residential
  • Use existing coaxial cabling
  • Compatible with any HDTV
  • Important Notice: The HDMI input on ZeeVee products will only support unencrypted video, typically from a digital signage player, video camera or other self-generated content. All of our products broadcast a clear QAM (unencrypted) signal over coax, therefore would break HDCP (HDMI's encryption rules/requirements) if we tried to support encrypted video as an input. HDMI input most likely will not work with Apple Products (such as Macs), Blu-ray players, satellite boxes or cable boxes, as they are typically encrypted.
    Five-Year Warranty - ZeeVee is extending the warranty on all ZvPro and HDbridge products to five years. This warranty further demonstrates our confidence in the reliability and longevity of the ZeeVee equipment. Product needs to be manufactured in 2014 in order to qualify for the 5-year warranty. If it was manufactured prior to 2014 it will be covered by our two year warranty.

    • Features:

      • Unencrypted HDMI input
      • Shelf or rack mount - via integral flanges or optional mounting kit
      • Front-Panel Color LCD - for Configuration and Status
      • Web-based management - local or remote setup and monitoring
      • Analog and Digital Audio - internally encoded and broadcast as AC-3 or MPEG1 Layer 2 Audio Encoding (varies by region)
      • Integrated Closed Caption support - required for ADA compliance in many applications.
      • High power output - up to 45dBmV
      • Strong retention force power connector
      • Two year warranty
      • Proudly designed in Massachusetts and Built in the USA
    • Specifications:

      • Video Inputs
      • HDMI Video (1 or 2 ports per model): HDMI 1.3 Compliant. Backwards compatible to DVI 1.0 Specifications
      • Closed Caption: EIA/CEA-608 captions accepted over composite video input (-NA versions only)

        Audio Inputs
      • Analog Audio Input: 75 Ohm 0 to 0.7v at Line-level output. Stereo input on industry standard 3.5mm pigtail connector
      • Digital Audio: Digital as element of HDMI 1.3 port
      • Encoding: Internally encoded into Dolby Digital AC-3 or MPEG1 Layer 2 (varies by region)

        Video Encoder
      • Encoder Video Profile: MPEG2 HD Profile 2: ISO13818-2 MP@HL
      • Traffic Shaping: Variable Bit Rate
      • Video Transport Bit Rate: 49.76 Mbps
      • Video Encoding Data Rates: Variable, 10 Mbs - 24 Mbs per channel
      • Average Encoding Data Rate: 18 Mbs per channel
      • Encoding Latency: Programmable 100 msec to 400 msec
      • Color Profile: 4:2:0
      • GOP Size: 24
      • Video, Audio PID: Programmable
      • Program Information: Programmable

        Audio Encoder
      • Encoder Audio Profile: ATSC A/52, Dolby(r) Digital (AC-3) or Mpeg 2 layer 1 (varies by region)

      • Modulation Types: QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only OR DVB-C, QAM 256 (ITU-T J83 Annex A) (varies by region)
      • Cable Standard: HRC, IRC or STD or User defined (varies by region)
      • Frequency Range: Frequency Agile from 54 to 864MHz (2 kHz resolution; +/- 30 ppm accuracy; +/- 35 ppm stability)
      • Output Power: +45 dBmV typical
      • Output Level Adjust: 25 - 45 dBmV in 1dBmV steps
      • MER: 38 dB typical
      • I/Q Amplitude Imbalance: < 1% typical
      • Spectral Tilt: <= 1dB over 6MHz typical

      • Network interface: 10/100 mb Ethernet via RJ45 connection
      • IP address via DHCP or set by user
      • HTML/Javascript served web interface for easy configuration
      • Telnet connection for CLI scripting
      • Easy firmware updates
      • All settings saved in NV storage
      • Front Panel Color Display: Quickly obtain status at a glance

      • Power: 100-240VAC 50/60Hz, 36W max rated. 18W Typical consumption. IEC 60320-C14
      • Cooling: Internal cooling fan, Front Inlet, Rear Exhaust
      • Mounting: Shelf mount flange or rack ears (ordered separately) 1RU high
      • Enclosure Type: Metal
      • Enclosure Dimensions: 8" x 10" x 1.75" = 20.32cm x 25.4cm x 4.445cm
      • System Weight: 3.1 lb (1.4 kg)
      • Carton Dimensions (individual): 2.75" H 14" W 12" D = 6.985cm x 35.56cm x 30.48cm
      • 108 mm H 785 mm W 308 mm D
      • Shipping Weight: 5 lbs (2.3 kg)
      • Temperature/Humidity: Operating +32F to +113F (0C to +45C) / 10% to 80%, non-condensing
      • Vibration: NSTA 1A in carton
      • MTBF: 45,000 hours
      • Compliance: FCC Class A, IEC60065, EN61000 (see manual for specifics), CE, RoHS
      • Part number: ZvPro 810-NA
      • Model name: ZvPro 810
      • Warranty: 2 years
    • Warranty:

      • Five Year
    • GTIN:
