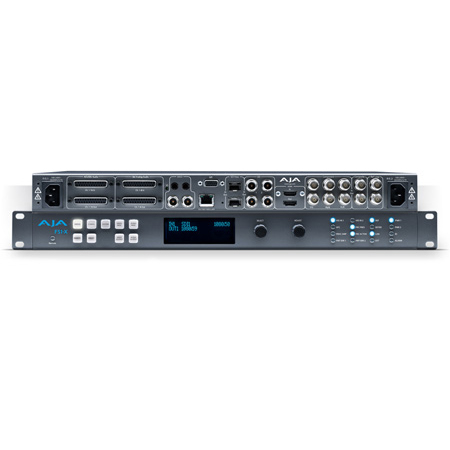

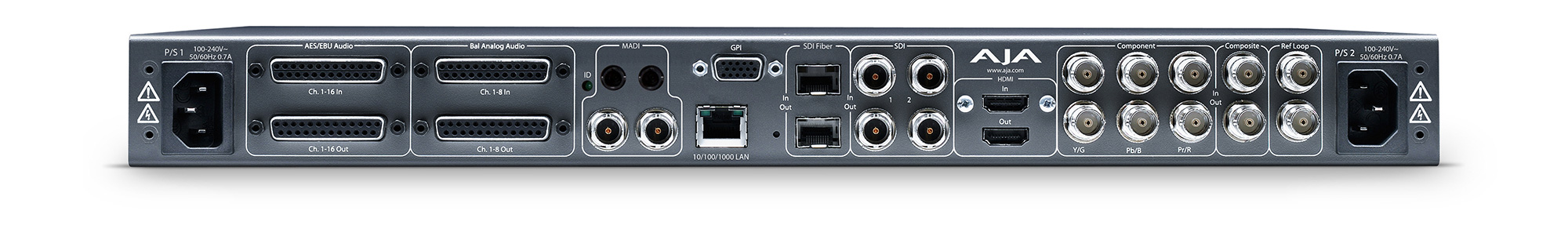

AJA FS1-X-FRC Frame Synchronizer and Converter with Frame Rate Converter Option
  • AJA FS1-X-FRC Frame Synchronizer and Converter with Frame Rate Converter Option
  • AJA FS1-X-FRC Frame Synchronizer and Converter with Frame Rate Converter Option
  • AJA FS1-X-FRC Frame Synchronizer and Converter with Frame Rate Converter Option

Questions? Ask a Markertek Expert:
800-522-2025 Email

AJA FS1-X-FRC Frame Synchronizer and Converter with Frame Rate Converter Option

Manufacturer: AJA Video

Item #: AJA-FS1-X-FRC   •   MFG #: FS1-X-FRC



Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





Advanced frame synchronizer and up, down, cross-conversion with 64-channel MADI audio support, high-quality, motion adaptive linear Frame Rate Converter and extensive video and audio I/O supporting both digital and analog.


  • Features

    • SD/HD up, down-conversion
    • SD/SD aspect ratio conversion
    • HD/HD cross-conversion (720p/1080i)
    • Up, down, cross-conversion with both the input and converted formats on SD/HD SDI outputs (both synchronized)
    • HD cross-conversion with simultaneous down-converted SDI output
    • Closed Caption conversion (CEA-608/CEA-708 standards)
    • AFD conversion or pass-through (user-selectable)

  • Specifications

    • Video Input Digital
    • Dual 3G-SDI, SMPTE-259/292/296, 8- or 10-bits
    • 3G SDI Dual Link, Dual Stream, Level A or B
    • Dual Fiber (SC or LC) SD/HD/3G SDI, SMPTE-259/292/296, 8- or 10-bits (optional)
    • HDMI 30 bits/pixel, RGB or YUV, SD, HD, 1080p-50/60

    • Video Input Analog
    • SD/HD component YPbPr, SMPTE-274 (3 x BNC)
    • 12-bit A/D, 2x oversampling
    • +/- .25 dB to 5.5 MHz Y Frequency Response
    • +/- .25 dB to 2.5 MHz C Frequency Response
    • .5% 2T Pulse Response
    • <2 ns Y/C delay inequity
    • SD Composite
    • 12-bit A/D, 4x oversampling

    • Video Output Digital
    • Dual 3G-SDI, SMPTE-259/292/296, 8- or 10-bits
    • 3G SDI Dual Link, Dual Stream, Level A or B
    • Dual Fiber (SC or LC) SD/HD/3G SDI, SMPTE-259/292/296, 8- or 10-bits (optional)
    • HDMI 30 bits/pixel, RGB or YUV, SD, HD, 1080p-50/60 Video Output Analog

    • Video Output Analog
    • SD/HD component YPbPr, SMPTE-274 (3 x BNC)
    • 12-bit A/D, 2x oversampling
    • +/- .25 dB to 5.5 MHz Y Frequency Response
    • +/- .25 dB to 2.5 MHz C Frequency Response
    • .5% 2T Pulse Response
    • <2 ns Y/C delay inequity
    • SD Composite
    • 12-bit A/D, 4x oversampling

  • Options

    • FS1-X with FRC
    • Advanced frame synchronizer and up, down, cross-conversion with 64-channel MADI audio support, high-quality, motion adaptive linear Frame Rate Converter and extensive video and audio I/O supporting both digital and analog.
    • US MSRP $5,495

    • Fiber I/O option
    • FS1-X supports two independent SDI Fiber I/O connections via SC or LC type SFPs, allowing cable runs of up to 10 kilometers to be connected directly to the FS1-X without the need for separate fiber to SDI conversion.

    • FiberLC-1-Rx
    • Single LC 3G Fiber Rx SFP
    • US MSRP $195

    • FiberLC-1-Tx
    • Single LC 3G Fiber Tx SFP
    • US MSRP $195

    • FiberLC-2-Rx
    • Dual LC 3G Fiber Rx SFP
    • US MSRP $295

    • FiberLC-2-Tx
    • Dual LC 3G Fiber Tx SFP
    • US MSRP $295

    • FiberSC-1-Rx
    • Single SC 3G Fiber Rx SFP
    • US MSRP $195

    • FiberSC-1-Tx
    • Single SC 3G Fiber Tx SFP
    • US MSRP $195
