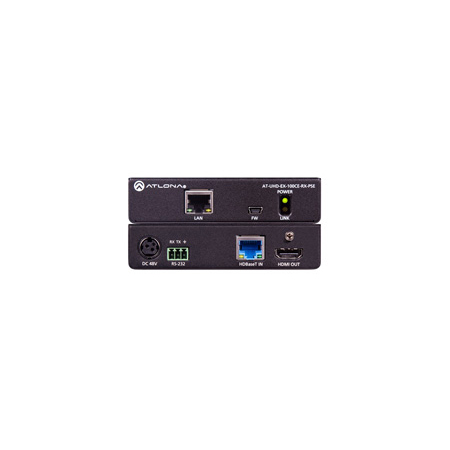

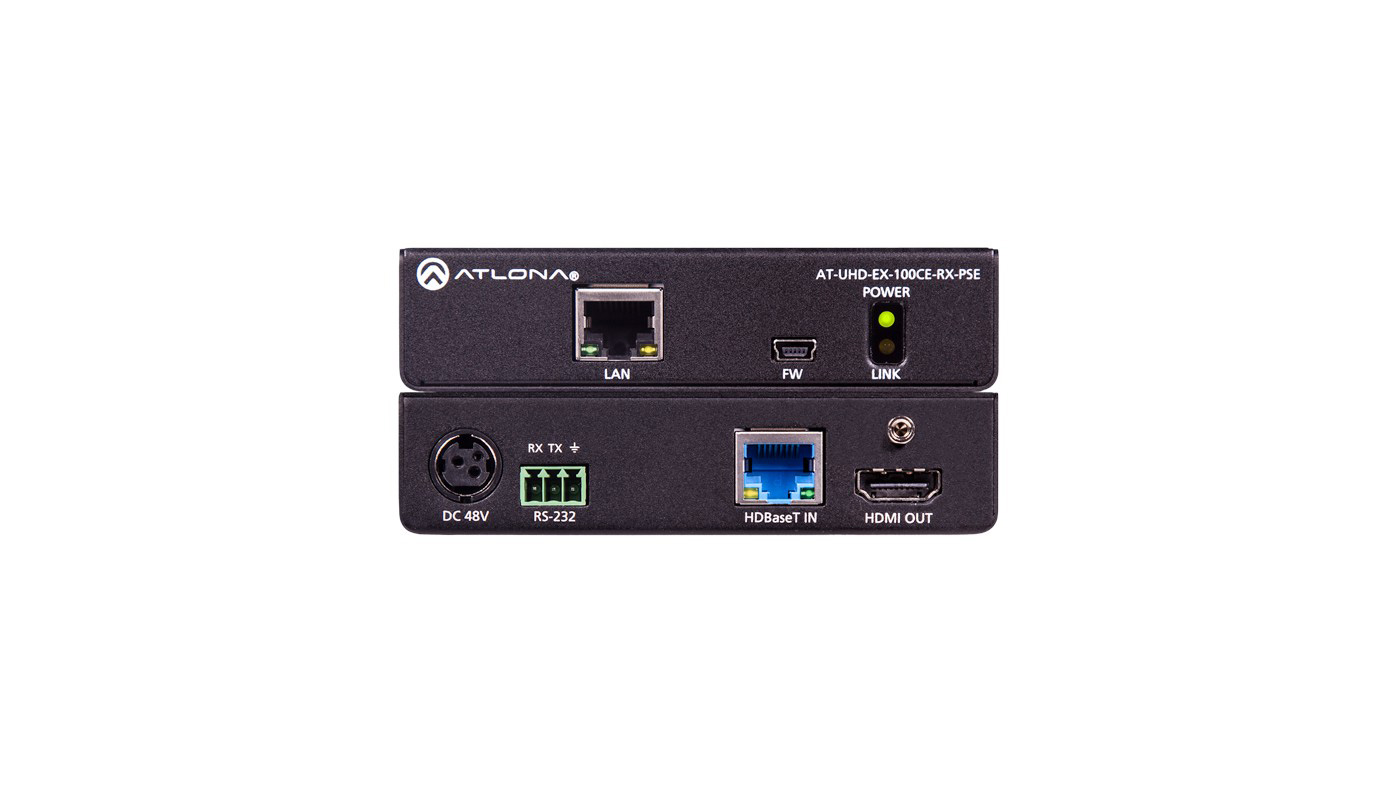

The Atlona AT-UHD-EX-100CE-RX-PSE is a 4K/UHD HDMI over 100M HDBaseTT receiver for AV signals up to 328 feet (100 meters) over category cable with Ethernet pass through, RS-232, CEC, and Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60 Hz with 4:2:0 color subsampling, plus embedded multi-channel audio and remote 48V power for the transmitter. The AT-UHD-EX-100CE-RX-PSE is ideal for use with the AT-HDVS-200-TX transmitter for passing 4K signals to a display. It is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for installation with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is externally powered, includes a desktop power supply, and provides Power over Ethernet for the AT-HDVS-200-TX or other PoE-compatible transmitter.
Remotely Powers Transmitter and Supports 4K/UHD Video
The AT-UHD-EX-100CE-RX-PSE provides a value-oriented alternative to the AT-HDVS-200-RX receiver, when 4K signals need to be passed to a display and a scaler is not needed. It can also be paired with the PoE-powered AT-UHD-EX-100CE-TX-PD transmitter.
This receiver is ideal for use in applications where:

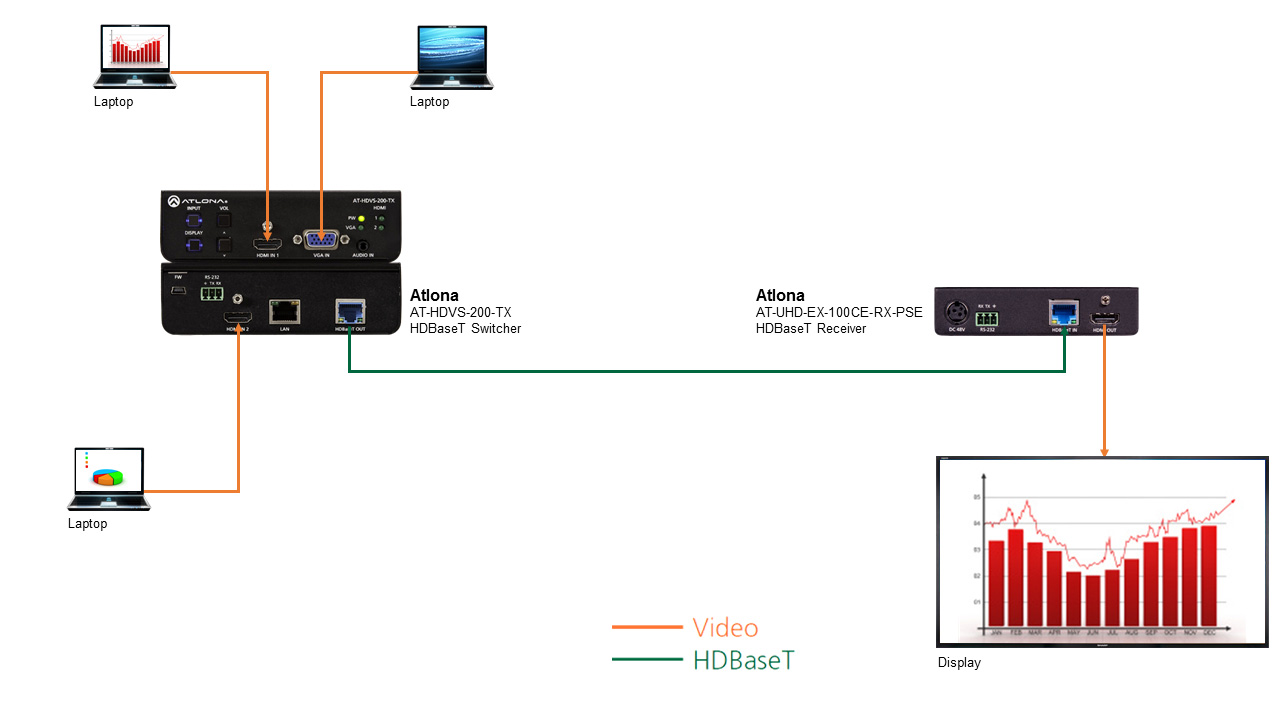

4K/UHD signals are used with an AT-HDVS-200-TX switcher
Scaling is not needed in a system design with an AT-HDVS-200-TX or AT-HDVS-150-TX switcher
A PoE-powered HDVS Series switcher or the AT-UHD-EX-100CE-TX-PD extender is used to eliminate power requirements at the transmitter location, such as a lectern or conference room table
