Atlona AT-OME-RX11 HDBaseT Receiver for HDMI with Audio

ITEM #: ATNO-AT-OME-RX11 MFG #: AT-OME-RX11

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$696.00

Availability: In Stock
iAvailability Description Popup


    AT-OME-RX11 - Overview

    The Atlona AT-OME-RX11 is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, and Ethernet over distances up to 330 feet (100 meters). Part of the OmegaT Series of integration products for modern AV communications and collaboration, the OME-RX11 is HDCP 2.2 compliant and receives RS-232 and IP control signals. Additionally, this receiver features two-channel audio de-embedding to a balanced analog audio output. The OME-RX11 is locally powered, and can deliver Power over Ethernet (PoE) over HDBaseT to an Atlona Omega Series, HDVS-200 Series, or AT-UHD-EX-100CE-TX-PD transmitter.

    The OME-RX11 incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation applications. The Ethernet port on the OME-RX11 is for IP pass-through with the transmitter.

    Applications:

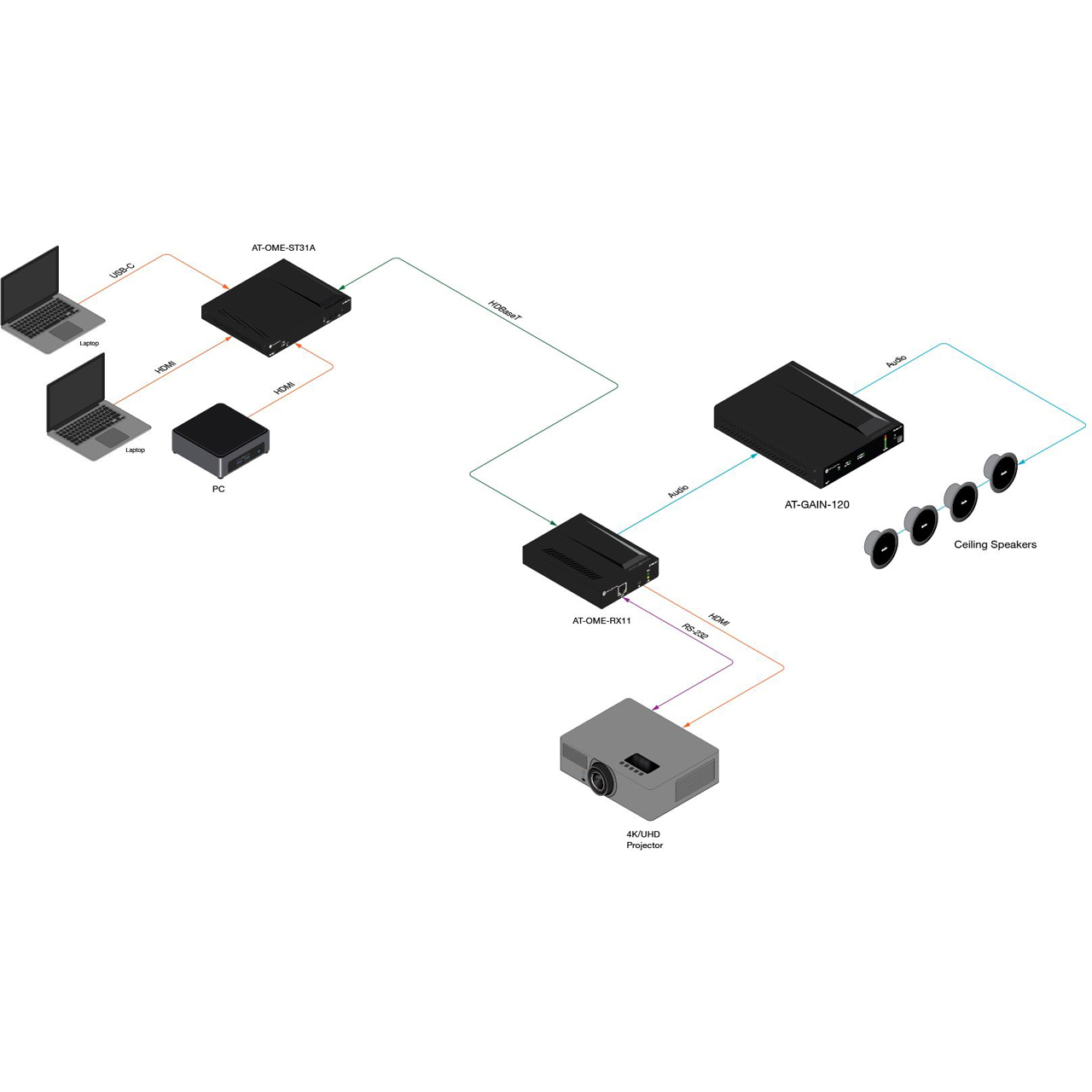

    Complete System Integration: The OME-RX11 and an Omega Series switcher together provide a comprehensive and cost-effective integration solution for meeting rooms and other AV presentation spaces.
    Video Conferencing and Interactive Displays: The OME-RX11 offers a new option for legacy Atlona transmitters and switchers with HDBaseT outputs, to provide audio de-embedding for feeding into an amplifier and speakers.

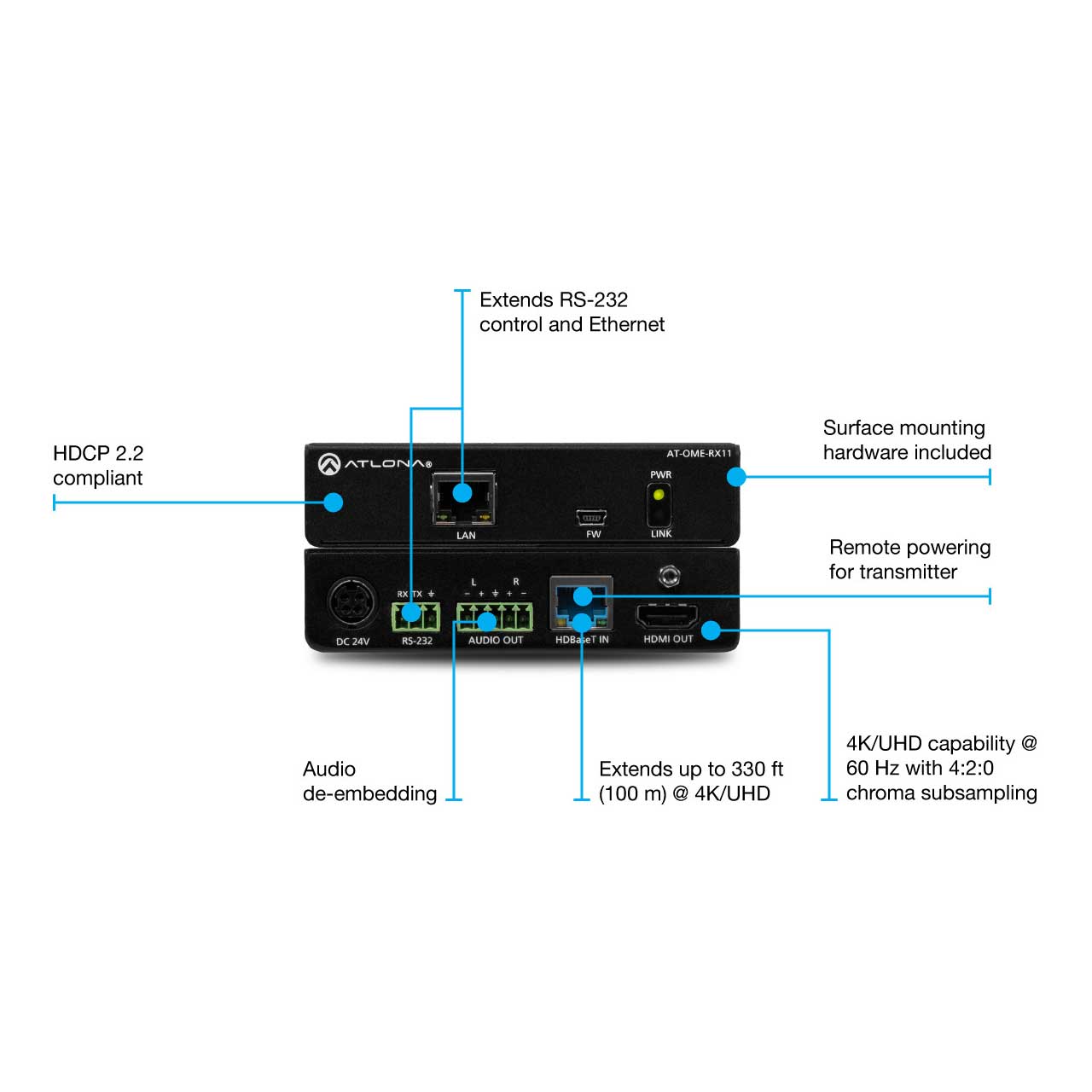

    • Features:

      • Video, Audio, Power, and Data Over Category Cable Utilizing HDbaseT Technology
        Receives up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable
        Uses easy-to-integrate category cable for low-cost, reliable system installation
      • 4K/UHD Capability @60Hz with 4:2:0 Chroma Subsampling
        Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
        Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players
      • HDCP 2.2 compliant
        Adheres to latest specification for High-bandwidth Digital Content Protection*
        Allows protected content stream to pass between authenticated devices
        *HDBaseT transmitter or switcher must also be HDCP 2.2 compliant.
      • Local AC Powering - PoE (Power over Ethernet) Source
        Supplies industry standard IEEE 802.3af PoE over HDBaseT to an Omega Series, HDVS-200 Series, or AT-UHD-EX-100CE-TX-PD transmitter
        Allows convenient transmitter installation at any remote location, without the need for local AC power
      • Audio de-embedding
        De-embeds two channel PCM audio to a balanced, analog audio output
        Deliver audio to an amplifier and speakers for sound reinforcement
      • Multi-Channel Audio Compliant
        Passes through multi-channel audio formats
        Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
      • Field-Updatable Firmware: Device can be updated in the field via the USB port
      • Front Panel Power and Signal Status LEDs
        LED indicators provide power and HDBaseT link status information
        Provides convenient setup and troubleshooting
      • Low-profile, 1.02" (26mm) High Enclosure: Easy installation into confined spaces below tables, in furniture, and behind or above displays

    • Specifications:

      • Video
      • HDMI: 2.0
      • HDCP: 2.2
      • UHD/HD/SD: [email protected]/50/30/25/24Hz, [email protected]/50/30/25/24Hz, [email protected]/59.9/50/30/29.97/25/24/23.98Hz, [email protected]/29.97/25Hz, [email protected]/59.94/50Hz, [email protected], [email protected], [email protected]/59.96Hz, [email protected]
      • VESA: 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1440x900, 1400x1050, 1280x1024, 1280x800, 1366x768, 1360x768, 1152x864, 1024x768, 800x600, 640x480
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit

        Audio
      • HDMI Pass-Through Formats: PCM 2.0, LPCM: 5.1, LPCM: 7.1, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS®, Digital Surround™, DTS-HD Master Audio™, DTS:X®
      • Bit Rate: 24 Mbits/s max

        Analog Audio
      • Format: Stereo 2-Channel
      • Output level: L: 5.883 Vrms R: 5.855 Vrms
      • Frequency Response: 20 Hz to 20 kHz
      • THD+N: < 0.00009% at 20 Hz to 20 kHz
      • SNR: > 141.49 dB at 1 kHz
      • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

        Control
      • RS-232: 2-way device control and monitoring; Supported baud rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
      • CEC Support: Yes
      • Resolution/Distance: 4K/UHD / 1080p
      • HDMI IN/OUT: 15' 5m / 30' 10m
      • CAT5e: 295' 90m / 330' 100m
      • CAT6/6a/7: 330' 100m / 330' 100m

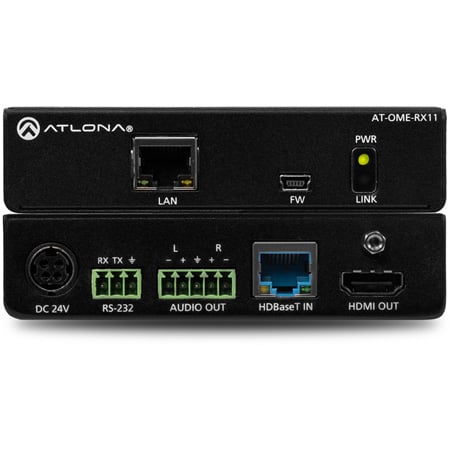

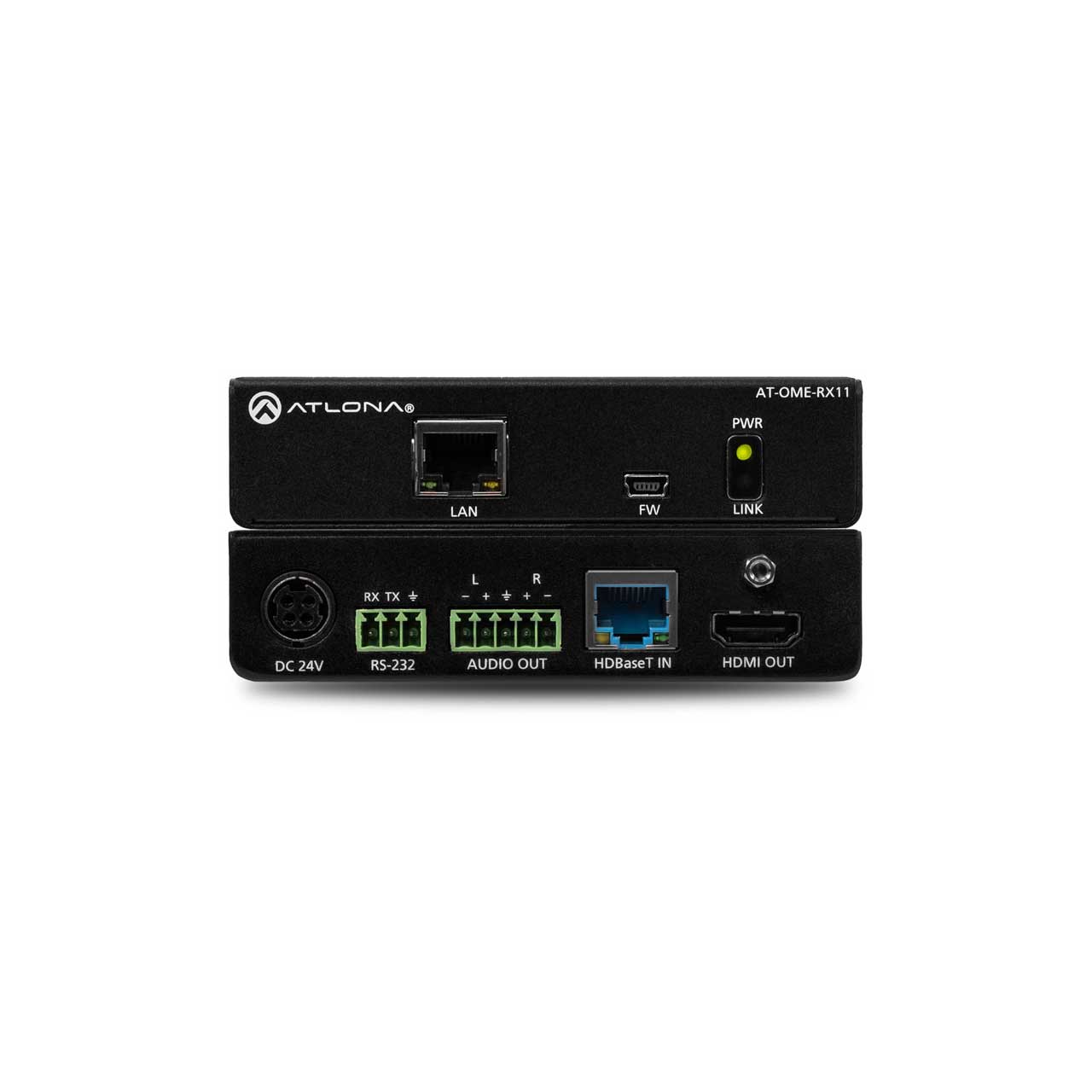

        Connectors, Controls, and Indicators
      • HDBaseT IN: (1) RJ45, female
      • HDMI OUT: (1) Type A, 19-pin female
      • AUDIO OU: (1) 5-pin captive screw, balanced / unbalanced 2-channel
      • RS-232: (1) 3-pin captive screw (bidirectional)
      • LAN: (1) RJ45, 100Base-T
      • FW: (1) Mini-USB, 5-pin female
      • DC 24V: (1) 4-pin, mini-DIN locking connector
      • PWR indicator: (1) LED, green
      • LINK indicator: (1) LED, yellow
      • Operating Temp: 32° to 122°F (0° to 50°C)
      • Storage Temp: -4° to 140°F (-20° to 60°C)
      • Humidity (RH): 20% to 60%, non-condensing
      • Power:
        Consumption: 15.12 W
        Supply Input: 100 - 240 VAC, 50/60 Hz
        Output: DC 24 V / 2.7 A
      • Dimensions (HxWxD): 1.02 x 4.29 x 5.24" (26 x 109 x 133mm)
      • Weight: 0.90Lbs (0.41kg)
      • Certification:
        Device: CE, FCC
        Supply: CE, FCC, UL

    • Item Includes:

      • 1x Installation guide
      • 1x Surface mounting hardware
      • 1x External universal power supply

    • Warranty:

      • Award-Winning 10 year Limited Product Warranty

    • GTIN:

      0846352006389
