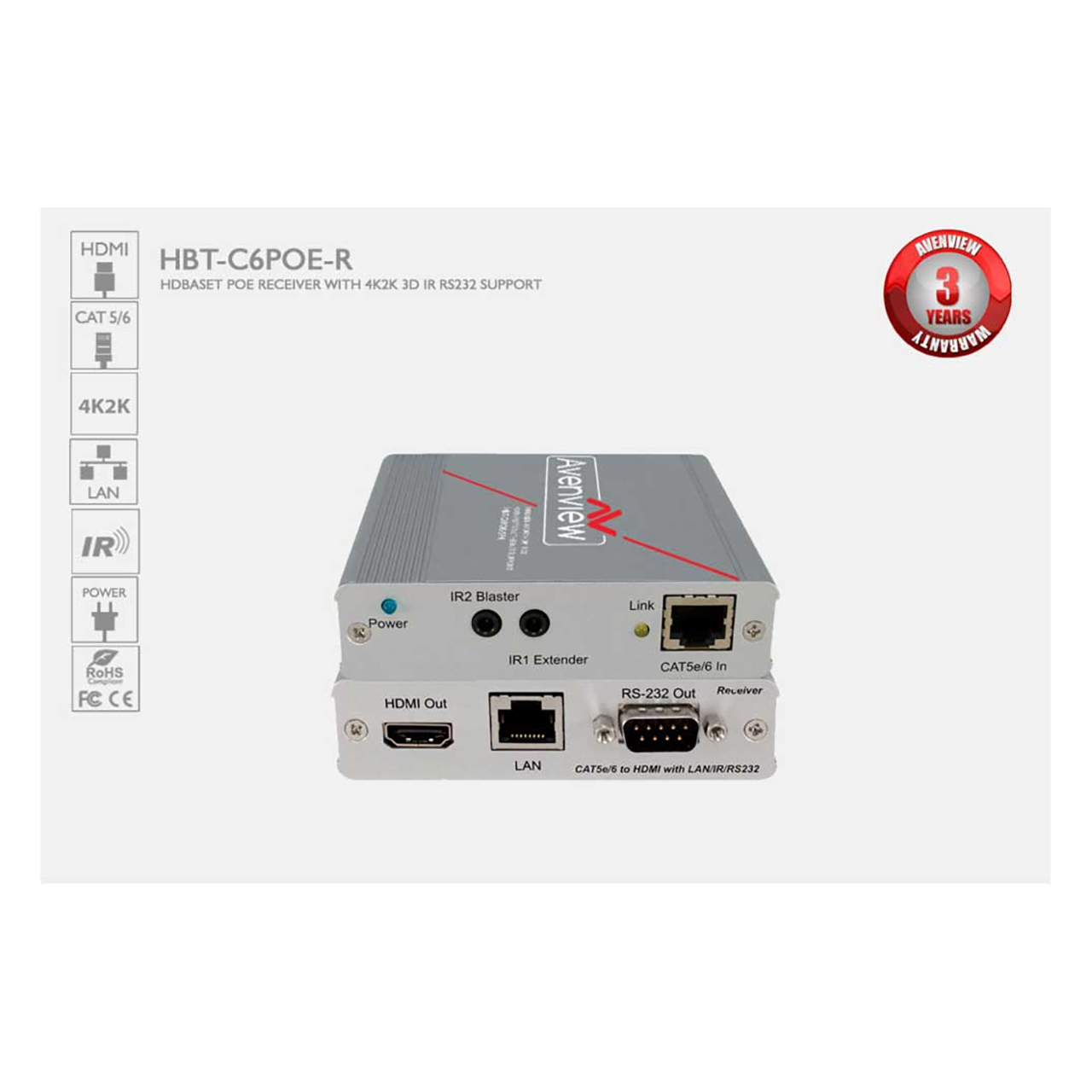

Avenview HBT-C6POE-R HDBaseT Receiver CAT5/6/7 with POE


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

HBT-C6POE-R - Overview

The Avenview HBT-C6POE-R HDBaseT Receiver CAT5/6/7 with POE, Bi-Directional IR and Ethernet has been designed to extend High Definition video and multi-channel digital audio formats to any HD Monitor.
Video Signals: [email protected] (Ultra HD), 3D, Deep Color, and Full HD 1080p 36-bit color depth.
Audio signals: Lossless Multi-channel audio formats (DTS-HD Master Audio, Dolby TrueHD).
Data Signals: Bi-Directional IR signals 30 KHz to 50 KHz over CAT5/6.

The HBT-C6POE-R includes one (1) unit: Receiving unit (Rx) HBT-C6POE-R with one (1) UTP output port which allows the user to extend video and audio up to 100m (330ft). The HBT-C6POE-R also allows bi- directional IR control of the source connected to the unit from the users IR remote control at the monitor side.

The bonus features with this device it can support PoE (Power over the CATx cable to the RX) also Internet (100Mbps Ethernet service when connected to a Router). These features has been added to this unit to give the installer and user a complete solution with the new trends in online streaming, network connected devices and new demand in Smart TV, Ultra HD monitors and content.

  • Features:

    • INPUT: HDMI with 3D & 4Kx2K, 1080p,HDCP and DVI compliant
    • VIDEO BANDWIDTH: From 300MHz / 9 Gbps
    • HD RESOLU TIONS: Up to 4Kx2K ([email protected] and [email protected])1080p ([email protected])
    • AUDIO SUPPORTED: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
    • AUDIO TRANSMISSION: (32-192kHz sample rate)
    • SUPPORTS: CEC bypass
    • DISTANCE: Up to 100 meters through CAT6e/6a/7 cables
    • ETHERNET TRANSMISSION: Rate up to 100Mbps
    • UNCOMPRESSED VIDEO: 1080p, 60 Hz, 36-bit
    • SERVICE: USB for Manufacturer USE ONLY
    • 3D SUPPORT: Follow by Display / TV's EDID
    • 5Play convergence: HDMI, LAN, PoE & Bi Directional Control (IR & RS-232)

    • NOTE:
    • The PoE function is designed for powering compatible Receiver units only.
    • The non-PoE Receivers has to be powered with a power supply.
    • Receivers (Rx) from different manufactures would not be compatible.
    • Displaying HDMI 4Kx2K resolution would require the standard 4Kx2K HDMI cable and display for accurate results.

    • NOTICE:
    • 1. All HDMI over CATx transmission distances are measured using Belden CAT6A (625MHz), 4-Pair,UTP-Unshielded, Riser-CMR, Premise Horizontal Cable, 23 AWG Solid Bare Copper Conductors, Polyolefin Insulation, Patented Double-H spline, Ripcord, PVC Jacket using Quantum 980 signal HDMI Video Generator Module with Video Pattern Testing and shielded ends.
    • 2. The transmission length is largely affected by the type of category cables, also the type of HDMI sources, and the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m or 1000ft bulk cable) can transmit a lot longer signals than stranded UTP cables (usually in the form of patch cords). Shielded STP connectors are better suit than unshielded UTP connectors. A solid UTP CAT6A cable shows longer transmission length than solid UTP CAT5E/6E cable.
    • 3. EIA/TIA-568-B termination (T568B) for category cables is recommended.
    • 4. To reduce the interference among the unshielded twisted pairs of wires in category cable, you can useshielded STP cables with shielded connector to improve EMI problems, which occurs in poor wiring environments with unplanned cable runs situated away from EMI interference.
    • 5. Because the quality of the category cables has the major effects in how long transmission distance will be made and how good is the received signal on the display, the actual transmission length is subject to high quality category cables. For resolution greater than 1080i or 1280x1024, a solid CAT6E 250MHz cable is the only viable choice.
  • Specifications:

    • HDCP Compliance Yes
    • Video Bandwidth Single-link 340MHz [10.2Gbps]
    • PC Resolutions VGA to WUXGA (1920x1200)
    • Video Resolutions 480i / 480p / 720p / 1080i / 1080p60 /
    • [email protected] Up to Ultra HD ([email protected]/25/30Hz) 4K2K-([email protected])
    • HDMI Transmission Range 4K2K: ([email protected]) - 75meter (250feet) (CAT6e) / 100meter (330feet) (CAT6a)
    • FULL HD: (1080p) - 100meter (330feet) (CAT6e) (CAT6a)
    • Audio Supported
    • LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
    • Audio Transmission (32-192kHz sample rate)
    • IR Frequency 30-50kHz
    • Input DDC Signal 5 Volts (peak-to-peak, TTL)
    • ESD Protection [1] Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge]
    • [2] Core chipset - ±8kV

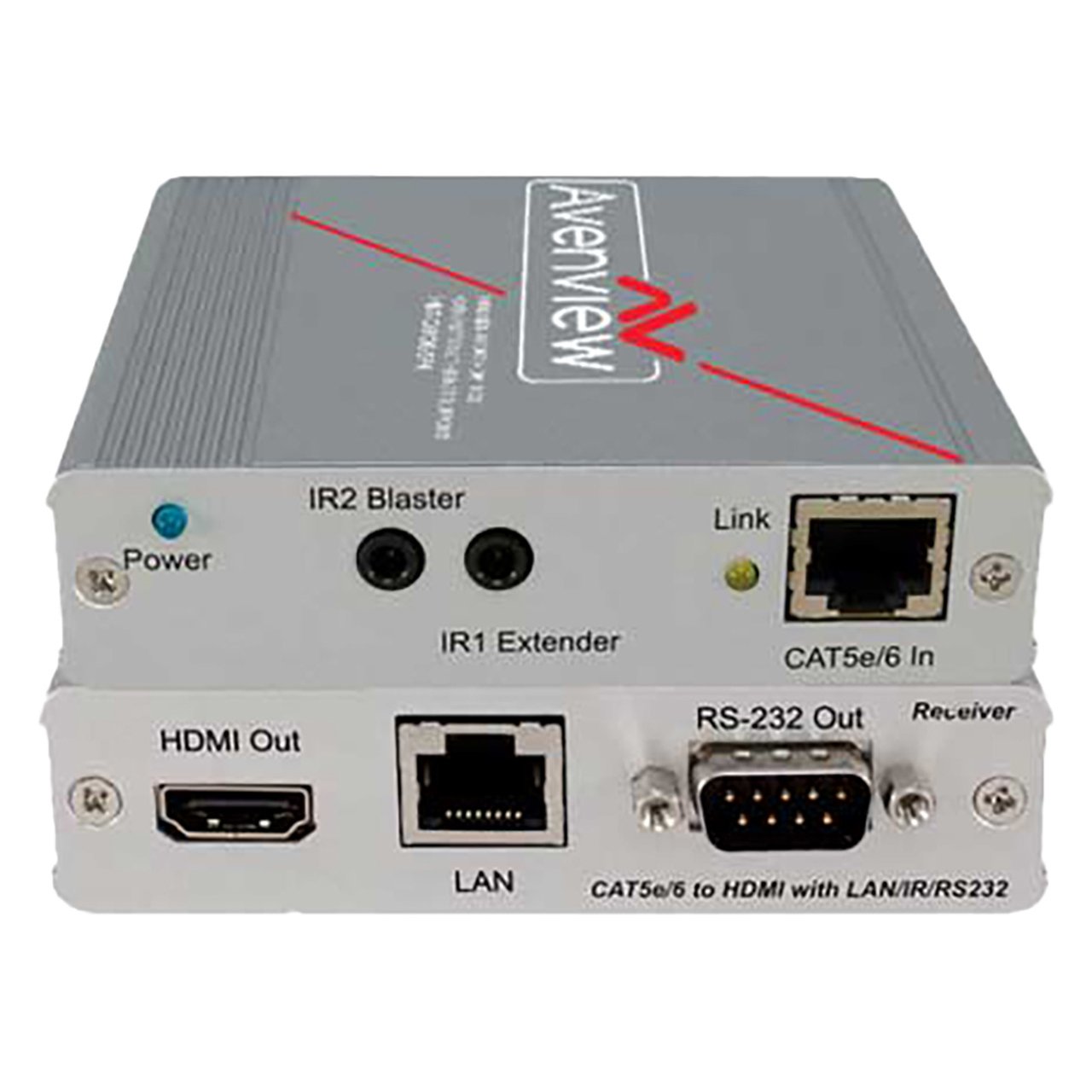

    • Input Connectors 1x 3.5mm IR Extender
    • 1x CAT5e/6/7
    • Output Connectors 1x RS-232
    • 1x 3.5mm IR
    • 1x LAN port
    • 1x HDMI
    • Dimensions (L x W x H) 4" x 4.4" x 1"
    • 102 mm (L)x113 mm (W)x25 mm (H)
    • Weight - Unit 0.6lbs 256g
    • Power Supply Power Over Ethernet Cable from HDBaseT Transmitter
    • Power Consumption 13 Watt (max)
    • Operating Temperature 0-40°C (32-104°F)
    • Storage Temperature -20-60°C (-4-140°F)
    • Relative Humidity 20 - 90% RH (no condensation)
  • Warranty:

    • 3 years
  • GTIN:
