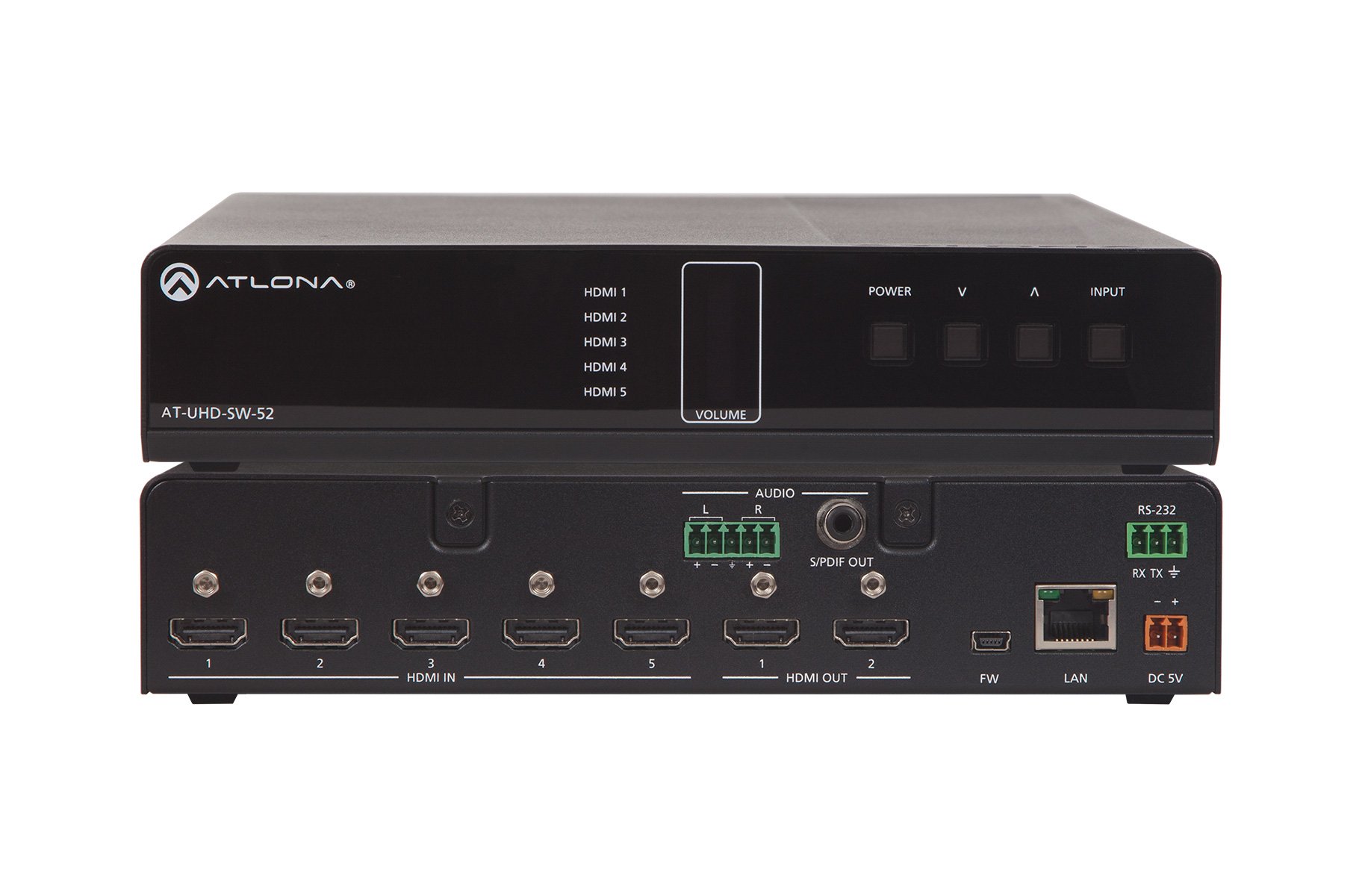

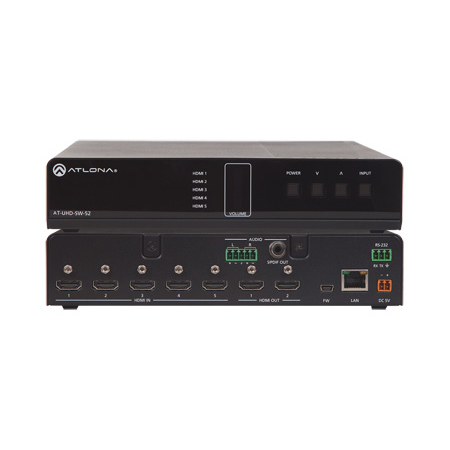

Atlona AT-UHD-SW-52 4K/UHD 5 Input HDMI Switcher with Mirrored HDMI Outputs

Manufacturer: Atlona Technologies

Item #: ATNO-UHD-SW-52   •   MFG #: AT-UHD-SW-52




Our Price:$649.99

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





The Atlona AT-UHD-SW-52 is a 5x1 HDMI switcher with dual HDMI outputs, balanced audio outputs, auto-switching and advanced control capability. The switcher supports 4K/UHD @ 60 Hz, 4:2:0; offers 3D pass-through, and 10.2 Gbps bandwidth. With front panel buttons and IR control, it can be a standalone switcher. Designed as a cost-effective, easy to install solution, the switcher offers a web-based GUI for easy set-up and management of EDID and HDCP. Additional control options include auto-switching, front panel selector, and compatibility with RS-232, or TCP/IP-based control systems. Audio features include deembedding of PCM audio over HDMI to either S/PDIF or two-channel analog audio outputs; pass-through of Dolby TrueHD and DTS-HD Master Audio; plus an Audio Return channel feed to the S/PDIF output from the HDMI display. The compact, 1U, half-rack width enclosure is easily installed in rack mounted
systems with the included 19" rack-mount brackets. Two units can be mounted side-by-side.

The AT-UHD-SW 52 adds 4K/UHD performance and installation flexibility to Atlona's HDMI small switcher family to meet the needs of professional integration applications. Dual HDMI outputs, balanced audio output, EQ, and volume control add to the AT-UHD-SW-52's long list of features. Incorporating internal video distribution eliminates the need for an external DA to reduce system complexity to save integrators time and money.


  • Features

    • Mirrored, dual HDMI outputs
    • Supports dual room display environments or primary room display and presenter's confidence monitor
    • Eliminates cost associated with extra gear; simplifies installation
    • 4K/UHD capability
    • Compatible with Ultra High Definition sources and displays
    • Supports high-resolution applications such as CAD, desktop publishing, and detailed financial reporting
    • Auto-switching
    • Reduces complexity or eliminates control system completely
    • Simplifies user operation
    • TCP/IP, RS-232, and IR control
    • Flexible control options compatible with 3rd-party control systems
    • Reduces integration time and costs
    • EDID Management
    • Manages EDID communications between source and display; allows integrators to force sources to preferred resolution
    • Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device
    • HDCP Management
    • Allows non-protected material from PCs to pass to non-compliant displays and teleconference systems while protected content is not transmitted
    • HDCP compliance can be switched on/off from control systems for use with non-compliant displays, streaming devices, and codecs
    • Easy, GUI-based configuration using integrated web server
    • Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID, and HDCP management and audio
    • Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone, or PC in the field
    • Volume controls
    • Volume Up and Volume Down button adjust output level to sound system
    • Provides quick level adjustment
    • Volume indicator
    • Displays volume level of the switcher
    • Provides quick indication of level during setup
    • Balanced, line level output
    • Reduces noise and requirement for external components
    • Matches requirements of commercial sound systems
    • Multi-channel audio compliant
    • Supports PCM, LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS Digital Surround, and DTS-HD Master Audio
    • Allows any multi-channel audio stream to be used within a professional audio system
    • Rack-mountable, 1U, half rack width enclosure
    • Installs easily in rack-mounted systems with optional 19" rack-mount brackets
    • Simplifies installations; allows two units to be mounted together
    • The AT-UHD-SW 52 adds 4K/UHD performance and installation flexibility to Atlona's HDMI small switcher family to meet the needs of professional integration applications. Dual HDMI outputs, balanced audio output, EQ, and volume control add to the AT-UHD-SW-52's long list of features. Incorporating internal video distribution eliminates the need for an external DA to reduce system complexity to save integrators time and money.

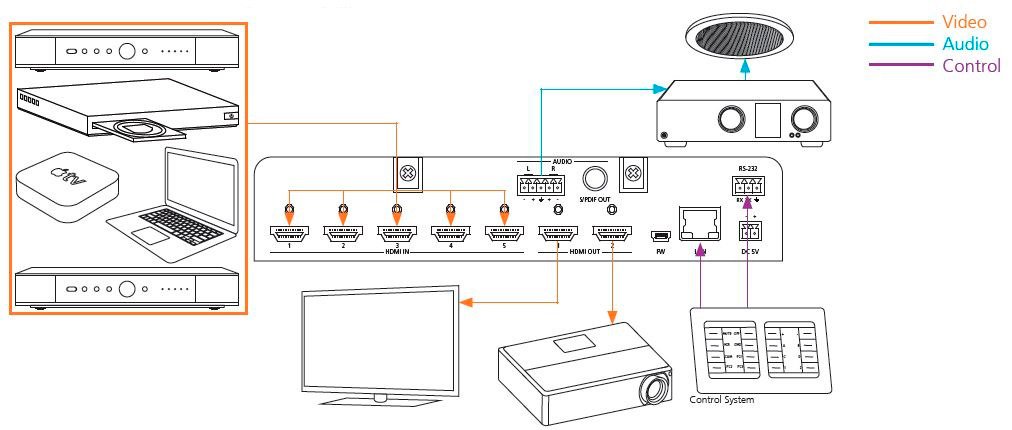

    • The AT-UHD-SW-52 is ideal for use in applications where:Two displays are needed to cover presentations in large rooms or where a confidence monitor is needed at the presenter's podium along with the primary room display.
    • Installers need an easy-to-integrate, five-input HDMI switcher with 4K/UHD capability to support multiple sources and mirrored displays to work with any control system.

  • Specifications

    • Resolution
    • Video: [email protected]/25/30/50*/60Hz*, [email protected]/25/30/50*/60Hz*, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/59.94/60Hz, [email protected]/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
    • Colorspace: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
    • Color depth: 8-bit, 10-bit, 12-bit
    • Audio
    • HDMI IN/OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
    • S/PDIF: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+
    • L/R Audio: maximum analog output: balanced +18dBu @ 0dBfs, 2Ch PCM only
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Distance
    • HDMI IN/OUT @ 4K up to 5 meters
    • HDMI IN/OUT @ 1080p up to 10 meters
    • Signal
    • Bandwidth 10.2 Gbps
    • CEC: Pass through
    • HDCP: Switchable - Compliant/Non compliant
    • Connector
    • Firmware: Mini-B USB
    • HDMI: Type A
    • Digital Audio: S/PDIF
    • Analog Audio: 5-pin captive screw
    • LAN: RJ45 (8P8C), TCP/IP control
    • RS-232: 3-pin captive screw
    • Power: 2-pin, 5V captive screw
    • Temperature
    • Operating: 32°F to 122°F
    • Storage: -4°F to 140°F
    • Humidity: 20 to 90% non-condensing
    • Power
    • Consumption 7.5W
    • Idle Consumption 1.7W
    • Supply Input: AC100~240V 50/60Hz; Output: DC 5V/3.6A
    • Dimension
    • H x W x D 44 x 222.25 x 261 (mm) 1.73 x 8.75 x 10.28 (inch)
    • Rack Unit: 1/2 rack, 1RU
    • Weight
    • Unit: 1.44lbs
    • Certification
    • Power Supply: CE, FCC, cULus, RCM
    • Unit: CE, FCC

  • Warranty

    • 10 Years
