KanexPro HDMX42A-18G 4x2 HDMI 2.0 Matrix Switcher with Audio Outputs supporting 4K/60Hz
  • KanexPro HDMX42A-18G 4x2 HDMI 2.0 Matrix Switcher with Audio Outputs supporting 4K/60Hz
  • KanexPro HDMX42A-18G 4x2 HDMI 2.0 Matrix Switcher with Audio Outputs supporting 4K/60Hz

Questions? Ask a Markertek Expert:
800-522-2025 Email

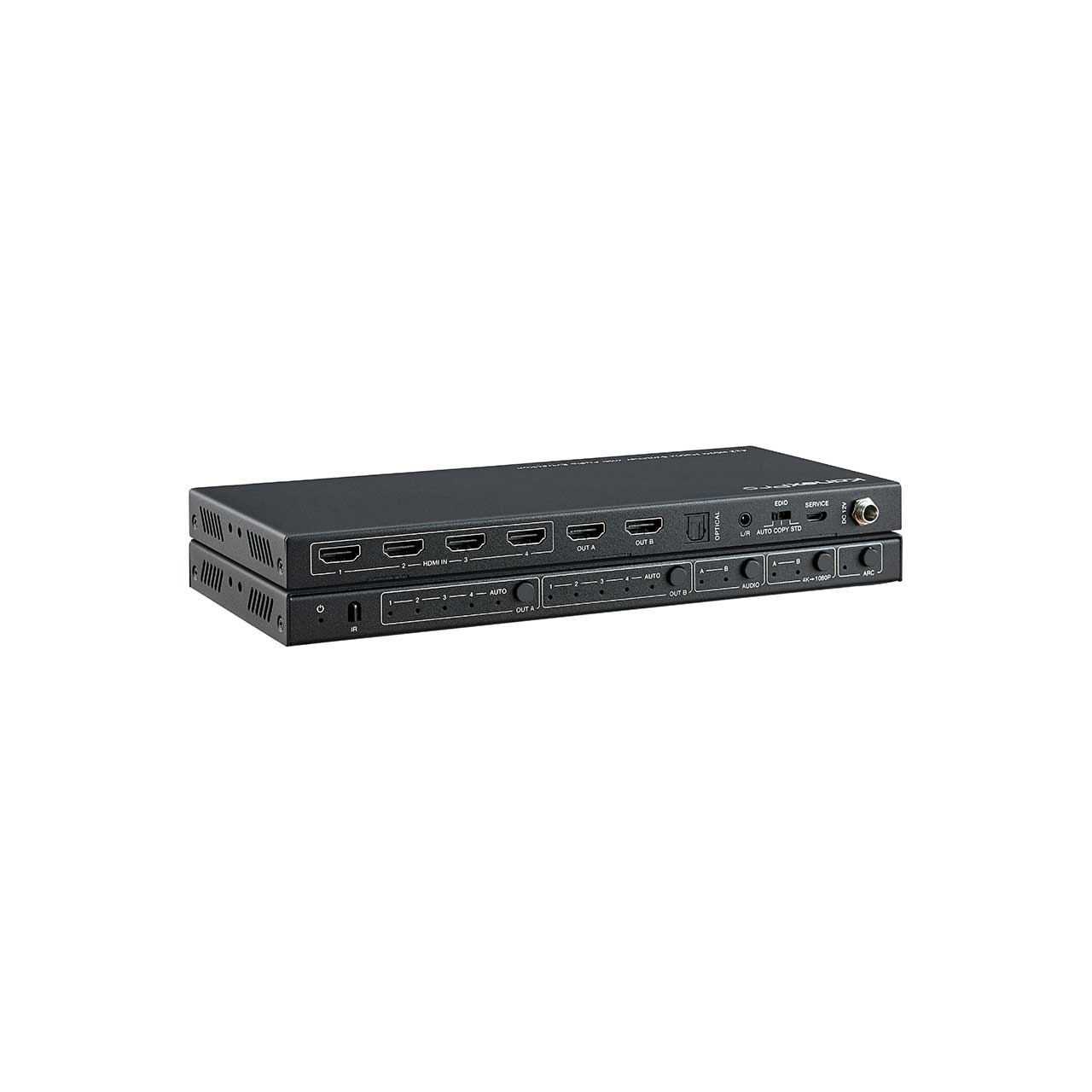

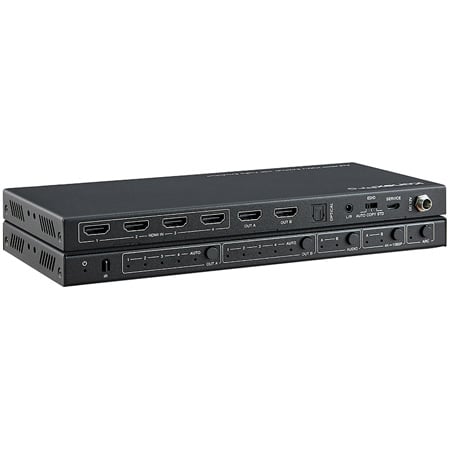

KanexPro HDMX42A-18G 4x2 HDMI 2.0 Matrix Switcher with Audio Outputs supporting 4K/60Hz

Manufacturer: KanexPro

Item #: KAN-HDMX42A-18G   •   MFG #: HDMX42A-18G




Our Price:$249.95

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The KanexPro HDMX42A-18G is an easy to use, cost-effective 4K/60Hz with 4:4:4, 16-bit Deep Color, HDR (High Dynamic Range) and HD audio formats. Designed with 4-inputs and 2-outputs the matrix can extract the audio from any of the sources and outputs via optical Toslink or analog 2 Channel audio formats. The powerful matrix can downscale 4K sources to 1080p displays allowing for the unit to be integrated in mixed 4K and 1080p systems with no loss of quality to the 4K display. The HDMX42A-18G is ideal for swift switching and routing of any HDMI sources such as laptops, Blu-ray players, and 4K based Apple TV to any four displays. This matrix switcher is HDCP 2.2 compliant and supports [email protected], 4:4:4 video. It can be controlled via front panel buttons, IR remote and RS232 commands.

    Industry Standard HDCP 2.2 & 4K/60
    HDCP 2.2 authentication is present always on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- [email protected], 30, 50 or 60Hz, [email protected], 25,30, 50 or 60Hz and [email protected] displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers.

    Applications:
    Home Theater installations - Share four video sources with a TV in the living room and another TV in a second room, while utilizing a Home theater system in the living room.

    Conference Room Environments - Switch between users and screens in a conference room while utilizing a central audio system.

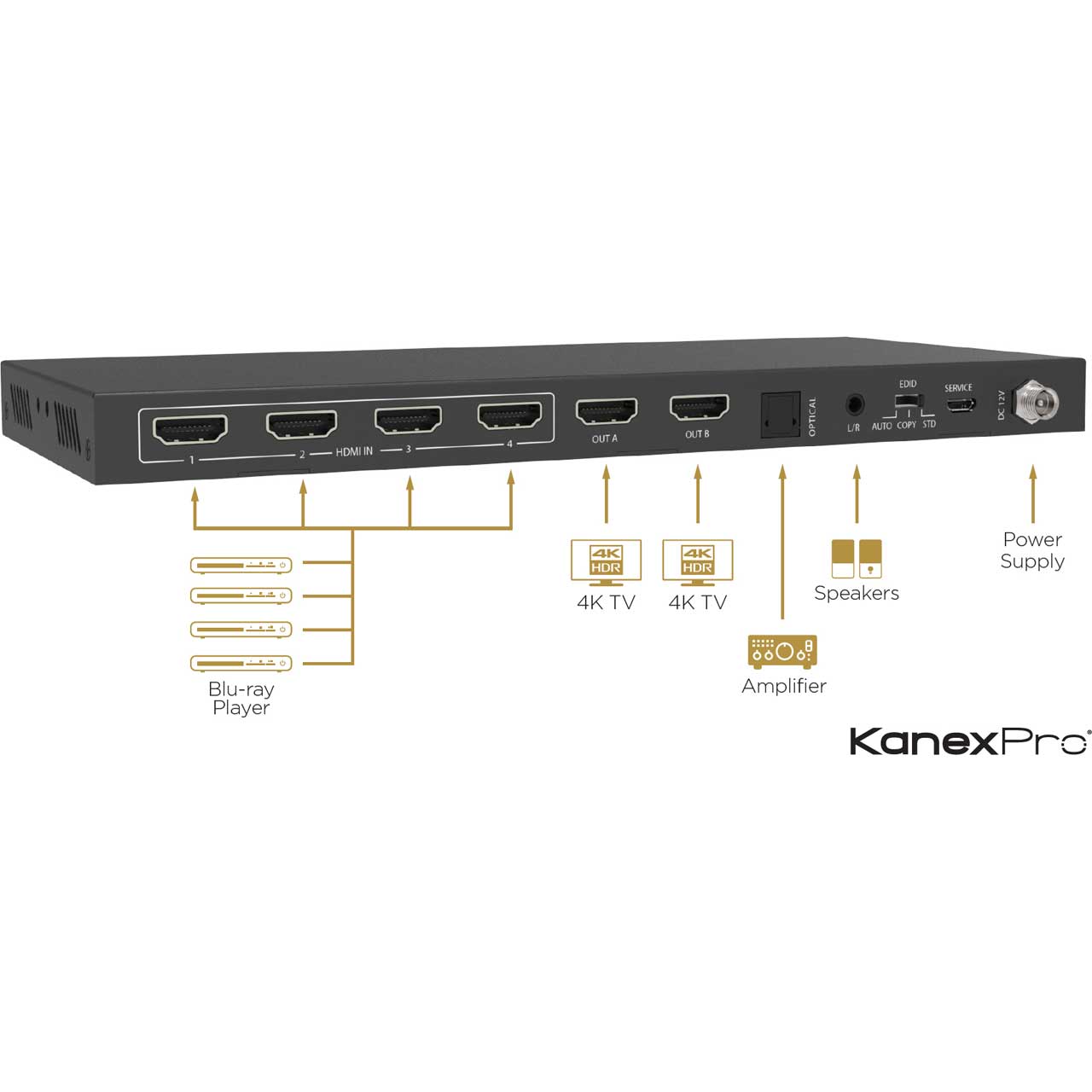

    Reduce Complexity - A matrix is a combined switcher and splitter reducing the complexity and the number of cables and components needed for a system with multiple sources to multiple displays. The HDMX42A-18G features an analog stereo headphone output jack and a Toslink optical audio output which allows, in this case, four HDMI devices to be switched or split easily to two HDMI compatible displays or projectors while also connecting to a stand-alone audio amplifier system. Ideal solution for home theater, office, school, conference room, retail, or hospitality applications.


    • Features

      • HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
      • Supports 4 HDMI inputs and 2 HDMI outputs
      • Video resolution up to [email protected] YCbCr 4:4:4
      • Supports 18Gbps uncompressed bandwidth on all HDMI ports
      • Supports Dolby Vision, HDR 10+, HLG
      • Supports source audio extraction via optical Toslink or analog L/R outputs.
      • HDMI Outputs support 4K to 1080P downscaling
      • Supports ARC (Audio Return Channel)
      • Supports advanced EDID management including AUTO, COPY and STD
      • Control via the front panel buttons or IR remote

    • Specifications

      • Video Bandwidth: 600MHz/18Gbps

        Input Ports
      • 4 x HDMI
      • 1 x IR
      • 1 x RS-232
      • 1 x MiniUSB (Service) 1 xRJ45 (Control)

        OutputPorts
      • 4 x HDMI
      • 4xAnalog Stereo (3.5mm)

        Supported Resolutions
      • 480i [email protected]/50/60Hz
      • 4K up to [email protected] (YUV 4:4:4,8-bit)
      • PC resolutions: VGA~WUXGA

      • IR Frequency: 30~50kHz
      • BaudRate: 115200bps
      • PowerSupply: 24V DC/2.7A (US/EU standards,CE/FCC/ ULcertified)
      • ESD Protection: Human Body Model: ±8 kV (air-gapdischarge) ±4 kV (contactdischarge)
      • Dimensions: 17.0" x 1.8" x 6.60" (436 mm x 48 mm x167.5mm WxHxD) [All Inclusive]
      • Weight: 4.55 lbs. (2068g)
      • Chassis Material: Metal
      • Color: Black
      • OperatingTemperature: 0°C~40°C/32°F~104 F
      • Storage Temperature: -20°C~60°C/-4°F~140 F
      • Relative Humidity: 20~90% RH(non-condensing)
      • PowerConsumption: 21 Watts

    • Item Includes

      • 1x 4x2 HDMI2.0 Matrix Switcher
      • 1x 12V/1A Locking Power Adapter
      • 2x Mounting ears
      • 1x IR Remote
      • 1x User Manual

    • GTIN:

      0813982022560
