    OMX-07HMHM0006 - Overview

    An indispensable combination tool, the Ocean Matrix 07HMHM0006 can serve as both an HDMI 4x4 matrix as well as a 10 mode video wall controller. It works perfectly in digital signage applications, conference rooms and learning center applications.

    Matrix Switch Mode
    It is the ideal HDMI distribution product with delivering seamless switching between any of 4 HDMI input sources to any or all 4 HDMI outputs simultaneously. The unit's inputs and outputs support up to 4K@60Hz 4:4:4 resolution, in addition to HDCP 2.2, and may be scaled to support 1080p.

    Video Wall Splicing Mode
    When operating as a video wall solution, the Ocean Matrix 07HMHM0006 will output resolution of 4K @ 60Hz for each display in typical splicing modes such as 4x2, 2x2, 1x4, 1x3 etc. for a total of 10 configurations. All adjustments to the system are made via an intuitive Web GUI. The unit has 12 factory defined EDID settings ensuring display compatibility will be seamless.

    Complete Control

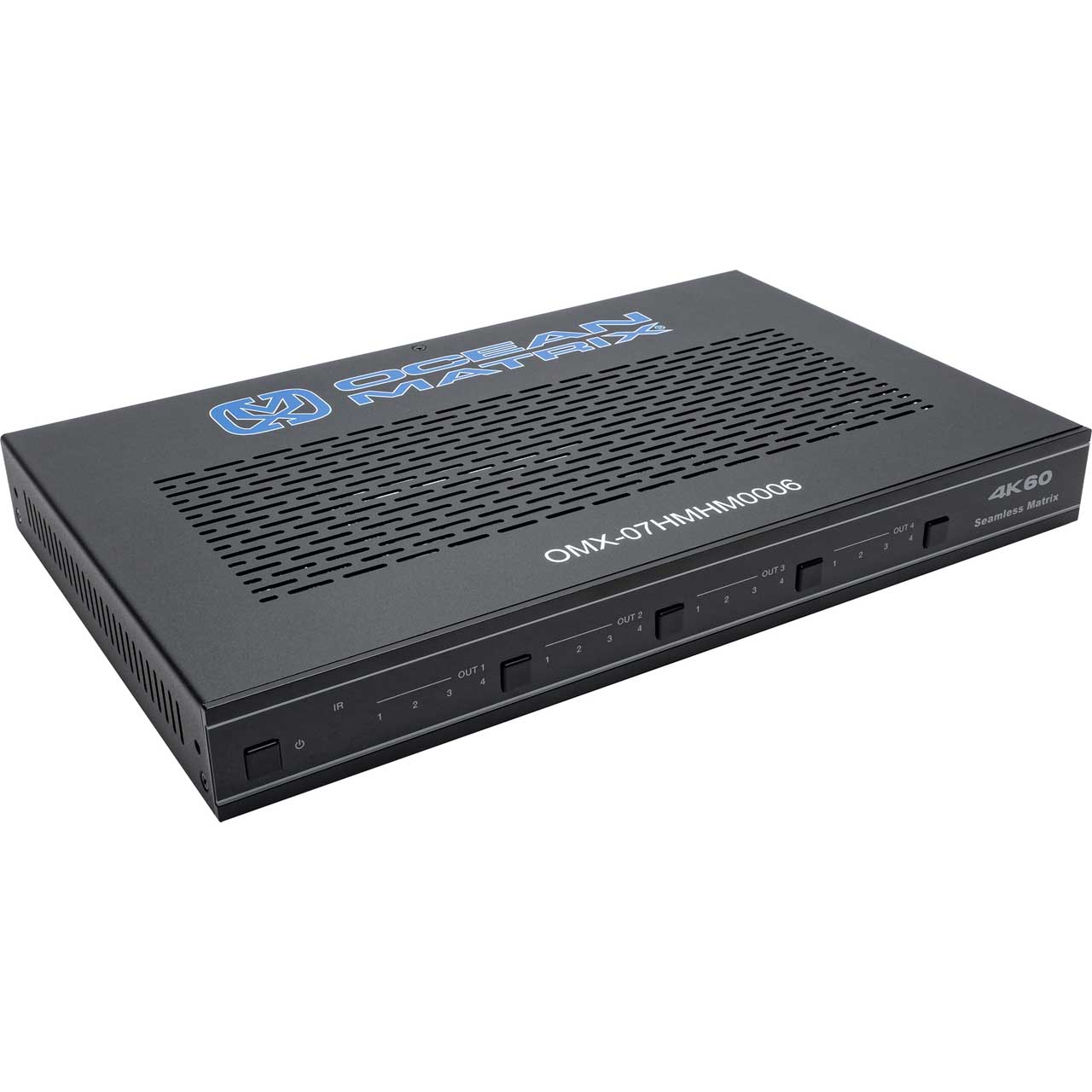

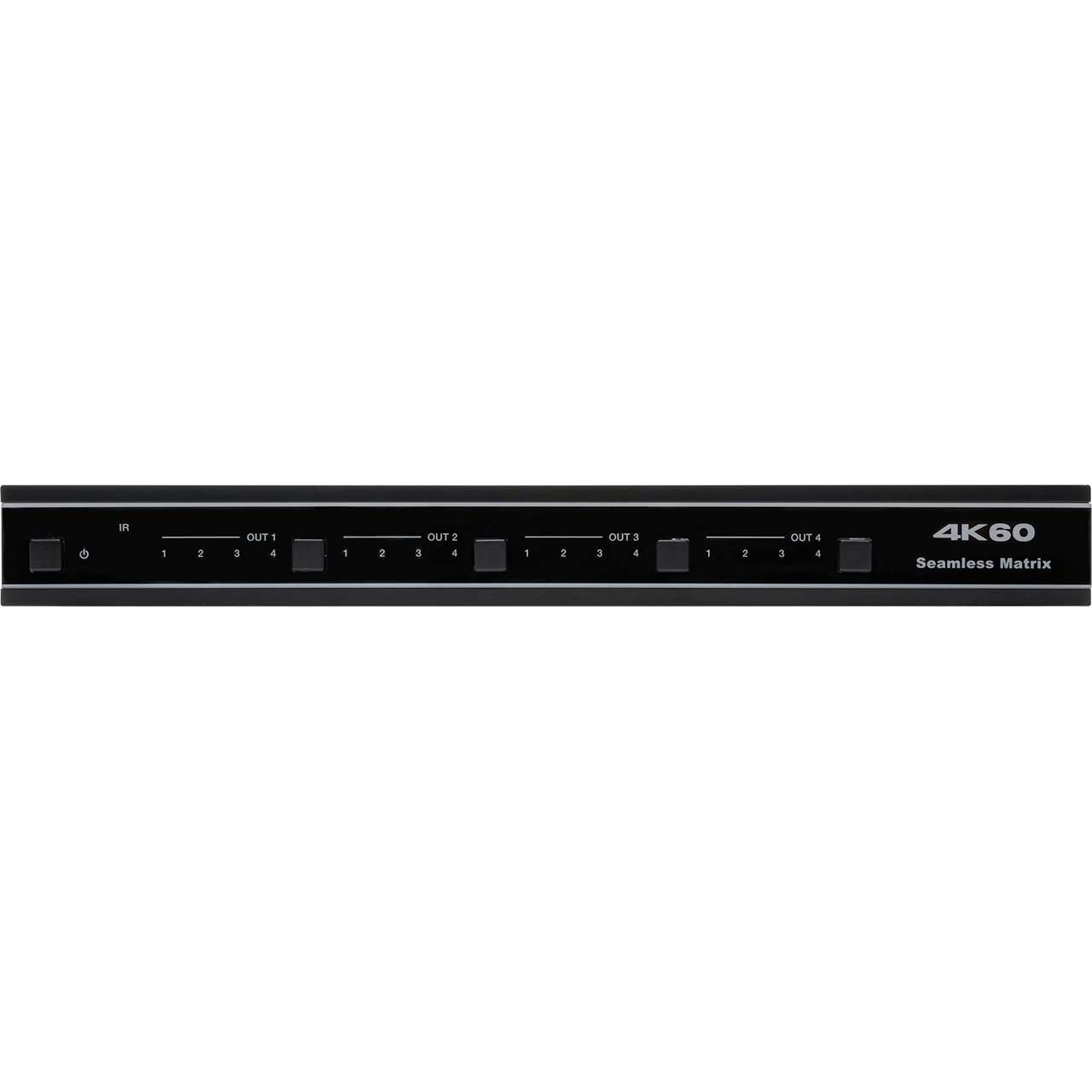

    The Ocean Matrix 07HMHM0006 features a web browser interface module for control and configuration of the matrix when used stand-alone or with a third-party control system. Control options include front-panel push buttons, IR remote control, RS-232 interface and TCP/IP.

    • Features:

      • HDMI 2.0b and HDCP 2.2 / 1.4 Compliant
      • Seamless Video Switching
      • Video Input Supports all Industry Standard Resolutions Including GA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840x2160 @60Hz 4:4:4, 4096x2160 @60Hz 4:4:4)
      • HDMI Output Supports Upscaling or Downscaling to any Resolution, up to 4096x2160@60Hz 4:4:4
      • Supports LPCM, DD, DD+, DTS, Dolby TrueHD, and DTS HD-master Audio
      • Built-In EDID Management
      • Control and Configure the Matrix Through the Web Interface Module
      • Control via Front Panel Buttons, Infrared Remote Control, RS-232 and TCP/IP

    • Specifications:

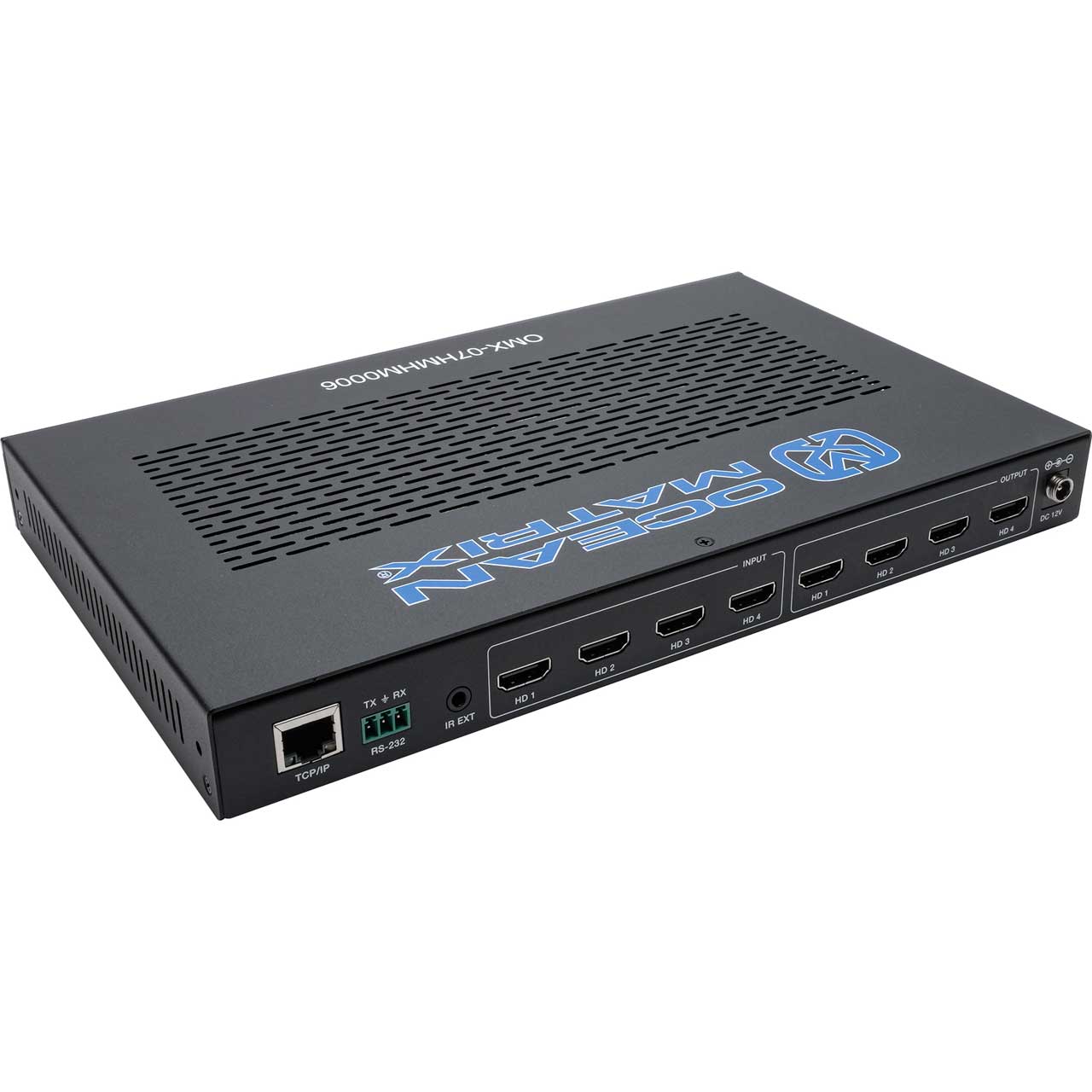

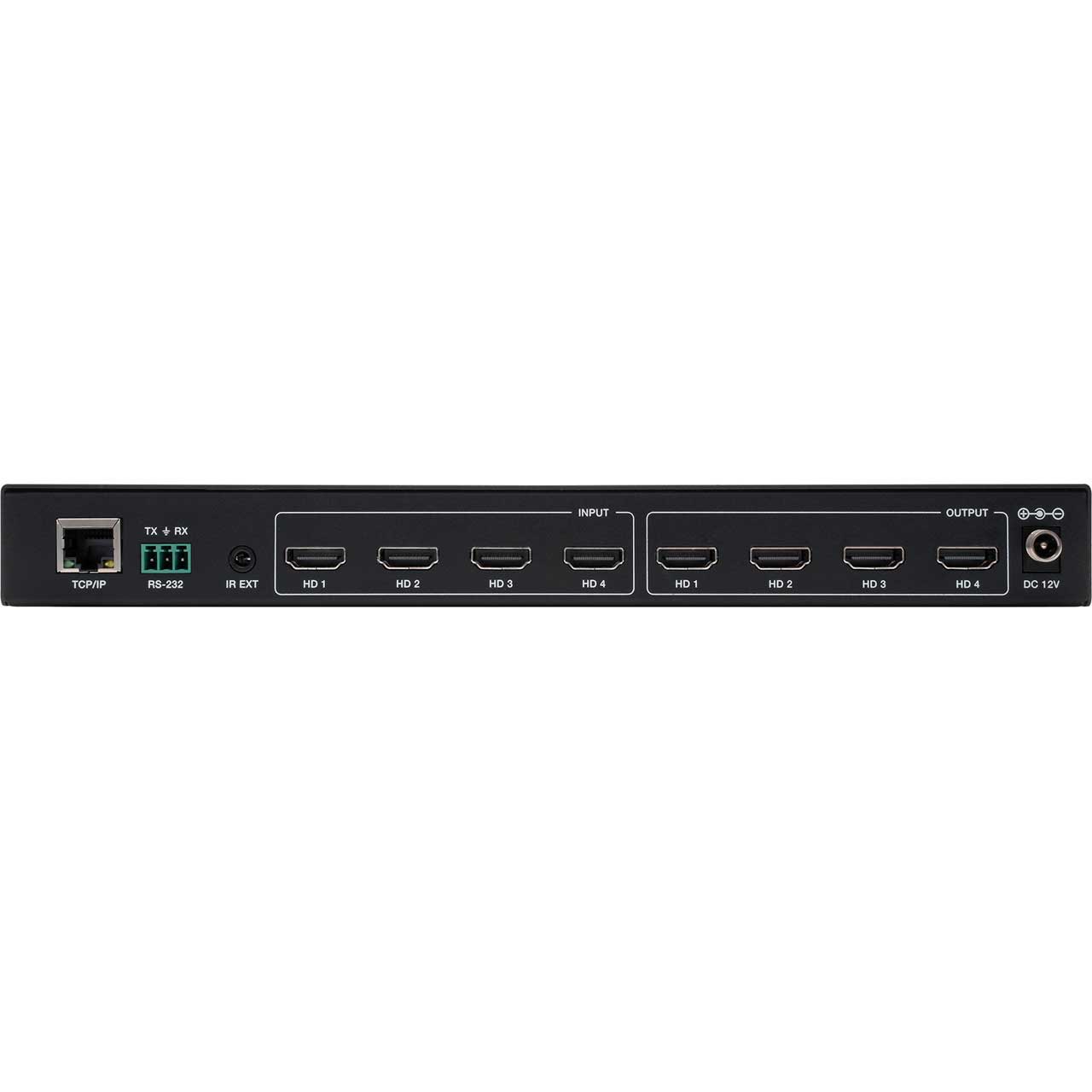

      • Inputs: 4 x HDMI Input (Type A, 19-pin Female)
      • Outputs: 4 x HDMI Output (Type A, 19-pin Female)
      • Control Interface: 1 x RS-232 (3-pin - 3.81mm Phoenix Terminal), 1 x TCP/IP (RJ45), 1 x IR EXT (3.5mm Stereo Mini Jack)
      • HDMI Compatibility: HDMI 2.0
      • HDCP Compatibility: HDCP 2.2 / HDCP 1.4
      • Video Bandwidth: 18Gbps
      • Video Resolution: Input: VGA-WUXGA (up to 1920x1200@60Hz), 480i-4K (3840x2160@60Hz 4:4:4, 4096x2160@60Hz 4:4:4) Output: 4096x2160p60, 4096x2160p50, 3840x2160p60, 3840x2160p50, 3840x2160p30, 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1920x1200p60rb, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60, auto
      • Color Space: RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit
      • HDMI Audio Format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
      • Dimensions (LxWxH): 10.625 x 6.5 x 1.192in
      • Weight: 2.625lbs (1189g)
      • Power Supply: AC 100~240V 50/60Hz
      • Power Consumption: 19.56W
      • Operating Temperature: 32-104°F (0-40°C)
      • Storage Temperature: 32 - 104°F (0 - 40°C)

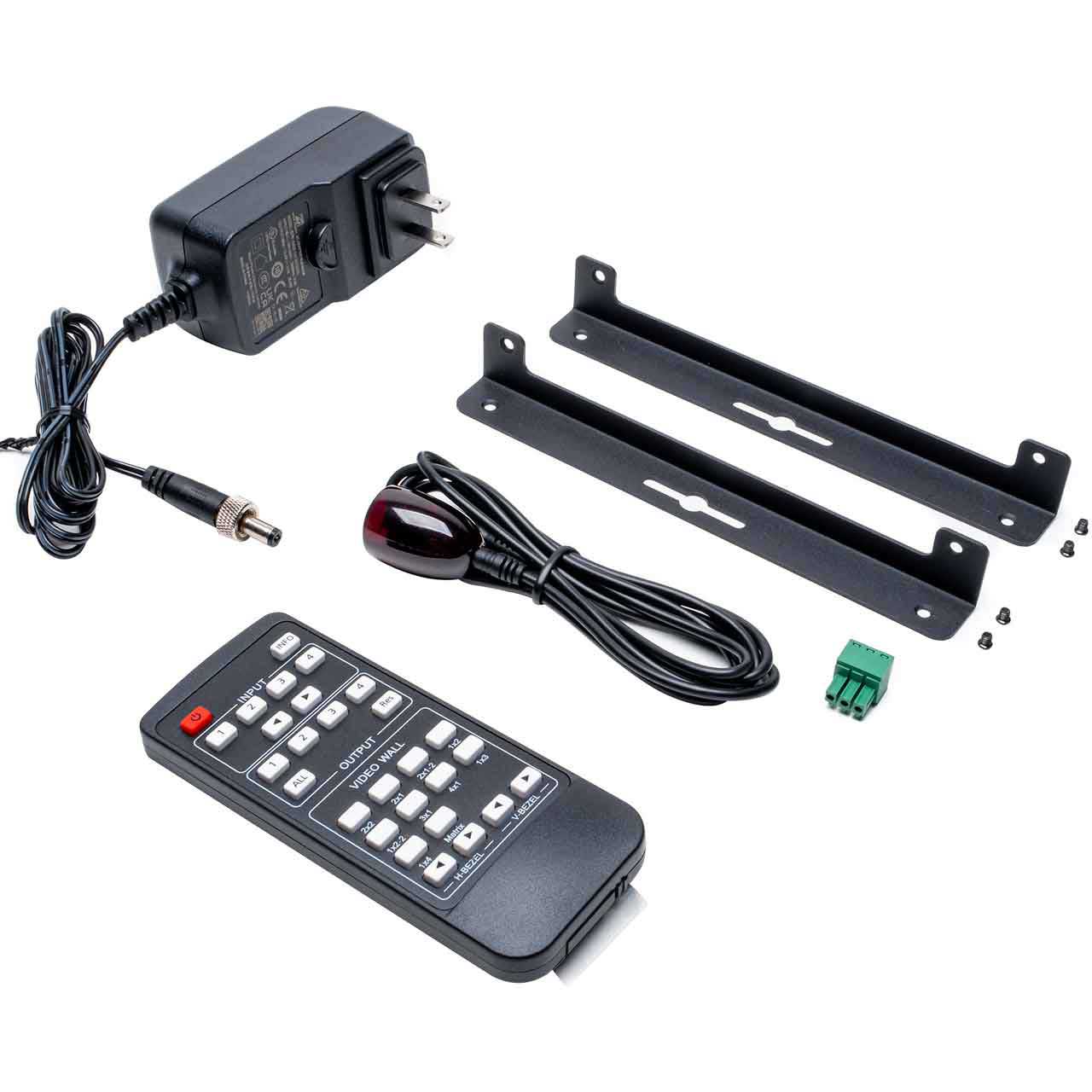

    • Item Includes:

      • 1 x OMX-07HMHM0006
      • 1 x Matrix IR Remote
      • 1 x 3pin-3.81mm Phoenix Connector (male)
      • 1 x 20-60KHz IR Wideband Receiver Cable (1.5 meters)
      • 2 x Mounting Ears
      • 4 x Machine Screws (KM3*4)
      • 1 x 12V/2.5A Locking Power Adapter

    • Warranty:

      • 1 Year
