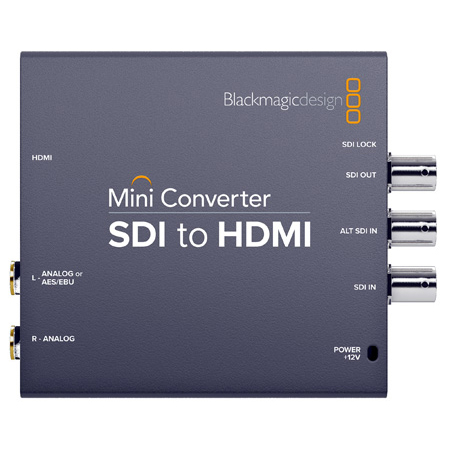

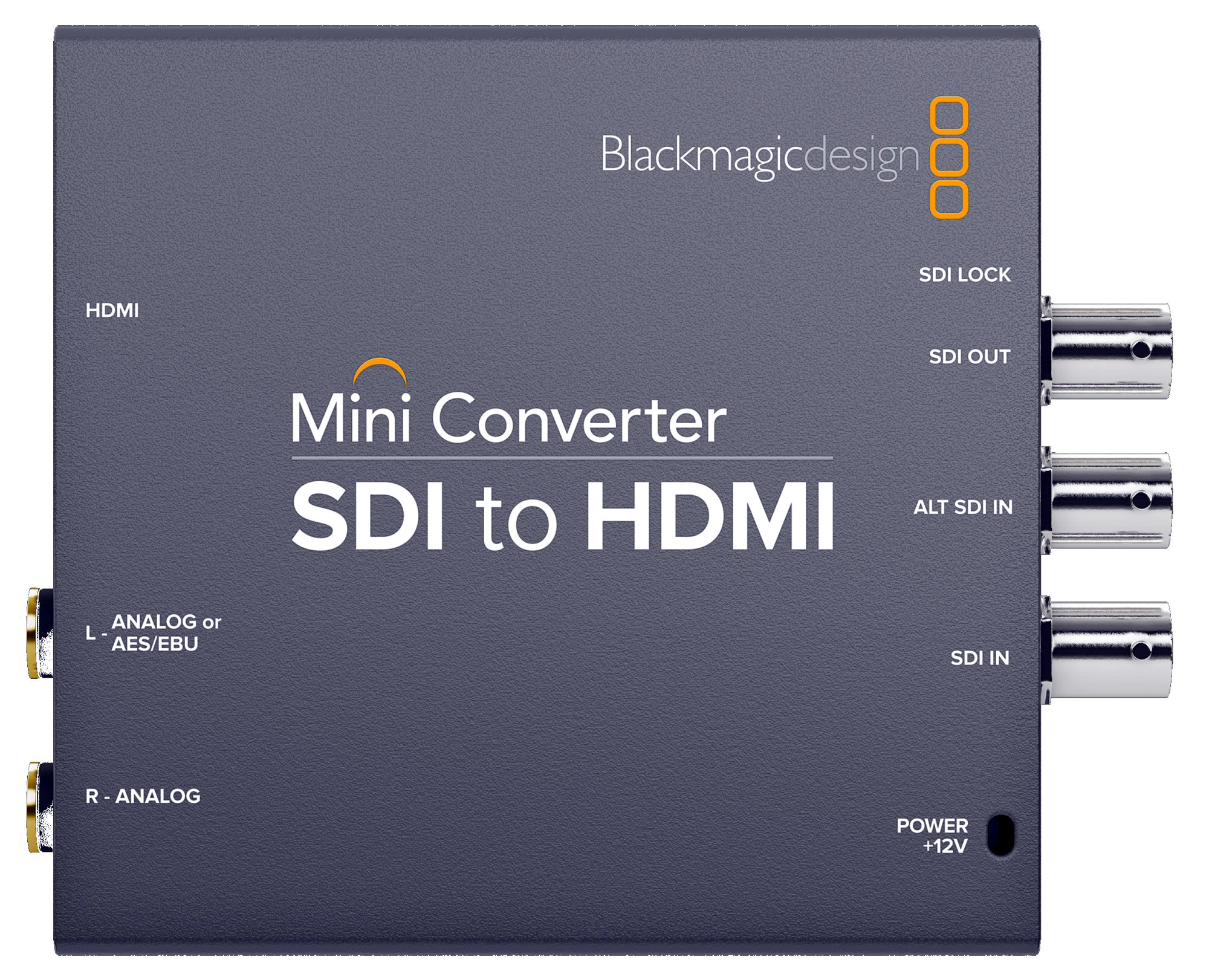

Blackmagic CONVMBSH Switchable 3G / HD / SD SDI to HDMI Mini Converter

Manufacturer: Blackmagic Design

Item #: BMD-CONVMSH   •   MFG #: BMD-CONVMBSH



This item is no longer available. Please email or call us and we we'll be happy to help you with an appropriate substitute.




Share!





The SDI to HDMI Mini Converter from Blackmagic will accept an SDI signal and convert it to an HDMI output. You can also choose to de-embed SDI audio to balanced AES/EBU or analog audio outputs. Use this device to connect SDI-based equipment to big-screen televisions, video projectors, and other HDMI displays.

Auto Switching SD and HD
Mini Converters instantly switch between standard definition and high definition video formats and changeover is automatic when the video input changes. A huge range of video standards are supported including, NTSC, PAL, 1080i/59.94, 1080i/50, 1080psf/23.98, 1080psf/24, 720p/59.94 and 720p/50 formats, plus new formats can be added via USB.

Redundant SDI Input
Mini Converters feature a unique redundant input for mission critical tasks such as broadcast or live events. You can connect a redundant cable to the second input, so if the main input is lost due to cable damage or any other cause, the Mini Converter will automatically switch over to the redundant input cable.

New 3 Gb/s SDI Technology
Only Mini Converters include the latest 3 Gb/s SDI technology and upgrades can be loaded via the built in USB connection for future video format compatibility. 3 Gb/s SDI is also fully compatible with all your standard definition and high definition SDI equipment.

Built in AES/EBU or Analog Audio
Standard 1/4" jacks are built in for balanced analog or AES/EBU audio. Because Mini Converters use standard 1/4" jack connectors for all audio connections, you can use standard cables commonly available from any pro audio store. Unlike other converters, Mini Converters don't need custom cables, as any balanced 1/4" jack cable can be used. Mini Converters are also unique as the same 1/4" jack connections can be switched between professional balanced analog audio or AES/EBU digital audio.

High Quality
Mini Converters are built to highest quality standards with low SDI jitter so you get the longest SDI cable lengths combined with multiple internal power supplies for ultra low noise broadcast-quality analog video and audio. Unlike other converters, Mini Converters don't use "low grade" video electronics just to save cost. Mini Converters feature the highest-grade broadcast quality analog audio and video electronics.

International Power Supply
Unlike other converters, a universal power supply is included with international socket adapters for all countries. This lets you take Mini Converters with you to any location worldwide, and plug directly into the local power sockets. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight!


  • Features

    • SDI to HDMI Conversion
    • Outputs Embedded HDMI Audio
    • Balanced AES/EBU or Analog Audio

  • Specifications

    • Input: (1) SDI (switchable between SD, HD & 3Gbs SDI), (1) SDI redundant input.
    • Output: (1) HDMI, (1) SDI (switchable between SD, HD & 3Gbs SDI).
    • Audio
    • Analog: (2) channels of professional balanced analog with standard 1/4" jack connections
    • Digital: (2) channels of professional balanced digital with standard 1/4" jack connections, AES/EBU standard.
    • Power: 12VDC.
