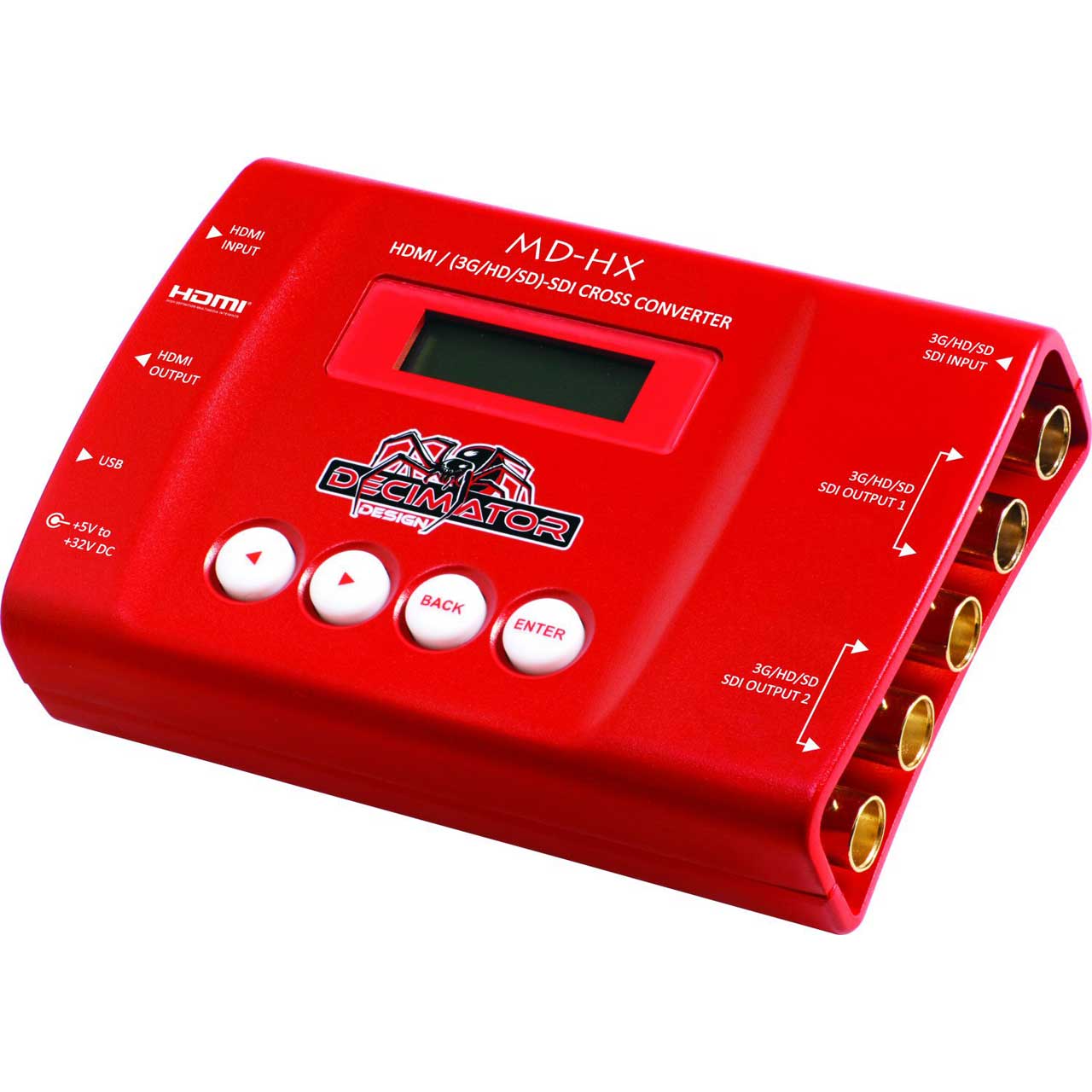

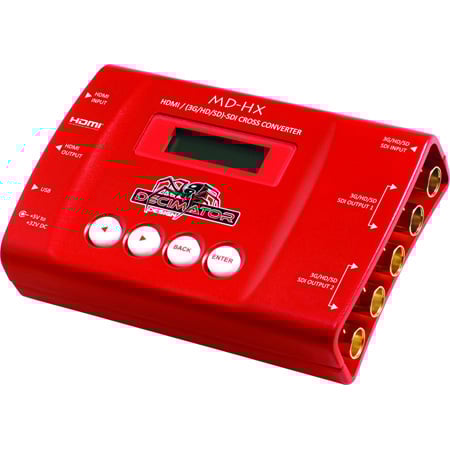

Decimator Design MD-HX Mini 3G/HD/SD-SDI to HDMI Cross Converter with Scaling & Frame Rate Conversion

ITEM #: DEC-MD-HX MFG #: MD-HX

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$295.00

Availability: In Stock
iAvailability Description Popup


    MD-HX - Overview

    Several converters for the price of one!

    The Decimator Design MD-HX is a miniature (3G/HD/SD)-SDI / HDMI Cross Converter with Scaling and Frame Rate Conversion. The MD-HX includes the same Down Up Cross Converter as Decimator's multi award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

    The unit also includes FOUR 3G/HD/SD-SDI outputs that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2. The audio pairs in the SDI and HDMI outputs can be rearranged as required.

    The MD-HX is a truly portable converter, that incorporates the new, easy to use, LCD and button control system. The days of having to play with annoying dip switches or having to carry around a computer to change a simple setting are gone. With the LCD Control System you have easy access to all the amazing features that until now have been inaccessible without bringing a computer.

    • Features:

      • Supports both 3G level A and B on the input and output. Allowing conversion between A and B.
      • Horizontal and/or Vertical image flipping via the built in scaler.
      • Combines several converters for the price of one (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)
      • Robust Aluminium Case with easy to use LCD and button control system.
      • 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2.
      • The audio pairs in the SDI and HDMI outputs can be rearranged as required.
      • Includes the same Down Up Cross Converter from our multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.

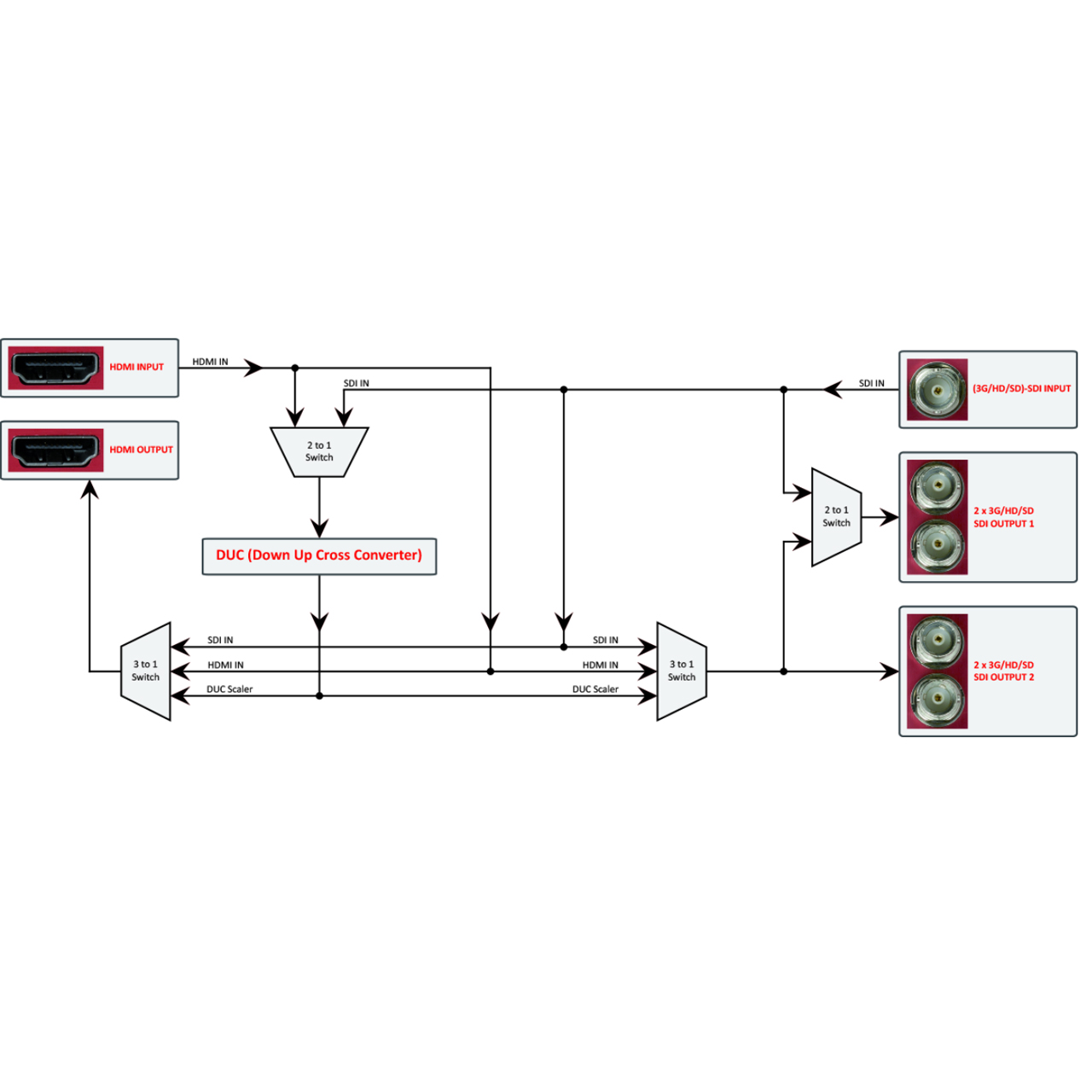

        Features the following 14 modes:
      • 1. SDI IN to HDMI and SDI OUT
      • 2. SDI IN to SDI OUT and HDMI IN to HDMI OUT
      • 3. SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
      • 4. SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
      • 5. HDMI IN to SDI OUT and SDI IN to HDMI OUT
      • 6. HDMI IN to HDMI and SDI OUT
      • 7. HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
      • 8. HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
      • 9. Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
      • 10. Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
      • 11. Scaled SDI IN to HDMI and SDI OUT
      • 12. Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
      • 13. Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
      • 14. Scaled HDMI IN to HDMI and SDI OUT

    • Specifications:

      • SDI FORMATS
      • 3G:
      • SMPTE [email protected] and 2.967Gb/s
      • 1080p@60/59.94/50Hz
      • HD:
      • SMPTE 292M/274M/[email protected] and 1.435Gb/s
      • 1080i@60/59.94/50Hz
      • 1080p/psf@30/29.97/25/24/23.98Hz
      • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
      • SD:
      • SMPTE 259M@270Mb/s
      • 625i50
      • 525i59.94

        INPUTS
      • 1 x HDMI input
      • 1 x (3G/HD/SD)-SDI input

        OUTPUTS
      • 1 x HDMI
      • 2 x (3G/HD/SD)-SDI Active Loop-through or addition outputs
      • 2 x (3G/HD/SD)-SDI outputs

        LCD / BUTTON MENU OPTIONS
      • SDI output source from HDMI IN, SDI IN, Scaler
      • SDI output 1 is loop
      • HDMI output type and source from HDMI IN, SDI IN, Scaler
      • Scaler source, reference, format and Aspect Controls
      • Audio pair routing for HDMI and SDI output
      • LCD backlight off time
      • Back to Status time

        POWER
      • +5V to +32V DC
      • Positive Center Pin

    • Item Includes:

      • 1x MD-HX Converter
      • 1x Power Supply
      • 1x HDMI Cable
      • 1x USB Cablee

    • Warranty:

      • 3 years

    • GTIN:

      5060417390007
