Blackmagic Design CONVBDC/SDI/HDMI12G/P Micro Converter BiDirect SDI/HDMI 12G w/ PSU

ITEM #: BMD-CVBDCSDHD12P MFG #: CONVBDC/SDI/HDMI12G/P

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$179.00

Availability: In Stock
iAvailability Description Popup


    CONVBDC/SDI/HDMI12G/P - Overview

    The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies! Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications, and can be updated to new standards in the future.

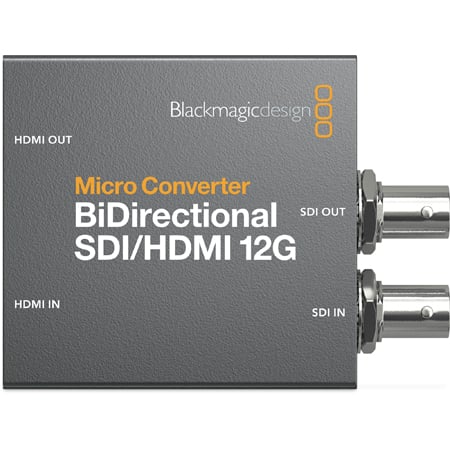

    The CONVBDC/SDI/HDMI12G/P model can convert in both directions, in different standards at the same time! You can convert SDI to HDMI and HDMI to SDI simultaneously. Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers!

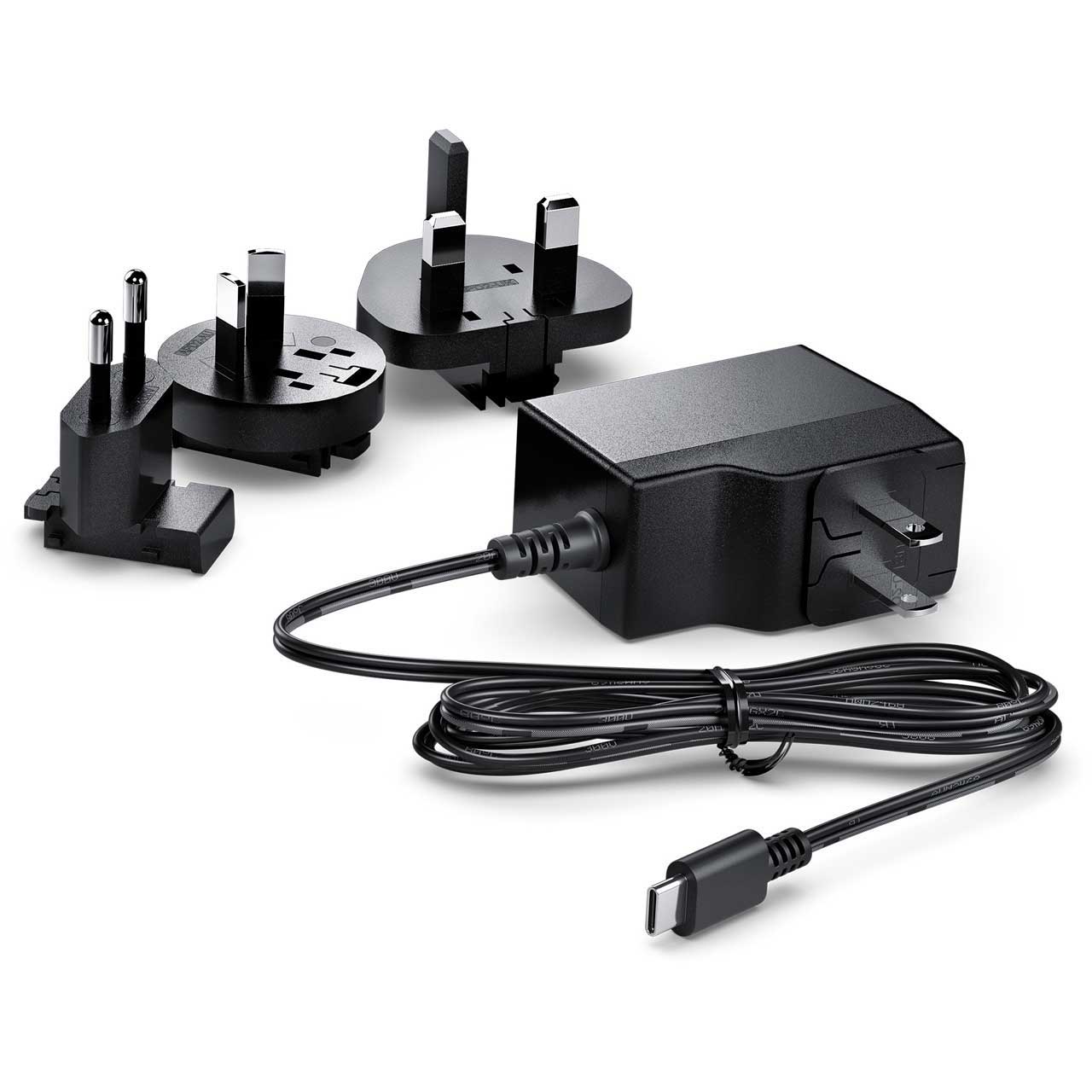

    Includes AC power supply with international socket adaptors.

    Use Anywhere
    Blackmagic Micro Converters are so small you can use them anywhere! That means it's always easy to keep a few available for any urgent conversion task! Because they are extremely high quality, you can trust them for all kinds of broadcast, live production and on set use. Use them to turn any computer display, television or video projector into a high quality color calibrated broadcast monitor. They're also perfect for converting the HDMI outputs of computers and consumer video cameras to high end SDI equipment. Imagine using a slide show running on a computer for high end broadcast quality titles in live production! You could even use them for extending HDMI long distances using SDI.

    Miniaturized Design
    Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into an incredibly strong metal enclosure. Each converter has the highest quality broadcast industry standard SDI and HDMI connectors. Blackmagic Micro Converters include a USB connection for power, as well as for changing settings via the converter utility on Mac and Windows. Because the USB powers the converter, you can even power it from televisions or laptop computers. There are even LEDs for status. You can also buy Blackmagic Micro Converters with an AC power supply including 4 adapters for international use.

    Broadcast Quality
    Unlike cheap converters, Blackmagic Micro Converters include the highest quality signal processing and deep bit depth video pipeline. Micro Converters have been engineered with precision electronics so you get very low SDI jitter, allowing you to extend SDI cables over long distances. That's vital for live production where equipment such as cameras can be a long distance from switchers. Blackmagic Micro Converters work with both 8 and 10-bit video formats, in RGB or YUV, and in all SD, HD and Ultra HD formats, depending on the model, up to 2160p60. They even support 1080p24, 1080p47.95, 1080p48, 4Kp24, 4Kp47.95 and 4Kp48 film rates! Plus you get fully embedded audio and timecode support.

    Update and Change Settings!
    You can also change settings and update the converter software with the free converter utility that can be downloaded from the Blackmagic Design web site. This software connects to the USB connection on the Micro Converters and runs on both Mac and Windows computers. You can use the utility to change the converter name, which can be useful for identifying which converter is used for which task! When using the bidirectional converter, you can even set the camera number, so the converter knows when it's being controlled from a live production switcher. You can also select between level A and level B when working with 3G-SDI video standards.

    • Features:

      • Use Anywhere
      • Convert HDMI Cameras to Professional SDI
      • Miniaturized Design
      • Broadcast Quality
      • Update and Change Settings!
      • Monitoring with 3D LUTs
      • Latest HDR Support
      • Convert with Camera Control
      • Includes HDMI Timecode Support
      • SDI Re-clocking
      • Wider Range of SD and HD Video Standards
      • Get Ultra HD and 4K with 12G-SDI Models
      • USB or AC Power

    • Specifications:

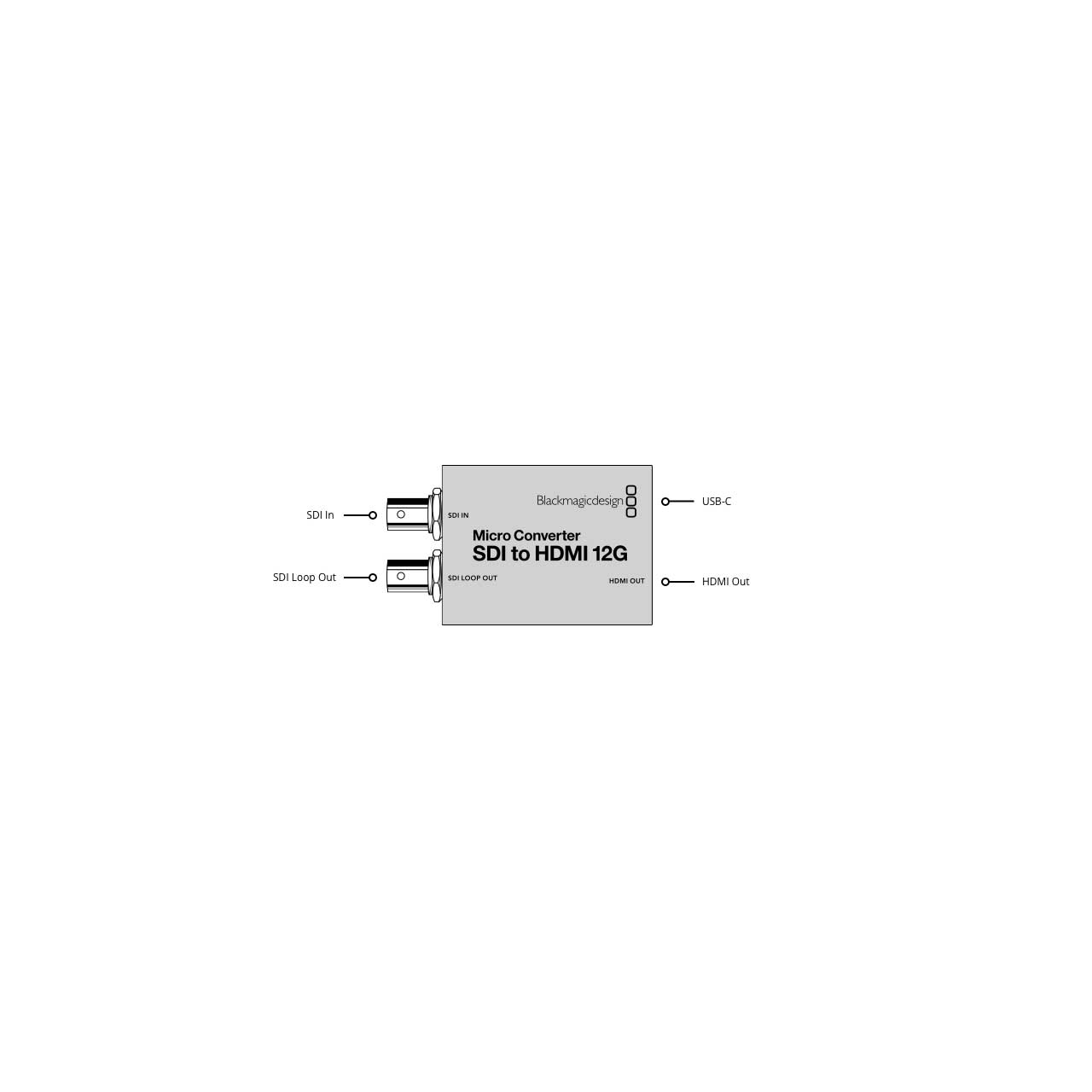

      • Connections
      • SDI Video Inputs: 1
      • SDI Video Outputs: 1 x loop out
      • HDMI 2.0 Video Outputs: 1 x type A
      • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
      • Multi Rate Support: Auto detection of SD, HD, 2K, Ultra HD and 4K.
      • Updates, Configurations and Power: USB Type-C.

        Standards
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards:
        720p50, 720p59.94, 720p60
        1080p23.98, 1080p24, 1080p25,
        1080p29.97, 1080p30, 1080p47.95,
        1080p48, 1080p50, 1080p59.94,
        1080p60
        1080PsF25, 1080PsF29.97, 1080PsF30
        1080i50, 1080i59.94, 1080i60
      • 2K Video Standards:
        2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI,
        2Kp29.97 DCI, 2Kp30 DCI,
        2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI,
        2Kp59.94 DCI, 2Kp60 DCI
        2KPsF25 DCI, 2KPsF29.97 DCI,
        2KPsF30 DCI
      • Ultra HD Video Standards:
        2160p23.98, 2160p24, 2160p25,
        2160p29.97, 2160p30, 2160p47.95,
        2160p48, 2160p50, 2160p59.94,
        2160p60
      • 4K Video Standards:
        4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI,
        4Kp29.97 DCI, 4Kp30 DCI,
        4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI,
        4Kp59.94 DCI and 4Kp60 DCI.
      • SDI Compliance
        SMPTE 259M, SMPTE 292M,
        SMPTE 296M, SMPTE 424M,
        SMPTE 425M, SMPTE 2081-1,
        SMPTE 2081-10, SMPTE 2082-1,
        SMPTE 2082-10, SMPTE 2084 and
        SMPTE 2108-1
      • HDMI Video Standards
        525i59.94 NTSC, 625i50 PAL
        720p50, 720p59.94, 720p60
        1080p23.98, 1080p24, 1080p25,
        1080p29.97, 1080p30, 1080p47.95,
        1080p48, 1080p50,
        1080p59.94, 1080p60
        1080i50, 1080i59.94, 1080i60
        2160p23.98, 2160p24, 2160p25,
        2160p29.97, 2160p30, 2160p47.95,
        2160p48, 2160p50,
        2160p59.94, 2160p60
        4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI,
        4Kp29.97 DCI, 4Kp30 DCI,
        4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI,
        4Kp59.94 DCI and 4Kp60 DCI.
      • HDMI Color Precision: 4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving
        monitor color.
      • HDMI Color Space: YUV

    • Item Includes:

      • 1x Micro Converter SDI to HDMI 12G w/PSU

    • Warranty:

      • 3 Year Limited Manufacturer's Warranty

    • GTIN:

      9338716007053
