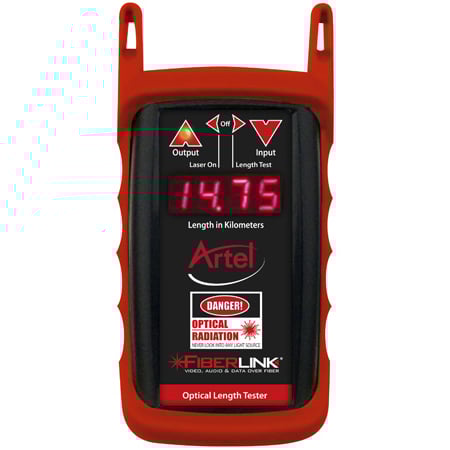

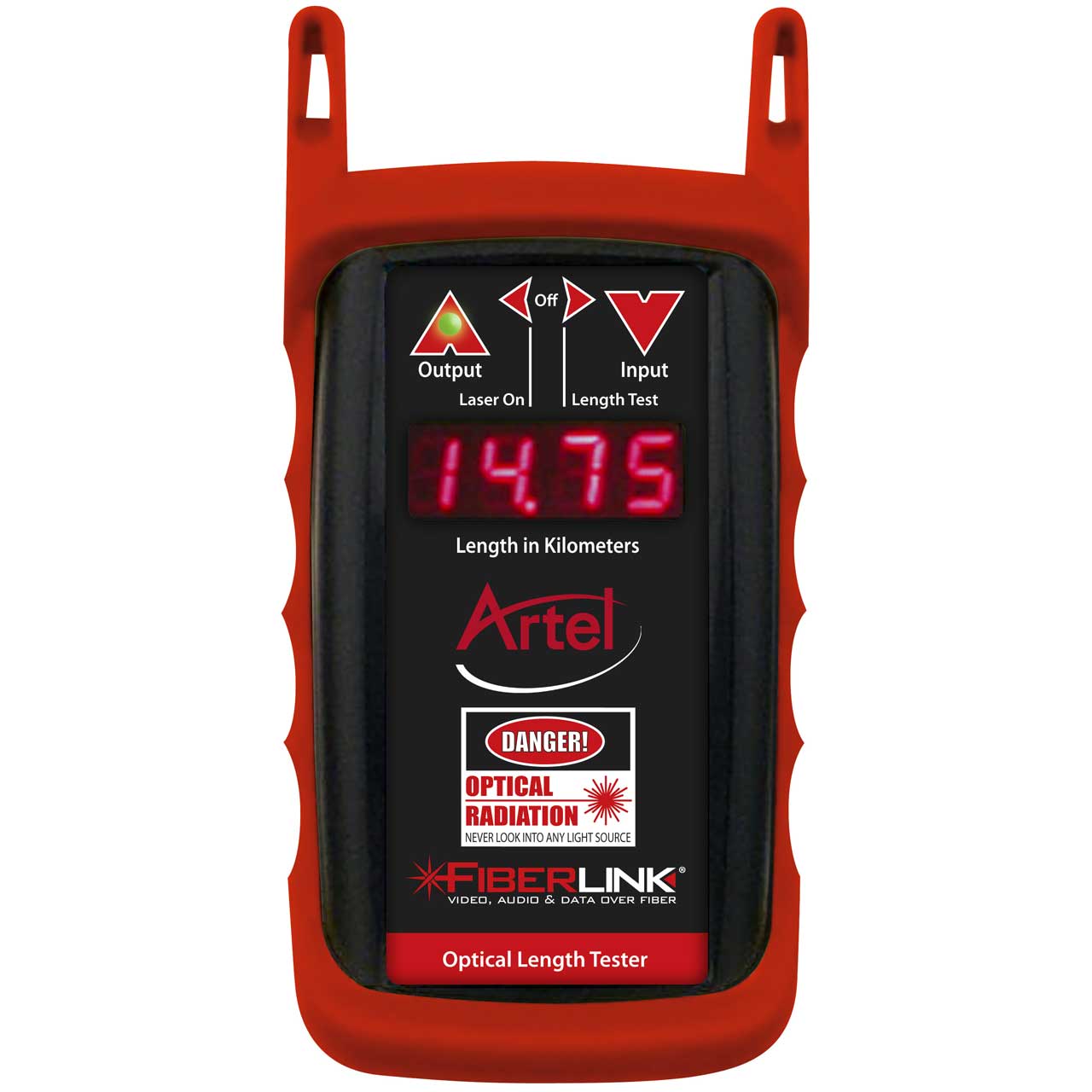

Artel FiberLink 6658 Fiber Cable Distance Measurement Set

ITEM #: CSI-6658 MFG #: 6658

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,083.50

Our Price:

$1,069.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    6658 - Overview

    Fiberlink 6658 Optical Length Tester offers a unique, low-cost alternative for users who need to measure the length of optical fibers. Rather than purchase certification test sets that can cost thousands of dollars, the Fiberlink 6658 Optical Length Tester can be added to an installer’s existing fiber test kit.

    These length testers use a "round-robin" method of measuring fiber length. This is accomplished by looping back two fibers at one end of the fiber run with a patch cord. The round trip time that the light takes to travel through both fibers is converted to length in kilometers, then divided by two to show the length of the fiber cable. There is no need to measure the length of all the fibers; the length measurement can be applied to all fibers in the cable. This method of length testing provides accurate measurements, and saves time and money.

    Measuring fiber by the jacket is an accepted method of measurement; however, there are many scenarios where this may not be valid. Length markings may be hard to reach if they are already terminated in a patch panel. Fiberlinks may also go through multiple cross-connects or have splices in the middle, thereby making jacket markings invalid. Optical measurement of fiber produces accurate results without the need for jacket markings.

    Optical measurement also saves time by eliminating the need to estimate the length of the fiber run with a measuring wheel. This method is especially troublesome and inaccurate in networks that traverse walls, are in a star topology, or contain riser cables.

    The Fiberlink 6658 Optical Length Tester uses a 1310nm infrared laser that can measure fiber links of up to 25 kilometers, is accurate to within ±2.5 meters.

    • Features:

      • Can be used as a fiber optic power source
      • Extended battery life - up to 10 hours on one 9V battery
      • Comes equipped with a rugged and durable rubber boot to protect the instrument from drops and other hazards
      • Optional ruggedized carrying cases available to accommodate 3 or 6 test devices

    • Specifications:

      • Launch Method: FP Laser
      • Output Power: 0.1 milliwatts
      • Resolution: up to 0.001 kilometers
      • Accuracy: ± 2.5 meters
      • Measurement Range: 25 kilometers
      • Battery Life: 10 hours
      • Operating Temperature: 0 - 55§ C
      • Low Battery Indicator: Yes
      • Connector Style: ST
      • Dimensions: 2.75" x 4.94" x 1.28"
      • Weight (with battery): 154 grams

    • Item Includes:

      • One Fiberlink 6658
      • User's Manual
      • One Non-Rechargeable Lithium Battery (Pre-installed in unit)
