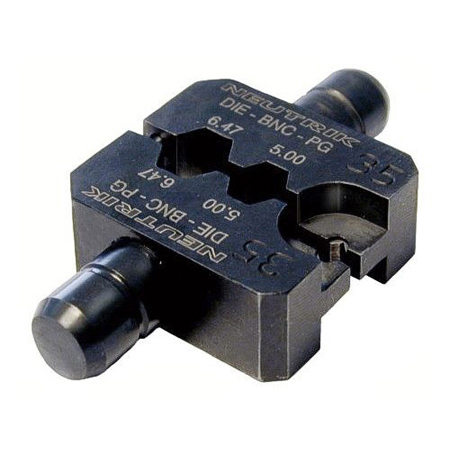

Pin crimping: 1.6 mm
Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)
Crimp size 5.00, 6.47 Hex crimp (shield) acc. MIL22520/5-43(B), IEC 60803 (die designation E)
Crimp size 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
PLEASE NOTE; The Neutrik HX-BNC CrimpTool has been discontinued and is no longer available. The Dies are still available for this tool!
